FAMILIARISATION
9
INSTRUMENTS AND CONTROLS
1. Audio equipment controls.
2. Telephone controls.
3. Steering wheel adjustment control.
4. Front and rear wipers/wash-wipe
control.
5. Instrument panel.
6. Driver's air bag.
Horn.
7. Cruise control switches.
8. Gear lever.
9. Handbrake.
10. B o n n e t r e l e a s e .
11. Enclosed storage compartment.
12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking assistance.
13. Cup holder.
14. Side adjustable and closing vent.
15. Information button.
16. Window de-icing and demisting
vent.
17. Windscreen de-icing vent.
Page 11 of 226
FAMILIARISATION
14
SEEING CLEARLY
Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
Front fog lamps and rear fog
lamps.
84
88
89
Lights off.
Automatic switching on of the
lights.
Side lights.
Dipped or main beam head-
lamps.
Single wipe.
Park.
Intermittent (speed which can
be adjusted manually).
Slow.
Fast. Park.
Intermittent wipe.
Wiping with screen wash.
Page 95 of 226
4
i
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
Daytime lights *
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
The sensitivity of the automatic
l i g h t i n g c a n b e c o n fi g u r e d v i a
the colour display "Equipment"
menu.
Page 96 of 226
4
i
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
Daytime lights *
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
The sensitivity of the automatic
l i g h t i n g c a n b e c o n fi g u r e d v i a
the colour display "Equipment"
menu.
Page 98 of 226
4
i
VISIBILITY

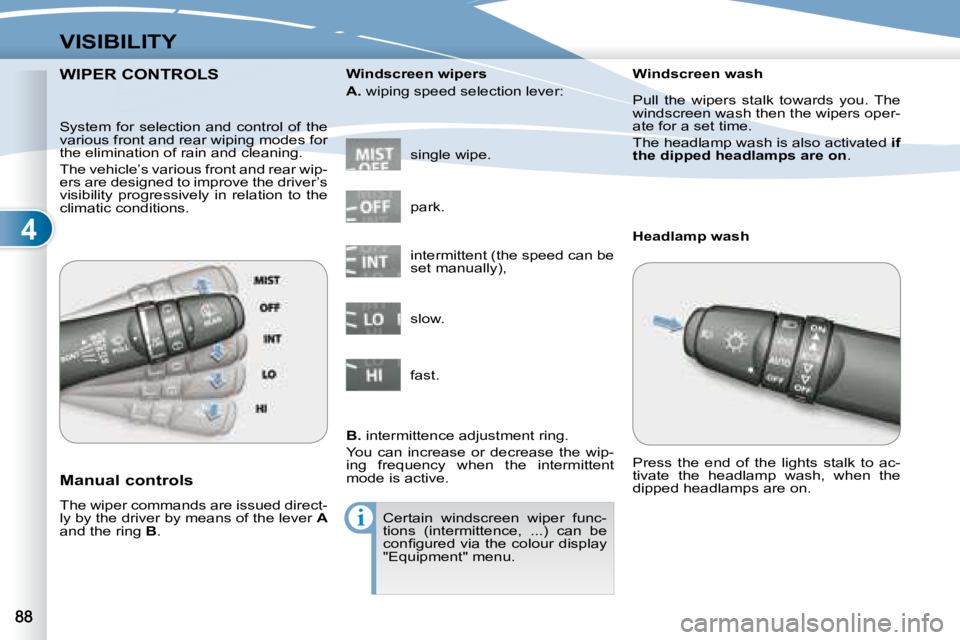

WIPER CONTROLS WIPER CONTROLS
