11
180
PRACTICAL INFORMATION Table of mini and midi-fuses above the battery
Table of maxi-fuses
Fuse N° Rating Functions
F1 15 A G e a r b o x ( p i l o t e d m a n u a l o r a u t o m a t i c ) .
F2 15 A Diagnostic socket, daytime lights.
F3 5 A Dual-function brake switch.
F4 - Not used.
F5 * 80 A Power steering electropump assembly.
F6 * 70 A Heating unit (Diesel).
F7 * 100 A Switching and protection unit.
F8 - Not used.
F9 * 30 A P i l o t e d m a n u a l g e a r b o x e l e c t r o p u m p a s s e m b l y .
F10 * 30 A Valvetronic electric motor (1.6 l THP 16V).
Fuse N° Rating Functions
MF1 * 50 A Fan assembly.
MF2 * 50 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF3 * 80 A Built-in systems interface.
MF4 * - Not used.
MF5 * 50 A ABS/ESP control unit.
MF6 * 30 A ABS/ESP control unit.
MF7 * 80 A Built-in systems interface.
MF8 * - Not used.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l protection for the electrical systems. A l l w o r k o n t h e m a x i - f u s e s m u s t b e carried out by a PEUGEOT dealer.
Page 180 of 260
11
!i
184
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the cov-
er by pressing at the bottom.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
On the rear bumper, unclip the cov-
er by pressing at the bottom.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
To gain access to it:
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the shelf support,
remove the polystyrene storage
b o x ,
remove the towing eye from the
holder. When towing with all four wheels on
the ground, always use a towbar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the piloted manual
g e a r b o x o r a u t o m a t i c g e a r b o x ) .
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d .
Procedure for having your vehicle towed
or for towing another vehicle using a
removable towing eye.
Page 181 of 260
11
!i
185
PRACTICAL INFORMATION
TOWING THE VEHICLE
Procedure for having your
vehicle towed or for tow-
ing another vehicle using a
removable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the cov-
er by pressing it on the left.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing it on the left.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the left-
hand side trim of the boot.
To gain access to it:
open the boot,
o p e n t h e a c c e s s fl a p i n t h e l e f t - h a n d
side trim,
remove the wheelbrace from its sup-
port,
remove the towing eye from the
same support. When towing with all four wheels
on the ground, always use a tow-
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) .
Failure to observe this special con-
dition could result in damage to
certain braking components and
the absence of braking assistance
t h e n e x t t i m e t h e e n g i n e i s s t a r t e d .
Page 230 of 260
233
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 #
ESC
MENU LIST
ESC
MENU LIST
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
r
7
pq s
0 #
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
r
7
pq s
0 #
11
22
33
44
55
66
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
r
7
pq s
0 #2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
r
7
pq s
0 #
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
r
7
pq s
0 #
06 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the superimposed telephone menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
DIAL
Press the end of the steering wheel stalk for more than 2 seconds to access the telephone menu: c a l l s l o g , d i r e c t o r y , v o i c e m a i l b o x .
Page 232 of 260
235
07
RADIO: selection of the previous stored station. MP3/JUKEBOX: selection of the previous directory. CD CHANGER: selection of the previous CD. Selection of the previous item on a menu.
R A D I O : s e l e c t i o n o f t h e n e x t s t o r e d s t a t i o n . M P 3 / J U K E B O X : s e l e c t i o n o f t h e n e x t d i r e c t o r y . C D C H A N G E R : s e l e c t i o n o f t h e n e x t C D . S e l e c t i o n o f t h e n e x t i t e m o n a m e n u .
RADIO: automatic search for a higher frequency. CD/MP3/JUKEBOX/CD CHANGER: selection of the n e x t t r a c k . CD/CD CHANGER: continuous press: fast forwards play.
RADIO: automatic search for a lower frequency. CD/MP3/JUKEBOX/CD CHANGER: selection of the previous track. CD/CD CHANGER: continuous press: fast backwards play.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
Volume increase.
Volume decrease.
CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
Page 249 of 260
249
11
22
33
11
22
5511

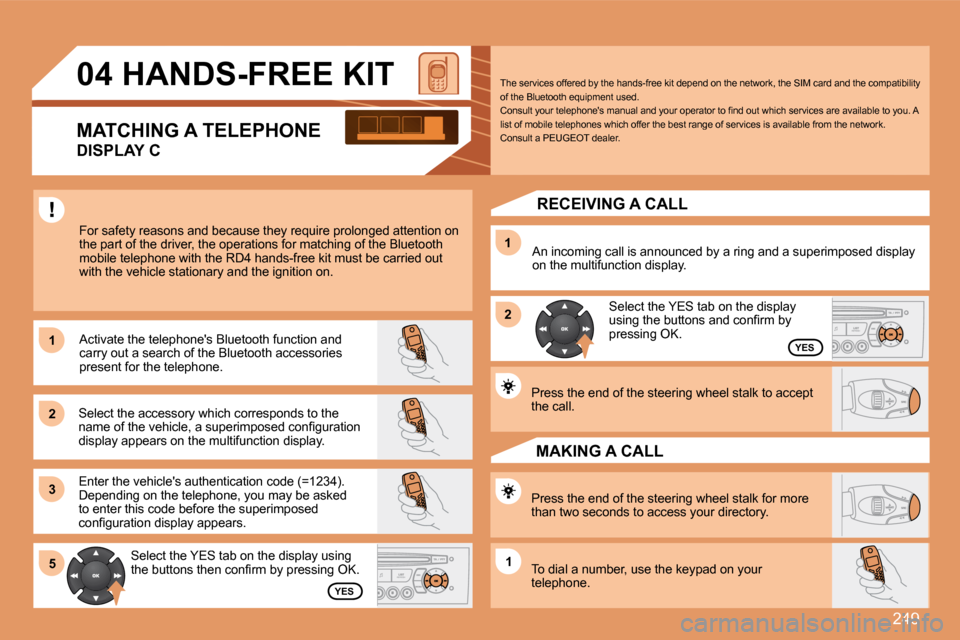

04 HANDS-FREE KIT
For safety reasons and because they require prolonged attention on the part of the driver, the operations for matching of the Bluetooth mobile telephone with the RD4 hands-free kit must b e carried out with the vehicle stationary and the ignition on.
Select the accessory which corresponds to the n a m e o f t h e v e h i c l e , a s u p e r i m p o s e d c o n fi g u r a t i o n display appears on the multifunction display.
Activate the telephone's Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using t h e b u t t o n s t h e n c o n fi r m b y p r e s s i n g O K .
Enter the vehicle's authentication code (=1234). Depending on the telephone, you may be asked to enter this code before the superimposed c o n fi g u r a t i o n d i s p l a y a p p e a r s .
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. C o n s u l t y o u r t e l e p h o n e ' s m a n u a l a n d y o u r o p e r a t o r t o fi n d o u t w h i c h s e r v i c e s a r e a v a i l a b l e t o y o u . A list of mobile telephones which offer the best rang e of services is available from the network. Consult a PEUGEOT dealer.
RECEIVING A CALL
An incoming call is announced by a ring and a supe rimposed display on the multifunction display.
Select the YES tab on the display u s i n g t h e b u t t o n s a n d c o n fi r m b y pressing OK.
Press the end of the steering wheel stalk to accept the call.
Press the end of the steering wheel stalk for more than two seconds to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL
MATCHING A TELEPHONE
DISPLAY C
Page 250 of 260
250
05
R A D I O : s e l e c t i o n o f t h e n e x t s t o r e d s t a t i o n . C D C H A N G E R : s e l e c t i o n o f t h e n e x t C D . S e l e c t i o n o f t h e n e x t i t e m o n a m e n u .
RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. C D / C D C H A N G E R / M P 3 : s e l e c t i o n o f t h e n e x t t r a c k . CD/CD CHANGER: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3: selection of the previous track. CD/CD CHANGER: continuous press: fast backwards play. S e l e c t i o n o f t h e n e x t i t e m .
Volume increase.
Volume decrease.
CONTROL SHORT-CUTS
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
STEERING WHEEL CONTROLS
