27
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault requiring interven-
tion on the part of the driver. Central alert.
Lighting is associated with
the displaying of another
warning light:
- punctured wheel,
- braking,
- power steering,
- engine oil pressure,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not
h a v e a s p e c i fi c w a r n i n g l i g h t .
In order to identify it, consult the mes-
sage on the multifunction display.
After checking:
- that the doors, boot, the rear screen and bonnet are closed,
- the engine oil level,
- t h e s c r e e n w a s h fl u i d l e v e l ,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) ,
for any other situations, contact a
PEUGEOT dealer. Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light),
stop the vehicle immediately and as
safely as possible.
When the vehicle is moving, check that
the handbrake is fully released.
Any fault resulting in the displaying
of a warning light must be the sub-
ject of further diagnostics by read-
ing the associated message on the
multifunction display.
Should you encounter any prob-
lems, do not hesitate to contact a
PEUGEOT dealer.
Warning lights
Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking.
Common warning lights
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivat-
ed, if this warning light and the indicator
light on the button come on continu-
ously, this indicates the occurrence of
a fault in the ESP/ASR system or in the
hill start assistance.
INSTRUMENTS and CONTROLS
Page 9 of 260
30
Air bags.
If this is displayed, it indicates
the occurrence of a fault in one
of the air bag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully.
Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking. Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning light and the indicator light
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR
system or in the hill start assistance.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as possible.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
- if the speed is below 6 mph (10 km/h), this warning light is
displayed in orange,
- if the speed is higher than 6 mph (10 km/h), this warning light is
displayed in red. Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the handbrake has not been re-
leased fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
t e r y i s fl a t .
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel re-
m a i n i n g t o d r i v e a p p r o x i m a t e l y
30 miles (50 km).
T h e c a p a c i t y o f t h e t a n k i s a p p r o x i m a t e -
ly 60 litres. S c r e e n w a s h fl u i d l e v e l .
If this is displayed, following an
action on the wipers stalk, it in-
d i c a t e s a n i n s u f fi c i e n t l e v e l o f
fl u i d .
F i l l t h e s c r e e n w a s h / h e a d l a m p w a s h fl u -
id reservoir when you stop. INSTRUMENTS and CONTROLS
Page 11 of 260
32
Coolant temperature indicator
System which informs the driver of the
changes in the temperature of the en-
gine coolant while driving.
With the engine running, when the nee-
dle is:
- in zone A , the temperature is
correct,
- in zone B , the temperature is
t o o h i g h ; t h e m a x t e m p e r a t u r e
warning light 1 and the central
STOP warning light come on,
accompanied by an audible signal
and a message on the multifunction
display.
You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
wait for the engine to cool,
unscrew the cap by two turns to
allow the pressure to drop,
when the pressure has dropped,
remove the cap,
top up the level to the "MAX" mark.
Manual Check
System which informs the driver of the
warnings present and of the activated
or deactivated status of the functions.
With the engine running, to start a
manual check, press the "CHECK/000"
button on the instrument panel.
If no "major" faults have been detected,
"CHECK OK" appears on the large in-
strument panel display.
If a "minor" fault has been detected, the
warning lights concerned then "CHECK
OK" appear on the large instrument
panel display. Consult a PEUGEOT
dealer.
If a "major" fault has been detected,
only the warning lights concerned ap-
pear on the large instrument panel dis-
play. Have it checked by a PEUGEOT
dealer. INSTRUMENTS and CONTROLS
Page 62 of 260
!
79
ACCESS
Keys
Make a careful note of the number of each key. This number i s coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to
be reprogrammed. The remote control does not operat e when the key is in the
i g n i t i o n , e v e n w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e p r o g r a m m i n g .
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure t hat the
keys in your possession are the only ones which can start the vehicle .
Page 64 of 260
!
79
ACCESS
Keys
Make a careful note of the number of each key. This number i s coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to
be reprogrammed. The remote control does not operat e when the key is in the
i g n i t i o n , e v e n w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e p r o g r a m m i n g .
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure t hat the
keys in your possession are the only ones which can start the vehicle .
Page 133 of 260
!
i
!

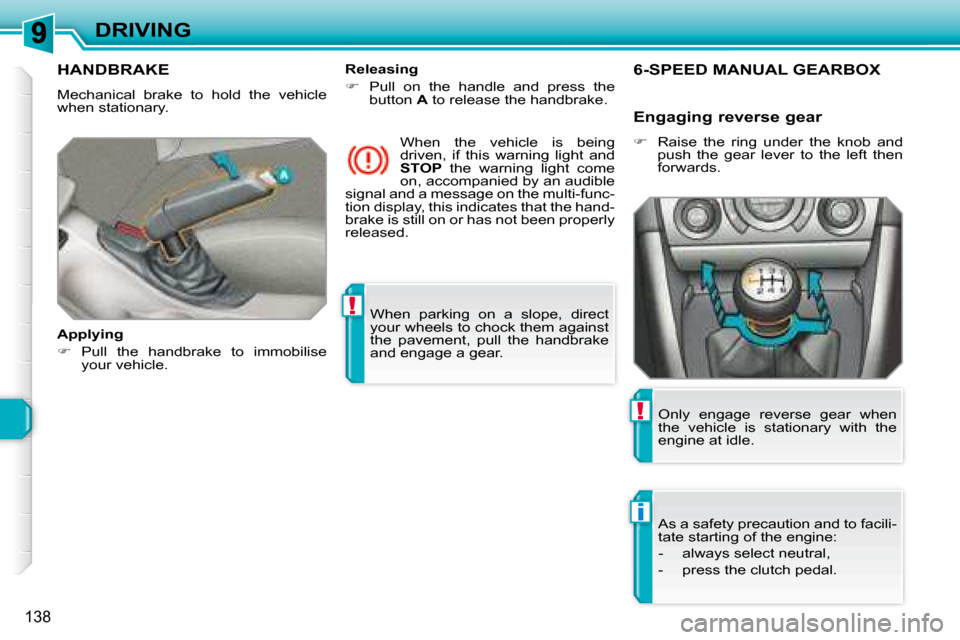

138
DRIVING When parking on a slope, direct
your wheels to chock them against
the pavement, pull the handbrake
and engage a gear.
HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying
Pull the handbrake to immobilise
your vehicle. When the vehicle is being
driven, if this warning light and
STOP the warning light come
on, accompanied by an audible
signal and a message on the multi-func-
tion display, this indicates that the hand-
brake is still on or has not been properly
released.
Releasing
Pull on the handle and press the
button A to release the handbrake.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
Page 137 of 260
!!
i

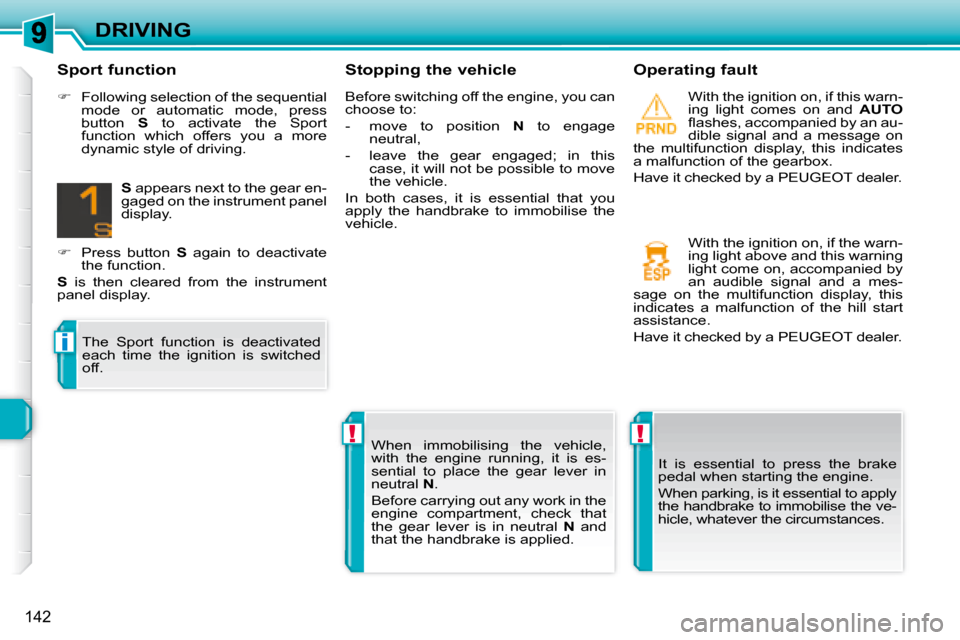

142
DRIVING Stopping the vehicle Operating fault With the ignition on, if this warn-
ing light comes on and AUTO
fl a s h e s , a c c o m p a n i e d b y a n a u -
dible signal and a message on
the multifunction display, this indicates
a m a l f u n c t i o n o f t h e g e a r b o x .
Have it checked by a PEUGEOT dealer.
It is essential to press the brake
pedal when starting the engine.
When parking, is it essential to apply
the handbrake to immobilise the ve-
hicle, whatever the circumstances.
When immobilising the vehicle,
with the engine running, it is es-
sential to place the gear lever in
neutral
N .
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N and
that the handbrake is applied. With the ignition on, if the warn-
ing light above and this warning
light come on, accompanied by
an audible signal and a mes-
sage on the multifunction display, this
indicates a malfunction of the hill start
assistance.
Have it checked by a PEUGEOT dealer.
Sport function
Following selection of the sequential
mode or automatic mode, press
button S to activate the Sport
function which offers you a more
dynamic style of driving.
S a p p e a r s n e x t t o t h e g e a r e n -
gaged on the instrument panel
display.
Press button S again to deactivate
the function.
S is then cleared from the instrument
panel display.
The Sport function is deactivated
each time the ignition is switched
off. Before switching off the engine, you can
choose to:
- move to position
N to engage
neutral,
- leave the gear engaged; in this case, it will not be possible to move
the vehicle.
In both cases, it is essential that you
apply the handbrake to immobilise the
vehicle.
Page 233 of 260
236
MENU
22
11

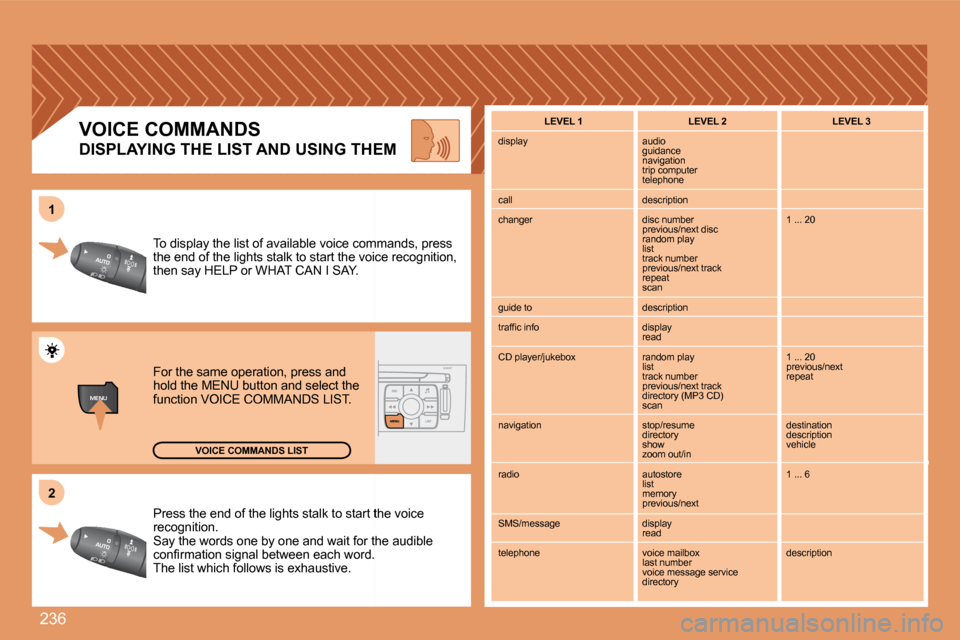

Press the end of the lights stalk to start thtart the voice recognition. Say the words one by one and wait for the for the audible c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . T h e l i s t w h i c h f o l l o w s i s e x h a u s t i v e .
To display the list of available voice commcommands, press the end of the lights stalk to start the voice voice recognition, then say HELP or WHAT CAN I SAY.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.
VOICE COMMANDS LIST
VOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
LEVEL 1 LEVEL 2 LEVEL 3
display audio guidance navigation trip computer telephone
call description
changer disc number p r e v i o u s / n e x t d i s c random play list track number p r e v i o u s / n e x t t r a c k repeat scan
1 ... 20
guide to description
t r a f fi c i n f o display read
C D p l a y e r / j u k e b o x random play list track number p r e v i o u s / n e x t t r a c k directory (MP3 CD) scan
1 ... 20 p r e v i o u s / n e x t repeat
navigation stop/resume directory show zoom out/in
destination description vehicle
radio autostore list memory p r e v i o u s / n e x t
1 ... 6
SMS/message display read
telephone v o i c e m a i l b o x last number voice message service directory
description
