Page 137 of 255
CHECKS
126
PETROL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d t o r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3. Wash-wipe and headlamp wash
reservoir.
4. A i r fi l t e r .
5. B r a k e fl u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
Page 138 of 255
127
DIESEL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s , t o r e p l a c e c e r t a i n c o m p o n e n t s a n d t o r e p r i m e t h e f u e l .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3. Wash-wipe and headlamp wash
reservoir.
4. Repriming pump.
5. B r a k e fl u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. A i r fi l t e r .
Page 139 of 255
CHECKS
128
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
PEUGEOT dealer. Brake fluid level
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick.
Between two oil changes, the consump-
tion should not exceed 0.5 litre per
600 miles (1,000 km). T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Coolant level The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
switched off, even if the engine is
cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. Wash-wipe and headlamp wash *
fluid
T h e m i n i m u m l e v e l o f t h i s fl u i d
is indicated by an audible signal
and a message on the multifunc-
tion display.
Top up the level when you stop the ve-
hicle.
* According to country.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's
recommendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Draining the circuit
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
F l u i d s p e c i fi c a t i o n
To guarantee optimum cleaning and
avoid freezing, water should not be
u s e d t o t o p u p o r r e p l a c e t h i s fl u i d .
Page 148 of 255
!
i
i
136

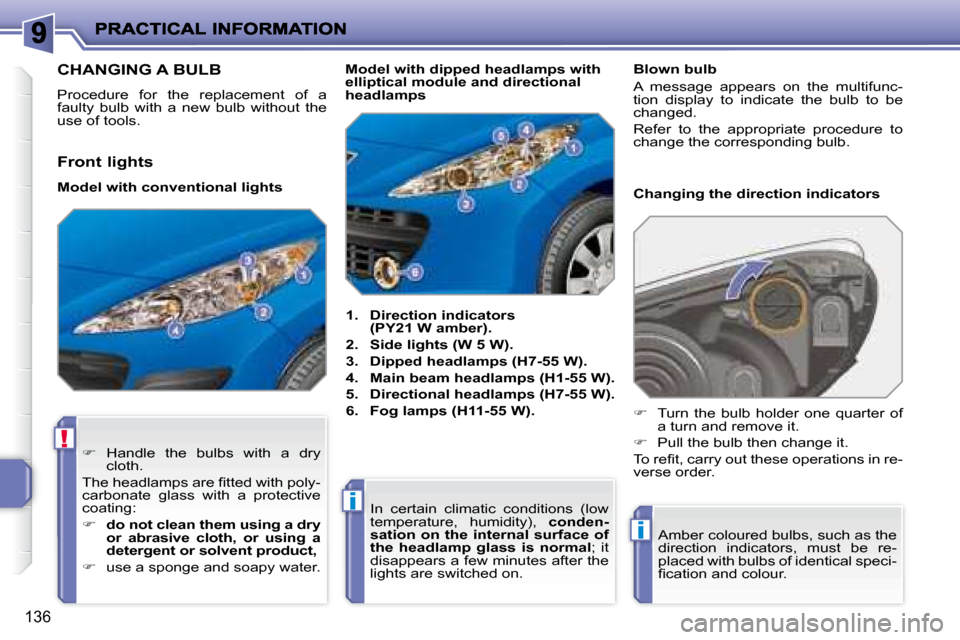

CHANGING A BULB
Procedure for the replacement of a
faulty bulb with a new bulb without the
use of tools.
1. Direction indicators
(PY21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4. Main beam headlamps (H1-55 W).
5. Directional headlamps (H7-55 W).
6. Fog lamps (H11-55 W). Changing the direction indicators
Handle the bulbs with a dry
cloth.
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate glass with a protective
coating:
do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,
use a sponge and soapy water. In certain climatic conditions (low
temperature, humidity),
conden-
sation on the internal surface of
the headlamp glass is normal ; it
disappears a few minutes after the
lights are switched on .
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb then change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Front lights
Blown bulb
A message appears on the multifunc-
tion display to indicate the bulb to be
changed.
Refer to the appropriate procedure to
change the corresponding bulb.
Model with conventional lights
Page 149 of 255
137
Changing the side lights
Disconnect the main headlamp con-
nector.
Remove the plastic protective cover
by pulling on the tab.
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps
Disconnect the main headlamp con-
nector.
Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
Tilt the screwdriver to extract the re-
peater and remove the repeater.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.
Disconnect the connector of the cor-
responding light.
Move aside the spring to release the
bulb and remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.
Page 151 of 255
!
139
Changing the third brake light bulbs
(4 bulbs W 5 W)
P r e s s o n t h e fi x i n g p i n s o n e a c h s i d e
of the light.
Take out the light from the outside.
Turn the bulb holder which corre-
sponds to the faulty bulb one quar-
ter of a turn and remove it.
Pull the bulb and change it. Changing the number plate light
bulbs (W 5 W)
Insert a thin screwdriver in one of
the exterior holes of the lens.
Push it towards the outside to unclip it.
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.
Page 153 of 255
!
141
Changing the third brake light bulbs
(4 bulbs W 5 W)
R e m o v e t h e t w o l i g h t fi x i n g n u t s .
Take out the light from the outside.
Press on the two tabs and remove
the bulb holder
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
T i g h t e n t h e fi x i n g b o l t s u f fi c i e n t l y b y
hand to guarantee the sealing of the
light. Changing the number plate bulbs
(W 5 W)
Insert a thin screwdriver into one of
the exterior holes of the lens.
Push it towards the outside to unclip it
Remove the lens.
Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.
Page 156 of 255
144
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, CD changer,
multifunction display, clock, steering wheel controls,
t y r e u n d e r - i n fl a t i o n d e t e c t i o n , t r a i l e r f u s e b o x .
F9 30 A Front 12 V socket, rear 12 V socket (SW).
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12 15 A R a i n / b r i g h t n e s s s e n s o r , a m p l i fi e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A Engine fuse box, ABS relay, dual-function brake
switch, "2 Tronic" gearbox gear lever.
F14 15 A Instrument panel, seat belt warning lights bar,
headlamp adjustment, air conditioning, hands-free
kit, rear parking assistance control unit, air bags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and exterior mirrors de-icing.
SH - PARC shunt.
