FAMILIARISATION
4 -
INSTRUMENTS AND
CONTROLS
1. Cruise control/speed limiter
control.
2. S t e e r i n g w h e e l a d j u s t m e n t
control.
3. Lights and direction indicators
stalk.
4. Instrument panel.
5. Driver's air bag.
Horn.
6. Gear lever.
7. Handbrake.
8. Bonnet release.
9. Fuse box.
10. Dynamic stability control
(ESP/ASR) button.
11. R e a r e l e c t r i c w i n d o w s
deactivation control.
12. Passenger air bag disarming
control.
13. Headlamp height adjustment.
14. Side adjustable and closing vent.
15. S i d e w i n d o w d e m i s t i n g v e n t .
16. S p e a k e r ( t w e e t e r ) .
17. Windscreen demisting vent.
Page 110 of 127
PRACTICAL INFORMATION
100 -
CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
U n s c r e w t h e c a t c h a q u a r t e r t u r n u s
-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers A are
i t t e d i n s i d e o f t h e f a s c i a f u s e b o x
lid. R e m o v i n g a n d i t t i n g a f u s e
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f t h e f a u l t m u s t b e f o u n
d a n d r e m e d i e d . T h e
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .
Page 111 of 127
PRACTICAL INFORMATION
100 -
CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
U n s c r e w t h e c a t c h a q u a r t e r t u r n u s
-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers A are
i t t e d i n s i d e o f t h e f a s c i a f u s e b o x
lid. R e m o v i n g a n d i t t i n g a f u s e
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f t h e f a u l t m u s t b e f o u n
d a n d r e m e d i e d . T h e
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .
Page 112 of 127
101
PRACTICAL INFORMATION
-

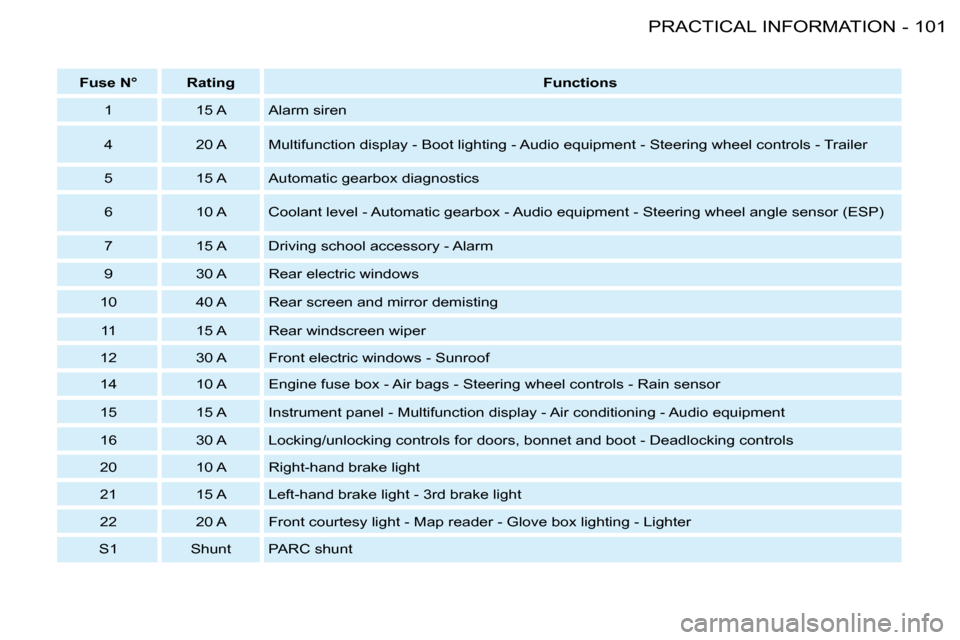

Fuse N° Rating Functions
1 15 A Alarm siren
4 20 A M u l t i f u n c t i o n d i s p l a y - B o o t l i g h t i n g - A u d i o e q u i p m e n t - S t e e r i n g w h e e l c o n t r o l s - T r a i l e r
5 15 A Automatic gearbox diagnostics
6 10 A C o o l a n t l e v e l - A u t o m a t i c g e a r b o x - A u d i o e q u i p m e n t - S t e e r i n g w h e e l a n g l e s e n s o r ( E S P )
7 15 A Driving school accessory - Alarm
9 30 A R e a r e l e c t r i c w i n d o w s
10 40 A Rear screen and mirror demisting
11 15 A R e a r w i n d s c r e e n w i p e r
12 30 A F r o n t e l e c t r i c w i n d o w s - S u n r o o f
14 10 A E n g i n e f u s e b o x - A i r b a g s - S t e e r i n g w h e e l c o n t r o l s - R a i n s e n s o r
15 15 A Instrument panel - Multifunction display - Air conditioni ng - Audio equipment
16 30 A L o c k i n g / u n l o c k i n g c o n t r o l s f o r d o o r s , b o n n e t a n d b o o t - D e a d l o c k i n g c o n t r o l s
20 10 A Right-hand brake light
21 15 A Left-hand brake light - 3rd brake light
22 20 A Front courtesy light - Map reader - Glove box lighting - L ighter
S1 Shunt PARC shunt
Page 113 of 127
PRACTICAL INFORMATION
102 -
The electrical circuit of
your vehicle is designed
t o o p e r a t e w i t h s t a n d a r d
or optional equipment.
Before installing other
electrical equipment or acces-
s o r i e s i n y o u r v e h i c l e , c o n s u l t a
PEUGEOT dealer.
Some electrical accessories or
t h e w a y i n w h i c h t h e y a r e i t t e d
may have an adverse effect on the
operation of your vehicle (its elec-
t r o n i c c o n t r o l c i r c u i t s , t h e a u d i o
circuit and the electrical charging
circuit).
PEUGEOT declines any responsi-
bility for expenses incurred in the
repair of your vehicle or for any
malfunctions resulting from the in-
s t a l l a t i o n o f a u x i l i a r y a c c e s s o r i e s ,
not supplied and not recommend-
ed by PEUGEOT and not installed
i n a c c o r d a n c e w i t h P E U G E O T ' s
i n s t r u c t i o n s , i n p a r t i c u l a r f o r a n y
e q u i p m e n t t h e p o w e r c o n s u m p t i o n
o f w h i c h e x c e e d s 1 0 m i l l i a m p s .
Fuse N° Rating Functions
1* 20 A Fan unit
2* 60 A ABS/ESP
3* 30 A ABS/ESP
4* 70 A Built-in systems interface supply
5* 70 A Built-in systems interface supply
6* - Not used
7* 30 A I g n i t i o n s w i t c h s u p p l y
8* 20 A A u d i o a m p l i i e r
Engine compartment fuse box
T o g a i n a c c e s s t o t h e b o x i n t h e e n g i n e c o m p a r t m e n t ( n e x t t o t
h e b a t t e r y ) , u n c l i p
the cover.
A f t e r c a r r y i n g o u t w o r k , c l o s e t h e c o v e r v e r y c a r e f u l l y .
* The maxi fuses provide additional protection for the elect rical systems. Any
w o r k o n t h e s e m u s t b e c a r r i e d o u t b y a P E U G E O T d e a l e r .
Page 114 of 127
103
PRACTICAL INFORMATION
-
Fuse N° Rating Functions
1 10 A P r e - h e a t u n i t ( d i e s e l ) - W a t e r i n d i e s e l s e n s o r - R e v e r s i n g l i g h t s s w
i t c h - S p e e d s e n s o r -
A i r l o w s e n s o r ( d i e s e l )
2 15 A Canister solenoid valve - Fuel pump
3 10 A A B S / E S P e n g i n e c o n t r o l u n i t - E S P b r a k e s w i t c h
4 10 A Automatic gearbox control unit - Engine control unit
5 - Not used
6 15 A Front fog lamps
7 - Not used
8 20 A Fan assembly relay - Engine control unit - Diesel injection pump
-
Diesel high pressure regulator - Engine management solenoid valve
9 15 A Left dipped beam
10 15 A Right dipped beam
11 10 A Left main beam
12 15 A Right main beam
13 15 A Horn
14 10 A F r o n t a n d r e a r w i n d s c r e e n w a s h p u m p s
15 30 A Throttle housing heater - Diesel injection pump - Oxygen senso
r - Engine control unit -
A i r l o w s e n s o r - I g n i t i o n c o i l - E n g i n e m a n a g e m e n t s o l e n o i d v a l v e - D i e s e l h e a t e r -
Injectors
16 30 A Air pump relay
17 30 A H i g h a n d l o w s p e e d w i n d s c r e e n w i p e r
18 40 A Air conditioning fan
