FAMILIARISATION
-
INSTRUMENTS AND
CONTROLS
1. Steering lock and ignition.
2. S t e e r i n g w h e e l a u d i o e q u i p m e n t
control.
3. W i p e r s / w a s h - w i p e / t r i p
computer stalk.
4. Central adjustable and closing
vents.
5. H a z a r d w a r n i n g l i g h t s s w i t c h .
Central locking button.
6. Multifunction display.
7. Passenger air bag.
8. Glove box.
9. R e a r e l e c t r i c w i n d o w s c o n t r o l .
10. Heated seats control
(according to country).
11. F r o n t e l e c t r i c w i n d o w c o n t r o l s .
12. Exterior mirrors control.
13. Lighter.
14. Front ashtray.
15. Heating / air conditioning
controls.
16. Audio RD3.
Page 5 of 123
FAMILIARISATION
8 -
SITTING COMFORTABLY
Front seat adjustment
1. F o r w a r d s - b a c k w a r d s a d j u s t m e n t .
2. Head restraint height and angle
adjustment.
3. Access to rear seats
(3-door). 4.
Height adjustment.
5. Seat back angle adjustment.
6. Heated seats control
(according to country). N e v e r d r i v e w i t h t h e h e a d
restraints removed.
: 46
Page 46 of 123
47
COMFORT
-
FRONT SEATS It is impossible to access the
rear seats if the front seat is in
the reclining position.
B. Pull one of the two handles and
push forwards to fold the seat
back. The seat does not move
forward.
On repositioning, the seat back
returns to its initial angle.
Never drive with the head
r e s t r a i n t s r e m o v e d ; t h e y
must be in place and cor-
rectly adjusted. Rear head restraints, "comma"
type
These have a high position for when
they are in use and a low position for
when they are stored. They are re-
movable.
To lower the head restraints, press
the lug.
To remove them, pull upwards as far
as the stop, then press the release
control.
1 - F o r w a r d s - b a c k w a r d s
adjustment
Lift the control and slide the seat to-
wards the front or the rear.
2 - Head restraint height and angle adjustment
To raise the restraint, pull it up-
wards.
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e
upper edge of the head restraint is
l e v e l w i t h t h e t o p o f t h e h e a d .
The head restraint has a frame with
notches, which prevent the head res-
traint dropping down (this is a safety
device in the event of an impact).
To lower the head restraint, it is ne
cessary to push simultaneously:
- the button located on the left guide at the base of the head
restraint,
- the head restraint downwards.
To remove the head restraint, press
the lug.
The angle of the head restraint can
also be adjusted. 3 - Access to rear seats
(3 door), A or B according to
version
A. Pull one of the two handles
and push forwards to fold the
seat back and move the seat
forwards.
On repositioning, the seat returns to its initial position.
No person nor object must prevent the seat from returning
t o i t s i n i t i a l p o s i t i o n ; r e t u r n i n g t o
this position is necessary for it to
be locked. 4 - Seat height adjustment
Pull the handle upwards.
Remove your weight from the seat to
raise, or press on the seat to lower.
5 - Seat back angle adjustment
Push the handle towards the rear.
6 -
H e a t e d s e a t s s w i t c h
Press the switch. The temperature is
controlled automatically.
Press the switch again to stop opera-
tion.
Page 47 of 123
47
COMFORT
-
FRONT SEATS It is impossible to access the
rear seats if the front seat is in
the reclining position.
B. Pull one of the two handles and
push forwards to fold the seat
back. The seat does not move
forward.
On repositioning, the seat back
returns to its initial angle.
Never drive with the head
r e s t r a i n t s r e m o v e d ; t h e y
must be in place and cor-
rectly adjusted. Rear head restraints, "comma"
type
These have a high position for when
they are in use and a low position for
when they are stored. They are re-
movable.
To lower the head restraints, press
the lug.
To remove them, pull upwards as far
as the stop, then press the release
control.
1 - F o r w a r d s - b a c k w a r d s
adjustment
Lift the control and slide the seat to-
wards the front or the rear.
2 - Head restraint height and angle adjustment
To raise the restraint, pull it up-
wards.
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e
upper edge of the head restraint is
l e v e l w i t h t h e t o p o f t h e h e a d .
The head restraint has a frame with
notches, which prevent the head res-
traint dropping down (this is a safety
device in the event of an impact).
To lower the head restraint, it is ne
cessary to push simultaneously:
- the button located on the left guide at the base of the head
restraint,
- the head restraint downwards.
To remove the head restraint, press
the lug.
The angle of the head restraint can
also be adjusted. 3 - Access to rear seats
(3 door), A or B according to
version
A. Pull one of the two handles
and push forwards to fold the
seat back and move the seat
forwards.
On repositioning, the seat returns to its initial position.
No person nor object must prevent the seat from returning
t o i t s i n i t i a l p o s i t i o n ; r e t u r n i n g t o
this position is necessary for it to
be locked. 4 - Seat height adjustment
Pull the handle upwards.
Remove your weight from the seat to
raise, or press on the seat to lower.
5 - Seat back angle adjustment
Push the handle towards the rear.
6 -
H e a t e d s e a t s s w i t c h
Press the switch. The temperature is
controlled automatically.
Press the switch again to stop opera-
tion.
Page 48 of 123
COMFORT
48 -
- position the seat belt under the
belt holder 2,
- pull control 3 to unlock the seat
back 4,
- remove or lower the head restraint,
- tilt the seat back 4.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
REAR SEATS
To fold the rear seats:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
Page 49 of 123
49
COMFORT
-
- position the seat belt under the
belt holder 2,
- pull the controls 3 to unlock the
seat back 4,
- remove or lower the head restraints,
- tilt the seat back 4.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
Page 50 of 123
COMFORT
50 -
TRANSPORTING LONG
OBJECTS
Front seat:
- Fold the seat back towards the
front using the control 5
(see corresponding paragraph).

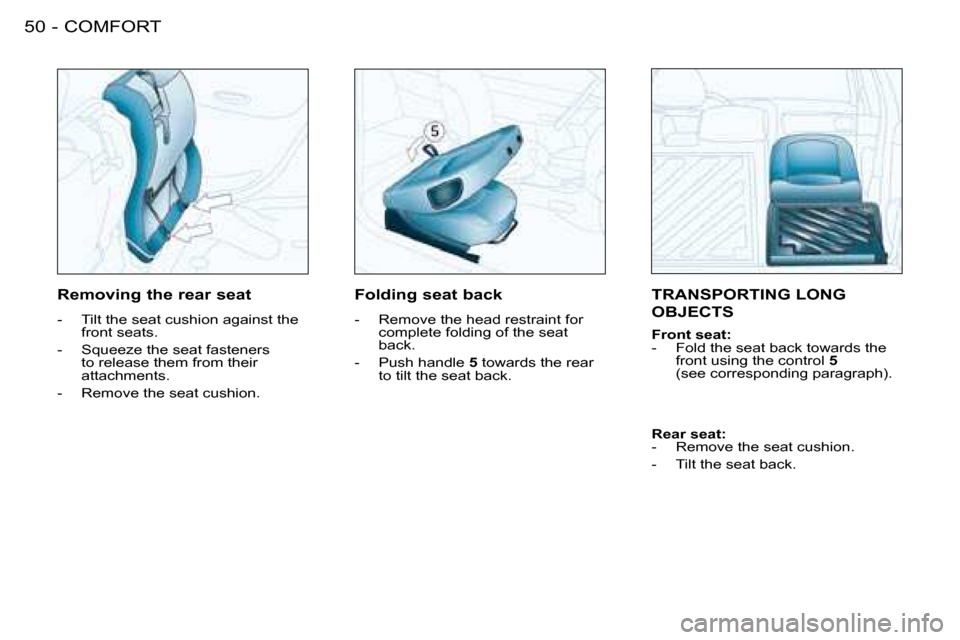

Removing the rear seat
- Tilt the seat cushion against the
front seats.
- S q u e e z e t h e s e a t f a s t e n e r s to release them from their
attachments.
- Remove the seat cushion. Folding seat back
- Remove the head restraint for
complete folding of the seat
back.
- Push handle 5 towards the rear
to tilt the seat back.
Rear seat:
- Remove the seat cushion.
- Tilt the seat back.
Page 51 of 123
49
COMFORT
-
- position the seat belt under the
belt holder 2,
- pull the controls 3 to unlock the
seat back 4,
- remove or lower the head restraints,
- tilt the seat back 4.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
