13
FAMILIARISATION
-
VENTILATION

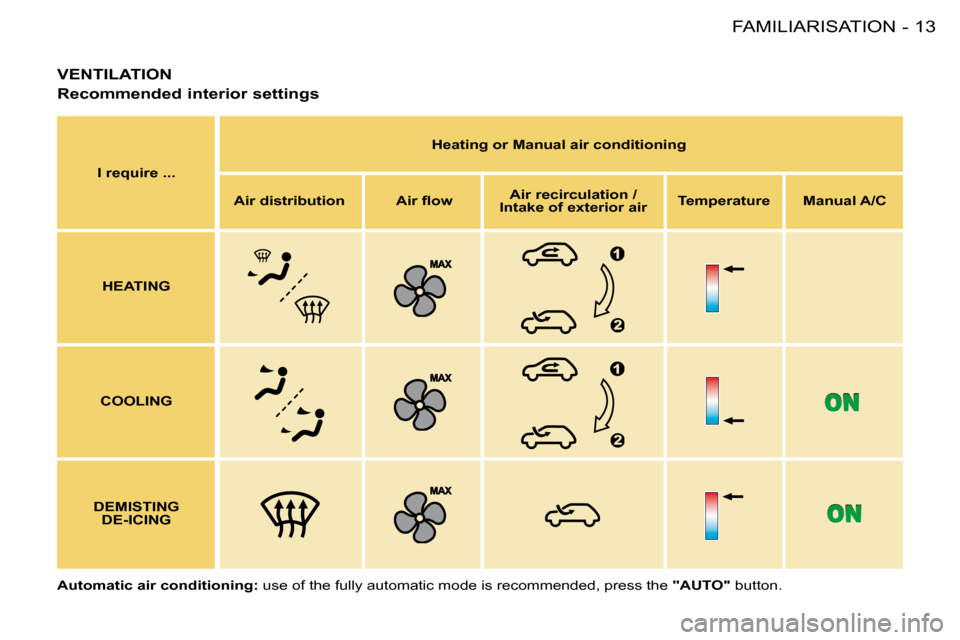

Recommended interior settings
I require ... Heating or Manual air conditioning
Air distribution A i r l o wAir recirculation /
Intake of exterior air Temperature Manual A/C
HEATING
COOLING
DEMISTING DE-ICING
Automatic air conditioning: u s e o f t h e f u l l y a u t o m a t i c m o d e i s r e c o m m e n d e d , p r e s s t h e "AUTO" button.
Page 44 of 123
45
COMFORT
-
3. Air conditioning On/Off
Press this button to stop air
cooling.
The symbol ECO is dis-
played.
Automatic operation of the air condi-
tioning is resumed when the button
is pressed again. The symbol A/C is
displayed.
4. Air distribution
Pressing this button several
times in succession enables
t h e a i r l o w t o b e d i r e c t e d i n
turn towards:
- the windscreen (de-icing or demisting),
- the windscreen and the footwells,
- the footwells,
- the centre and side vents and the footwells,
- the centre and side vents. 5 . A i r l o w
Press buttons "+" and
"-" respectively to in-
crease or decrease
t h e a i r l o w .
6. Air intake / Air recirculation 7 . S w i t c h i n g t h e s y s t e m o f f
The OFF button switches off
all the functions of the sys-
tem.
Temperature-related comfort and de-
misting are no longer guaranteed but
a s l i g h t l o w o f a i r i s m a i n t a i n e d .
Pressing the OFF, AUTO , or "visi-
bility" button again reactivates the
system with the values set before it
was switched off.
Note: i f y o u w i s h t o c u t o f f t h e l o w
of air completely, press the air intake
button 7.
Press this button for recir-
culation of the interior air.
Recirculation, shown on the
display, enables the pas-
senger compartment to be insulated
from exterior odours and smoke.
Avoid prolonged recirculation of inte-
rior air (risk of condensation and de-
t e r i o r a t i o n o f t h e a i r q u a l i t y ) .
Press the button again to resume
automatic management of the intake
of air.
Notes
To prevent condensation on the in-
side of the vehicle in cold or wet
weather, you are advised to avoid
using the
ECO mode.
To guarantee correct operation of
your air conditioning system, we also
recommend that you have it checked
regularly.
Page 97 of 123
91
CHECKS
-
CHECKING THE LEVELS
There are two marks on
the dipstick:
A = maximum
N e v e r i l l p a s t t h i s m a r k .
B = minimum
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited.
Oil change
According to the information given in
the servicing booklet.
Note: avoid used oil coming into
prolonged contact with the skin.
Empty the used oil into the contain-
ers intended for this purpose in the
PEUGEOT network. Brake fluid level:
T h e b r a k e l u i d m u s t b e c h a n g e d a c
-
cording to the manufacturer's servi-
cing schedule.
U s e l u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l i l D O T 4
standards.
Note: b r a k e l u i d i s h a r m f u l t o h e a l t h
and very corrosive. Avoid all contact
with the skin. Used oil
D o n o t d i s p o s e o f u s e d o i l , b r a k e l u
-
id or coolant into drains or onto the
ground.
Dipstick
Viscosity selection
In all cases, the oil selected must
meet the manufacturer's require-
ments. Cooling system
U s e t h e l u i d r e c o m m e n d e d b y t h e
manufacturer.
When the engine is warm, the tem-
perature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by two turns to re-
lease the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and
top up the level.
Note:
the coolant does not need to
be changed.
For vehicles equipped with a par-
t i c l e i l t e r , t h e e n g i n e f a n m a y o p -
erate after the ignition has been
s w i t c h e d o f f , e v e n w h e n t h e e n -
gine is cold. Power steering reservoir
F
Open the reservoir, with the
engine at ambient temperature.
The level should always be
above the MIN. mark and close
to the MAX. mark.
Windscreen and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products recommended by PEUGEOT.
For optimum cleaning and to prevent
f r e e z i n g , t h i s l u i d m u s t n o t b e t o p p e d
up or replaced with water.
Oil level
F
Check the level regularly and
top up between changes. The
maximum consumption is
0.5 l per 600 miles (1000 km).
Check the level with the vehicle level,
engine cold, using the oil level gauge
on the instrument panel or the dip-
stick.
Page 114 of 123
1 0 7
PRACTICAL INFORMATION
-
TOWING A TRAILER,
CARAVAN, BOAT, ETC.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
y o u r v e h i c l e a n d t h a t t h e i t t i n g o f t h e
towbar is entrusted to a PEUGEOT
dealer.
I f t h e t o w b a r i s n o t i t t e d b y a P E U G E O T
d e a l e r , i t i s i m p e r a t i v e t h a t i t i s i t t e d u s -
ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer's instructions.
Your vehicle is primarily designed
for transporting people and luggage
but it may also be used for towing a
trailer.
Driving with a trailer subjects the tow-
i n g v e h i c l e t o m o r e s i g n i i c a n t s t r e s s
and its driver must be particularly
careful.
Air density decreases with altitude,
thus reducing engine performance.
A b o v e 1 0 0 0 m e t r e s , t h e m a x i m u m
t o w i n g l o a d m u s t b e r e d u c e d b y 1 0 %
a n d s o o n f o r e v e r y 1 0 0 0 m e t r e s o f
altitude. Driving advice
Distribution of loads:
Distribute the
load in the trailer so that the heaviest
items are as close as possible to the
axle and the nose weight approach-
es the maximum permitted without
exceeding it.
Cooling: Towing a trailer on a slope
increases the temperature of the
coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
The maximum towing load on a long
slope depends on the gradient and
the outside temperature. In all cases, pay attention to the cool-
ant temperature.
In certain cases of particularly ardu-
o u s u s e ( t o w i n g t h e m a x i m u m l o a d
on a steep gradient in high tempera-
tures), switching off the air condition-
ing permits the recovery of engine
power and therefore an increase in
the towing capacity.
If the warning light comes on, stop
the vehicle and switch off the engine
as soon as possible.
Tyres :
Check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pres-
sures.
Braking : Towing increases the brak-
ing distance.
Lights : Check the electrical signal-
ling on the trailer.
Side wind : Take into account the in-
creased sensitivity to side wind.
