47
COMFORT
-
FRONT SEATS It is impossible to access the
rear seats if the front seat is in
the reclining position.
B. Pull one of the two handles and
push forwards to fold the seat
back. The seat does not move
forward.
On repositioning, the seat back
returns to its initial angle.
Never drive with the head
r e s t r a i n t s r e m o v e d ; t h e y
must be in place and cor-
rectly adjusted. Rear head restraints, "comma"
type
These have a high position for when
they are in use and a low position for
when they are stored. They are re-
movable.
To lower the head restraints, press
the lug.
To remove them, pull upwards as far
as the stop, then press the release
control.
1 - F o r w a r d s - b a c k w a r d s
adjustment
Lift the control and slide the seat to-
wards the front or the rear.
2 - Head restraint height and angle adjustment
To raise the restraint, pull it up-
wards.
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e
upper edge of the head restraint is
l e v e l w i t h t h e t o p o f t h e h e a d .
The head restraint has a frame with
notches, which prevent the head res-
traint dropping down (this is a safety
device in the event of an impact).
To lower the head restraint, it is ne
cessary to push simultaneously:
- the button located on the left guide at the base of the head
restraint,
- the head restraint downwards.
To remove the head restraint, press
the lug.
The angle of the head restraint can
also be adjusted. 3 - Access to rear seats
(3 door), A or B according to
version
A. Pull one of the two handles
and push forwards to fold the
seat back and move the seat
forwards.
On repositioning, the seat returns to its initial position.
No person nor object must prevent the seat from returning
t o i t s i n i t i a l p o s i t i o n ; r e t u r n i n g t o
this position is necessary for it to
be locked. 4 - Seat height adjustment
Pull the handle upwards.
Remove your weight from the seat to
raise, or press on the seat to lower.
5 - Seat back angle adjustment
Push the handle towards the rear.
6 -
H e a t e d s e a t s s w i t c h
Press the switch. The temperature is
controlled automatically.
Press the switch again to stop opera-
tion.
Page 47 of 123
47
COMFORT
-
FRONT SEATS It is impossible to access the
rear seats if the front seat is in
the reclining position.
B. Pull one of the two handles and
push forwards to fold the seat
back. The seat does not move
forward.
On repositioning, the seat back
returns to its initial angle.
Never drive with the head
r e s t r a i n t s r e m o v e d ; t h e y
must be in place and cor-
rectly adjusted. Rear head restraints, "comma"
type
These have a high position for when
they are in use and a low position for
when they are stored. They are re-
movable.
To lower the head restraints, press
the lug.
To remove them, pull upwards as far
as the stop, then press the release
control.
1 - F o r w a r d s - b a c k w a r d s
adjustment
Lift the control and slide the seat to-
wards the front or the rear.
2 - Head restraint height and angle adjustment
To raise the restraint, pull it up-
wards.
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e
upper edge of the head restraint is
l e v e l w i t h t h e t o p o f t h e h e a d .
The head restraint has a frame with
notches, which prevent the head res-
traint dropping down (this is a safety
device in the event of an impact).
To lower the head restraint, it is ne
cessary to push simultaneously:
- the button located on the left guide at the base of the head
restraint,
- the head restraint downwards.
To remove the head restraint, press
the lug.
The angle of the head restraint can
also be adjusted. 3 - Access to rear seats
(3 door), A or B according to
version
A. Pull one of the two handles
and push forwards to fold the
seat back and move the seat
forwards.
On repositioning, the seat returns to its initial position.
No person nor object must prevent the seat from returning
t o i t s i n i t i a l p o s i t i o n ; r e t u r n i n g t o
this position is necessary for it to
be locked. 4 - Seat height adjustment
Pull the handle upwards.
Remove your weight from the seat to
raise, or press on the seat to lower.
5 - Seat back angle adjustment
Push the handle towards the rear.
6 -
H e a t e d s e a t s s w i t c h
Press the switch. The temperature is
controlled automatically.
Press the switch again to stop opera-
tion.
Page 48 of 123
COMFORT
48 -
- position the seat belt under the
belt holder 2,
- pull control 3 to unlock the seat
back 4,
- remove or lower the head restraint,
- tilt the seat back 4.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
REAR SEATS
To fold the rear seats:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
Page 49 of 123
49
COMFORT
-
- position the seat belt under the
belt holder 2,
- pull the controls 3 to unlock the
seat back 4,
- remove or lower the head restraints,
- tilt the seat back 4.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
Page 50 of 123
COMFORT
50 -
TRANSPORTING LONG
OBJECTS
Front seat:
- Fold the seat back towards the
front using the control 5
(see corresponding paragraph).
Removing the rear seat
- Tilt the seat cushion against the
front seats.
- S q u e e z e t h e s e a t f a s t e n e r s to release them from their
attachments.
- Remove the seat cushion. Folding seat back
- Remove the head restraint for
complete folding of the seat
back.
- Push handle 5 towards the rear
to tilt the seat back.
Rear seat:
- Remove the seat cushion.
- Tilt the seat back.
Page 51 of 123
49
COMFORT
-
- position the seat belt under the
belt holder 2,
- pull the controls 3 to unlock the
seat back 4,
- remove or lower the head restraints,
- tilt the seat back 4.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
Page 64 of 123
61
ACCESS
-
LOCKING / UNLOCKING THE
TAILGATE
Without central locking
To lock, turn the key from A to C.
To open, turn the key from A to B,
press the handle then lift the tail-
gate.
TAILGATE RELEASE
This enables the tailgate to be un-
locked in the event of a central lock-
ing fault:
- Fold back the rear seats to gain access to the boot from inside
the vehicle,
- Pull the tailgate trim to release it,
- Pull the opening catch 1 upwards.
"Boot open" warning
If the tailgate is not shut properly:
- with the engine running , you
are warned by an audible signal
and a message or graphic on the
multifunction display,
- when the vehicle is moving ,
t h e c o u r t e s y l i g h t l a s h e s i f t h e
courtesy light button is in this
position.
With central locking
Locking and unlocking of the tailgate
is simultaneous with the doors.
The lighting is activated on open-
ing the tailgate.
Page 94 of 123

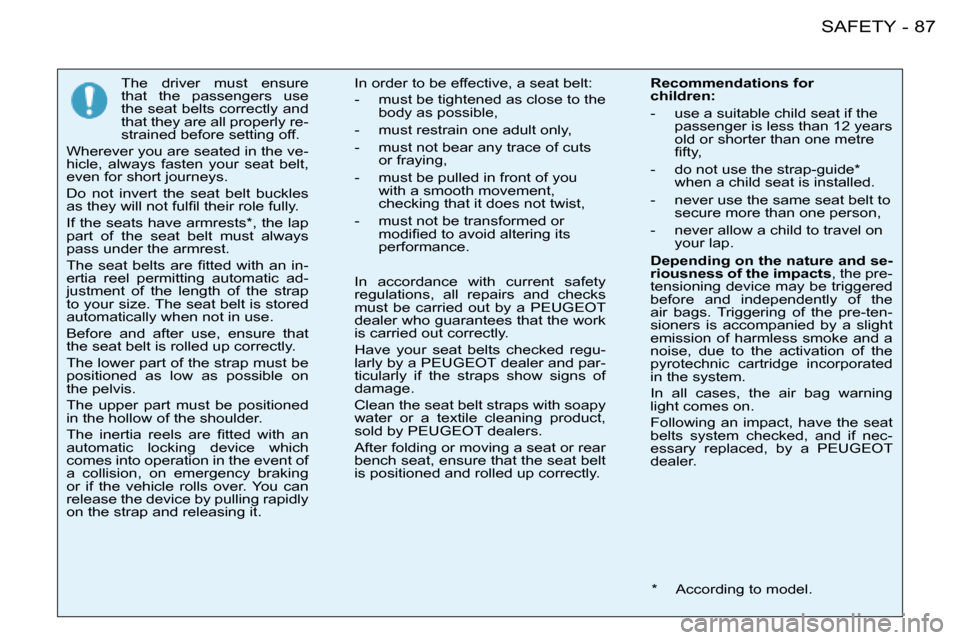

87
SAFETY
-
The driver must ensure
that the passengers use
the seat belts correctly and
that they are all properly re-
strained before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles
a s t h e y w i l l n o t f u l i l t h e i r r o l e f u l l y .
If the seats have armrests*, the lap
part of the seat belt must always
pass under the armrest.
T h e s e a t b e l t s a r e i t t e d w i t h a n i n -
ertia reel permitting automatic ad-
justment of the length of the strap
to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that
the seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on
the pelvis.
The upper part must be positioned
in the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e i t t e d w i t h a n
automatic locking device which
comes into operation in the event of
a collision, on emergency braking
or if the vehicle rolls over. You can
release the device by pulling rapidly
on the strap and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement,
checking that it does not twist,
- must not be transformed or m o d i i e d t o a v o i d a l t e r i n g i t s
performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for
c h i l d r e n :
- use a suitable child seat if the
passenger is less than 12 years
old or shorter than one metre
i f t y ,
- do not use the strap-guide* when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.
D e p e n d i n g o n t h e n a t u r e a n d s e -
r i o u s n e s s o f t h e i m p a c t s , the pre-
tensioning device may be triggered
before and independently of the
air bags. Triggering of the pre-ten-
sioners is accompanied by a slight
emission of harmless smoke and a
noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
In all cases, the air bag warning
light comes on.
Following an impact, have the seat
belts system checked, and if nec-
essary replaced, by a PEUGEOT
dealer.
* According to model.
