3
43
VENTILATION
1. Windscreen de-icing or
demisting vent.
2. Side window de-icing or
demisting vents.
3. Side vents.
4. Central vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
7. Temperature sensor. Recommendations for use
If the interior temperature remains
very high following a long period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.
For an even air distribution, make
sure that you do not block the out-
side air inlet grille, the vents and the
air outlets to the footwells.
In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in a high temperature),
cutting off the air conditioning permits
recovery of the engine power and
therefore improvement of the towing
capacity.
Ensure that the passenger compart-
m e n t fi l t e r , l o c a t e d u n d e r n e a t h t h e
windscreen, in the engine compart-
ment, is in good condition. Have the
fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r
to the chapter "Checks - § Checks").
If you drive in a dusty environment,
change them twice as often. We recommend the use of a com-
b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . B y
m e a n s o f i t s s e c o n d s p e c i a l a c t i v e fi l t e r ,
i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and to the
cleanness of the passenger compart-
ment (reduction of allergic symptoms,
unpleasant odours and oily deposits).
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
To guarantee correct operation of
your air conditioning system, we also
recommend that you have it checked
regularly.
The condensation created by the air
c o n d i t i o n i n g r e s u l t s i n a fl o w o f w a t e r
underneath the vehicle when stationary
which is perfectly normal.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.
Do not cover the temperature sen-
sor
7 , it is used for regulation of the
air conditioning.
The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer.

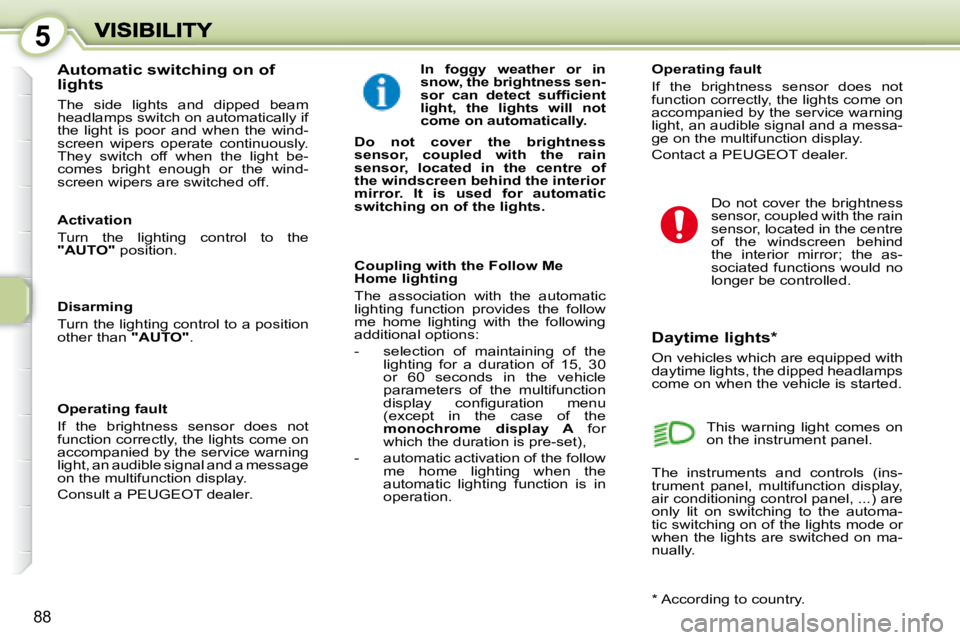

Page 88 of 194
5
88
Daytime lights *
On vehicles which are equipped with daytime lights, the dipped headlamps come on when the vehicle is started.
A u t o m a t i c s w i t c h i n g o n o f
lights
The side lights and dipped beam headlamps switch on automatically if the light is poor and when the wind-screen wipers operate continuously. They switch off when the light be-comes bright enough or the wind-screen wipers are switched off.
I n f o g g y w e a t h e r o r i n s n o w , t h e b r i g h t n e s s s e n - s o r c a n d e t e c t s u f fi c i e n t l i g h t , t h e l i g h t s w i l l n o t come on automatically.
Do not cover the brightness s e n s o r , c o u p l e d w i t h t h e r a i n s e n s o r , l o c a t e d i n t h e c e n t r e o f t h e w i n d s c r e e n b e h i n d t h e i n t e r i o r mirror. It is used for automatic s w i t c h i n g o n o f t h e l i g h t s .
C o u p l i n g w i t h t h e F o l l o w M e
Home lighting
The association with the automatic lighting function provides the follow me home lighting with the following additional options:
- selection of maintaining of the lighting for a duration of 15, 30 or 60 seconds in the vehicle parameters of the multifunction d i s p l a y c o n fi g u r a t i o n m e n u (except in the case of the monochrome display A for which the duration is pre-set),
- automatic activation of the follow me home lighting when the automatic lighting function is in operation.
Activation
Turn the lighting control to the " AUTO " position.
Disarming
Turn the lighting control to a position other than " AUTO ".
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the multifunction display.
Consult a PEUGEOT dealer.
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a messa-ge on the multifunction display.
Contact a PEUGEOT dealer.
Do not cover the brightness sensor, coupled with the rain sensor, located in the centre of the windscreen behind the interior mirror; the as-sociated functions would no longer be controlled.
This warning light comes on on the instrument panel.
The instruments and controls (ins-trument panel, multifunction display, air conditioning control panel, ...) are only lit on switching to the automa-tic switching on of the lights mode or when the lights are switched on ma-nually.
* According to country.
Page 89 of 194
5
88
Daytime lights *
On vehicles which are equipped with daytime lights, the dipped headlamps come on when the vehicle is started.
A u t o m a t i c s w i t c h i n g o n o f
lights
The side lights and dipped beam headlamps switch on automatically if the light is poor and when the wind-screen wipers operate continuously. They switch off when the light be-comes bright enough or the wind-screen wipers are switched off.
I n f o g g y w e a t h e r o r i n s n o w , t h e b r i g h t n e s s s e n - s o r c a n d e t e c t s u f fi c i e n t l i g h t , t h e l i g h t s w i l l n o t come on automatically.
Do not cover the brightness s e n s o r , c o u p l e d w i t h t h e r a i n s e n s o r , l o c a t e d i n t h e c e n t r e o f t h e w i n d s c r e e n b e h i n d t h e i n t e r i o r mirror. It is used for automatic s w i t c h i n g o n o f t h e l i g h t s .
C o u p l i n g w i t h t h e F o l l o w M e
Home lighting
The association with the automatic lighting function provides the follow me home lighting with the following additional options:
- selection of maintaining of the lighting for a duration of 15, 30 or 60 seconds in the vehicle parameters of the multifunction d i s p l a y c o n fi g u r a t i o n m e n u (except in the case of the monochrome display A for which the duration is pre-set),
- automatic activation of the follow me home lighting when the automatic lighting function is in operation.
Activation
Turn the lighting control to the " AUTO " position.
Disarming
Turn the lighting control to a position other than " AUTO ".
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the multifunction display.
Consult a PEUGEOT dealer.
Operating fault
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a messa-ge on the multifunction display.
Contact a PEUGEOT dealer.
Do not cover the brightness sensor, coupled with the rain sensor, located in the centre of the windscreen behind the interior mirror; the as-sociated functions would no longer be controlled.
This warning light comes on on the instrument panel.
The instruments and controls (ins-trument panel, multifunction display, air conditioning control panel, ...) are only lit on switching to the automa-tic switching on of the lights mode or when the lights are switched on ma-nually.
* According to country.
Page 92 of 194
5
90
W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
L o w w a s h - w i p e / h e a d l a m p w a s h
fl u i d l e v e l
O n v e h i c l e s fi t t e d w i t h h e a d l a m p
washers, this is indicated by an audible
signal or a message on the multifunction
display.
This information is given each time
the front or rear wash-wipe control is
o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
W h e n y o u s t o p , fi l l t h e w a s h - w i p e /
headlamp wash reservoir or have it
fi l l e d .
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.
R e a r w i n d s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h
for intermittent wiping.
When reverse gear is engaged, if the
windscreen wipers are in operation,
the rear wiper will start wiping.
Turn ring A p a s t t h e fi r s t
notch; the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d p e r i o d .
A u t o m a t i c w i n d s c r e e n w i p e r s
In AUTO mode, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall .
Activation
Activation of the function is accom-panied by a message on the multi-function display.
T h e a u t o m a t i c w i n d s c r e e n w i p e r s function must be reactivated if the i g n i t i o n h a s b e e n s w i t c h e d o f f f o r m o r e t h a n o n e m i n u t e , b y p r e s - s i n g t h e s t a l k d o w n w a r d s .
Deactivation
Deactivation of the function is ac-companied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I , 1 or 2 .
In the event of event ofofmalfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.
R e a r w i n d s c r e e n w a s h
To activate or deactivate
this function, go to the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
I f t h e r e i s a s i g n i fi c a n t a c -
cumulation of snow or ice
and when using a bicycle
carrier on the tailgate, deactivate the
automatic rear wiping by going to the
m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n
menu.
Special position of the front
w i n d s c r e e n w i p e r
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See corre-
sponding section).
To park the wipers after this has been
done, switch on the ignition and ope-
rate the stalk.
Page 93 of 194
5
90
W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
L o w w a s h - w i p e / h e a d l a m p w a s h
fl u i d l e v e l
O n v e h i c l e s fi t t e d w i t h h e a d l a m p
washers, this is indicated by an audible
signal or a message on the multifunction
display.
This information is given each time
the front or rear wash-wipe control is
o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
W h e n y o u s t o p , fi l l t h e w a s h - w i p e /
headlamp wash reservoir or have it
fi l l e d .
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.
R e a r w i n d s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h
for intermittent wiping.
When reverse gear is engaged, if the
windscreen wipers are in operation,
the rear wiper will start wiping.
Turn ring A p a s t t h e fi r s t
notch; the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d p e r i o d .
A u t o m a t i c w i n d s c r e e n w i p e r s
In AUTO mode, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall .
Activation
Activation of the function is accom-panied by a message on the multi-function display.
T h e a u t o m a t i c w i n d s c r e e n w i p e r s function must be reactivated if the i g n i t i o n h a s b e e n s w i t c h e d o f f f o r m o r e t h a n o n e m i n u t e , b y p r e s - s i n g t h e s t a l k d o w n w a r d s .
Deactivation
Deactivation of the function is ac-companied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I , 1 or 2 .
In the event of event ofofmalfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.
R e a r w i n d s c r e e n w a s h
To activate or deactivate
this function, go to the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
I f t h e r e i s a s i g n i fi c a n t a c -
cumulation of snow or ice
and when using a bicycle
carrier on the tailgate, deactivate the
automatic rear wiping by going to the
m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n
menu.
Special position of the front
w i n d s c r e e n w i p e r
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See corre-
sponding section).
To park the wipers after this has been
done, switch on the ignition and ope-
rate the stalk.
Page 97 of 194
6
93
This message is also dis-
played when one of the
wheels is away from the
v e h i c l e ( b e i n g r e p a i r e d ) o r
when one or more wheels
w i t h o u t a s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h
this system must be carried
out by a PEUGEOT dealer.
If, when changing a tyre, you install
a wheel which is not detected by
y o u r v e h i c l e ( e x a m p l e : fi t t i n g o f s n o w
t y r e s ) , y o u m u s t h a v e t h e s y s t e m
reinitialised by a PEUGEOT dealer.
Puncture
This warning light and the
STOP warning light come
on on the instrument panel,
accompanied by an audible
signal and a message on the multi-
function display locating the wheel
concerned.
S t o p i m m e d i a t e l y , a v o i d i n g a n y
s u d d e n m o v e m e n t o f t h e s t e e r i n g
wheel and the brakes.
Change the damaged wheel
( p u n c t u r e d o r v e r y d e fl a t e d
t y r e ) , a n d h a v e t h e t y r e p r e s s u r e
checked as soon as possible.
Sensor(s) not detected or faulty This warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
multifunction display locating the wheel
or wheels which are not detected or
indicating a fault in the system.
Contact a PEUGEOT dealer to re-
place the faulty sensor(s). This system does not elimi-
n a t e t h e n e e d t o h a v e t h e
tyre pressure checked regu-
l a r l y ( r e f e r t o t h e " I d e n t i fi c a -
tion features" paragraph) to ensure
that the optimum dynamic perfor-
m a n c e o f t h e v e h i c l e i s m a i n t a i n e d
a n d p r e v e n t p r e m a t u r e w e a r o f t h e
t y r e s , p a r t i c u l a r l y i n a r d u o u s d r i v i n g
c o n d i t i o n s ( h e a v y l o a d , h i g h s p e e d ) .
The tyre pressures must be checked
cold, at least once a month. Remember
to check the pressure of the spare
wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radioelectric
emissions on a frequency close to
that used by the system.
Page 116 of 194
7
109
VISUAL AND AUDIBLE REAR PARKING ASSISTANCE
This system consists of four proximity
sensors, located in the rear bumper,
and a special speaker.
T h i s d e t e c t s a n y o b s t a c l e ( p e r s o n ,
vehicle, tree, gate, etc.) behind the
vehicle. Nevertheless, it cannot
detect obstacles located just below
the bumper.
An object, such as a stake, a road-
works cone or any other similar
object may be detected at the begin-
ning of the manoeuvre, but may no
longer be detected when the vehicle
comes close to it. Detection zone
Activation
The system is activated as soon as
reverse gear is engaged, accompa-
nied by an audible signal. The proxi-
mity information is given by:
- an audible signal, which beco-
mes more rapid as the vehicle
approaches the obstacle.
- a graphic on the multifunction display, with blocks which be-
come increasingly close to the
vehicle. When the distance between the rear
of the vehicle and the obstacle is less
than thirty centimetres, the audible
signal becomes continuous and the
"Danger" symbol appears on the
multifunction display.
On completion of the manoeuvre,
when you exit reverse gear, the sys-
tem becomes inactive.
The rear parking assistance sys-
tem cannot, in any circumstances,
take the place of the vigilance and
responsibility of the driver.
Page 117 of 194
7
110
If there is an operating fault,
when reverse gear is enga-
ged, the service warning
light comes on, accompa-
nied by an audible signal
( s h o r t b l e e p ) a n d a m e s s a g e
on the multifunction display.
In bad or wintry weather, ensure that
the sensors are not covered with
mud, frost or snow.
Deactivation
With the engine running, press button A
to deactivate the system permanently.
The indicator light on the button comes
on.
The system will be deactivated
automatically when towing a trailer or
w h e n a b i c y c l e c a r r i e r i s fi t t e d ( v e h i c l e
fi t t e d w i t h a t o w b a r o r b i c y c l e c a r r i e r
recommended by PEUGEOT ).
Reactivation
Press button A again to reactivate
the system. The indicator light on the
button is switched off.
