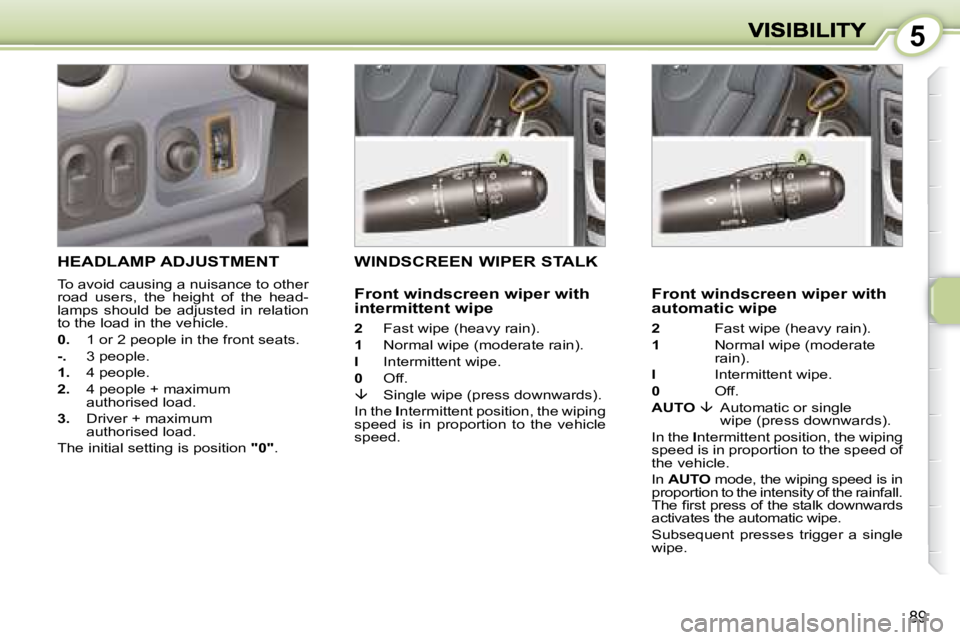

HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the head-
lamps should be adjusted in relation
to the load in the vehicle.
0. 1 or 2 people in the front seats.
- . 3 people.
1. 4 people.
2. 4 people + maximum
authorised load.
3. Driver + maximum
authorised load.
The initial setting is position "0" .
WINDSCREEN WIPER STALK
F r o n t w i n d s c r e e n w i p e r w i t h
a u t o m a t i c w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate
rain).
I Intermittent wipe.
0 Off.
AUTO Automatic or single
wipe (press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In AUTO mode, the wiping speed is in
proportion to the intensity of the rainfall.
T h e fi r s t p r e s s o f t h e s t a l k d o w n w a r d s
activates the automatic wipe.
Subsequent presses trigger a single
wipe.
F r o n t w i n d s c r e e n w i p e r w i t h
i n t e r m i t t e n t w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the vehicle
speed.
Page 92 of 194
5
90
W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
L o w w a s h - w i p e / h e a d l a m p w a s h
fl u i d l e v e l
O n v e h i c l e s fi t t e d w i t h h e a d l a m p
washers, this is indicated by an audible
signal or a message on the multifunction
display.
This information is given each time
the front or rear wash-wipe control is
o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
W h e n y o u s t o p , fi l l t h e w a s h - w i p e /
headlamp wash reservoir or have it
fi l l e d .
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.
R e a r w i n d s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h
for intermittent wiping.
When reverse gear is engaged, if the
windscreen wipers are in operation,
the rear wiper will start wiping.
Turn ring A p a s t t h e fi r s t
notch; the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d p e r i o d .
A u t o m a t i c w i n d s c r e e n w i p e r s
In AUTO mode, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall .
Activation
Activation of the function is accom-panied by a message on the multi-function display.
T h e a u t o m a t i c w i n d s c r e e n w i p e r s function must be reactivated if the i g n i t i o n h a s b e e n s w i t c h e d o f f f o r m o r e t h a n o n e m i n u t e , b y p r e s - s i n g t h e s t a l k d o w n w a r d s .
Deactivation
Deactivation of the function is ac-companied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I , 1 or 2 .
In the event of event ofofmalfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.
R e a r w i n d s c r e e n w a s h
To activate or deactivate
this function, go to the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
I f t h e r e i s a s i g n i fi c a n t a c -
cumulation of snow or ice
and when using a bicycle
carrier on the tailgate, deactivate the
automatic rear wiping by going to the
m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n
menu.
Special position of the front
w i n d s c r e e n w i p e r
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See corre-
sponding section).
To park the wipers after this has been
done, switch on the ignition and ope-
rate the stalk.
Page 93 of 194
5
90
W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
L o w w a s h - w i p e / h e a d l a m p w a s h
fl u i d l e v e l
O n v e h i c l e s fi t t e d w i t h h e a d l a m p
washers, this is indicated by an audible
signal or a message on the multifunction
display.
This information is given each time
the front or rear wash-wipe control is
o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
W h e n y o u s t o p , fi l l t h e w a s h - w i p e /
headlamp wash reservoir or have it
fi l l e d .
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.
R e a r w i n d s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h
for intermittent wiping.
When reverse gear is engaged, if the
windscreen wipers are in operation,
the rear wiper will start wiping.
Turn ring A p a s t t h e fi r s t
notch; the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d p e r i o d .
A u t o m a t i c w i n d s c r e e n w i p e r s
In AUTO mode, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall .
Activation
Activation of the function is accom-panied by a message on the multi-function display.
T h e a u t o m a t i c w i n d s c r e e n w i p e r s function must be reactivated if the i g n i t i o n h a s b e e n s w i t c h e d o f f f o r m o r e t h a n o n e m i n u t e , b y p r e s - s i n g t h e s t a l k d o w n w a r d s .
Deactivation
Deactivation of the function is ac-companied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I , 1 or 2 .
In the event of event ofofmalfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.
R e a r w i n d s c r e e n w a s h
To activate or deactivate
this function, go to the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
I f t h e r e i s a s i g n i fi c a n t a c -
cumulation of snow or ice
and when using a bicycle
carrier on the tailgate, deactivate the
automatic rear wiping by going to the
m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n
menu.
Special position of the front
w i n d s c r e e n w i p e r
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See corre-
sponding section).
To park the wipers after this has been
done, switch on the ignition and ope-
rate the stalk.
Page 119 of 194
8
113
1.4 LITRE AND 1.6 LITRE16V PETROL ENGINES
1. Coolant reservoir.
2. Windscreen/headlamp wash
reservoir.
3. P a s s e n g e r c o m p a r t m e n t fi l t e r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. A i r fi l t e r .
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
Page 120 of 194
8
114
1.4 LITRE HDI AND 1.6 LITRE HDI PEF TURBO DIESEL ENGINES
1. Coolant reservoir.
2. Windscreen/headlamp wash
reservoir.
3. P a s s e n g e r c o m p a r t m e n t fi l t e r .
4. Priming pump.
5. A i r fi l t e r .
6. B r a k e fl u i d r e s e r v o i r .
7. Fuse box.
8. Battery.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
Page 121 of 194
8
115
CHECKING THE LEVELS
There are two marks on
the dipstick:
A = maximum
N e v e r fi l l p a s t t h i s m a r k .
B = minimum
Dipstick
Oil change
According to the information given in
the servicing booklet. Changing the brake fluid
T h e b r a k e fl u i d m u s t b e
changed at the intervals
stated, according to the
manufacturer's servicing
schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e m a n -
u f a c t u r e r , w h i c h f u l fi l D O T 4 s t a n d a r d s . Windscreen and headlamp
wash level
For best quality cleaning and
for your safety, we would ad-
vise that you use products
recommended by PEUGEOT .
When the level is low, this is indicated
by an audible signal and a message
on the multifunction display.
Viscosity selection
In all cases, the oil selected must
meet the manufacturer's require-
ments.
Cooling system
U s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
When the engine is warm, the tem-
perature of the coolant is controlled
by the engine fan. As this fan can ope
rate with the ignition key removed and
because the cooling system is pres-
surised, wait for at least one hour after
the engine has stopped before carry-
ing out any work.
Slacken the cap by two turns to re-
lease the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and
top up the level. Diesel additive level (Diesel
with particle emission filter)
Lighting of the service warning light,
accompanied by a message and an
audible signal, indicates that the die-
sel additive level is low.
This additive must be topped up.
Contact a PEUGEOT dealer as soon
as possible.
To maintain the reliability of
engines and emission control
systems, the use of additives
in engine oil is prohibited. Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Note
: the coolant does not need to
be changed.
The level must always be
above the MIN mark and
close to the MAX mark. Do not dispose of used oil,
b r a k e fl u i d o r c o o l a n t i n t o
drains or into the ground.
Oil level
Check the level regularly
and top up between chang-
es. The maximum consump-
tion is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the oil level gauge
on the instrument panel or the dip-
stick.
Page 126 of 194
9
120

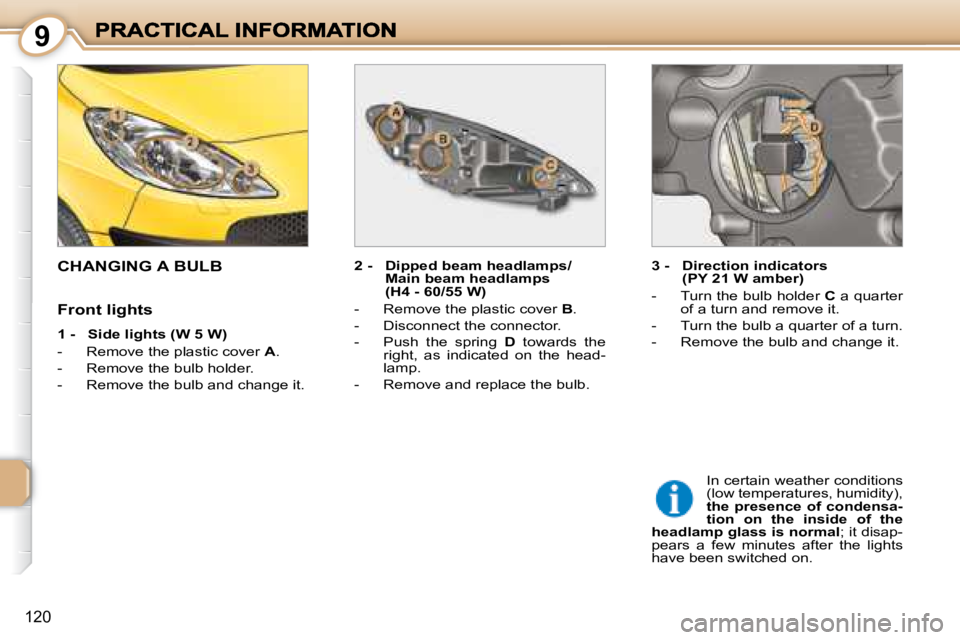

CHANGING A BULB 2 - Dipped beam headlamps/Main beam headlamps
(H4 - 60/55 W)
- Remove the plastic cover B .
- Disconnect the connector.
- Push the spring D towards the
right, as indicated on the head-
lamp.
- Remove and replace the bulb. 3 - Direction indicators
(PY 21 W amber)
- Turn the bulb holder C a quarter
of a turn and remove it.
- Turn the bulb a quarter of a turn.
- Remove the bulb and change it.
In certain weather conditions
(low temperatures, humidity),
the presence of condensa-
tion on the inside of the
headlamp glass is normal ; it disap-
pears a few minutes after the lights
have been switched on.
Front lights
1 - Side lights (W 5 W)
- Remove the plastic cover A .
- Remove the bulb holder.
- Remove the bulb and change it.
Page 127 of 194
9
121

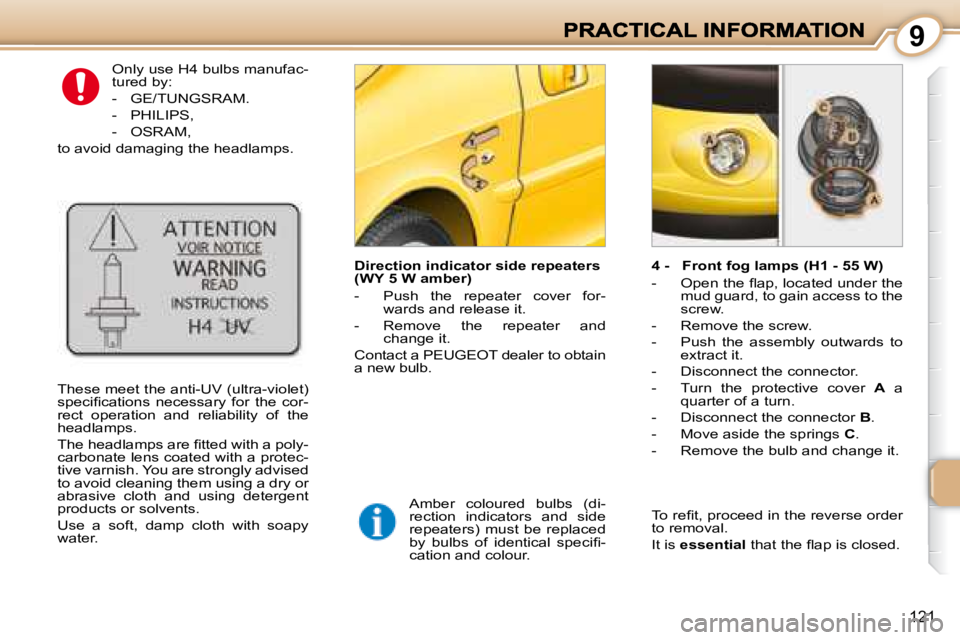

Only use H4 bulbs manufac-
tured by:
- GE/TUNGSRAM.
- PHILIPS,
- OSRAM,
to avoid damaging the headlamps.
Direction indicator side repeaters
(WY 5 W amber)
- Push the repeater cover for-wards and release it.
- Remove the repeater and change it.
Contact a PEUGEOT dealer to obtain
a new bulb. 4 - Front fog lamps (H1 - 55 W)
- O p e n t h e fl a p , l o c a t e d u n d e r t h e
mud guard, to gain access to the
screw.
- Remove the screw.
- Push the assembly outwards to extract it.
- Disconnect the connector.
- Turn the protective cover A a
quarter of a turn.
- Disconnect the connector B .
- Move aside the springs C .
- Remove the bulb and change it.
Amber coloured bulbs (di-
rection indicators and side
repeaters) must be replaced
b y b u l b s o f i d e n t i c a l s p e c i fi -
cation and colour.
These meet the anti-UV (ultra-violet)
s p e c i fi c a t i o n s n e c e s s a r y f o r t h e c o r -
rect operation and reliability of the
headlamps.
T h e h e a d l a m p s a r e fi t t e d w i t h a p o l y -
carbonate lens coated with a protec-
tive varnish. You are strongly advised
to avoid cleaning them using a dry or
abrasive cloth and using detergent
products or solvents.
Use a soft, damp cloth with soapy
water.
T o r e fi t , p r o c e e d i n t h e r e v e r s e o r d e r
to removal.
It is
essential t h a t t h e fl a p i s c l o s e d .
