2008 NISSAN MAXIMA display

Table of
ContentsIllustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Display screen, heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10

1. Side and center ventilators (P. 4-18)
2. Headlight/fog light/turn signal switch
(P. 2-22)
3. Steering wheel switch for audio control
and BluetoothTHands-Free Phone
System (if so equipped) (P. 4-44, 4-46)4. Meters and gauges (P. 2-3)
5. Driver supplemental air bag/horn
(P. 1-35, P. 2-28)
6. Security indicator light (P. 2-17)
7. Cruise control main/set switches
(P. 5-14)8. Windshield wiper/washer switch
(P. 2-20)
9. Display screen/Navigation system*
(P. 4-2, P. 4-6)
10. Display screen/Navigation system*
controls (P. 4-2, P. 4-6)
11. Front passenger supplemental air bag
(P. 1-35)
12. Glove box (P. 2-34)
13. Audio system controls (P. 4-22)
14. Climate controls (P. 4-19)
15. Storage (P. 2-32)
16. Power outlet (P. 2-31)
17. Shift selector lever (P. 5-9)
18. Hazard warning flasher switch (P. 2-27)
19. Passenger air bag status light (P. 1-45)
20. Ignition switch (P. 5-6)
21. Tilt/telescopic steering wheel controls
(P. 3-22)
22. Traction Control System (TCS) off
switch (if so equipped) (P. 2-29) or
Vehicle Dynamic Control (VDC) off
switch (if so equipped) (P. 2-30)
23. Rear sonar system off switch
(if so equipped) (P. 2-30)
24. Outside mirror controls (P. 3-25)
25. Instrument brightness control (P. 2-26)
LIC0988
INSTRUMENT PANEL
0-6Illustrated table of contents
ZREVIEW COPYÐ2008 Maxima(max)
Owners ManualÐUSA_English(nna)
06/08/07Ðdebbie
X

1. SRS Air Bag Warning Labels (located
on the sun visors)
2. Front seat-mounted side-impact
supplemental air bags Warning Labels
(located on the door pillar)
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front air
bag, supplemental side air bag and curtain side-
impact air bag systems are placed in the vehicle
as shown in the illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displayingin the instrument panel, moni-
tors the circuits of the supplemental front air bag,
front seat-mounted side-impact supplemental air
bag, roof-mounted curtain side-impact supple-
mental air bag and seat belt pretensioner system.
The circuits monitored by the supplemental air
bag warning light are the Air bag Control Unit
(ACU) , crash zone sensor, satellite sensors, front
seat-mounted side-impact supplemental air bag
modules, side air bag modules, roof-mountedcurtain side-impact supplemental air bag mod-
ules, seat belt pretensioners and all related wir-
ing.
When the ignition key is in the ON or START
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational.
If any of the following conditions occur, the
supplemental front air bag, side-impact supple-
mental air bag, roof-mounted curtain side-impact
supplemental air bag and pretensioner systems
need servicing:
cThe supplemental air bag warning light re-
mains on after approximately 7 seconds.
cThe supplemental air bag warning light
flashes intermittently.
cThe supplemental air bag warning light does
not come on at all.
Under these conditions, the supplemental front
air bag, side-impact supplemental air bags, roof-
mounted curtain side-impact supplemental air
bags or pretensioners may not operate properly.
It must be checked and repaired. Take your ve-
hicle to the nearest NISSAN dealer.
WRS0169LRS0100
Safety—Seats, seat belts and supplemental restraint system1-51
ZREVIEW COPYÐ2008 Maxima(max)
Owners ManualÐUSA_English(nna)
06/08/07Ðdebbie
X

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges................................2-3
Speedometer and odometer.....................2-4
Tachometer....................................2-5
Engine coolant temperature gauge...............2-5
Fuel gauge....................................2-6
Compass display (if so equipped)...................2-6
Zone variation change procedure.................2-8
Warning/indicator lights and audible reminders......2-10
Checking bulbs...............................2-10
Warning lights................................2-11
Indicator lights................................2-14
Audible reminders.............................2-17
Security systems.................................2-17
Vehicle security system.........................2-17
NISSAN vehicle immobilizer system.............2-19
Windshield wiper and washer switch...............2-20
Switch operation..............................2-20
Rear window and outside mirror (if so equipped)
defroster switch..................................2-21
Headlight and turn signal switch....................2-22
Xenon headlights (if so equipped)...............2-22
Headlight control switch........................2-23Daytime running light system (Canada only)......2-25
Instrument brightness control...................2-26
Turn signal switch.............................2-26
Fog light switch...............................2-26
Cornering light................................2-27
Hazard warning flasher switch.....................2-27
Horn............................................2-28
Heated seats (if so equipped)......................2-28
Heated steering wheel (if so equipped).............2-29
Traction Control System (TCS) off switch
(if so equipped)..................................2-29
Vehicle Dynamic Control (VDC) off switch
(if so equipped)..................................2-30
Rear sonar system off switch (if so equipped)........2-30
Power outlet.....................................2-31
Storage.........................................2-32
Map pockets..................................2-32
Seatback pockets.............................2-32
Sunglasses holder.............................2-32
Cup holders..................................2-33
Glove box....................................2-34
Console box..................................2-34
Covered storage box...........................2-35
ZREVIEW COPYÐ2008 Maxima(max)
Owners ManualÐUSA_English(nna)
06/08/07Ðdebbie
X

1. Side and center ventilators (P. 4-18)
2. Headlight/fog light/turn signal switch
(P. 2-22)
3. Steering wheel switch for audio control
and BluetoothTHands-Free Phone
System (if so equipped) (P. 4-44, 4-46)4. Meters and gauges (P. 2-3)
5. Driver supplemental air bag/horn
(P. 1-35, P. 2-28)
6. Security indicator light (P. 2-17)
7. Cruise control main/set switches
(P. 5-14)8. Windshield wiper/washer switch
(P. 2-20)
9. Display screen/Navigation system*
(P. 4-2, P. 4-6)
10. Display screen/Navigation system*
controls (P. 4-2, P. 4-6)
11. Front passenger supplemental air bag
(P. 1-35)
12. Glove box (P. 2-34)
13. Audio system controls (P. 4-22)
14. Climate controls (P. 4-19)
15. Storage (P. 2-32)
16. Power outlet (P. 2-31)
17. Shift selector lever (P. 5-9)
18. Hazard warning flasher switch (P. 2-27)
19. Passenger air bag status light (P. 1-45)
20. Ignition switch (P. 5-6)
21. Tilt/telescopic steering wheel controls
(P. 3-22)
22. Traction Control System (TCS) off
switch (if so equipped) (P. 2-29) or
Vehicle Dynamic Control (VDC) off
switch (if so equipped) (P. 2-30)
23. Rear sonar system off switch (if so
equipped) (P. 2-30)
24. Outside mirror controls (P. 3-25)
25. Instrument brightness control (P. 2-26)
LIC0988
INSTRUMENT PANEL
2-2Instruments and controls
ZREVIEW COPYÐ2008 Maxima(max)
Owners ManualÐUSA_English(nna)
06/08/07Ðdebbie
X

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is in the ON position.
The odometer
s1records the total distance the
vehicle has been driven.
The twin trip odometer
s2records the distance
of individual trips.
Changing the display
Push the change button
s3to change the display
as follows:
Trip
!Trip!Trip
Resetting the trip odometer:
Push the change button
s3for more than 1
second to reset the trip odometer to zero.
Elapsed time, driving distance and average
speed information is also available. Refer to
“Control panel buttons” in the “Display screen,
heater, air conditioner, audio and phone systems”
section later in this manual.
LIC0990LIC0991
2-4Instruments and controls
ZREVIEW COPYÐ2008 Maxima(max)
Owners ManualÐUSA_English(nna)
06/08/07Ðdebbie
X

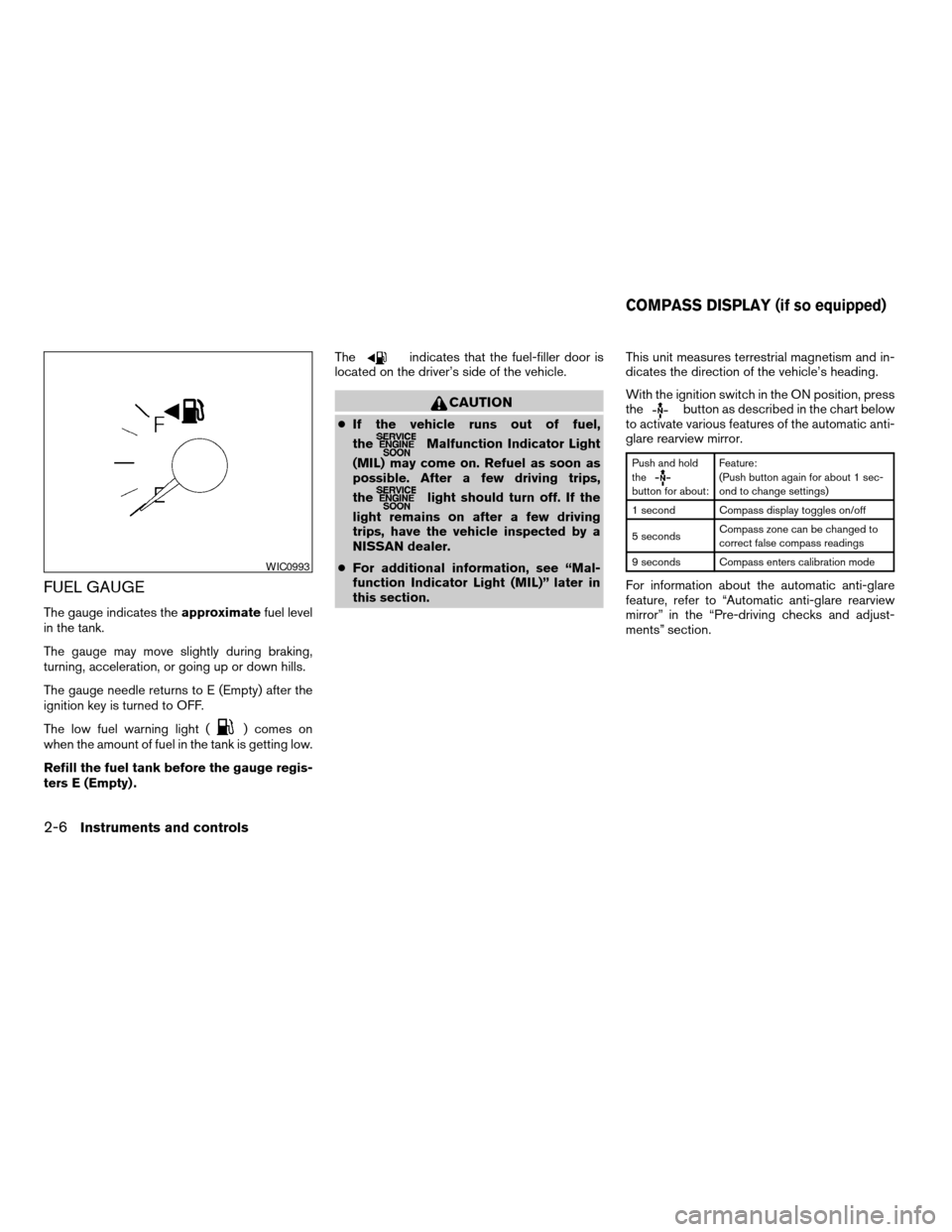

FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition key is turned to OFF.
The low fuel warning light (
) comes on
when the amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge regis-
ters E (Empty) .The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
cIf the vehicle runs out of fuel,
the
Malfunction Indicator Light
(MIL) may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.
cFor additional information, see “Mal-
function Indicator Light (MIL)” later in
this section.This unit measures terrestrial magnetism and in-
dicates the direction of the vehicle’s heading.
With the ignition switch in the ON position, press
the
button as described in the chart below
to activate various features of the automatic anti-
glare rearview mirror.
Push and hold
the
button for about:Feature:
(Push button again for about 1 sec-
ond to change settings)
1 second Compass display toggles on/off
5 secondsCompass zone can be changed to
correct false compass readings
9 seconds Compass enters calibration mode
For information about the automatic anti-glare
feature, refer to “Automatic anti-glare rearview
mirror” in the “Pre-driving checks and adjust-
ments” section.
WIC0993
COMPASS DISPLAY (if so equipped)
2-6Instruments and controls
ZREVIEW COPYÐ2008 Maxima(max)
Owners ManualÐUSA_English(nna)
06/08/07Ðdebbie
X

Push thebutton for about 1 second when
the ignition switch is in the ON position to toggle
the compass display
s1on or off. The display will
indicate the direction of the vehicle’s heading.
N: North
E: East
S: South
W: West
If the display reads “C”, calibrate the compass by
driving the vehicle in three complete circles at
less than 5 MPH (8 km/h) .You can also calibrate the compass by driving
your vehicle on your everyday route. The com-
pass will be calibrated once it has tracked three
complete circles.
LIC0583
Instruments and controls2-7
