2008 MITSUBISHI COLT headlamp

Maintenance8-45
8

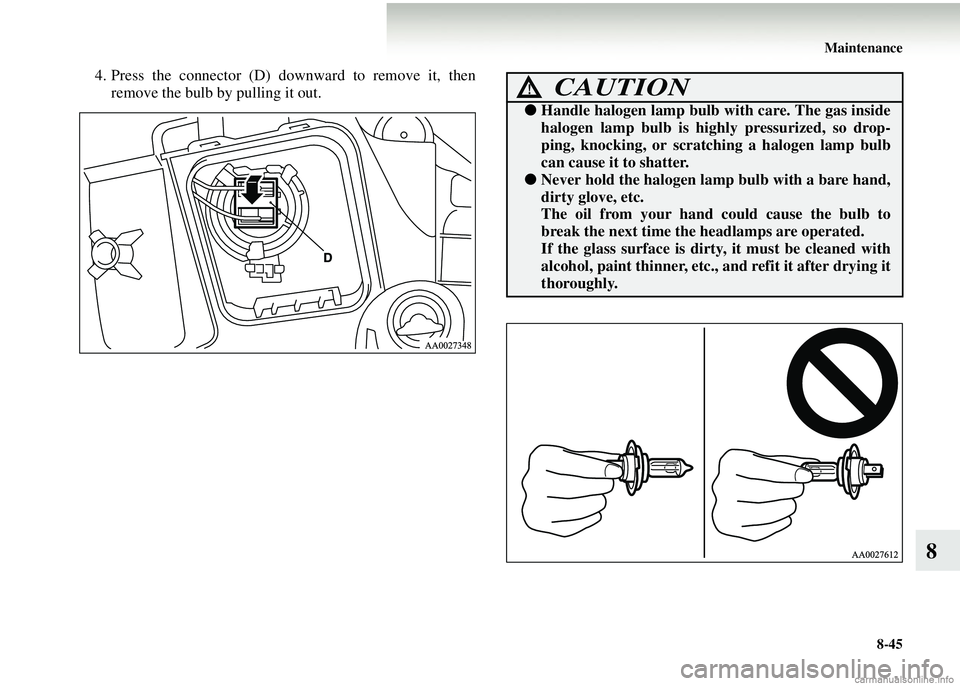

4. Press the connector (D) downward to remove it, thenremove the bulb by pulling it out.CAUTION!
● Handle halogen lamp bulb with care. The gas inside
halogen lamp bulb is highly pressurized, so drop-
ping, knocking, or scratc hing a halogen lamp bulb
can cause it to shatter.
● Never hold the halogen lamp bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time th e headlamps are operated.
If the glass surface is dirt y, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.

Maintenance8-47
8
2. Press the connector (B) dow nward to remove it, then
remove the bulb by pulling it out.CAUTION!
● Handle halogen lamp bulb with care. The gas inside
halogen lamp bulb is highly pressurized, so drop-
ping, knocking, or scratc hing a halogen lamp bulb
can cause it to shatter.
● Never hold the halogen lamp bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time th e headlamps are operated.
If the glass surface is dirt y, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.

8-48 Maintenance
8
NOTE●When installing the bulb, align the upper part as illus-
trated then press the bulb into place.Position lampsE01003700325
1. Remove the cap.
(Refer to “Headlamps: Re placement of high beam” on
page 8-46.)
2. Remove the socket (A) by leve ring it with a straight blade
(or minus) screwdriver. Then, remove the bulb from the
socket by pulling it out.
Upper

Maintenance8-49
8
Front turn-signal lampsE01003800270
1. Remove the cover from the splash shield.(Refer to “Headlamps: Replacement of low beam” on
page 8-44.)
2. Turn the bulb socket anticlockwise to remove it. And remove the bulb from the socket by turning it anticlock-
wise while pressing in.
Side turn-signal lampsE01003900082
1. Remove the lamp housing by levering it towards the frontof the vehicle.
Front
