2008 MINI Hardtop 2 Door mirror controls

Cockpit
10
Cockpit
Around the steering wheel: Controls and displays
1Adjusting the exterior mirrors, folding them
in and out
*33
2
Parking lamps66
Low beams66
Automatic headlamp control
*66
Turn signals43
High beams68
Headlamp flasher43
Roadside parking lamps
*68
Computer
*49

ReferenceAt a glance Controls Driving tips Mobility

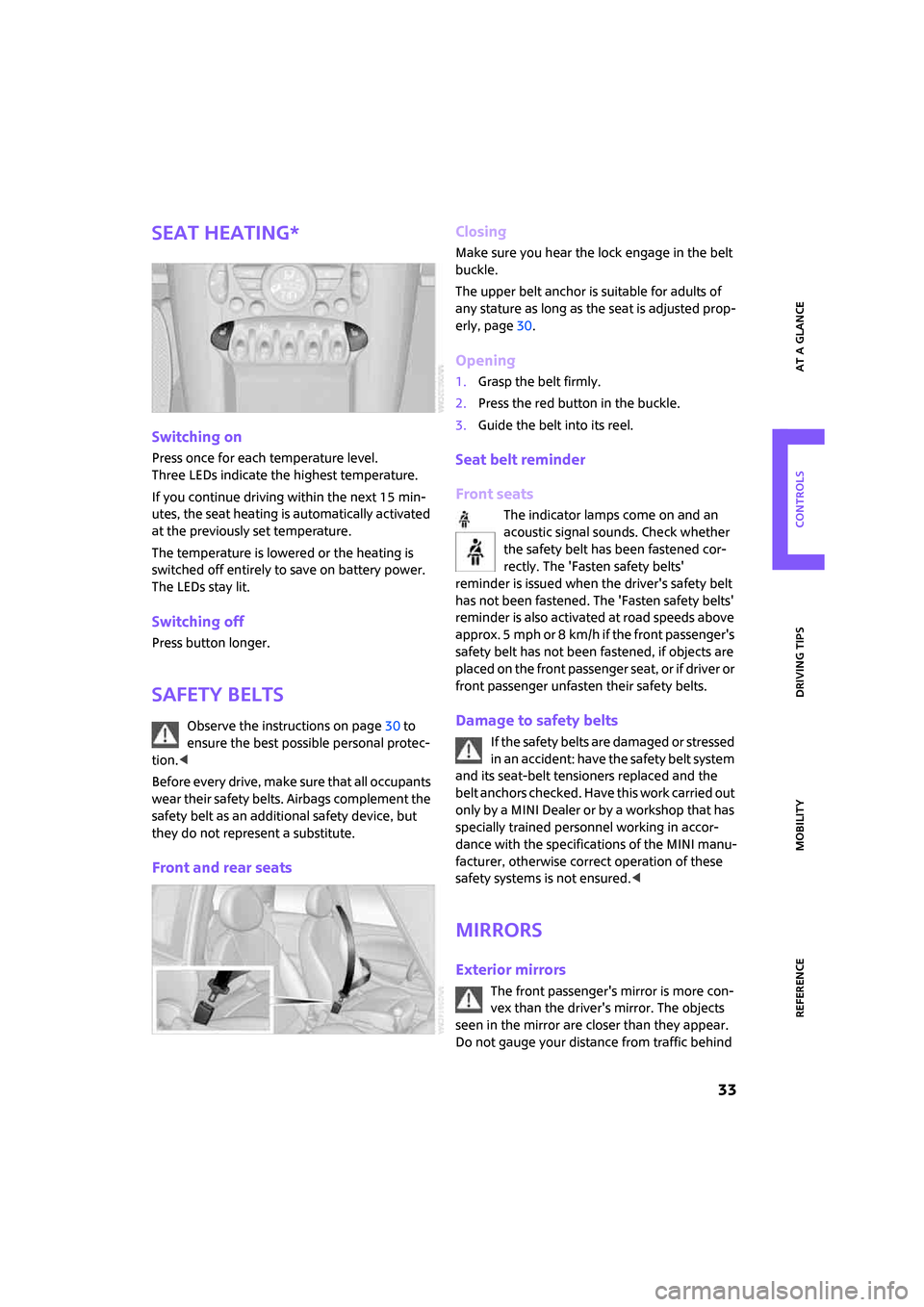

33
Seat heating*
Switching on
Press once for each temperature level.
Three LEDs indicate the highest temperature.
If you continue driving within the next 15 min-
utes, the seat heating is automatically activated
at the previously set temperature.
The temperature is lowered or the heating is
switched off entirely to save on battery power.
The LEDs stay lit.
Switching off
Press button longer.
Safety belts
Observe the instructions on page30 to
ensure the best possible personal protec-
tion.<
Before every drive, make sure that all occupants
wear their safety belts. Airbags complement the
safety belt as an additional safety device, but
they do not represent a substitute.
Front and rear seatsClosing
Make sure you hear the lock engage in the belt
buckle.
The upper belt anchor is suitable for adults of
any stature as long as the seat is adjusted prop-
erly, page30.
Opening
1.Grasp the belt firmly.
2.Press the red button in the buckle.
3.Guide the belt into its reel.
Seat belt reminder
Front seats
The indicator lamps come on and an
acoustic signal sounds. Check whether
the safety belt has been fastened cor-
rectly. The 'Fasten safety belts'
reminder is issued when the driver's safety belt
has not been fastened. The 'Fasten safety belts'
reminder is also activated at road speeds above
approx. 5 mph or 8 km/h if the front passenger's
safety belt has not been fastened, if objects are
placed on the front passenger seat, or if driver or
front passenger unfasten their safety belts.
Damage to safety belts
If the safety belts are damaged or stressed
in an accident: have the safety belt system
and its seat-belt tensioners replaced and the
belt anchors checked. Have this work carried out
only by a MINI Dealer or by a workshop that has
specially trained personnel working in accor-
dance with the specifications of the MINI manu-
facturer, otherwise correct operation of these
safety systems is not ensured.<
Mirrors
Exterior mirrors
The front passenger's mirror is more con-
vex than the driver's mirror. The objects
seen in the mirror are closer than they appear.
Do not gauge your distance from traffic behind

ReferenceAt a glance Controls Driving tips Mobility
153
Emergency operation, refer to
Manual operation
– door lock22
– fuel filler door94
– transmission lock, automatic
transmission43
Emergency services, refer to
Roadside Assistance127
Engine
– breaking in84
– data144
– overheated, refer to Coolant
temperature48
– speed144
– starting39
– starting, convenient
access26
– switching off40
Engine compartment107
Engine coolant, refer to
Coolant108
Engine oil
– adding108
– additives, refer to Approved
engine oils108
– approved engine oils108
– capacity108
– checking level107
– dipstick107
– intervals between changes,
refer to Service
requirements53
– MINI Maintenance
System110
Engine oil level, checking107
Engine output, refer to Engine
data144
Engine starting, refer to
Starting the engine39
Error messages, refer to Check
Control55
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC58
Event data recorders111
Exhaust system, refer to Hot
exhaust system84Exterior mirrors33
– adjusting33
– automatic heating34
– folding in and out34
External audio device78
Eyes
– for tow-starting and towing
away129
– for tying down loads89
F
Failure messages, refer to
Check Control55
Failure of an electrical
consumer125
Fastening safety belts, refer to
Safety belts33
Fasten safety belts reminder,
refer to Seat belt
reminder33
Filter
– microfilter/activated-
charcoal filter for automatic
climate control75
– microfilter for air
conditioner73
Fine wood, care113
First aid pouch127
Fixture for remote control,
refer to Ignition lock39
Flash when locking/
unlocking20
Flat tire
– Run-Flat Tires104
– Tire Pressure Monitor TPM61
Flat Tire Monitor FTM59
– indicating a flat tire60
– initializing the system60
– malfunction61
– snow chains59
– system limits59
Flat tires, refer to Tire
condition103
Floor mats, care113
Floor panel, refer to Level load
floor in MINI Clubman87
Fog lamps
– replacing bulb116,118Folding rear seat backrest86
Footbrake, refer to Braking
safely85
Footwell lamps69
For your own safety4
Front airbags64
Front fog lamps69
– indicator lamp131
– replacing bulb116
Front seat adjustment30
Frost on windows, refer to
Defrosting windows73,75
FTM, refer to Flat Tire
Monitor59
Fuel95
– gauge49
– high-quality brands95
– quality95
– specifications95
– tank capacity148
Fuel clock, refer to Fuel
gauge
49
Fuel display, refer to Fuel
gauge49
Fuel filler door94
– releasing in the event of
electrical malfunction94
Fuses125
G
Garage door opener, refer to
Integrated universal remote
control76
Gasoline
– refer to Average
consumption49
Gasoline, refer to Required
fuel95
Gasoline display, refer to Fuel
gauge49
Gear indicator
– automatic transmission with
Steptronic41
Gear shifting
– automatic transmission41
– manual transmission41

From A to Z
154
Gearshift lever
– automatic transmission with
Steptronic41
– manual transmission41
General driving notes84
Glass sunroof, electric27
– convenient operation20,22
– opening, closing28
– raising28
– remote control20
Glove compartment77
Grills, refer to Air vents71
Gross vehicle weight, refer to
Weights146,147
H
Halogen lamps
– replacing bulb115
Handbrake, refer to Parking
brake40
Hands-free system14
Hazard warning flashers14
Head airbags64
Headlamp control,
automatic66
Headlamp flasher43
– indicator lamp11,131
Headlamps
– replacing bulb115
Headlamps, care112
Head restraints32
– sitting safely30
Heated
– mirrors34
– rear window72,74
– seats33
Heating71
– mirrors34
– rear window72,74
– seats33
Heavy loads, refer to Stowing
cargo88
Height, refer to
Dimensions145
Height adjustment
– seats31
– steering wheel34High beams68
– headlamp flasher68
– indicator lamp131
– replacing bulb115
High water, refer to Driving
through water85
Hills85
Hill Start Assist59
Holders for cups80
Homepage4
Horn10
Hot exhaust system84
Hydroplaning84
I
Ice warning48
Icy roads, refer to Outside
temperature warning48
Ignition39
– switched off39
– switched on39
Ignition key, refer to
Integrated key/remote
control18
Ignition key position 1, refer to
Radio readiness39
Ignition key position 2, refer to
Ignition on39
Ignition lock39
Imprint2
Indicator and warning
lamps13,131
– Tire Pressure Monitor TPM62
Indicator lighting, refer to
Instrument lighting69
Individual air distribution73
Individual settings, refer to
Personal Profile18
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM61
Initializing
– Flat Tire Monitor FTM60
– glass sunroof, electric28
Instrument cluster, refer to
Displays12
Instrument lighting69Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Displays12
Integrated key18
Integrated universal remove
control76
Interior lamps69
– remote control21
Interior rearview mirror34
– automatic dimming
feature34
Interlock41
Intermittent mode of the
wipers44
Internet page4
J
Jacking points124
Jets, refer to Window washer
nozzles46
Jumpering, refer to Jump
starting128
Jump starting128
K
Key, refer to Keys/remote
controls18
Keyless go, refer to Convenient
access26
Keyless opening and closing,
refer to Convenient
access26
Key Memory, refer to Personal
Profile18
Kick-down42
– automatic transmission with
Steptronic42
Knock control95
L
Lamps, refer to Parking lamps/
Low beams66
Lamps and bulbs, replacing
bulbs115

ReferenceAt a glance Controls Driving tips Mobility
155
Lashing eyes, refer to Securing
cargo89
LATCH child-restraint fixing
system37
LEDs light-emitting diodes115
Length, refer to
Dimensions145
Level load floor in MINI
Clubman87
License plate lamp
– replacing bulbs in MINI119
– replacing bulbs in MINI
Clubman119
Light-alloy wheels, care112
Light-emitting diodes
LEDs115
Lighter80
– socket80
Lighting
– lamps and bulbs115
– of the instruments69
– of vehicle, refer to Lamps66
Light switch66
Limit141
Load securing equipment,
refer to Securing cargo89
Lock buttons of doors, refer to
Locking22
Locking
– adjusting confirmation
signal20
– from inside22
– from outside20
– without remote control, refer
to Convenient access26
Locking and unlocking doors
– confirmation signals20
– from inside22
– from outside19
Low beams66
– automatic66
– replacing bulb115
Lower back support, refer to
Lumbar support31
Luggage compartment, refer
to Cargo bay23
Luggage compartment doors,
refer to Splitdoor23Luggage compartment lid,
refer to Tailgate23
Luggage rack, refer to Roof-
mounted luggage rack89
Lumbar support31
M
M+S tires, refer to Winter
tires105
Maintenance, refer to Service
Booklet
Maintenance system110
Malfunction warnings, refer to
Check Control55
Manual air distribution73
Manual mode
– automatic transmission with
Steptronic42
Manual operation
– door lock22
– fuel filler door94
– transmission lock, automatic
transmission43
Manual transmission41
Master key, refer to Integrated
key/remote control18
Maximum cooling74
Maximum speed
– with winter tires105
Medical assistance, refer to
First aid pouch127
Microfilter
– for air conditioner73
– for automatic climate
control75
– MINI Maintenance
System110
Microfilter/activated-charcoal
filter
– MINI Maintenance
System110
Microphone for telephone14
MINI Internet page4
MINI Maintenance System110
Mirror dimming feature34Mirrors33
– exterior mirrors33
– heating34
– interior rearview mirror34
Mobile phone
– installation location, refer to
Center armrest78
– refer to separate Owner's
Manual
Mobile phone, installation
location, refer to Center
armrest78
Mobile phone, refer to the
separate Owner's Manual
Mobility System120
Modifications, technical, refer
to For your own safety4
Monitoring system for tire
pressures, refer to Flat Tire
Monitor59
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher43
– refer to Wiper system44
N
Neck support, refer to Head
restraints32
Nets, refer to Storage
compartments79
New tires104
Number of cylinders, refer to
Engine data144
Nylon rope, refer to Tow
rope130
O
OBD socket, refer to Socket for
Onboard Diagnosis110
Octane ratings, refer to Fuel
specifications95
Odometer48
Oil, refer to Engine oil107
Oil consumption107
