2008 MINI COOPER clock

Replacing components
116
Follow the same steps in reverse order to reat-
tach the cover.
Be careful when installing the cover, oth-
erwise leaks could occur and cause dam-
age to the headlamp system.<
Replacing the bulb
1.Turn the lamp counterclockwise, arrow1,
and remove it, arrow2.
2.Push on the catch, arrow 1, and unplug the
connector, arrow2.
3.To insert the new bulb and replace the
cover, proceed in reverse order.
Turn signal indicators, parking lamps,
roadside parking lamps and fog lamps
Accessing the lamps via the wheel well
1Turn signal
2Parking/roadside parking/fog lamps
Replacing a turn signal bulb
21 watt bulb, PY 21 W
1.Turn in the wheel.
2.Remove cover 1.
To do so, turn the cover counterclockwise.
3.Remove the inside cover.
To do so, turn the cover counterclockwise.
4.Screw out the bulb counterclockwise.
5.To insert the new bulb and replace the cov-
ers, proceed in reverse order.
ProCarManuals.com

ReferenceAt a glance Controls Driving tips Mobility
117
Replacing a parking/roadside parking
lamp bulb
5 watt bulb, W 5 W
1.Turn in the wheel.
2.Remove cover 2.
To do so, turn the cover counterclockwise.
3.Screw out the upper bulb counterclockwise.
4.To insert the new bulb and replace the
cover, proceed in reverse order.
Replacing a fog lamp bulb
H8 bulb, 35 watts
1.Turn in the wheel.
2.Remove cover 2.
To do so, turn the cover counterclockwise.
3.Screw out the lower bulb counterclockwise.
4.To insert the new bulb and replace the
cover, proceed in reverse order.
Side turn signal indicators
5 watt bulb, W 5 W1.Push the lamp with the ventilation grate for-
ward and remove.
2.Screw out the bulb holder counterclockwise.
3.Pull out and replace the bulb.
4.To insert the new bulb and replace the
cover, proceed in reverse order.
Tail lamps
MINI
1Brake lamp/tail lamp
21 watt/5 watt bulb, W 5 W
2Turn signal lamp
21 watt bulb, P 21 W
3Backup lamp
21 watt bulb, P 21 W
ProCarManuals.com

Replacing components
118
MINI Clubman
1Brake lamp/tail lamp
21 watt/5 watt bulb, W 5 W
2Turn signal lamp
21 watt bulb, P 21 W
3Rear fog lamp
* P 21 W
4Backup lamp
21 watt bulb, P 21 W
Replacing bulbs in MINI
1.Remove the cover from the sidewall of the
cargo bay.
2.Screw out the desired bulb counterclock-
wise, arrows1.
Additional bulbs are located behind the
sidewall of the cargo bay, arrow 2.
3.To insert the new bulb and replace the
cover, proceed in reverse order.
Replacing bulbs in MINI Clubman
1.Using the screwdriver from the onboard tool
kit, remove the screw at the top.
2.Swing out the tail lamp and remove it
toward the top.
3.Pull off the cable connector 1, unlock the
bulb holder, arrow2, and remove it,
arrow3.
4.Screw out the respective bulb counterclock-
wise.
5.To insert the new bulb and reinstall the tail
lamp, proceed in reverse order.
Rear fog lamp*
21 watt bulb, P 21 W
Access to the lamp via the back or underside of
the bumper.
ProCarManuals.com

ReferenceAt a glance Controls Driving tips Mobility
119
The illustration shows the fog lamp in the
bumper of the MINI Cooper.
1.Screw out the bulb holder counterclockwise.
2.Screw out and replace the bulb.
3.To insert the new bulb and bulb holder, pro-
ceed in reverse order.
In the MINI Clubman, the rear fog lamp is
located in the left tail lamp, refer to Tail
lamps, page118.<
License plate lamps in MINI
5 watt bulb, C 5 W
1.Using a screwdriver, push the lamp to the
left in the tab of the lamp housing, arrow1.
2.Remove the lamp, arrow 2.
3.Replace the bulb.
4.Insert the lamp.
License plate lamps in MINI Clubman
5watt bulb, C5W
1.Using a screwdriver, push the lamp to the
left in the tab of the lamp housing, arrow1.
2.Remove the lamp, arrow 2.
3.Replace the bulb.
4.Insert the lamp.
Center brake lamp
This lamp uses LED technology for operation. In
the event of a malfunction, contact your MINI
Dealer or a workshop that has specially trained
personnel working in accordance with the spec-
ifications of your MINI manufacturer.
Repairing a flat tire
Safety measures in the event of a break-
down:
Park the vehicle as far as possible from moving
traffic and switch on the hazard warning flash-
ers.
Turn the steering wheel until the front wheels
are in the straight-ahead position and engage
the steering wheel lock. Engage the parking
brake and shift into 1st or reverse gear or place
the selector lever in position P.
All passengers should be outside the vehicle and
in a safe place, e.g. behind a guardrail.
Erect a warning triangle or warning flasher at the
appropriate distance if necessary. Comply with
all safety guidelines and regulations.<
In the event of a flat tire, different procedures
should be followed depending on the equip-
ment included in your vehicle:
ProCarManuals.com

ReferenceAt a glance Controls Driving tips Mobility
127

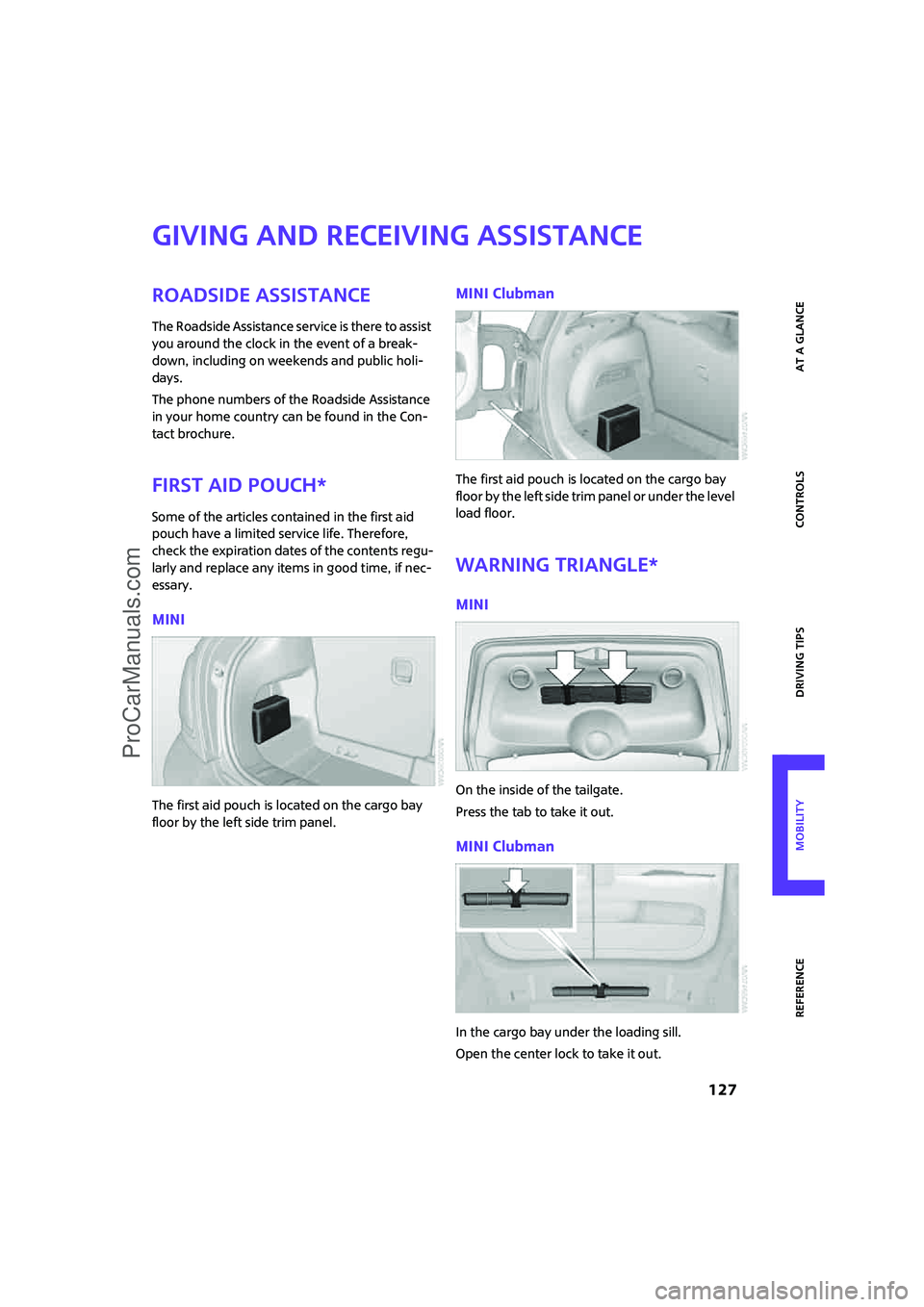

Giving and receiving assistance
Roadside Assistance
The Roadside Assistance service is there to assist
you around the clock in the event of a break-
down, including on weekends and public holi-
days.
The phone numbers of the Roadside Assistance
in your home country can be found in the Con-
tact brochure.
First aid pouch*
Some of the articles contained in the first aid
pouch have a limited service life. Therefore,
check the expiration dates of the contents regu-
larly and replace any items in good time, if nec-
essary.
MINI
The first aid pouch is located on the cargo bay
floor by the left side trim panel.
MINI Clubman
The first aid pouch is located on the cargo bay
floor by the left side trim panel or under the level
load floor.
Warning triangle*
MINI
On the inside of the tailgate.
Press the tab to take it out.
MINI Clubman
In the cargo bay under the loading sill.
Open the center lock to take it out.
ProCarManuals.com

ReferenceAt a glance Controls Driving tips Mobility
151
Belts, refer to Safety belts33
Belt tensioner, refer to Safety
belts33
Beverage holders, refer to Cup
holders80
Blower, refer to Air flow
rate72,73
Bonnet106
Bottle holders, refer to Cup
holders80
Brake Assist58
Brake fluid, refer to Service
requirements53
Brake lamps
– replacing bulbs in MINI118
– replacing bulbs in MINI
Clubman118
Brake pads, breaking in84
Brake rotors85
– brakes84
– breaking in84
Brakes
– ABS58
– breaking in84
– MINI Maintenance
System110
– parking brake40
– service requirements53
Brakes, refer to Braking
safely85
Brake system84
– breaking in84
– disc brakes85
– MINI Maintenance
System110
Breakdown service, refer to
Roadside Assistance127
Breaking in the clutch84
Break-in period84
Bulb changing, refer to Lamps
and bulbs115
Button for starting the
engine39
Buttons on the steering
wheel11C
California Proposition 65
warning5
Can holders, refer to Cup
holders80
Capacities148
Capacity of cargo bay146
Car battery, refer to Vehicle
battery125
Car care112
Car-care products, refer to
Suitable car-care
products112
Care112
Cargo, securing89
Cargo area
– capacity147
Cargo area partition net, refer
to Partition net in MINI
Clubman87
Cargo bay86
– capacity146
– convenient access26
– cover86
– doors, refer to Splitdoor23
– lamp69
– lid, refer to Tailgate23
– opening from outside24
– volume146
Cargo bay, expanding86
Cargo bay doors, refer to
Splitdoor23
Cargo bay lamp69
Cargo bay lid, refer to
Tailgate23
Cargo bay partition net, refer
to Partition net in MINI
Clubman87
Cargo loading
– securing cargo89
– stowing cargo88
– vehicle86
Car key, refer to Keys/remote
controls18
Carpets, care113Car phone
– installation location, refer to
Center armrest78
– refer to separate Owner's
Manual
Car wash86
Car wash, care112
Catalytic converter, refer to
Hot exhaust system84
Center armrest78
Center brake lamp119
Center console, refer to
Around the center
console14
Central locking system19
– convenient access26
– from inside22
– from outside19
Changing bulbs
115
Changing wheels122
Chassis number, refer to
Engine compartment107
Check Control55
Child's seats36
Child-restraint fixing system
LATCH37
Child-restraint systems36
Chock, folding
– space-saver spare tire122
Chrome parts, care113
Chrome parts, refer to
Care112
Cigarette lighter80
Cleaning headlamps45
– washer fluid46
Clock48
– 12h/24h mode51
– setting time54
Closing
– from inside22
– from outside19
Clothes hooks79
Clubdoor23
Cockpit10
Cold start, refer to Starting the
engine39
Comfort access, refer to
Convenient access26
ProCarManuals.com

From A to Z
152
Comfort area, refer to Around
the center console14
Compartment for remote
control, refer to Ignition
lock39
Computer49
Condensation, refer to When
the vehicle is parked85
Condition Based Service
CBS110
Configuring settings, refer to
Personal Profile18
Confirmation signals for
vehicle locking/unlocking20
Connecting vacuum cleaner,
refer to Connecting electrical
appliances80
Consumption, refer to Average
fuel consumption49
Consumption indicator
– average fuel consumption49
Control Display
– settings50
Controls and displays10
Convenience start, refer to
Starting the engine39
Convenient access26
– replacing the battery27
– what to observe before
entering a car wash27
Convenient operation
– windows20
Coolant108
– checking level108
– filling108
Coolant temperature48
Cooling, maximum74
Cooling fluid, refer to
Coolant108
Copyright2
Cruising range49
Cup holders80
Curb weight, refer to
Weights146,147
Current fuel consumption50
D
Dashboard, refer to Cockpit10Dashboard instruments, refer
to Displays12
Dashboard lighting, refer to
Instrument lighting69
Data144
– capacities148
– dimensions145
– engine144
– weights146,147
Date
– setting55
Daytime running lamps67
DBC Dynamic Brake Control,
refer to Brake assist58
Deactivating front passenger
airbags64
Deadlocking, refer to
Locking20
Defect
– door lock22
– fuel filler door94
Defogging windows73,75
Defrosting windows73,75
Defrosting windows and
removing condensation
– air conditioner73
– automatic climate control75
Defrost position, refer to
Defrosting windows73,75
Differential, breaking in84
Digital clock48
Dimensions145
Dipstick, engine oil107
Directional indicators, refer to
Turn signals43
Displacement, refer to Engine
data144
Display lighting, refer to
Instrument lighting69
Displays12
– instrument combination12
Displays, care113
Displays and controls10
Disposal
– of coolant108
– remote control battery27
– vehicle battery125Distance remaining to service,
refer to Service
requirements53
Distance warning, refer to Park
Distance Control PDC57
Diving stability control
systems57
Door
– rear, refer to Clubdoor23
Door key, refer to Integrated
key/remote control18
Door lock22
Door lock, confirmation
signals20
Doors, manual operation22
DOT Quality Grades102
Double doors, refer to
Splitdoor23
Drinks holders, refer to Cup
holders80
Drive-off assistant, refer to Hill
Start Assist59
Driving dynamics control, refer
to Sport button59
Driving lamps, refer to Parking
lamps/low beams66
Driving notes84
Driving off on inclines, refer to
Hill Start Assist59
Driving through water85
Driving tips, refer to Driving
notes84
Dry air, refer to Cooling
function75
Dynamic Brake Control DBC,
refer to Brake assist58
Dynamic Stability Control
DSC58
E
Electrical malfunction
– door lock22
– fuel filler door94
Electronic brake-force
distribution58
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC58
ProCarManuals.com

ReferenceAt a glance Controls Driving tips Mobility
153
Emergency operation, refer to
Manual operation
– door lock22
– fuel filler door94
– transmission lock, automatic
transmission43
Emergency services, refer to
Roadside Assistance127
Engine
– breaking in84
– data144
– overheated, refer to Coolant
temperature48
– speed144
– starting39
– starting, convenient
access26
– switching off40
Engine compartment107
Engine coolant, refer to
Coolant108
Engine oil
– adding108
– additives, refer to Approved
engine oils108
– approved engine oils108
– capacity108
– checking level107
– dipstick107
– intervals between changes,
refer to Service
requirements53
– MINI Maintenance
System110
Engine oil level, checking107
Engine output, refer to Engine
data144
Engine starting, refer to
Starting the engine39
Error messages, refer to Check
Control55
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC58
Event data recorders111
Exhaust system, refer to Hot
exhaust system84Exterior mirrors33
– adjusting33
– automatic heating34
– folding in and out34
External audio device78
Eyes
– for tow-starting and towing
away129
– for tying down loads89
F
Failure messages, refer to
Check Control55
Failure of an electrical
consumer125
Fastening safety belts, refer to
Safety belts33
Fasten safety belts reminder,
refer to Seat belt
reminder33
Filter
– microfilter/activated-
charcoal filter for automatic
climate control75
– microfilter for air
conditioner73
Fine wood, care113
First aid pouch127
Fixture for remote control,
refer to Ignition lock39
Flash when locking/
unlocking20
Flat tire
– Run-Flat Tires104
– Tire Pressure Monitor TPM61
Flat Tire Monitor FTM59
– indicating a flat tire60
– initializing the system60
– malfunction61
– snow chains59
– system limits59
Flat tires, refer to Tire
condition103
Floor mats, care113
Floor panel, refer to Level load
floor in MINI Clubman87
Fog lamps
– replacing bulb116,118Folding rear seat backrest86
Footbrake, refer to Braking
safely85
Footwell lamps69
For your own safety4
Front airbags64
Front fog lamps69
– indicator lamp131
– replacing bulb116
Front seat adjustment30
Frost on windows, refer to
Defrosting windows73,75
FTM, refer to Flat Tire
Monitor59
Fuel95
– gauge49
– high-quality brands95
– quality95
– specifications95
– tank capacity148
Fuel clock, refer to Fuel
gauge
49
Fuel display, refer to Fuel
gauge49
Fuel filler door94
– releasing in the event of
electrical malfunction94
Fuses125
G
Garage door opener, refer to
Integrated universal remote
control76
Gasoline
– refer to Average
consumption49
Gasoline, refer to Required
fuel95
Gasoline display, refer to Fuel
gauge49
Gear indicator
– automatic transmission with
Steptronic41
Gear shifting
– automatic transmission41
– manual transmission41
ProCarManuals.com
