2008 MINI COOPER CONVERTIBLE mirror controls

CONTENTS
2
© 2007 Bayerische Motoren Werke
Aktiengesellschaft
Munich, Germany
Reprinting, including excerpts, only with the
written consent of BMW AG, Munich.
Order No. 01 41 0 014 845
US English VIII/07
Printed in Germany
Printed on environmentally friendly paper,
bleached without chlorine, suitable for recycling.NOTES About this Owner's Manual 6
Additional sources of information 6
Symbols used 6
Your individual vehicle 6
Editorial notice 7
For your own safety 7
Symbol on vehicle parts 8
Service and warranty 8
Reporting safety defects 9
OVERVIEWCockpit 12
Display elements 13
Display elements with navigation system
or Cockpit Chrono Pack14
Indicator and warning lamps 16
Multifunction steering wheel20
CONTROLSOpening and closing:
Keys 24
Central locking system 24
Opening and closing: from outside 25
Opening and closing: from inside 28
Tailgate 29
Electric power windows 31
Glass sunroof, electric33
Roller sun blind34
Convertible top with integrated sliding
sunroof 35
Wind deflector39
Adjustments:
Safe seating position 42
Seat adjustment 43
Head restraints 44
Entry to the rear 45
Safety belts 46
Seat heating47
Steering wheel 47
Mirrors 48
Vehicle Memory 49
Transporting children safely 50

63
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
INTERIOR LAMPS WASHER/WIPER SYSTEMSwitching the interior light in the MINI
Convertible on and off manuallyPress button 1 briefly.
Permanently turn off interior light:
Press button 1 until the interior light comes
on for a short while.
Press button 1 to revert to normal opera-
tion.Switching the reading lamps on and
off Press button 2.
0 Wipers parked
1 Intermittent operation or rain sensor
2 Normal wiper speed
3 Fast wiper speed
4Brief wipe
5 Clean windshield and headlampsIntermittent operationNot on vehicles with rain sensor.
The interval time for the wipers is depen-
dent on the vehicle speed.Rain sensor* The rain sensor is located on the wind-
shield, directly in front of the interior rear-
view mirror.
When the rain sensor is activated, the
windshield wipers are automatically con-
trolled depending on the amount of mois-
ture, including snow, on the windshield.
To activate the rain sensor:
Lever in position 1.
The wipers will move once across the wind-
shield.
To deactivate the rain sensor:
Lever in position 0.
Switch the rain sensor off when pass-
ing through an automatic car wash.
Failure to do so could result in damage
caused by undesired wiper activation. switch automatically to intermittent wip-
ing.
You can have this function activated/
deactivated. switch automatically to normal wiper
speed.

79
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX

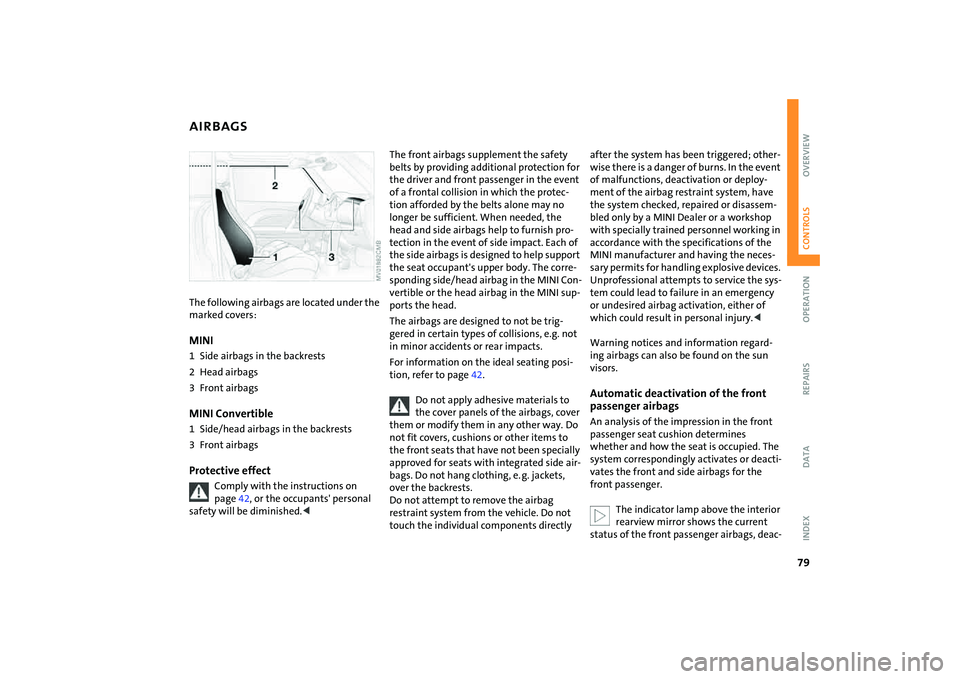

AIRBAGSThe following airbags are located under the
marked covers:MINI1 Side airbags in the backrests
2 Head airbags
3 Front airbags MINI Convertible1 Side/head airbags in the backrests
3 Front airbags Protective effect
Comply with the instructions on
page42, or the occupants' personal
safety will be diminished.<
The front airbags supplement the safety
belts by providing additional protection for
the driver and front passenger in the event
of a frontal collision in which the protec-
tion afforded by the belts alone may no
longer be sufficient. When needed, the
head and side airbags help to furnish pro-
tection in the event of side impact. Each of
the side airbags is designed to help support
the seat occupant's upper body. The corre-
sponding side/head airbag in the MINI Con-
vertible or the head airbag in the MINI sup-
ports the head.
The airbags are designed to not be trig-
gered in certain types of collisions, e.g. not
in minor accidents or rear impacts.
For information on the ideal seating posi-
tion, refer to page42.
Do not apply adhesive materials to
the cover panels of the airbags, cover
them or modify them in any other way. Do
not fit covers, cushions or other items to
the front seats that have not been specially
approved for seats with integrated side air-
bags. Do not hang clothing, e. g. jackets,
over the backrests.
Do not attempt to remove the airbag
restraint system from the vehicle. Do not
touch the individual components directly
after the system has been triggered; other-
wise there is a danger of burns. In the event
of malfunctions, deactivation or deploy-
ment of the airbag restraint system, have
the system checked, repaired or disassem-
bled only by a MINI Dealer or a workshop
with specially trained personnel working in
accordance with the specifications of the
MINI manufacturer and having the neces-
sary permits for handling explosive devices.
Unprofessional attempts to service the sys-
tem could lead to failure in an emergency
or undesired airbag activation, either of
which could result in personal injury.<
Warning notices and information regard-
ing airbags can also be found on the sun
visors.Automatic deactivation of the front
passenger airbagsAn analysis of the impression in the front
passenger seat cushion determines
whether and how the seat is occupied. The
system correspondingly activates or deacti-
vates the front and side airbags for the
front passenger.
The indicator lamp above the interior
rearview mirror shows the current
status of the front passenger airbags, deac-

EVERYTHING FROM A TO Z
163
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Driving downhill103
Driving hints, refer to Driving
notes102
Driving lamps, refer to Parking
lamps/Low beams60
Driving notes102
Driving stability control
systems72
Driving through water104
Dry air, refer to Cooling
function83
,86
Drying air,
refer to Cooling
function83,86
DSC Dynamic Stability
Control72
indicator lamp17
Dynamic Stability Control
(DSC)72
indicator lamp17
E
Easy entry to the rear45
EBD Electronic Brake Force
Distribution72Electrical malfunction
automatic transmission with
Steptronic58
convertible top37
door lock27
driver's door27
fuel filler door106
,107
glass sunroof, electric34
tailgate30
Electric glass sunroof33
Electric power windows31
initializing32
Electronic Brake Force
Distribution (EBD)72
Electronic Stability Program
(ESP), refer to
Dynamic Stability Control
(DSC)72
Emergency operation, refer to
Manual operation
convertible top37
driver's door27
fuel filler door106,107
glass sunroof, electric34
tailgate30
transmission lock, automatic
transmission with
Steptronic56Engine
break-in procedures102
data152
electronics18
indicator lamp18
overheated, refer to
Coolant temperature
gauge68
speed69
starting53
switching off54
Engine compartment
MINI COOPER and MINI
COOPER Convertible119
MINI COOPER S and MINI
COOPER S Convertible120
Engine coolant122
Engine data152
Engine oil121
adding121
dipstick121
indicator/warning lamp16
recommended oils122
specified oil grades122
Engine oil level121
indicator/warning lamp16
Engine oil level, checking121
Engine oil pressure, indicator/
warning lamp16
Engine output, refer to Engine
data152Entry to the rear45
ESP Electronic Stability
Program, refer to Dynamic
Stability Control (DSC)72
Exhaust system, refer to
Hot exhaust system104
Exterior mirrors48
adjusting48
automatic heating48
folding in and out48
External audio device88
Eyelet, for towing and tow-
starting147
F
Failure of an electrical
consumer144
Fastening safety belts, refer to
Safety belts46
Filling canister, refer to MINI
Mobility System142
Filling hose, refer to MINI
Mobility System142
Filter, refer to
Microfilter84
Microfilter/Activated-
charcoal filter
87
Flat
Run Flat tires77

EVERYTHING FROM A TO Z
165
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
I
Ice warning, refer to Outside
temperature warning70
Ignition53
Ignition key24
Ignition key positions, refer to
Ignition lock53
Ignition lock53
Illuminated vanity mirror48
Imitation leather127
Imprint2
Index160
Indicator/warning lamp
airbags80
ASC73
brakes124
coolant temperature68
DSC73
fasten safety belts46
Flat Tire Monitor75
fog lamps62
reserve fuel capacity67
,68
Indicator and warning lamps
Tire Pressure Monitor
TPM77
Indicator and warning lamps,
overview16
Individual air distribution87
Individual settings, refer to
Vehicle Memory49Inflation pressure, refer to Tire
inflation pressure108
Inflation pressure monitor,
refer to Flat Tire Monitor74
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM76
Inspection69
Instrument cluster, refer to
Display elements13
Instrument lighting62
Instrument panel, refer to
Cockpit12
Integrated universal remote
control91
Interior lamp, remote
control26
Interior lamps62
Interior rearview mirror48
automatic dimming102
Interlock, refer to Steering
locked53
Intermittent operation of the
wipers63
Interval
display, service125
J
Jack137
,141
points140Jack, refer to Tire change set
MINI Mobility System141
Run-Flat Tires115
space-saver spare tire137
Jacking points140
Jets, refer to Ventilation84
,87
Jets, refer to Windshield
washer jets64
John Cooper Works Kit152
Jump-starting146
K
Keys24
Kickdown57
Knock control105
L
Lamp defect133
Lamp replacement, refer to
Lamps and bulbs133
Lamps, refer to Parking lamps/
Low beams60
Lamps and bulbs133
Lashing eyelets, refer to
Securing the load97
LATCH child-restraint fixing
system52
Leather care128
LEDs light-emitting diodes136
Length, refer to
Dimensions153
,154License plate lamp, bulb
replacement136
Lifting handle, space-saver
spare tire137
Light-alloy wheels, care127
Light-emitting diodes
(LEDs)136
Lighter90
Lighting
lamps and bulbs133
Lighting of the instruments62
Lights on warning61
Light switch60
Loading
securing cargo97
stowing cargo97
Loading the vehicle95
Loads, refer to Loading cargo95
Load securing devices, refer to
Securing the load97
Locking
from inside28
from outside26
Locking/unlocking the vehicle,
acknowledgment
signals26
,27
Low beams60
bulb replacement134
Lower back support, refer to
Lumbar support44

EVERYTHING FROM A TO Z
167
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Oil change intervals, refer to
Service and Warranty
Information Booklet for US
models, Warranty and
Service Guide Booklet for
Canadian models
Oil consumption121
Oil level121
indicator lamp16
Oil pressure, indicator lamp16
Oil service69
Onboard computer70
Onboard tool kit132
MINI Mobility System141
Run-Flat Tires132
space-saver spare tire137
Opening and closing
from inside28
from outside25
via remote control26
via the door lock27
Outlets, refer to
Ventilation82
,85
Outside air83
air conditioning system83
Outside air mode, automatic
climate control86
Outside temperature
display70
changing units70
in the onboard computer70Outside temperature
warning70
Overriding the selector lever
lock59
P
Paintwork care, refer to Vehicle
paintwork127
Park Distance Control (PDC)81
Parking
the vehicle104
Parking aid, refer to Park
Distance Control (PDC)81
Parking brake54
warning lamp17
Parking lamps60
bulb replacement134
Parking lamps/Low beams60
Parking lock, refer to
PParking56
Parts and accessories, refer to
Your individual vehicle6
Pathway lighting60
PDC Park Distance Control81
Pinch protection system,
glass sunroof, electric34
Plastic127
Pollen, refer to
Microfilter84
Microfilter/Activated-
charcoal filter87Power convertible top35
Power failure144
Power output, refer to Engine
data152
Power supply, refer to Cigarette
lighter socket90
Power windows31
Pressure, tires108
reinflation using MINI
Mobility System142
Pressure monitoring of tires,
refer to Tire Pressure Monitor
TPM76
Protective function, electric
glass sunroof34
Pumping in liquid sealant142
Q
Quality grades, refer to
Uniform Tire Quality
Grading112
R
Radiator, refer to Coolant122
Radio, refer to separate
Owner's Manual
Rain sensor
63
Range70
Reading lamps63
Rear backrest, foldable93
,94Rear fog lamp62
bulb replacement136
indicator lamp62
Rear lamps, bulb
replacement135
Rear lamps, refer to Tail
lamps135
Rear seats, adjusting head
restraints44
Rear shelf, refer to Luggage
compartment cover93
Rear turn signal indicators, bulb
replacement135
Rearview mirror48
Rear window wiper64
,65
replacement133
Recirculated air mode
air conditioning system83
automatic climate control86
Reclining seat, refer to Backrest
tilt44
Refueling105
fuel filler door105
Remaining distance, refer to
Range70
Remaining distance for
service69
Remote control25
,26
garage door opener91
malfunction27
