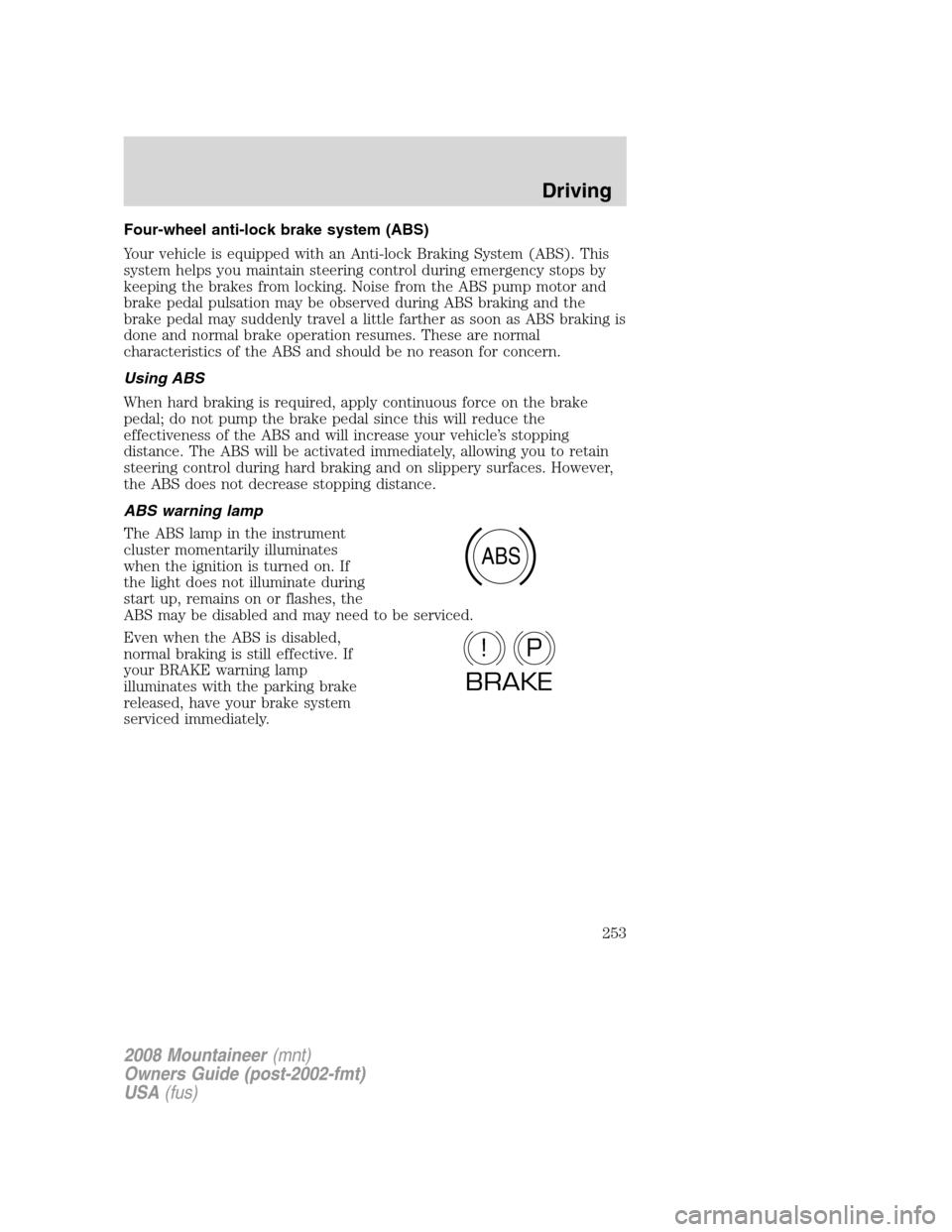

Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an Anti-lock Braking System (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the ABS pump motor and
brake pedal pulsation may be observed during ABS braking and the
brake pedal may suddenly travel a little farther as soon as ABS braking is
done and normal brake operation resumes. These are normal
characteristics of the ABS and should be no reason for concern.
Using ABS
When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
steering control during hard braking and on slippery surfaces. However,
the ABS does not decrease stopping distance.
ABS warning lamp
The ABS lamp in the instrument
cluster momentarily illuminates
when the ignition is turned on. If
the light does not illuminate during
start up, remains on or flashes, the
ABS may be disabled and may need to be serviced.
Even when the ABS is disabled,
normal braking is still effective. If
your BRAKE warning lamp
illuminates with the parking brake
released, have your brake system
serviced immediately.
ABS
P!
BRAKE
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
253

Driving conditions that may activate AdvanceTrac
with RSC include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
AdvanceTrac
with RSC button and functionality
The AdvanceTrac
with RSC system automatically turns on each time
the engine is started, even if it was turned off when the engine was last
shut down. The “sliding car” icon
which is located with the warning
lights in the instrument cluster will illuminate during bulb check at initial
start-up and then go off. This tells you that the system is normal and
active. All functions of the AdvanceTrac
with RSC (RSC, ESC, Engine
Traction Control, and Brake Traction Control) will be activated at start
up. When the system is left active, the “sliding car” icon
will flash
only when any of the components of the system are affecting the
vehicle’s performance, otherwise the light will remain off. Consequently,
the “sliding car” icon
will not be illuminated during most of your
normal driving.
The AdvanceTrac
with RSC button,
located on the center stack of the
instrument panel, allows the driver
to control certain features of the
AdvanceTrac
with RSC system
below 25 mph (40 km/h). If the
vehicle is below 25 mph (40 km/h), momentarily pressing the
AdvanceTrac
with RSC button will disable RSC, ESC and Engine
Traction Control and steadily illuminate the “sliding car” icon
.
Pressing and holding the AdvanceTrac
with RSC button for more than
five seconds will further disable the brake portion of the Traction Control
feature and the “sliding car” icon
will flash momentarily and then
illuminate steady.
If the vehicle is above 25 mph (40 km/h), momentarily pressing the
AdvanceTrac
with RSC button will steadily illuminate the “sliding car”
icon
, however, the AdvanceTrac
with RSC system will remain
enabled until the vehicle speed drops below 25 mph. If the vehicle speed
decreases below 25 mph (40 km/h), the system will become deactivated,
but if the vehicle speed subsequently increases to above 25 mph (40
km/h), the system will again become active. In general, the system will
be active at all times the vehicle speed is above 25 mph (40 km/h).
In R (Reverse), ABS and the Traction Control feature will continue to
function, however ESC and RSC are disabled.
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
257

All these conditions are normal during AdvanceTrac
with RSC
operation. Refer to the following table.
AdvanceTrac
with RSC Features
Button
functions“Sliding
car”
icon
RSC ESCEngine
Traction
ControlBrake
Traction
Control
Default at
start-upIlluminated
during bulb
checkEnabled Enabled Enabled Enabled
Button
pressed
momentarilyIlluminated
solidDisabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Enabled
Button
pressed and
held more
than five
secondsFlashes
then
illuminated
solidDisabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)
Do not alter or modify your vehicle’s suspension or steering; the
resulting changes to the vehicle’s handling can adversely affect
the AdvanceTrac
with RSC system.
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or death. The occurrence of a AdvanceTrac
with RSC event is
an indication that at least some of the tires have exceeded their ability
to grip the road; this may lead to an increased risk of loss of vehicle
control, vehicle rollover, personal injury and death. Operating your
vehicle with AdvanceTrac
with RSC system disabled may severely
reduce your ability to control your vehicle. If you experience a severe
road event or any loss of vehicle control, SLOW DOWN.
If a failure is detected in the AdvanceTrac
with RSC system, and the
AdvanceTrac
with RSC button has not been pushed, the warning
indicator light in the instrument cluster will stay on. If the warning
indicator light in the instrument cluster remains on while the engine is
running, have the system serviced by an authorized dealer immediately.
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
258

•Allows upshifts by moving gearshift lever.
•Will not downshift into 1 (First) at high speeds; allows for 1 (First)
when vehicle reaches slower speeds.
Forced downshifts
•Allowed in D (Drive) only.
•Depress the accelerator to the floor.
•Allows transmission to select an appropriate gear.
If your vehicle gets stuck in mud or snow
If your vehicle gets stuck in mud or snow, it may be rocked out by
shifting between forward and reverse gears, stopping between shifts in a
steady pattern. Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a minute or damage to the
transmission and tires may occur, or the engine may overheat.
REVERSE SENSING SYSTEM (IF EQUIPPED)
The Reverse Sensing System (RSS) sounds a tone to warn the driver of
obstacles near the rear bumper when the R (Reverse) is selected and the
vehicle is moving at speeds less than 3 mph (5 km/h). The system is not
effective at speeds above 3 mph (5 km/h) and may not detect certain
angular or moving objects.
To help avoid personal injury, please read and understand the
limitations of the reverse sensing system as contained in this
section. Reverse sensing is only an aid for some (generally large and
fixed) objects when moving in reverse on a flat surface at “parking
speeds”. Inclement weather may also affect the function of the RSS;
this may include reduced performance or a false activation.
To help avoid personal injury, always use caution when in R
(Reverse) and when using the RSS.
This system is not designed to prevent contact with small or
moving objects. The system is designed to provide a warning to
assist the driver in detecting large stationary objects to avoid damaging
the vehicle. The system may not detect smaller objects, particularly
those close to the ground.
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
268

Autolock operation (4.6L engine vehicles only)
If the AWD system begins to overheat, the system will place itself in the
Autolock mode:
•the 4X4 indicator light will illuminate in the instrument cluster and
AWD DISABLED will be displayed in the message center.
•AWD LOCKED will be displayed in the message center for four
seconds and a warning chime will sound. This condition may clear
without any action being taken by the driver.
•the 4X4 indicator light in the instrument cluster will turn off when the
AWD system cools down.
Driving off-road with truck and utility vehicles
AWD vehicles are specially equipped for driving on sand, snow, mud and
rough terrain and have operating characteristics that are somewhat
different from conventional vehicles, both on and off the road.
How your vehicle differs from other vehicles
Truck and utility vehicles can differ from some other vehicles. Your
vehicle may be higher to allow it to travel over rough terrain without
getting hung up or damaging underbody components.
The differences that make your vehicle so versatile also make it handle
differently than an ordinary passenger car.
Maintain steering wheel control at all times, especially in rough terrain.
Since sudden changes in terrain can result in abrupt steering wheel
motion, make sure you grip the steering wheel from the outside. Do not
grip the spokes.
Drive cautiously to avoid vehicle damage from concealed objects such as
rocks and stumps.
You should either know the terrain or examine maps of the area before
driving. Map out your route before driving in the area. To maintain
steering and braking control of your vehicle, you must have all four
wheels on the ground and they must be rolling, not sliding or spinning.
Basic operating principles
•Drive slower in strong crosswinds which can affect the normal steering
characteristics of your vehicle.
•Be extremely careful when driving on pavement made slippery by
loose sand, water, gravel, snow or ice.
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
271

Do not add aftermarket fuel additive products to your fuel tank. It
should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
rating. These products have not been approved for your engine and
could cause damage to the fuel system. Repairs to correct the effects of
using an aftermarket product in your fuel may not be covered by your
warranty.
Many of the world’s automakers approved the World-Wide Fuel Charter
that recommends gasoline specifications to provide improved
performance and emission control system protection for your vehicle.
Gasolines that meet the World-Wide Fuel Charter should be used when
available. Ask your fuel supplier about gasolines that meet the
World-Wide Fuel Charter.
Cleaner air
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the Right
Fuelsection.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than 1
gallon (3.8L) may be required.
•TheService engine soon
indicator may come on. For more
information on theService engine soon
indicator, refer to
Warning lights and chimesin theInstrument Clusterchapter.
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
347

EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
authorized dealer if the window sticker is not supplied with your vehicle.
The EPA window sticker should be your guide for the fuel economy
comparisons with other vehicles.
It is important to note the box in the lower left corner of the window
sticker. These numbers represent the Range of MPG (L/100 km)
expected on the vehicle under optimum conditions. Your fuel economy
may vary depending upon the method of operation and conditions.
EMISSION CONTROL SYSTEM
Your vehicle is equipped with various emission control components and a
catalytic converter which will enable your vehicle to comply with applicable
exhaust emission standards. To make sure that the catalytic converter and
other emission control components continue to work properly:
•Use only the specified fuel listed.
•Avoid running out of fuel.
•Do not turn off the ignition while your vehicle is moving, especially at
high speeds.
•Have the items listed inscheduled maintenance information
performed according to the specified schedule.
The scheduled maintenance items listed inscheduled maintenance
informationare essential to the life and performance of your vehicle
and to its emissions system.
If other than Ford, Motorcraft or Ford-authorized parts are used for
maintenance replacements or for service of components affecting
emission control, such non-Ford parts should be equivalent to genuine
Ford Motor Company parts in performance and durability.
Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Illumination of theService engine soon
indicator, charging system
warning light or the temperature warning light, fluid leaks, strange odors,
smoke or loss of engine power could indicate that the emission control
system is not working properly.
An improperly operating or damaged exhaust system may allow exhaust
to enter the vehicle. Have a damaged or improperly operating exhaust
system inspected and repaired immediately.
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
351

A
Accessory delay ........................102
AdvanceTrac ..............................255
Air cleaner filter ...............356–358
Air conditioning ..........................79
Airbag supplemental restraint
system ................181–182, 190, 192
and child safety seats ............183
description ..............182, 190, 192
disposal ....................................195
driver airbag ............184, 191, 193
indicator light .................190, 195
operation .................184, 191, 193
passenger airbag .....184, 191, 193
side airbag ...............................190
All Wheel Drive (AWD),
driving off road .........................270
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................336
Anti-lock brake system
(see Brakes) ..............................253
Anti-theft system ......................148
Audio system
(see Radio) ......................20, 24, 32
Automatic transmission
driving an automatic
overdrive .........................262, 265
fluid, adding ............................354
fluid, checking ........................354
fluid, refill capacities ..............359
fluid, specification ..................359
Auxiliary input jack (Line in) ....40
Auxiliary power point ...............100
Axle
lubricant specifications ..........359refill capacities ........................359
B
Battery .......................................334
acid, treating emergencies .....334
jumping a disabled battery ....300
maintenance-free ....................334
replacement, specifications ...358
servicing ..................................334
Belt-Minder
.............................176
Booster seats .............................197
Brakes ........................................252
anti-lock ...................................253
anti-lock brake system (ABS)
warning light ...........................253
fluid, checking and adding ....354
fluid, refill capacities ..............359
fluid, specifications .................359
lubricant specifications ..........359
parking ....................................254
shift interlock ..........................260
C
Calculating load ........................239
Capacities for refilling fluids ....359
Cargo cover ...............................132
Cargo management system ......132
Cell phone use ..............................8
Changing a tire .........................290
Child safety restraints ..............196
child safety belts ....................196
Child safety seats ......................201
attaching with tether straps ..205
in front seat ............................202
in rear seat ..............................202
2008 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
368
