2008 Mercury Milan navigation

Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 14
Entertainment Systems 16
How to get going 16
AM/FM stereo with CD 20
AM/FM stereo with in-dash six CD 27
Auxiliary input jack (Line in) 35
USB port 36
Satellite radio information 40
Navigation system 43
Climate Controls 44
Manual heating and air conditioning 44
Automatic temperature control 46
Rear window defroster 51
Lights 52
Headlamps 52
Turn signal control 56
Bulb replacement 57
Driver Controls 68
Windshield wiper/washer control 68
Steering wheel adjustment 69
Power windows 72
Mirrors 74
Speed control 75
Moon roof 80
Message center 82
Table of Contents
1
2008 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)

Audio system warranty and service
Refer to theWarranty Guidefor audio system warranty information. If
service is necessary, see your dealer or qualified technician.
MP3 track and folder structure
Your MP3 system recognizes MP3 individual tracks and folder structure
as follows:
•There are two different modes for MP3 disc playback: MP3 track mode
(system default) and MP3 folder mode. For more information on track
and folder mode, refer toSample MP3 structurein the following
section.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.
Note:The maximum number of playable MP3 files may be less
depending on the structure of the CD and exact model of radio
present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders will help with navigation
through the disc files.
2008 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
39

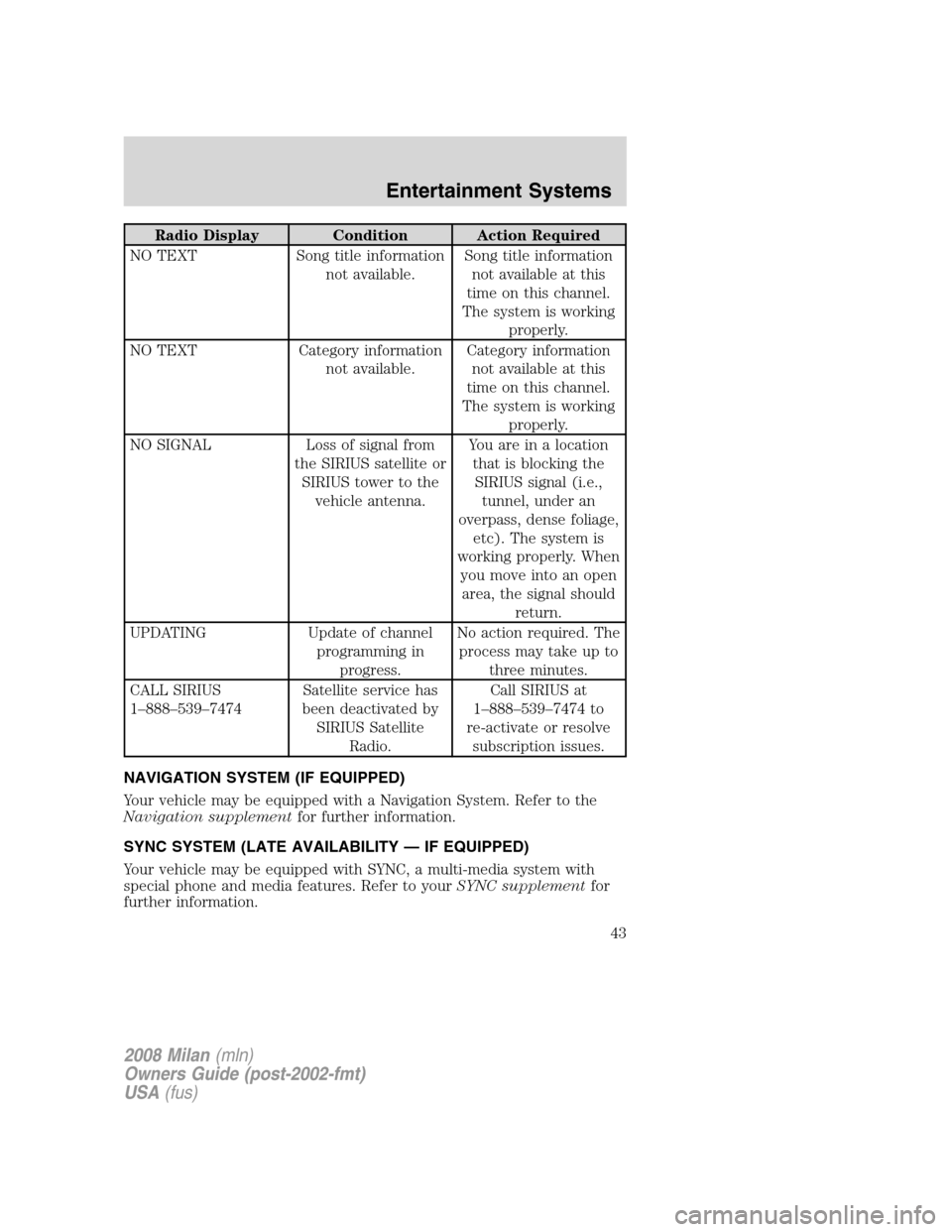

Radio Display Condition Action Required
NO TEXT Song title information
not available.Song title information
not available at this
time on this channel.
The system is working
properly.
NO TEXT Category information
not available.Category information
not available at this
time on this channel.
The system is working
properly.
NO SIGNAL Loss of signal from
the SIRIUS satellite or
SIRIUS tower to the
vehicle antenna.You are in a location
that is blocking the
SIRIUS signal (i.e.,
tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUS Satellite
Radio.Call SIRIUS at
1–888–539–7474 to
re-activate or resolve
subscription issues.
NAVIGATION SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a Navigation System. Refer to the
Navigation supplementfor further information.
SYNC SYSTEM (LATE AVAILABILITY — IF EQUIPPED)
Your vehicle may be equipped with SYNC, a multi-media system with
special phone and media features. Refer to yourSYNC supplementfor
further information.
2008 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
43

INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.
Do not adjust the mirror while the vehicle is in motion.
Automatic dimming interior rear view mirror (if equipped)
Your vehicle may be equipped with an interior rear view mirror that has
an auto-dimming function. The electronic day/night mirror will change
from the normal (high reflective) state to the non-glare (darkened) state
when bright lights (glare) reach the mirror. When the mirror detects
bright light from behind the vehicle, it will automatically adjust (darken)
to minimize glare.
Without voice activated
Navigation System or SYNC
With voice activated Navigation
System or SYNC
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
2008 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
74

In Radio mode:
•Press
to access the
next/previous preset station.
In CD mode:
•Press
to listen to the
next track on the disc.
In Satellite radio mode
(if equipped):
•Press
to advance through preset channels.
In any mode:
•Press VOL + or - to adjust the
volume.
Navigation system hands free
control features (if equipped)
Press and hold
control briefly
until the voice
icon appears on
the Navigation display to use the
voice command feature.
Press
to complete a voice
command.
For further information on the
Navigation system, refer to theNavigation supplement.
2008 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
79

SYNC system hands free control
feature (if equipped)
Press and hold
briefly until the
voice
icon appears on the display
to use the voice command feature.
Press and hold
to send a call or
text message.
Press OK to confirm your selection.
For further information on the
SYNC™ system, refer to theSYNC supplement.
Navigation system/SYNC hands
free control features
(if equipped)
Press and hold the
control briefly
until the voice
icon appears on
the Navigation display to use the
voice command feature.
Press
to complete a voice
command.
For further information on the Navigation system/SYNC system, refer to
theNavigation and SYNC supplements.
MOON ROOF (IF EQUIPPED)
You can move the glass panel of the moon roof back to open or tilt up
(from the closed position) to ventilate the vehicle.
Do not let children play with the moon roof or leave children
unattended in the vehicle. They may seriously hurt themselves.
2008 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
80

cleaning ...................................244
cluster ........................................10
lighting up panel and
interior .......................................54
J
Jack ............................................220
positioning ...............................220
storage .....................................220
Jump-starting your vehicle ......226
K
Keyless entry system ...............106
autolock .....................................95
keypad .....................................106
locking and unlocking doors ..107
programming entry code .......106
Keys .....................................92, 109
positions of the ignition .........187
L
Lamps
autolamp system .......................52
bulb replacement
specifications chart ..................57
daytime running light ...............53
fog lamps ...................................53
headlamps .................................52
headlamps, flash to pass ..........54
instrument panel, dimming .....54
interior lamps ...........................56
replacing bulbs .........................58
Lane change indicator
(see Turn signal) ........................56
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........193
Load limits .................................180Locks
autolock .....................................95
childproof ..................................99
doors ..........................................94
Lubricant specifications ...........287
Lug nuts ....................................225
Lumbar support, seats .............114
M
Manual transmission .................201
fluid capacities ........................287
lubricant specifications ..........287
reverse .....................................202
Message center ...........................82
english/metric button ...............87
system check button ................86
warning messages .....................88
Mirrors ...................................74–75
automatic dimming rearview
mirror ........................................74
heated ........................................75
side view mirrors (power) .......75
Moon roof ....................................80
Motorcraft parts ........246, 266, 285
N
Navigation system .......................43
O
Octane rating ............................270
Oil (see Engine oil) ..................253
P
Parking brake ............................193
Parts (see Motorcraft parts) ....285
2008 Milan(mln)
Owners Guide (post-2002-fmt)
USA(fus)
Index
298
