2008 Mercury Grand Marquis sensor

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
17 10A Ignition (ON) - A/C mode switch
(vehicles equipped with manual A/C),
Blend door, Heated seat modules, BTSI
(Floor-shift transmission)
18 15A Lighting control module (interior
lighting)
19 10A LCM (Left-hand low beam)
20 10A Ignition (ON/START) - Back-up lamps
21 10A LCM (Right-hand low beam)
22 10A Ignition (ON/START) - Restraint Control
Module (RCM), Occupant Classification
Sensor (OCS), Passenger Air bag
Deactivation Indicator (PADI)
23 15A Multi-function switch (Flash-to-pass),
LCM (High beams)
24 10A Ignition (ON/START) - Passive
Anti-Theft System (PATS) module,
Powertrain Control Module (PCM) relay
coil, Fuel relay coil, Ignition coil relay
coil
25 15A LCM (Park lamps, corner lamps, license
lamps)
26 10A Ignition (ON/START) - Cluster, LCM,
Overdrive cancel switch
27 — Not used
28 7.5A Brake signal, LCM (BTSI), ABS
29 — Not used
30 — Not used
31 5A Key in (LCM)
32 — Not used
33 — Not used
Relay 1 Full ISO relay Window relay
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
197

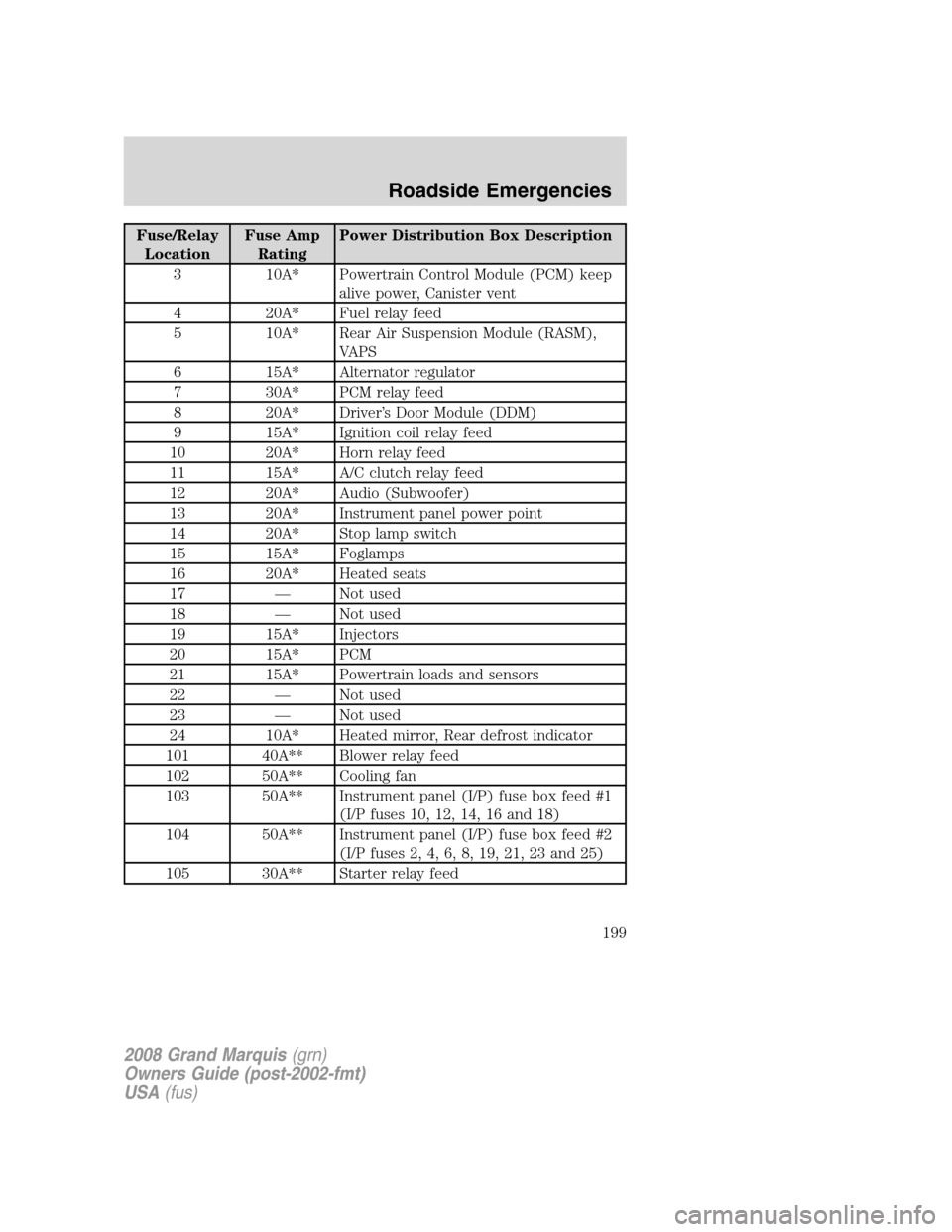

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
3 10A* Powertrain Control Module (PCM) keep
alive power, Canister vent
4 20A* Fuel relay feed
5 10A* Rear Air Suspension Module (RASM),
VAPS
6 15A* Alternator regulator
7 30A* PCM relay feed
8 20A* Driver’s Door Module (DDM)
9 15A* Ignition coil relay feed
10 20A* Horn relay feed
11 15A* A/C clutch relay feed
12 20A* Audio (Subwoofer)
13 20A* Instrument panel power point
14 20A* Stop lamp switch
15 15A* Foglamps
16 20A* Heated seats
17 — Not used
18 — Not used
19 15A* Injectors
20 15A* PCM
21 15A* Powertrain loads and sensors
22 — Not used
23 — Not used
24 10A* Heated mirror, Rear defrost indicator
101 40A** Blower relay feed
102 50A** Cooling fan
103 50A** Instrument panel (I/P) fuse box feed #1
(I/P fuses 10, 12, 14, 16 and 18)
104 50A** Instrument panel (I/P) fuse box feed #2
(I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25)
105 30A** Starter relay feed
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
199

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
601 20A Circuit
breakerPower seats, Lumbar
602 20A Circuit
breakerPower windows relay feed (RUN/ACC)
* Mini fuse ** Cartridge fuse
Relays
Relays are located in the power distribution box and should be replaced
by an authorized dealer.
CHANGING A FLAT TIRE
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
Your vehicle may be equipped with a conventional spare tire that is
different in one or more of the following: type, brand, size, speed rating
and tread design. If this is the case, this dissimilar spare tire is still rated
for your vehicle loads (GAWR and GVWR). This temporary spare tire is
not equipped with a Tire Pressure Monitor System (TPMS) sensor.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the TPMS system, all road wheels equipped with the tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer toTire Pressure Monitoring System
(TPMS)in theTires, Wheels, and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
The use of tire sealants may damage your Tire Pressure
Monitoring System and should not be used.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
201

Refer toTire Pressure Monitoring System (TPMS)in theTire,
Wheels and Loadingchapter for important information. If the
tire pressure monitor sensor becomes damaged, it will no longer
function.
Dissimilar spare tire/wheel information
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
202
