REMOTE ENTRY SYSTEM (IF EQUIPPED)
This device complies with part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
The remote entry system allows you to lock or unlock all vehicle doors
without a key.
The remote entry features operate
with the ignition in any position,
except in the 3 (ON) , with the
transmission not in either P (Park)
or N (Neutral).
If there are problems with the
remote entry system, make sure to
takeALL remote entry
transmitterswith you to the
authorized dealer in order to aid in
troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
2. Press
and release again within five seconds to unlock all the doors.
Locking the doors
Pressonce to lock all the doors. Upon the first press the doors will
lock and the parklamps/taillamps will flash once.
Press
again within three seconds to receive confirmation that the
vehicle was successfully locked.Note:If all vehicle doors, the hood, and
the trunk are closed upon the second press of the
, the horn will
chirp once and the parklamps/taillamps will flash once to confirm the
successful locking.
Upon the second press of the
, if any door, the hood, or the trunk is
not securely closed the horn will chirp twice to warn that successfully
locking was not complete. The park/taillamps will NOT flash if any door
is ajar.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
88

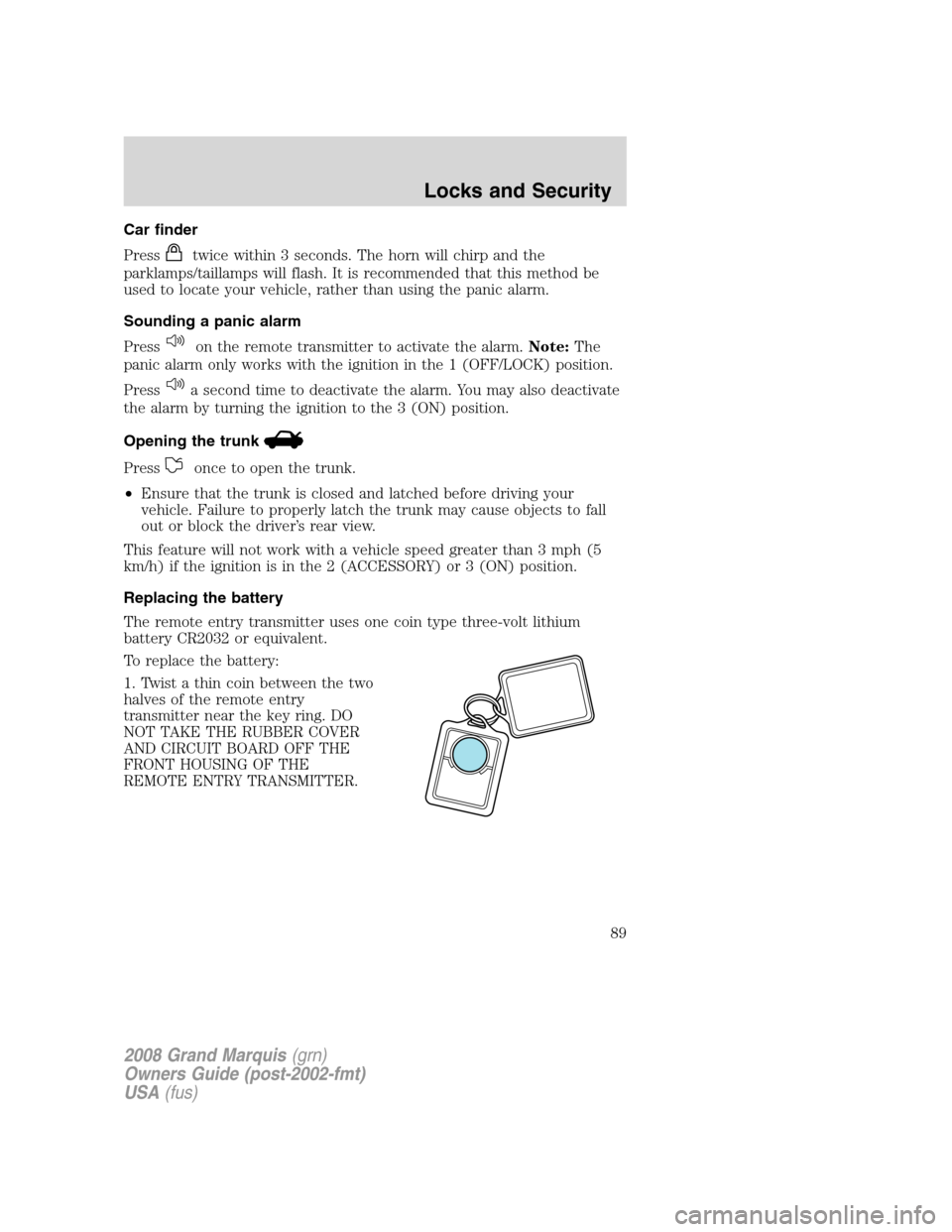

Car finder
Press
twice within 3 seconds. The horn will chirp and the
parklamps/taillamps will flash. It is recommended that this method be
used to locate your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
on the remote transmitter to activate the alarm.Note:The
panic alarm only works with the ignition in the 1 (OFF/LOCK) position.
Press
a second time to deactivate the alarm. You may also deactivate
the alarm by turning the ignition to the 3 (ON) position.
Opening the trunk
Pressonce to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
This feature will not work with a vehicle speed greater than 3 mph (5
km/h) if the ignition is in the 2 (ACCESSORY) or 3 (ON) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
89

Note:Ensure the brake pedal is not
depressed during this sequence.
Place the key in the ignition and
cycle from 1 (OFF/LOCK) to 3 (ON)
eight times in rapid succession
within 10 seconds. After doors
lock/unlock, press any control on all
transmitters (up to four). After
pressing the control on each remote
transmitter, the door will lock and
unlock. If programming multiple remote transmitters, you must press the
control buttons on each remote transmitter within 7 seconds of each
other to remain in programming mode. When completed, turn the
ignition to 1 (OFF/LOCK).
All transmittersmustbe programmed at the same time.
•When completed, turn the ignition to the 1 (OFF/LOCK) position and
wait at least 20 seconds in order to use the recently programmed
transmitter(s).
•Alltransmittersmustbe programmed during the same programming
cycle. A transmitter that is not programmed within the same
programming cycle will be erased and will no longer operate your
vehicle’s locks. If this occurs, you will have to reprogram all the
transmitters again, as you cannot just “add” a transmitter.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 2 (ACCESSORY), 3 (ON) or 4
(START) positions, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control mustnotbe set to theoffposition for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, or after 10 minutes if the last door is left open.
4
3
2
1
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
91

Radio type approval numbers for remote entry receiver
If the type approval of your remote entry system is inspected in one of
the countries listed in the following table, refer to the corresponding
approval number:
Remote entry receiver certification numbers
Gabon 01070305/ARTEL/GABTEL
Jordan CAZ/ENG/CA/04/11/1
Zambia TRC/LPD/2004/28
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
With the keyless entry keypad, you
can:
•lock or unlock the vehicle doors
without using the key.
•open the trunk.
See alsoRemote entry systemin this chapter for more information.
Your vehicle has a factory-set 5–digit code that operates the keyless
entry system. You can also program your own 5–digit personal entry
code.
The factory-set code is located:
•On the owner’s wallet card in the glove compartment, or
•At your dealer.
When using the keyless entry keypad, press the middle of each button in
order to ensure a good activation.
Programming a personal entry code
You can program up to three personal codes to unlock your vehicle.
These codes do not replace the permanent code that the authorized
dealer gave you.
To create your own personal entry code:
1. Enter the factory set code.Note:The keypad will illuminate when
pressed.
2. Within five seconds press 1•2 on the keypad to enter the
programming mode.
123
45678
90
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
92

3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Press 1•2 to store the first personal code.
5. The doors will lock then unlock to confirm programming of the new
code.
To store a second personal code:
1. Enter the factory set code.
2. Within five seconds press 1•2 on the keypad to enter the
programming mode.
3. Enter a second personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Press 3•4 to store the second personal code.
5. The doors will again lock then unlock to confirm programming of the
new code.
To store a third personal code:
1. Enter the factory set code.
2. Within five seconds press 1•2 on the keypad to enter the
programming mode.
3. Enter a third personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Press 5•6 (or 7•8, or 9•0, or wait five seconds) to store the third
personal code.
5. The doors will again lock then unlock to confirm programming of the
new code.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
To erase all of the personal entry codes programmed to a vehicle:
1. Enter the factory-set code.
2. Press and release 1•2 within 5 seconds of step 1.
3. Press and hold 1•2 for two seconds. All of the vehicle doors will lock
and then unlock to confirm erasure.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
93

Unlocking the doors and releasing the trunk with the keyless entry
system
To unlock the driver door, enter either the factory-set code or personal
code (each digit pressed within 5 seconds of prior digit). The interior
lamps will illuminate.
•Tounlock all doors,enter the factory-set code or personal code
(driver door unlocks) and press 3•4 within five seconds.
•Torelease the trunk,enter the factory-set code or personal code
(driver door unlocks) and press 5•6 within five seconds.
After the factory-set code or personal code has been entered, you can
unlock all doors (press 3•4) and release the trunk (press 5•6) as
long as the controls are pressed within 5 seconds of each other.
Locking doors with the keyless entry system
It is not necessary to enter the factory-set code prior to locking all doors.
Tolock the doors,press 7•8 and press 9•0 at the same time.Note:
The doors will not lock if the driver door is ajar.
Anti-scan feature
If the wrong code has been entered 7 times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the remote entry transmitter.
•the ignition is turned to the 3 (ON) position.
SECURILOCK™ PASSIVE ANTI-THEFT SYSTEM
SecuriLock™ passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
This device complies with part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
94

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Your vehicle comes withtwo coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
program your spare keys to your vehicle or you can program the keys
yourself. Refer toProgramming spare keysfor instructions on how to
program the coded key.
Note:The SecuriLock™ passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition to the 1 (OFF/LOCK)
position, remove all objects on the key chain away from the coded key
and restart the engine.
Anti-theft indicator
The anti-theft indicator is the flashing red indicator located on the dash
panel.
•When the ignition is in the 1 (OFF/LOCK) position, the indicator will
flash once every 2 seconds to indicate the SecuriLock™ system is
functioning as a theft deterrent.
•When the ignition is in the 3 (ON) position, the indicator will glow for
3 seconds to indicate normal system functionality.
If a problem occurs with the SecuriLock™ system, the indicator will flash
rapidly or glow steadily when the ignition is in the 3 (ON) position. If
this occurs, the vehicle should be taken to an authorized dealer for
service.
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
96

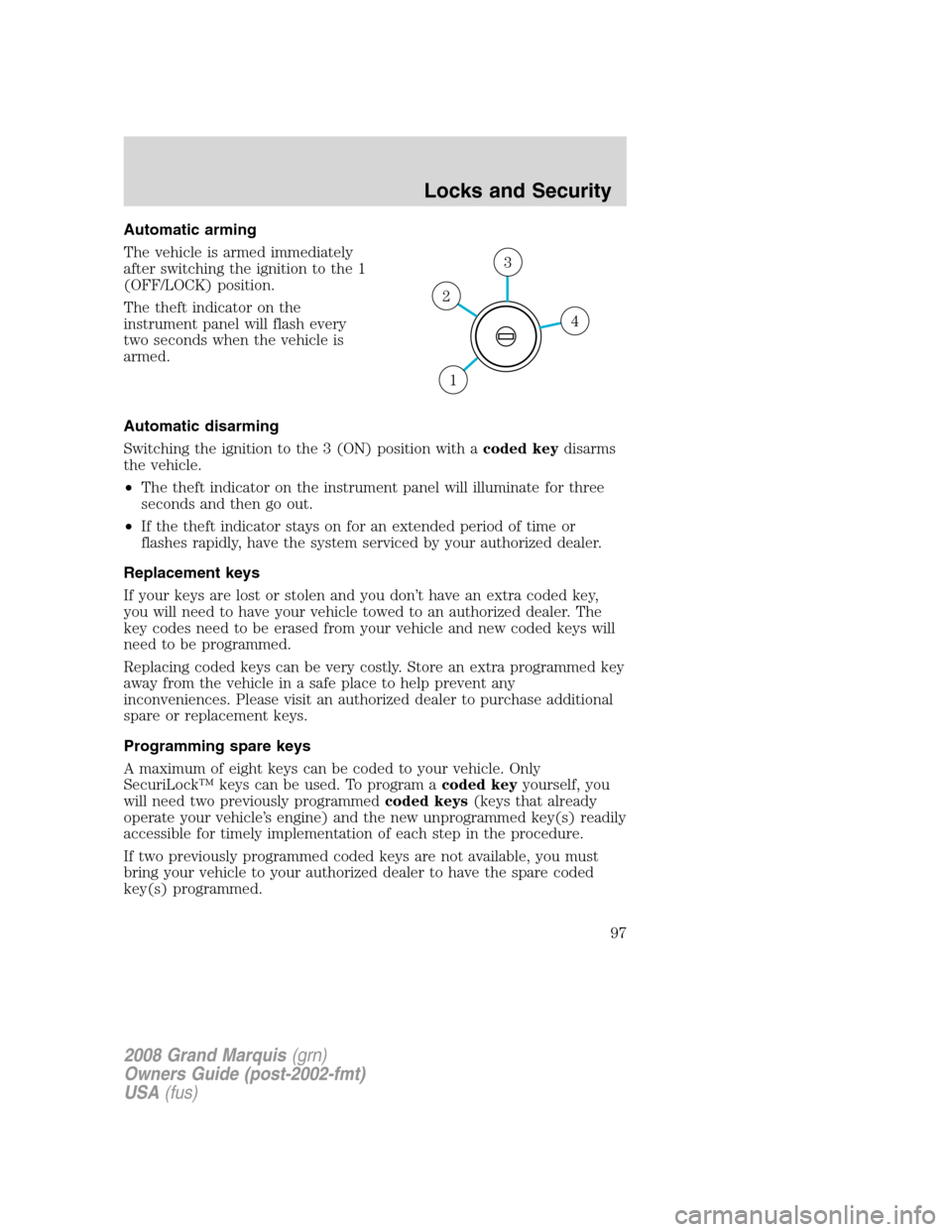

Automatic arming
The vehicle is armed immediately
after switching the ignition to the 1
(OFF/LOCK) position.
The theft indicator on the
instrument panel will flash every
two seconds when the vehicle is
armed.
Automatic disarming
Switching the ignition to the 3 (ON) position with acoded keydisarms
the vehicle.
•The theft indicator on the instrument panel will illuminate for three
seconds and then go out.
•If the theft indicator stays on for an extended period of time or
flashes rapidly, have the system serviced by your authorized dealer.
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
SecuriLock™ keys can be used. To program acoded keyyourself, you
will need two previously programmedcoded keys(keys that already
operate your vehicle’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmed coded keys are not available, you must
bring your vehicle to your authorized dealer to have the spare coded
key(s) programmed.
4
3
2
1
2008 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
97
