2008 MERCEDES-BENZ SLK55AMG jump start

Contents
Replacing wiper blades ...................... 406
Placing wiper arms in vertical
position ........................................ 406
Removing wiper blades ................ 407
Installing wiper blades.................. 407
Flat tire .............................................. 408
Preparing the vehicle.................... 408
Sealing tires with TIREFIT ............. 408
Mounting the spare wheel ............ 414
MOExtended system*................... 421
Battery ............................................... 422
Disconnecting the battery ............ 423
Removing the battery ................... 424
Charging and reinstalling battery . 424
Reconnecting the battery ............. 425
Jump starting ..................................... 426
Towing the vehicle ............................. 428
Installing towing eye bolt.............. 429
Fuses ................................................. 432
Fuse box in passenger
compartment................................ 433
Fuse box in engine
compartment................................ 433
Technical data................................. 435
Parts service ...................................... 436
Warranty coverage............................. 437
Loss of Service and Warranty
Information Booklet ..................... 437
Identification labels ........................... 438
Layout of poly-V-belt drive ................. 440
SLK 280, SLK 350 ........................ 440
SLK 55 AMG................................. 440
Engine................................................ 441
Rims and tires.................................... 442
Same size tires ............................. 443
Mixed size tires ............................ 445
Spare wheel ................................. 447
Electrical system ............................... 448
Main Dimensions ............................... 449
Weights.............................................. 450Fuels, coolants, lubricants, etc. ......... 451
Capacities .................................... 451
Engine oils ................................... 453
Engine oil additives ...................... 453
Air conditioning refrigerant .......... 453
Brake fluid.................................... 454
Premium unleaded gasoline ......... 454
Fuel requirements ........................ 455
Gasoline additives ........................ 455
Coolants ...................................... 456
Windshield washer system and
headlamp cleaning system*......... 458
Index................................................. 459

38 Getting started
Unlocking
For information on starting the engine, see
(
page 51).
iWhen you switch on ignition, the indicator
and warning lamps (except high beam headlamp
indicator lamp and turn signal indicator lamps
unless activated) in the instrument cluster come
on. The indicator and warning lamps (except high
beam headlamp indicator lamp and turn signal
indicator lamps if activated) will go out when the
engine is running. This indicates that the respec-
tive systems are operational.
iVehicles with automatic transmission*: The
SmartKey can only be removed from the starter
switch with the gear selector lever in positionP.
iIf the SmartKey is left in starter switch
position 0 for an extended period of time, it can
no longer be turned in the starter switch. In this
case the steering is locked. To unlock, remove
SmartKey from the starter switch and reinsert.
!If the SmartKey cannot be turned in the
starter switch, the vehicle battery may not be
sufficiently charged.

Check the vehicle battery and charge it if
necessary (
page 422).

Get a jump start (page 426).
To prevent accelerated vehicle battery discharge
or a completely discharged vehicle battery,
always remove the SmartKey from the starter
switch when the engine is not in operation.

52 Getting started
Driving
Automatic transmission*
Gearshift pattern for automatic
transmission
PPark position with gear selector lever
lock
RReverse gear
NNeutral position
DDrive position
For more information, see “Automatic
transmission*” (
page 155).Starting
Place the gear selector lever in
positionP.
Do not depress accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 37) and release it
again immediately. The engine starts
automatically.
For information on turning off the engine,
see “Turning off engine” (
page 61).Starting difficulties
If the SmartKey is left in starter switch
position 0 for an extended period of time,
it can no longer be turned in the starter
switch. In this case the steering is locked.
To unlock, remove SmartKey from the
starter switch and reinsert.
If the engine does not start as described,
carry out the following steps:
Turn the SmartKey in the starter switch
to position0 and repeat the starting
procedure.
Remember that extended starting at-
tempts can drain the vehicle battery.
Get a jump start (page 426).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Contact an authorized Mercedes-Benz
Center or call Roadside Assistance.

266 Controls in detail
Useful features
Roadside Assistance button•
The Roadside Assistance button• is
located in the center armrest
storage/telephone* compartment
(
page 253).
1Roadside Assistance button
Open the storage/telephone* com-
partment (
page 253).
Press and hold button 1 (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting
Call
will appear in the multifunction
display and the audio system is muted.
When the connection is established, the
message
Call Connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for
assistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such
as labor and/or towing, charges may
apply. Refer to the Roadside Assistance
manual for more information.
The following is only available in the USA:

Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.

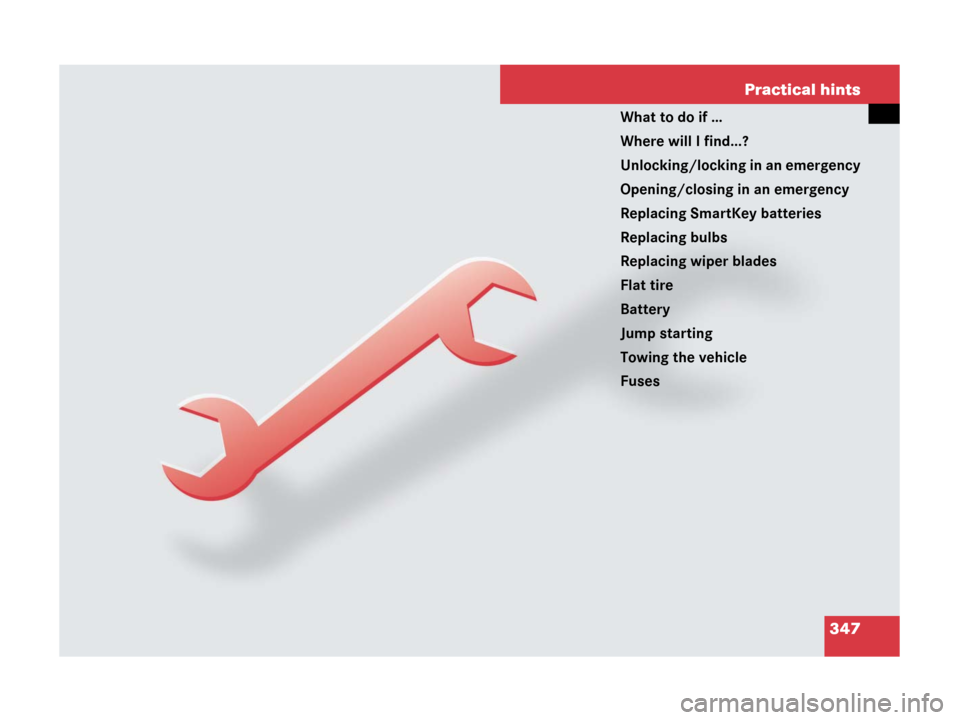

347 Practical hints
What to do if …
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

422 Practical hints
Battery
The battery is located in the engine com-
partment on the right-hand side below the
water tray (
page 423).
1Battery
2Positive terminal
3Negative terminal
Warning!G
Failure to follow these instructions can re-
sult in severe injury or death.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 302).
Never lean over batteries while connecting
them, as you could otherwise be injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come into contact with
eyes, skin or clothing. In case it does, imme-
diately flush affected area with water and
seek medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Warning!G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof batteries only to avoid the
risk of acid burns in the event of an
accident.
!Never loosen or detach battery terminal
clamps while the engine is running or the
SmartKey is in the starter switch. Otherwise the
alternator and other electronic components
could be severely damaged.
Have the battery checked regularly by an
authorized Mercedes-Benz Center.
Refer to Maintenance Booklet for maintenance
intervals or contact an authorized
Mercedes-Benz Center for further information.

426 Practical hints
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.

Do not start the engine if the battery is
frozen. Let the battery thaw out first.

Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a higher voltage battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.

Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.

Always make sure the jumper cables
are not on or near pulleys, fans, or
other parts that move when an engine
is started or running.
Warning!G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, as you could otherwise be
injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Vehicles with automatic transmission*:
Do not tow-start vehicle.
!Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine using a
battery quick charge unit.
If the engine does not run after several
unsuccessful starting attempts, have it checked
at the nearest authorized Mercedes-Benz
Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the
catalytic converter and may present a fire risk.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.

427 Practical hints
Jump starting
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply the parking brake (page 59).
Make sure the gear selector lever* is
set to positionP (manual transmission
to Neutral).
Open the hood (page 294).
Flip up cover from positive under hood
terminal2 in front of water tray1
(
page 423).1Positive terminal of charged battery
2Positive terminal
3Negative terminal of charged battery
4Negative terminal
Connect positive terminal1 of the
charged battery with positive
under-hood terminal2 in front of the
water tray with one jumper cable.
Clamp the cable to positive terminal1
of the charged battery first.
Start the engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminal3 of the
charged battery with negative
under-hood terminal4 with the
second jumper cable. Clamp the cable
to negative terminal3 of the charged
battery first.
Start the engine of the disabled
vehicle.
You can now turn on the electrical
consumers. Do not switch on the
headlamps under any circumstances.
Remove the jumper cables first from
negative terminals3 and4 and then
from positive terminals2 and1.
You can now switch on the headlamps.
Have the battery checked at the
nearest authorized Mercedes-Benz
Center.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 302).
!Never invert the terminal connections.
