513 Controls in detailTrunk
Closing trunk from outside manually
1Handles
Lower trunk lid by pulling firmly on
handles1.

Close the trunk with hands placed flat
on the trunk lid.
The power closing assist automatically en-
sures that the trunk lid is pulled closed
completely (
page 368).Closing trunk from outside
automatically*
The vehicle is only locked when the turn signals
flash three times. If you are carrying a second
SmartKey with KEYLESS-GO* with you, you can
still lock the vehicle.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
lid opening when closing the trunk. Be espe-
cially careful when small children are
around.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk lid opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press button Š on the SmartKey or
SmartKey with KEYLESS-GO*


press the trunk opening/closing*
switch (on the driver’s door)


514 Controls in detailTrunkIn vehicles with trunk opening/closing sys-
tem* you can close the trunk separately
from the outside using the trunk closing
switch.
Vehicles without KEYLESS-GO*1Trunk closing switchVehicles with KEYLESS-GO*1Trunk closing switch

Press trunk closing switch1 briefly.
The trunk closes.
Closing trunk and locking vehicle from
outside (vehicles with KEYLESS-GO*)
In vehicles with trunk opening/closing sys-
tem* and KEYLESS-GO*, you can close the
trunk and lock the vehicle simultaneously
from the outside using the KEYLESS-GO
locking/closing switch.


press the trunk closing switch


press the KEYLESS-GO* locking/clos-
ing switch


pull the trunk lid handle
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the remote trunk
opening/closing* switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. A child’s unsupervised access to a
vehicle could result in an accident and/or
serious personal injury.
i
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has been
piled too high) in the upper motion sequence, the
closing procedure is stopped and the trunk re-
opens slightly.

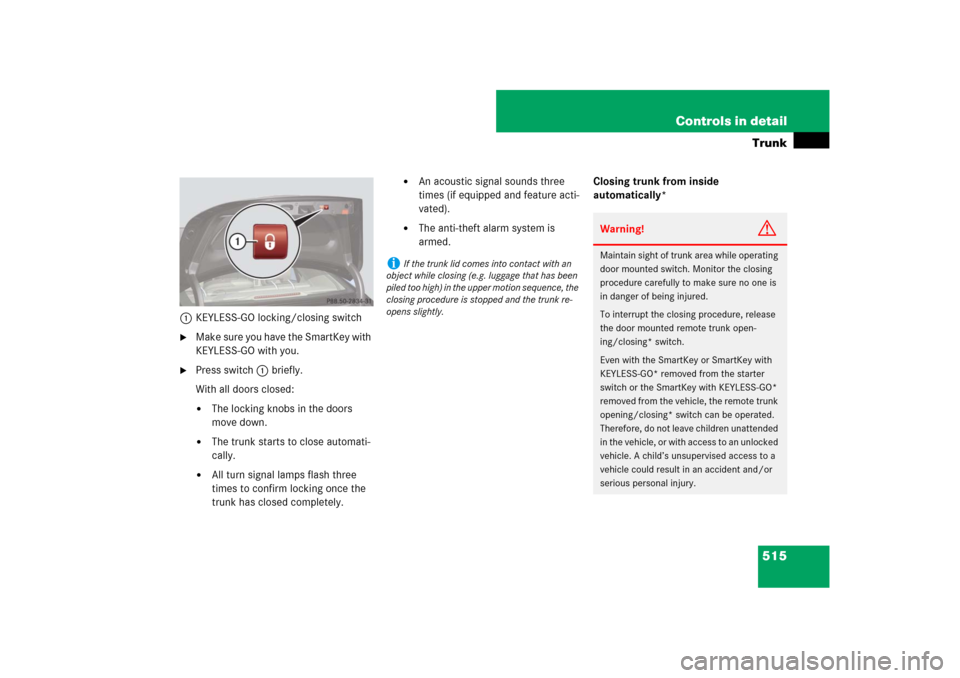

515 Controls in detailTrunk
1KEYLESS-GO locking/closing switch
Make sure you have the SmartKey with
KEYLESS-GO with you.

Press switch1 briefly.
With all doors closed:

The locking knobs in the doors
move down.


The trunk starts to close automati-
cally.


All turn signal lamps flash three
times to confirm locking once the
trunk has closed completely.


An acoustic signal sounds three
times (if equipped and feature acti-
vated).


The anti-theft alarm system is
armed.Closing trunk from inside
automatically*
i
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has been
piled too high) in the upper motion sequence, the
closing procedure is stopped and the trunk re-
opens slightly.
Warning!
G
Maintain sight of trunk area while operating
door mounted switch. Monitor the closing
procedure carefully to make sure no one is
in danger of being injured.
To interrupt the closing procedure, release
the door mounted remote trunk open-
ing/closing* switch.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the remote trunk
opening/closing* switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. A child’s unsupervised access to a
vehicle could result in an accident and/or
serious personal injury.

519 Controls in detail
Power tilt/sliding sunroof
1Push back to slide sunroof open
2Push forward to slide sunroof closed
3Push up to raise sunroof at rear
4Pull down to lower sunroof at rear
With the sunroof closed or tilted open, a
screen can be slid into the roof opening to
help provide shade. When sliding the sun-
roof open, the screen will also retract.
Switch on the ignition (
page 370).

To open, close, raise or lower, move the
switch to resistance point in the re-
quired direction1to4 until the
tilt/sliding sunroof has reached the de-
sired position.

Express-operation: To open, close,
raise or lower, move the switch past
the resistance point in the required
direction1to4 and release.
The tilt/sliding sunroof opens or closes
completely.

Stopping during Express-opening/
closing: Move the switch in any direc-
tion.
i
If PRE-SAFE
® has been activated, the
tilt/sliding sunroof closes automatically until
only a small gap remains.
i
With the SmartKey in starter switch
position0 or removed from the starter switch,
the tilt/sliding sunroof can be operated


until you open the driver’s or passenger door


for up to approximately 5 minutes
i
If the movement of the tilt/sliding sunroof is
blocked during the closing procedure, the sun-
roof will stop and reopen slightly.

560 OperationDriving instructionsBrakes
To help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.Refer to the description of the Brake Assist
System (BAS or BAS Plus*) (
page 69).
Brake pad wear or a leak in the system may
be the reason for low brake fluid level in
the reservoir.
The brake fluid level in the reservoir may
be too low if the red brake warning lamp in
the instrument cluster comes on while the
engine is running and an acoustic warning
sounds (
page 631). Observe additional
messages in the multifunction display that
may appear (page 642).
Have the brake system inspected
immediately. Contact an authorized
Mercedes-Benz Center.
Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking
effect. Maintain a safe distance from
vehicles in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an
accident.
!
Because the ESP
® operates automatically,
the engine and ignition must be shut off
(SmartKey in starter switch position0 or1 or
KEYLESS-GO start/stop button* in position0
or1) when


the electronic parking brake is being tested
on a brake test dynamometer


the vehicle is being towed with the
front/rear axle raised
Active braking action through the ESP
® may oth-
erwise seriously damage the brake system.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking ma-
neuvers.

562 OperationDriving instructionsDriving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.
Parking
!
When driving off on a slippery surface, do
not allow a drive wheel to spin for an extended
period with the ESP
® switched off. Doing so may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited War-
ranty.
!
Simultaneously depressing the accelerator
pedal and applying the brakes reduces engine
performance and causes premature brake and
drivetrain wear.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury, or
damage to the vehicle drivetrain, as a result
of inadvertent vehicle movement, before
turning off the engine and leaving the vehi-
cle always:

Keep right foot on brake pedal.


Engage electronic parking brake.


Shift the automatic transmission toP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey or the SmartKey
with KEYLESS-GO* to starter switch
position0 and remove, or press the
KEYLESS-GO* start/stop button.


Take the SmartKey or the SmartKey with
KEYLESS-GO
* with you and lock the
vehicle when leaving.

576 OperationEngine compartmentOne of the following messages will
subsequently appear in the multifunction
display:

“Engine Oil Level
OK”


“Add 1.0 qts. Engine Oil
At Next Refueling”
(Canada: “1.0 l”)


“Add 1.5 qts. Engine Oil
At Next Refueling”
(Canada: “1.5 l”)


“Add 2.0 qts. Engine Oil
At Next Refueling”
(Canada: “2.0 l”)

If necessary, add engine oil
(page 578).
For more information on engine oil, see the
“Technical data” section (
page 765) and
(
page 769).Other display messages
If the SmartKey or KEYLESS-GO* start/
stop button is not in position 2, the follow-
ing message will appear:
“For Engine Oil Level
Ignition Must be On”

Switch on the ignition (
page 370).
If you see the message
“Need More Time
to Check
Engine Oil Level”

If engine is at operating temperature,
wait 5 minutes before repeating check
procedure.

If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.
If you see the message
“Engine Oil Level
Not Measurable
With Running Engine”

Turn off the engine.

If the engine is at operating tempera-
ture, wait 5 minutes before checking
oil.

If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.
If there is excess engine oil with the engine
at operating temperature, the following
message will appear:
“Reduce
Engine Oil Level”

Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 694).
i
If you want to interrupt the checking proce-
dure, press buttonL on the multifunction
steering wheel.
!
Excess oil must be siphoned or drained off.
It could cause damage to the engine and catalyt-
ic converter not covered by the Mercedes-Benz
Limited Warranty.


595 Operation
Tires and wheels
Warning!
G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle Tire and Loading Information placard
or the tire inflation pressure label. If your ve-
hicle has tires of a different size than the
size indicated on the vehicle Tire and Load-
ing Information placard or the tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate then to
the proper pressure. Driving on a significant-
ly underinflated tire causes the tire to over-
heat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may effect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
USA only:
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately
one minute and then remain continuously il-
luminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of
replacement or alternate tires or wheels on
the vehicle that prevent the TPMS from
functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.i
If a condition causing the TPMS to malfunc-
tion develops, it may take up to 10 minutes for
the system to signal a malfunction using the
TPMS telltale flashing and illumination se-
quence.
The telltale extinguishes after a few minutes driv-
ing if the malfunction has been corrected.
i
Operating radio transmission equipment
(e.g. wireless headsets, two-way radios) in or
near the vehicle could cause the TPMS to mal-
function.
