2008 MERCEDES-BENZ R320 navigation system

161 Controls in detail
Control system
Menus, submenus and functions
Menu1Menu2Menu3Menu4Menu5
Standard displayAUDIONAV*AIRMATIC*/CompassDISTRONIC*
(page 164)(page 165)(page 167)(page 168)(page 262)
Commands/submenus
Trip- and main odometerSelecting radio stationRoute guidance
instructions, current
direction traveledAIRMATIC*Status and settings
Checking tire inflation
pressureSelecting satellite radio
station*Compass
Checking coolant
temperatureOperating CD player
Calling up digital
speedometer or outside
temperature
Calling up maintenance
service indicator
iThe headings used in the menus table are
designed to facilitate navigation within thesystem and are not necessarily identical to those
shown in the control system displays. The first function displayed in each menu will automati-
cally show you which part of the system you are
in.

163 Controls in detail
Control system
Menus, submenus and functions
Menu6Menu7Menu8Menu9Menua
Vehicle status message
memory1
1The vehicle status message memory menu is only displayed if there is a message stored.
SettingsDistance warning
function*Trip computerTelephone*
(page 169)(page 170)(page 185)(page 185)(page 187)
Commands/submenus
Calling up malfunction mes-
sages, warning messages,
and system status
messages stored in memoryResetting to factory settingsDistance warning
function* on/offFuel consumption statistics
since startLoading phone
book
Instrument cluster submenuFuel consumption statistics
since the last resetSearching for
name in phone
book
Time/Date submenuResetting fuel consumption
statistics
Lighting submenuDistance to empty
Vehicle submenu
Comfort submenu*
iThe headings used in the menus table are
designed to facilitate navigation within thesystem and are not necessarily identical to those
shown in the control system displays. The first function displayed in each menu will automati-
cally show you which part of the system you are
in.

167 Controls in detail
Control system
Operating the CD player
Selecting CD track
Turn on the COMAND system and
select CD. Refer to separate COMAND
system operating instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the multifunc-
tion display.
1Current CD (for CD changer*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.Selecting MP3-CD track
Turn on the COMAND system and
select MP3. Refer to separate
COMAND system operating
instructions.
Press buttonè orÿ repeatedly
until the settings for the MP3-CD cur-
rently being played appear in the multi-
function display.
1MP3 mode
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
NAV menu*
The
NAV menu contains the functions
needed to operate your navigation system.
Press buttonè orÿ repeatedly
until the message
NAV appears in the
multifunction display.
The message shown in the multifunction
display depends on the status of the navi-
gation system:

With the COMAND system switched
off, the message
NAV off appears in
the multifunction display.

With the COMAND system switched on
but route guidance not activated, the
direction of travel and, if applicable, the
name of the street currently traveled
on appear in the multifunction display.
iVehicles with CD changer*: To select a CD
from the magazine, press a number on the
COMAND system key pad located in the center
console.

176 Controls in detail
Control system
Time/Date submenu
Access the
Time/Date submenu via the
Settings menu. Use the Time/Date
submenu to change the time and date
settings.
The following functions are available:Setting the time
This function is not available if your vehicle
is equipped with the COMAND system and
navigation module*.
Move the selection marker with
buttonæ orçto the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Clock Set Hour or
Clock Set Minute(s) appears in the
multifunction display.
Example illustration for setting the hour
Press buttonæ orç to set the
time.Setting the date
This function is not available if your vehicle
is equipped with the COMAND system and
navigation module*.
Move the selection marker with
buttonæ orç to the
Time/Date
submenu.
Press buttonj ork repeatedly
until the message
Date Set Month,
Date Set Day, or Date Set Year
appears in the multifunction display.
Example illustration for setting the month
Press buttonæ orç to set the
date.
FunctionPage
Setting the time176
Setting the date176
iIf your vehicle is equipped with the
COMAND system and navigation module*, see
separate COMAND operating instructions for
information on how to set the date and time.

180 Controls in detail
Control system
Setting interior lighting delayed shut-off
Use this function to set whether you would
like the interior lighting to remain on for
10 seconds during darkness after you have
removed the SmartKey from the starter
switch.
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until the message
Interior Lighting
Delayed Shut-off
appears in the
multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the interior lighting delayed shut-off
feature
On or Off.Vehicle submenu
Access the
Vehicle submenu via the
Settings menu. Use the Vehicle submenu
to make general vehicle settings.
The following functions are available:Compass adjustment
This function is not available if your vehicle
is equipped with the COMAND system and
navigation module*.
Determine your location on the basis of the
following zone maps.
Zone map North America
FunctionPage
Compass adjustment180
Compass calibration181
Audio search function182
Setting automatic locking183
Limiting opening height of
tailgate*183

181 Controls in detail
Control system
Zone map South America
Press buttonæ orç to move
the selection marker to the
Vehicle
submenu.
Press buttonj ork repeatedly
until the message
Compass Setting
Zone
appears in the multifunction
display.
The selection marker is on the current
setting.
Press buttonæ orç to set the
respective compass zone.
For information on how to call up the
compass, see “Compass” (
page 334).Compass calibration
This function is not available if your vehicle
is equipped with the COMAND system and
navigation module*.
In order to calibrate the compass properly,
mind the following:

Calibrate the compass in open terrain.
Nearby buildings, bridges, power lines
and large antenna masts, for example,
could impair compass calibration.

Switch off electrical consumers (e.g.
climate control, windshield wipers, or
rear window defroster).

Close all doors and the tailgate.
Start the engine (page 53).
Press buttonæ orç to move
the selection marker to the
Vehicle
submenu.
iMake sure you are in an area where you can
drive a full circle with your vehicle without dis-
turbing traffic in order to calibrate your compass.


323 Controls in detail
Useful features
System self-check
Initially, after switching on the ignition,
malfunctions are detected and indicated
(the indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than 10 seconds or do not come on). The
message
Tele Aid Inoperative appears
in the multifunction display.Emergency calls
An emergency call is initiated auto-
matically following an accident in which
the emergency tensioning devices (ETDs)
or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 324) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp on the SOS button will
begin to flash. The message
Connecting Call appears in the multifunc-
tion display. When the connection is estab-
lished, the message
Call Connected
appears in the multifunction display.
All information relevant to the emergency,
such as the location of the vehicle (deter-
mined by the GPS satellite location sys-
tem), vehicle model, identification number
and color are generated.
iWhen a Tele Aid call has been initiated,
the COMAND system audio is muted and the
selected mode (radio, CD etc.) pauses.
The optional cellular phone (if installed) inserted
in cradle switches off. If you must use this
phone, we recommend that you use it only with
the vehicle at a standstill in a safe location.
Remove the phone from the cradle and place the
call. The navigation* system (if engaged) will
continue to run. The display in the instrument
cluster is available for use, and spoken com-
mands are only available by pressing the
RPT button on the COMAND system. A pop-up
window will appear in the COMAND system dis-
play to indicate that a Tele Aid call is in progress.
After the Tele Aid call has ended, the optional
cellular phone inserted in the cradle switches on
again. A PIN entry might be necessary.
Warning!G
If the indicator lamps on the SOS button, on
the Roadside Assistance button, and/or on
the Information button remain illuminated
continuously in red and/or the message
Tele Aid Inoperative is displayed in the
multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Light Truck Center
as soon as possible.

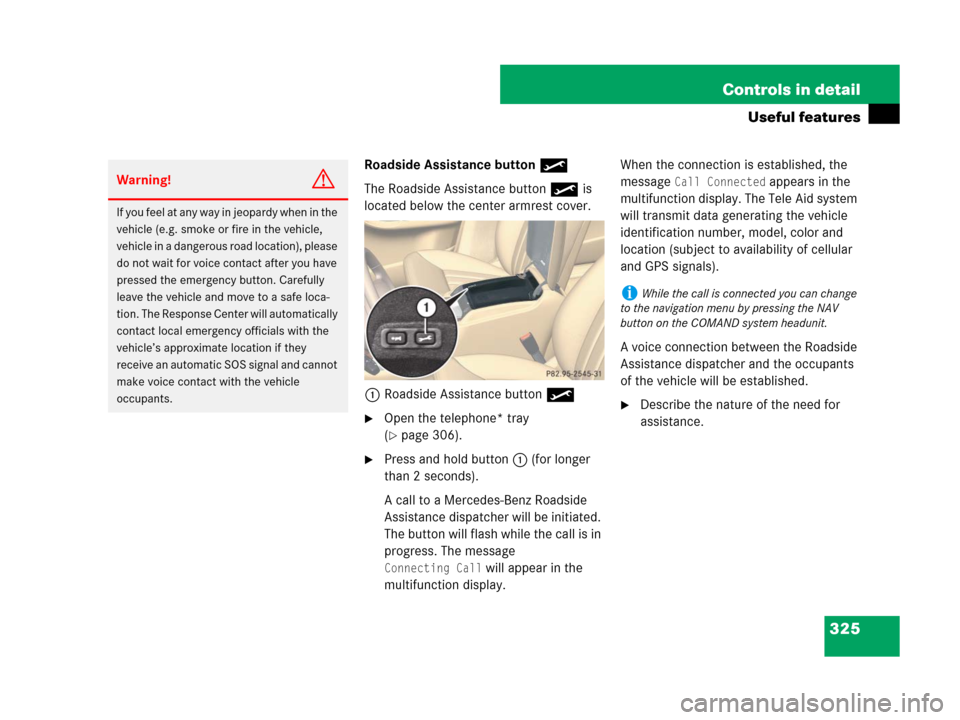

325 Controls in detail
Useful features
Roadside Assistance button•
The Roadside Assistance button• is
located below the center armrest cover.
1Roadside Assistance button•
Open the telephone* tray
(
page 306).
Press and hold button1 (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting Call will appear in the
multifunction display.When the connection is established, the
message
Call Connected appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for
assistance.
Warning!G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they
receive an automatic SOS signal and cannot
make voice contact with the vehicle
occupants.
iWhile the call is connected you can change
to the navigation menu by pressing the NAV
button on the COMAND system headunit.
