2008 MERCEDES-BENZ E-CLASS SALOON technical data

Trailer coupling*
376 Trailer loads
All models except
E 200/E 230 62 E 200
E 230
Permissible trailer load, braked
63 Saloon 1,900 kg
1,700 kg
64 Estate
Vehicles with manual transmission
Vehicles with automatic transmission* 1,900 kg
2,100 kg
1,700 kg
64
2,100 kg Permissible trailer load, unbraked Saloon 750 kg 750 kg
Estate 750 kg 750 kg
Maximum drawbar noseweight
65 Saloon 76 kg 76 kg
Estate 84 kg 84 kg
62
The E 63 AMG model cannot be used to tow a trailer.
63 At a minimum gradient-climbing capability of 12% from a standstill
64 At a minimum gradient-climbing capability of 8 %: 1,900 kg
65 The drawbar noseweight is not included in the trailer load. Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 376 Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
377Service products and capacities
Notes on service products and capaci-
ties
Service products are:
R fuels (e.g. petrol, diesel)
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscreen washer fluid
Mercedes-Benz recommends that you only
use those products which have been tested
and specially approved by Mercedes-Benz for
your vehicle and are listed in the Mercedes-
Benz Owner's Manual in the relevant chapter
since:
R parts and service products are matched
R damage caused by the use of non-approved
service products is not covered by the war-
ranty You can recognise service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
R
MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations that
relate to a level of quality or a specification in
accordance with an MB Approval have not
necessarily been approved by Mercedes-
Benz.
You can obtain further information from any
Mercedes-Benz Service Centre. G
Risk of injury
When handling, storing and disposing of
any service products, please observe the
relevant regulations, as you could other-
wise endanger yourself and others.
Keep service products away from children.
To protect your health, do not allow service
products to come into contact with your eyes or open wounds. See a doctor imme-
diately if any service product is swallowed.
H
Environmental note
Dispose of service products in an environ-
mentally-responsible manner. Fuels
G
Risk of explosion
Fuel is highly flammable. Fire, naked flames
and smoking are therefore prohibited when
handling fuels.
Switch off the engine and the auxiliary heat-
ing* before refuelling. G
Risk of injury
Do not allow fuel to come into contact with
skin or clothing.
Allowing fuels to come into direct contact
with your skin or inhaling fuel vapours is
damaging to your health.
Tank capacity Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 377 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
378 Saloon Estate
E 200 KOMPRESSOR
66
/E 230 65 l 70 l
E 280 /E 280 4MATIC
65 l (80 l)
67 70 l (80 l)
67 E 350/E 350 4MATIC 80 l 80 l
E 500/E 500 4MATIC 80 l 80 l
E 63 AMG 80 l 80 l
E 300 Bluetec
66 65 l –
E 200 CDI
66 65 l –
E 220 CDI
66 65 l 70 l
E 280 CDI/E 280 CDI 4MATIC
65 l (80 l)
67 70 l (80 l)
67 E 320 CDI/E 320 CDI 4MATIC 80 l 80 l
E 420 CDI 80 l –
E 350 CGI 80 l 80 l
Of which reserve fuel
AMG vehicles Approximately 8 – 9 l
Approximately 14 l Approximately 8 – 9 l
Approximately 14 l 66
80 l fuel tank available as optional equipment.
67 80 l fuel tank available as optional equipment for the CLASSIC equipment level. Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 378Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
379
!
Do not use petrol to refuel vehicles with a
diesel engine. Do not use diesel to refuel
vehicles with a petrol engine. Never mix
diesel with petrol. Even small amounts of
the wrong fuel result in damage to the
injection system. Damage resulting from
adding the wrong fuel is not covered by the
warranty.
More information about refuelling and fuels
can be found in the "Operation" section. Introduction to fuel consumption
The vehicle will use more fuel than usual in
the following situations: R
at very low temperatures
R in urban traffic
R on short trips
R when towing a trailer
R in mountainous terrain
The consumption figures have been deter-
mined in accordance with EU Directive 80 /1 268 /EEC test conditions.
i Only for certain countries: the current
consumption and emissions values of your
vehicle can be found in the COC papers
(EC-CERTIFICATE OF CONFORMITY). These
documents are supplied when the vehicle
is delivered.
! Do not use any special additives, as they
can cause malfunctions and engine dam-
age. Damage resulting from the use of such
additives is not covered by the Mercedes-
Benz warranty. H
Environmental note
CO 2(carbon dioxide) is the gas which sci-
entists believe to be principally responsible
for global warming (the greenhouse effect).
Your vehicle's CO 2emissions are directly
related to fuel consumption and therefore
depend on:
R efficient use of the fuel by the engine
R driving style
R other non-technical factors, such as envi-
ronmental influences or road conditions
You can minimise your vehicle's CO 2emis-
sions by driving carefully and having it serv-
iced regularly. Technical data
211_AKB; 2; 5, en-GB
mkalafa
,V ersion: 2.9.4
2008-02-29T16:57:07+01:00 - Seite 379 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities

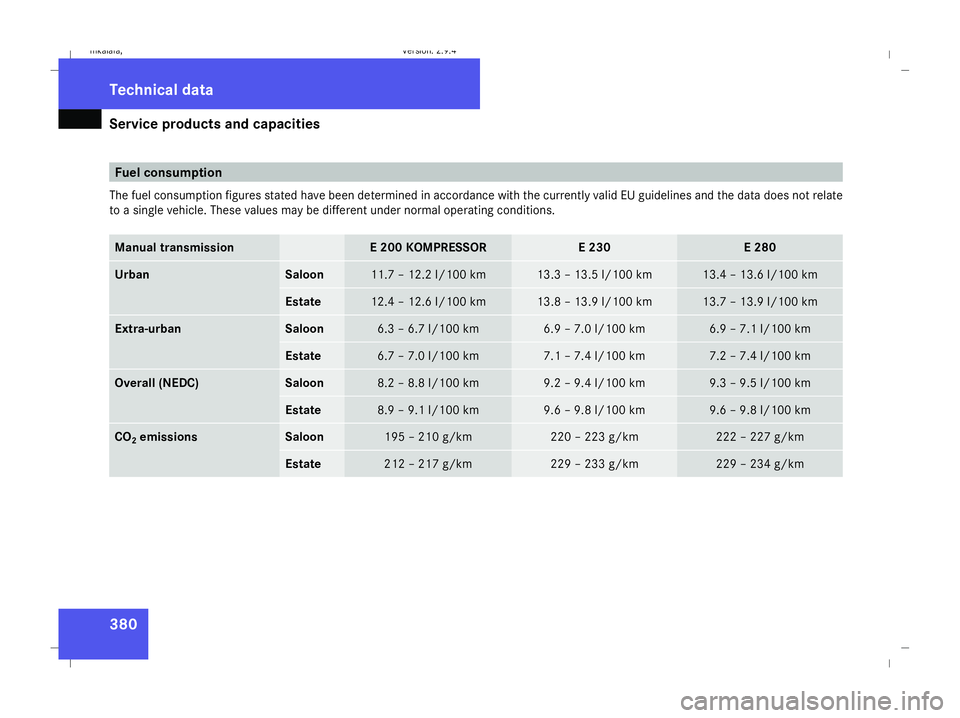

380 Fuel consumption
The fuel consumption figures stated have been determined in accordance with the currently valid EU guidelines and the data does not relate
to a single vehicle. These values may be different under normal operating conditions. Manual transmission E 200 KOMPRESSOR E 230 E 280
Urban Saloon 11.7 – 12.2 l/100 km 13.3 – 13.5 l/100 km 13.4 – 13.6 l/100 km
Estate 12.4 – 12.6 l/100 km 13.8 – 13.9 l/100 km 13.7 – 13.9 l/100 km
Extra-urban Saloon 6.3 – 6.7 l/100 km 6.9 – 7.0 l/100 km 6.9 – 7.1 l/100 km
Estate 6.7 – 7.0 l/100 km 7.1 – 7.4 l/100 km 7.2 – 7.4 l/100 km
Overall (NEDC) Saloon 8.2 – 8.8 l/100 km 9.2 – 9.4 l/100 km 9.3 – 9.5 l/100 km
Estate 8.9 – 9.1 l/100 km 9.6 – 9.8 l/100 km 9.6 – 9.8 l/100 km
CO
2emissions Saloon 195 – 210 g/km 220 – 223 g/km 222 – 227 g/km
Estate 212 – 217 g/km 229 – 233 g/km 229 – 234 g/kmTechnical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 380Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
381Manual transmis-
sion E 200 CDI E 220 CDI E 280 CDI
Urban Saloon 8.2 – 8.6 l/100 km 8.2 – 8.7 l/100 km 9.5 – 9.7 l/100 km
Estate 9.3 – 9.6 l/100 km 9.3 – 9.6 l/100 km 10.0 – 10.2 l/100 km
Extra-urban Saloon 4.9 – 5.2 l/100 km 4.9 – 5.2 l/100 km 5.4 – 5.6 l/100 km
Estate 5.6 – 5.9 l/100 km 5.6 – 5.9 l/100 km 5.6 – 5.8 l/100 km
Overall (NEDC) Saloon 6.1 – 6.4 l/100 km 6.1 – 6.4 l/100 km 6.9 – 7.1 l/100 km
Estate 7.1 – 7.2 l/100 km 7.1 – 7.2 l/100 km 7.2 – 7.4 l/100 km
CO
2emissions Saloon 160 – 168 g/km 160 – 164 g/km 183 – 189 g/km
Estate 188 – 189 g/km 188 – 189 g/km 191 – 196 g/km
Automatic trans-
mission* E 200 KOMPRESSOR E 230 E 280
Urban Saloon 12.1 – 12.6 l/100 km 13.3 – 13.5 l/100 km 13.5 – 13.8 l/100 km
Estate 12.9 – 13.0 l/100 km 13.9 – 14.1 l/100 km 13.8 – 14.1 l/100 km
Extra-urban Saloon 6.5 – 6.8 l/100 km 7.3 – 7.5 l/100 km 7.0 – 7.3 l/100 km
Estate 6.9 – 7.4 l/100 km 7.4 – 7.6 l/100 km 7.3 – 7.6 l/100 km Technical data
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 381 ZDateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
382 Automatic trans-
mission* E 200 KOMPRESSOR E 230 E 280
Overall (NEDC) Saloon 8.5 – 8.9 l/100 km 9.4 – 9.6 l/100 km 9.4 – 9.7 l/100 km
Estate 9.2 – 9.4 l/100 km 9.7 – 9.9 l/100 km 9.7 – 10.0 l/100 km
CO
2emissions Saloon 202 – 212 g/km 225 – 230 g/km 224 – 232 g/km
Estate 219 – 224 g/km 232 – 237 g/km 232 – 239 g/km
Automatic trans-
mission* E 280 4MATIC E 350 CGI E 300 Bluetec
Urban Saloon 13.8 – 14.2 l/100 km 13.0 – 13.5 l/100 km 9.9 – 10.1 l/100 km
Estate 14.3 – 14.6 l/100 km 13.1 – 13.6 l/100 km –
Extra-urban Saloon 7.6 – 8.0 l/100 km 6.3 – 6.7 l/100 km 5.6 – 5.9 l/100 km
Estate 8.0 – 8.3 l/100 km 6.5 – 7.0 l/100 km –
Overall (NEDC) Saloon 9.9 – 10.2 l/100 km 8.7 – 9.2 l/100 km 7.2 – 7.5 l/100 km
Estate 10.3 – 10.6 l/100 km 8.9 – 9.4 l/100 km –
CO
2emissions Saloon 237 – 245 g/km 208 – 219 g/km 189 – 199 g/km
Estate 246 – 253 g/km 213 – 224 g/km –Technical data
* optional
211_AKB; 2; 5, en-GB
mkalafa,
Version: 2.9.4 2008-02-29T16:57:07+01:00 - Seite 382Dateiname: 6515_3416_02_buchblock.pdf; preflight

Service products and capacities
383Automatic trans-
mission* E 350 E 350 4MATIC E 500
Urban Saloon 14.0 – 14.4 l/100 km 14.5 – 14.9 l/100 km 16.9 l/100 km
Estate 14.1 – 14.6 l/100 km 14.7 – 15.3 l/100 km 17.3 l/100 km
Extra-urban Saloon 7.2 – 7.8 l/100 km 8.0 – 8.3 l/100 km 8.2 l/100 km
Estate 7.5 – 8.0 l/100 km 8.3 – 8.5 l/100 km 8.5 l/100 km
Overall (NEDC) Saloon 9.7 – 10.2 l/100 km 10.4 – 10.7 l/100 km 11.5 l/100 km
Estate 9.9 – 10.4 l/100 km 10.6 – 11.0 l/100 km 11.8 l/100 km
CO
2emissions Saloon 231 – 244 g/km 247 – 255 g/km 273 g/km
Estate 236 – 248 g/km 253 – 261 g/km 280 g/km
Automatic trans-
mission* E 500 4MATIC E 63 AMG E 200 CDI
Urban Saloon 17.8 l/100 km 22.3 l/100 km 9.0 – 9.8 l/100 km
Estate 18.2 l/100 km 22.6 l/100 km 9.5 – 10.1 l/100 km
Extra-urban Saloon 9.2 l/100 km 9.8 l/100 km 5.2 – 5.5 l/100 km
Estate 9.5 l/100 km 9.9 l/100 km 5.7 – 6.1 l/100 km Technical data
