2008 MERCEDES-BENZ E-Class Navigation

27 At a glance
Menu system


Menu system
The menu system allows for easy opera
-
tion of COMAND.Each of the following main functions has a
main menu:
Audio

(Radio, Single CD, CD changer* and
AUX mode)

Satellite radio*

Telephone*

Navigation*

Service
Opening main menus
Audio
( page
36)
:
Press

.

Satellite radio*
( page
73)
:
Press
5
.

Telephone*
( page
89)
:
Press

.

Navigation*
( page
108)
:
Press

.

Service
( page
159)
:
Press

.
Menu display A display can be composed of 3 sections.Example: Radio main menu1Soft key sections2Main area3Status barThe functions currently assigned to the
soft keys are displayed in the soft key sec
-
tions 1.
Messages or settings are displayed in the
main area 2.

The settings can be changed by operating
controls accordingly.The status bar 3 is divided into three ar
-
eas.Left side:

The selected operating mode is given. In
this example: RadioCenter:

Indication of the selected operating mode.In this example:

FM = selected waveband

1 = selected station is stored on
preset 1
iA maximum of five soft keys may be
displayed on each side of the main area
2.

28 At a glanceMenu systemRight side:

General status information is displayed, re
-
gardless of the selected operating mode. In this example:
ROAMING
= telephone* is logged into a
mobile communications network out
-
side your home network.

= telephone* signal strength
Menu functions and submenus Using the soft keys, you can switch func
-
tions ON or OFF, or open submenus.Example: Radio main menu:

The
Scan
soft key switches the scan
search ON or OFF.

The
Autost.
soft key opens the sub
-
menu for the Autostore settings.
In some situations, soft keys may not have
any function and thus not be available.
Should a soft key not be available, it will
appear shaded out, its characters will ap
-
pear white.Example:

Presets
, Scan
and
Autost.
soft key.
Exiting from submenus You can exit the current submenu by
pressing the
Back
soft key. The display
switches to the next higher menu level.

The system does not accept setting modi
-
fications which have not been stored.

There are exceptions where pressing the Back
soft key will also store new settings.
These exceptions, whenever applicable,
are referenced on the following pages.
iThis information is also displayed in
Navigation* mode (only in map dis
-
plays).

29 At a glance
Quick reference COMAND


Quick reference COMAND
Switching ON
Turn the key in the steering lock to po
-
sition 1 or 2,
or

Press
.
.
COMAND switches on the last active
system and displays the corresponding
menu.
Switching OFF
Turn the key in the steering lock to po
-
sition 0 and remove it,
or
Press
.
.
Different volume settings are possible for
Navigation*, Telephone*, or Voice con
-
trol*.A common volume setting is provided for
Radio, Single CD, MP3, CD changer*, AUX
and Satellite radio* operating modes.When setting the volume, the system auto
-
matically stores the setting for the current
-
ly active operating mode. The volume of
navigation announcements can be
changed only during an actual announce
-
ment.
iThe system can be operated as follows:
from COMAND itself, or

from the multifunction steering
wheel
This operating manual describes oper
-
ation from COMAND and from the mul
-
tifunction steering wheel.

Unless otherwise specified, the de
-
scriptions and the displays illustrated
relate to the COMAND control unit.Switching ON/OFF
iWithout the key in position 1 or 2 of the
steering lock, the system automatically
switches OFF again after approx. 30
minutes of inactivity.
iIf a telephone call is in progress (hands
-
free) you cannot switch the COMAND
OFF,
.
is disabled.
Volume

30 At a glanceQuick reference COMANDSetting the volume
Turn the rotary control
4
located on
the COMAND control unit,
or
Press
æ or ç on the multifunc
-
tion steering wheelThe volume changes up or down, de
-
pending on the direction of rotation or
which button was pressed.The system stores the volume settings
when the device is switched OFF.

After switching the system back on again,
the volume may be lower than at the time
when the system was switched OFF.
This could be the case if:
the system was switched OFF for more
than 15 minutes, and

the volume had been set to a value in a
certain range at the time the device
was switched OFF.
Automatic volume control The automatic volume control adjusts the
volume depending on
the vehicle’s speed (only in vehicles
without Sound-system*),or onthe interior ambient noises of the vehi
-
cle (only in vehicles with Sound-sys
-
tem*)

other parameters (e.g. windows open
or closed)
A common balance and fader setting ap
-
plies to the following operating modes:
Radio

Single CD

MP3

CD changer*

AUX

Satellite radio*
When adjusting the balance or the fader,
the system automatically stores the set
-
ting for the currently active operating
mode.Balance and faderiFor Navigation* a different balance/
fader setting is possible. You find the
description under “Adjusting the
acoustics for navigation announce
-
ments”
( page
109)
.

31 At a glance
Quick reference COMAND
Setting balance/fader
Open the main menu of the appropriate
operating mode
( page
27)
.

Press the
Bal/Fad
soft key.
The Balance/Fader menu is displayed.
Now you can set the balance and the
fader
( page
31)
.
A cross-hair cursor appears. The verti
-
cal line indicates the balance setting.
The horizontal line indicates the fader
setting.

Press

or

:
The cursor moves horizontally, adjust
-
ing the desired balance,
or
Press

or

:
The cursor moves vertically, adjusting
the fader.Storing new settings:

Press

or the
Back
soft key,
or
wait until the display changes.
For the following operating modes, differ
-
ent settings for bass and treble can be se
-
lected:
Radio (FM waveband)

Radio (AM waveband)

Radio (Weather Band)

Single CD

MP3

CD changer*

AUX

Satellite radio*

Navigation*
Bass and treble settings for navigation an
-
nouncements are found under “Adjusting
the acoustics for navigation announce
-
ments”
( page
109)
.
i Using
+
and
(
, the cursor can be
moved simultaneously in vertical and
horizontal direction (diagonally).
Bass and treble

89 Telephone*
Telephone operation
1 Observe all legal requirements

Press

.
The Telephone main menu appears.
Telephone status information is displayed
on the right end of the status bar.The following displays are possible:
READY
= telephone is logged into your
cellular phone home network and
ready for use,

ROAMING
= telephone is logged into a
cellular phone network outside your
home network,

NO SERV.
= no network available,

= telephone signal strength,

= call active
( page
95)
.
Other messages could also appear:
If the message

Please
insert
phone
,
Phone
not
installed
or Please insert
SIM card
appears, see chapter “Switch
-
ing the phone ON / OFF”
( page
85)

If the message

Please
Enter
PIN:
appears, see “En
-
tering the PIN”
( page
87)

If the message

Enter
unlock
code:
appears, see “En
-
tering unlock code”
( page
88)
Telephone main menuWarning
G
Some jurisdictions prohibit the driver from
using a cellular telephone while driving.
Whether or not prohibited by law, for safety
reasons, the driver should not use the cellu
-
lar telephone while the vehicle is in motion.
Stop the vehicle in a safe location before
placing or answering a call.If you nonetheless choose to use the cellular
phone while driving, please use the hands-
free device and be sure to pay attention to
the traffic situation at all times. Use the cel
-
lular phone
1 only when road, weather and
traffic conditions permit.
iThe information is also displayed in
Navigation* mode (only in map dis
-
plays).

103
Navigation*
Important notes
Navigation main menu
Destination entryRoute guidance
During
route
guidance
Last
destinations
and
destination
memory
POIs (Points of Interest)

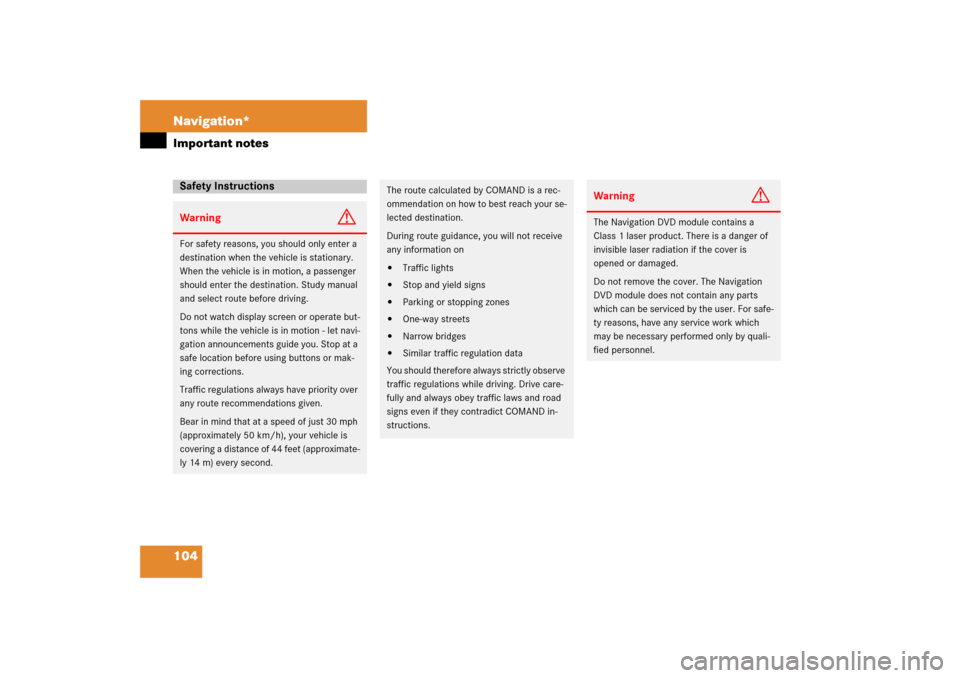

104 Navigation*Important notesSafety InstructionsWarning
G
For safety reasons, you should only enter a
destination when the vehicle is stationary.
When the vehicle is in motion, a passenger
should enter the destination. Study manual
and select route before driving.Do not watch display screen or operate but
-
tons while the vehicle is in motion - let navi
-
gation announcements guide you. Stop at a
safe location before using buttons or mak
-
ing corrections.Traffic regulations always have priority over
any route recommendations given. Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate
-
ly 14 m) every second.
The route calculated by COMAND is a rec
-
ommendation on how to best reach your se
-
lected destination.During route guidance, you will not receive
any information on
Traffic lights

Stop and yield signs

Parking or stopping zones

One-way streets

Narrow bridges

Similar traffic regulation data
You should therefore always strictly observe
traffic regulations while driving. Drive care
-
fully and always obey traffic laws and road
signs even if they contradict COMAND in
-
structions.
Warning
G
The Navigation DVD module contains a

Class 1 laser product. There is a danger of
invisible laser radiation if the cover is
opened or damaged.Do not remove the cover. The Navigation
DVD module does not contain any parts
which can be serviced by the user. For safe
-
ty reasons, have any service work which
may be necessary performed only by quali
-
fied personnel.
