2008 MERCEDES-BENZ CL-Class engine

698 Practical hintsFlat tire1Wheel wrench
On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wheel
wrench1).
The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.2Jack take-up bracket
3Jack
4Crank

Place jack3 on firm ground.

Position jack3 under take-up
bracket2 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.

Turn crank4 clockwise until jack3
is fully seated in take-up bracket2
and the jack base evenly meets the
ground.

Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while
vehicle is raised.


699 Practical hints
Flat tire
Removing the wheel
1Alignment bolt
Unscrew upper-most wheel bolt and re-
move.

Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.

Remove the remaining bolts.

Remove the wheel.Attaching the Minispare wheel
Warning!
G
Position the jack only on the jack take-up
brackets designed for this purpose.
If the jack is not properly positioned, the ve-
hicle may fall off the jack and cause serious
personal injury or damage to the vehicle.Warning!
G
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.
!
Do not place wheel bolts in sand or dirt. This
could result in damage to the bolt and wheel hub
threads.
Warning!
G
Always replace wheel bolts that are dam-
aged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be re-
paired immediately. Do not continue to drive
under these circumstances! Contact an au-
thorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure you are using the correct wheel
bolts.

704 Practical hintsBatteries
Starter battery (example illustration from
CL 550)1Negative terminal
2Positive terminal
Disconnecting starter battery
Secure vehicle in place with electronic
parking brake (
page 412).

Shift the automatic transmission to
park positionP (
page 417).
Do not rub the battery with rags or cloths.
The battery could explode if touched due to
electrostatic charge or due to spark forma-
tion.!
Switch off the engine and switch off the ve-
hicle’s internal electrical functions (
page 705)
before you disconnect or remove the battery’s
terminal clamps. You could otherwise destroy
electronic assemblies such as the generator.
Have the battery checked regularly by an autho-
rized Mercedes-Benz Center. Refer to Mainte-
nance Booklet for maintenance intervals or
contact an authorized Mercedes-Benz Center for
further information.
!
Do not connect any consumers directly to
the starter battery. The starter battery will other-
wise be discharged.
i
Only replace a discharged battery with a bat-
tery recommended by Mercedes-Benz. The con-
sumer battery is installed in the trunk in such a
way that it is safeguarded as much as possible
against mechanical destruction in the event of
an accident.
i
Remove SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the vehicle’s
on-board electronics have status 0)
(
page 365) when you turn off the engine and
no longer require any electrical consumers. The
vehicle then uses very little power and the con-
sumer battery is spared.
i
If the consumer battery is discharged, you
must use the mechanical key to unlock the vehi-
cle (page 684). Since the vehicle has a sepa-
rate starter battery, however, you can still start
the vehicle.
!
Always disconnect the starter battery in the
order described below. You could otherwise
damage the vehicle’s electronics.
!
Switch off the vehicle’s internal electrical
functions before disconnecting the starter bat-
tery. If the vehicle is stationary for more than one
hour with the SmartKey removed, you do not
need to switch off the vehicle’s internal electrical
functions.


706 Practical hintsBatteriesStarter battery
Connect the switched-off charging de-
vice to the terminals of the starter bat-
tery. Observe the operating
instructions in the manual for the
charging device while doing so.
Reinstalling starter battery
Install starter battery in engine com-
partment.

Swing retaining bar down.
Reconnecting starter battery

Make sure that the consumer battery in
the trunk is correctly installed and con-
nected.

Turn SmartKey in starter switch to po-
sition 0 and remove.

Connect the positive lead and fasten its
cover2 (
page 704).

Connect negative lead1
(page 704).

Attach ventilation tube.

Switch on the ignition (
page 365).

Start the engine (
page 406).

Check vehicle functions.
!
Only use charging devices with a maximum
charging voltage of 14.8 V.
Warning!
G
During the charge procedure, there is a risk
of acid burns due to gases escaping from
the battery. Do not bend over the battery
during the charge procedure.
!
The battery and the battery ventilation hose
must always be securely installed when the vehi-
cle is in operation.
!
Always connect the starter battery in the or-
der described below. Otherwise, the vehicle’s
electronics could be damaged.
Warning!
G
Do not drive without a properly installed and
connected consumer battery.
Have any work on the consumer battery car-
ried out by an authorized Mercedes-Benz
Center.
!
Never invert the terminal connections.
!
Make sure that the battery has a plug where
the ventilation tube is attached to it.

707 Practical hints
Jump starting
Jump starting
If the starter battery is discharged, the en-
gine can be started with jumper cables and
the battery of another vehicle. Observe the
following:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only use 12-volt battery to jump start
your vehicle. Jump starting with a high-
er voltage battery could damage the ve-
hicle’s electrical system, which will not
be covered by the Mercedes-Benz Lim-
ited Warranty.


Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure that the jumper ca-
bles are not on or near pulleys, fans or
other parts that move when an engine
is started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!
Do not tow-start the vehicle.
!
Jump starting should only be performed on
the starter battery installed in the engine com-
partment.
Avoid repeated and lengthy starting attempts.
Do not attempt to start the engine using a bat-
tery quick charge unit.
If engine does not run after several unsuccessful
starting attempts, have it checked at the nearest
authorized Mercedes-Benz Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the catalyt-
ic converter and may present a fire risk.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.

708 Practical hintsJump startingJump starting should only be performed on
the starter battery. The starter battery is
located in the engine compartment on the
passenger side (
page 704).

Make sure the two vehicles do not
touch.

Secure vehicle in place with electronic
parking brake (
page 412).

Shift the automatic transmission to
park positionP (
page 417).

Turn off all electrical consumers, ex-
cept hazard warning flashers or work
lights.

Open the hood (
page 553).

Start the engine of the vehicle with the
charged battery and run at idle speed.1Negative clamp
2Negative terminal of charged battery
3Positive terminal of charged battery
4Positive terminal of discharged battery
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 702).
i
Vehicles with KEYLESS-GO: remove the
KEYLESS-GO button (
page 366) and use the
SmartKey with KEYLESS-GO like a normal
SmartKey.

709 Practical hints
Jump starting

Remove red cover from positive
terminal4.

Connect positive terminal3 of the
charged battery with positive
terminal4 of the discharged battery
with the jumper cable. Clamp cable to
charged battery3 first.

Connect negative terminal2 of
charged battery to jumper cables and
attach other end of the jumper cable
with the negative clamp1 to a suit-
able ground point on the vehicle.

Get into vehicle and start engine within
30 seconds.
If the starting attempt does not suc-
ceed:
Turn the SmartKey in starter switch
to position 0.

Take out the SmartKey.

Turn off engine of donor vehicle, re-
start it and let it run at idle speed
for several minutes.

Disconnect the jumper cable during
this time.

Reconnect jumper cable as de-
scribed before.

Restart engine.

While the engine is running, switch off
several electrical consumers such as
the blower.

Disconnect jumper cables first nega-
tive clamp1 from ground point and
negative terminal2, then from posi-
tive terminals4 and3.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
!
Never invert the terminal connections.

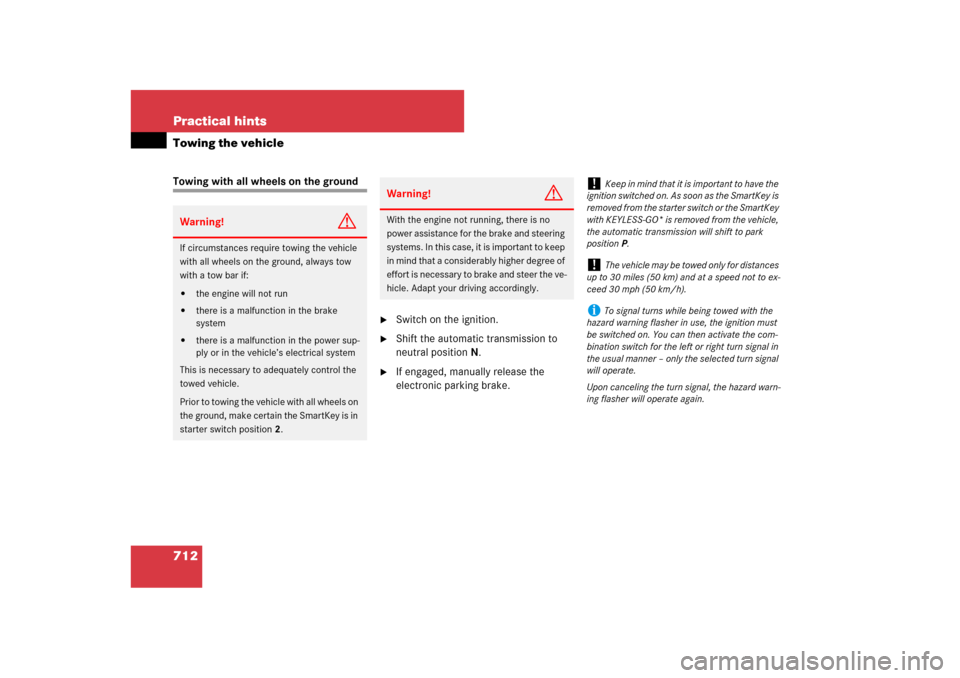

712 Practical hintsTowing the vehicleTowing with all wheels on the ground

Switch on the ignition.

Shift the automatic transmission to
neutral positionN.

If engaged, manually release the
electronic parking brake.
Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the brake
system


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
This is necessary to adequately control the
towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain the SmartKey is in
starter switch position2.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
!
Keep in mind that it is important to have the
ignition switched on. As soon as the SmartKey is
removed from the starter switch or the SmartKey
with KEYLESS-GO* is removed from the vehicle,
the automatic transmission will shift to park
positionP.
!
The vehicle may be towed only for distances
up to 30 miles (50 km) and at a speed not to ex-
ceed 30 mph (50 km/h).
i
To signal turns while being towed with the
hazard warning flasher in use, the ignition must
be switched on. You can then activate the com-
bination switch for the left or right turn signal in
the usual manner – only the selected turn signal
will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.
