Page 231 of 509
230 Controls in detail
Audio system
TEL-Basic display
Press buttonh on the audio control
unit to call up the telephone mode.
When the connected phone is ready for op-
eration, the display will look like this:
The following information is displayed in
the status bar:
Actual time:
04:38
Bluetooth® device name of the con-
nected phone, in this case:
blue_mobil
Mobile phone network signal
strengthI. This information will
only be shown with suitable tele-
phones.The bars indicate the current signal
strength of the mobile phone network
for reception. Optimum reception is in-
dicated by all bars full. All bars empty
indicates very poor or no reception.
Receiver symbols ort.
The receiver symbol indicates whether
a call is being connected or is in
progress:
t - not active
READY indicates that a call is possible.
NO SERVICE indicates that the mobile
network is not available.Setting transmit and receive volume
h Tel Phone List.
Select an mobile phone from the list.
Select Options Reception Volume
or
Transmission Volume.
To set the volume: Slideqmror
rotateymz the audio controller.
The volume bar moves up or down.
To confirm selection: Press n or
slideomp the audio controller.
iThese settings should normally not be
changed as the factory settings are matched to
most mobile phones. Find out about the opti-
mum settings for your mobile phone at an
authorized Mercedes-Benz Center.
iChanges may result in significant impair-
ments to the transmission quality. These set-
tings may not be changed during an active phone
call.
Page 254 of 509
253 Controls in detail
Dual-zone automatic climate control
Operating the climate control system
in automatic mode
Activating: Press buttonU
(
page 250) while the engine is run-
ning.
The indicator lamp in the button comes
on. The air volume and air distribution
are adjusted automatically.
Use temperature controls1 and6
(
page 250) to separately adjust the
air temperature on each side of the
passenger compartment.
The temperature of the vehicle interior
is adjusted automatically.
Deactivating: Press buttonU
(
page 250) again.
The indicator lamp in the button goes
out. The automatic operation of air vol-
ume and air distribution switches off.
The symbols of air distribution and air
volume appear in displayb.
Adjust air distribution (page 254).
Adjust air volume (page 254).
Setting the temperature
Use temperature controls1 and6
(
page 250) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing: Turn temperature
control1 and/or6 (
page 250)
slightly clockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Decreasing: Turn temperature
control1 and/or6 (
page 250)
slightly counterclockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
iWhen operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off if
necessary (
page 258).
Page 255 of 509
254 Controls in detail
Dual-zone automatic climate control
Adjusting air distribution
Use buttonZ (
page 250) to adjust
the air distribution manually. The following
symbols are shown in displayb:
Press buttonZ (page 250) re-
peatedly until you have select the de-
sired setting and the corresponding
symbol is shown in displayb.
The indicator lamp in buttonU goes
out. The automatic air distribution is
switched off. The air distribution is
controlled according to the selected
control setting.
Adjusting air volume
Seven blower speeds are available.
Press button· to decrease
orQ (
page 250) to increase air
volume to the desired level.
The indicator lamp in buttonU
(
page 250) goes out.
The air volume is adjusted correspond-
ing to the set blower speed. The auto-
matic air distribution remains switched
on.Using driver-side settings for all tem-
perature zones (Canada only)
You can use the settings of the driver’s
side, such as temperature, air volume and
air distribution, for all temperature zones.
Activating: Press buttonz
(
page 250).
The indicator lamp in the button comes
on.
The driver-side settings are used for all
temperature zones.
Deactivating: Press buttonz
(
page 250) again.
The indicator lamp in the button goes
out.

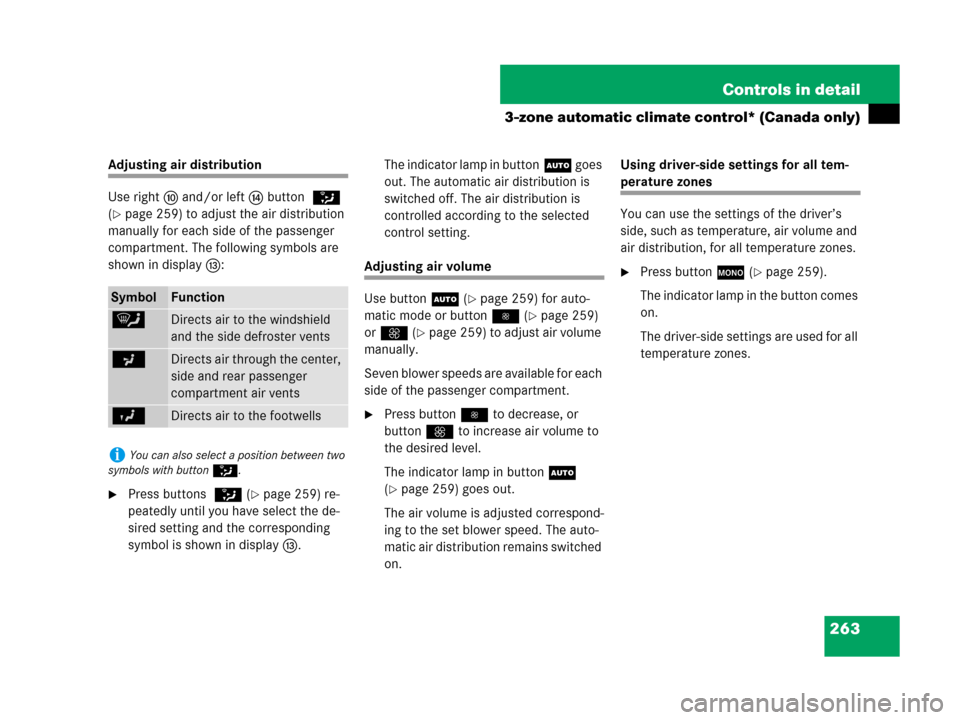

SymbolFunction
{Directs air to the windshield
and the side defroster vents
aDirects air through the center,
side and rear passenger
compartment air vents
YDirects air to the footwells
iYou can also select a position between two
symbols with buttonZ.
Page 263 of 509
262 Controls in detail
3-zone automatic climate control* (Canada only)
Deactivating: Press buttonU
(
page 259) again.
The indicator lamp in the button goes
out. The automatic operation of air vol-
ume and air distribution switches off.
The symbols of air distribution and air
volume appear in displayd.
Adjust air distribution (page 263).
Adjust air volume (page 263).
Setting the temperature
Use temperature controls1 and/or8
(
page 259) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing: Turn temperature
control1 and/or8 (
page 259)
slightly clockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
Decreasing: Turn temperature
control1 and/or8 (
page 259)
slightly counterclockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
iYou can also adjust the temperature in the
rear passenger compartment (
page 268).
iIf you turn the temperature control fully
clockwise for one side of the vehicle, you are in-
creasing the temperature for the other side of
the vehicle as well.
iIf you turn the temperature control fully
counterclockwise for one side of the vehicle, you
are decreasing the temperature for the other
side of the vehicle as well.
Page 264 of 509
263 Controls in detail
3-zone automatic climate control* (Canada only)
Adjusting air distribution
Use righta and/or lefte buttonZ
(
page 259) to adjust the air distribution
manually for each side of the passenger
compartment. The following symbols are
shown in displayd:
Press buttonsZ (page 259) re-
peatedly until you have select the de-
sired setting and the corresponding
symbol is shown in displayd.The indicator lamp in buttonU goes
out. The automatic air distribution is
switched off. The air distribution is
controlled according to the selected
control setting.
Adjusting air volume
Use buttonU (
page 259) for auto-
matic mode or button · (
page 259)
orQ (
page 259) to adjust air volume
manually.
Seven blower speeds are available for each
side of the passenger compartment.
Press button· to decrease, or
buttonQ to increase air volume to
the desired level.
The indicator lamp in buttonU
(
page 259) goes out.
The air volume is adjusted correspond-
ing to the set blower speed. The auto-
matic air distribution remains switched
on.Using driver-side settings for all tem-
perature zones
You can use the settings of the driver’s
side, such as temperature, air volume and
air distribution, for all temperature zones.
Press buttonz (page 259).
The indicator lamp in the button comes
on.
The driver-side settings are used for all
temperature zones.
SymbolFunction
{Directs air to the windshield
and the side defroster vents
aDirects air through the center,
side and rear passenger
compartment air vents
YDirects air to the footwells
iYou can also select a position between two
symbols with buttonZ.
Page 265 of 509
264 Controls in detail
3-zone automatic climate control* (Canada only)
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up. You
can also defog the windshield and the side
windows.
Activating: Press buttony
(
page 259).
The indicator lamp in the button comes
on.
The air conditioning switches
automatically to the following functions:
cooling on to dehumidify
most efficient blower speed and
heating power, depending on out-
side temperature
air flows onto the windshield and
the front side windows
the air recirculation mode is
switched off
Deactivating: Press buttony
(
page 259) again.
The indicator lamp in the button goes
out. Defrosting is turned off.
The previous settings are once again in
effect.Windshield fogged on the outsideSwitch the windshield wipers on
(
page 118).
If the automatic mode of the climate con-
trol is switched off:
Press righta and/or lefte air distri-
bution buttonZ (
page 259) re-
peatedly until one of the following
symbols appears in
displayd:aorY
(
page 259).
iKeep this setting selected only until the
windshield is clear again.
iYou can adjust the air distribution when the
front defroster is switched on.
iTo switch defrosting off, you can also press
button´, U,·,Q or temperature
controls1 and8 (
page 259).
iThe cooling remains switched on.
iKeep this setting selected only until the
windshield is clear again.
