qAnti-Lock Brake System (ABS)í
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel's brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don't
pump the brakes, continue to press down
on the brake pedal.
WARNING
Do not rely on ABS as a substitute for
safe driving:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), driving on ice and
snow, and hydroplaning (reduced tire
friction and road contact because of
water on the road surface). You can
still have an accident.
NOTE
lBraking distances may be longer on loose
surfaces (snow or gravel, for example)
which usually have a hard foundation. A
vehicle with a normal braking system may
require less distance to stop under these
conditions because the tires will build up a
wedge of surface layer when the wheels
skid.
lThe sound of the ABS operating may be
heard when starting the engine or
immediately after starting the vehicle.
However, it does not indicate a malfunction.
q ABS Warning Lightí
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the
battery, uneven rpm occurs and the ABS
warning light comes on. This is due to a weak
battery, not a malfunction.
Recharge the battery.
5-8
Driving Your Mazda
íSome models.
Starting and Driving
MX-5_8X49-EA-07F_Edition5 Page156
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (190,1)
NOTE
When the engine is jump-started to charge the
battery, uneven rpm occurs and the ABS
warning light comes on. This is due to a weak
battery, not a malfunction.
Recharge the battery.
qElectronic Brake Force
Distribution System Warningí
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light and the ABS warning light
on at the same time. The problem is likely
to be the electronic brake force
distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated at the same time is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qCharging System Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Don't continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qCheck Engine Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
5-42
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
MX-5_8X49-EA-07F_Edition5 Page190
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (255,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Flat Tire
í.................................................................................. 7-3
Tool Storage .............................................................................. 7-5
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit
í.......................................................................................... 7-7
Changing a Tire ....................................................................... 7-13
Overheating ................................................................................. 7-18 Overheating ............................................................................. 7-18
Emergency Starting .................................................................... 7-20 Starting a Flooded Engine ....................................................... 7-20
Jump-Starting .......................................................................... 7-21
Push-Starting ........................................................................... 7-24
Emergency Towing ..................................................................... 7-25 Towing Description ................................................................. 7-25
Tiedown Hooks ....................................................................... 7-26
Recreational Towing ............................................................... 7-27
7-1íSome models.
MX-5_8X49-EA-07F_Edition5 Page255
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (275,1)

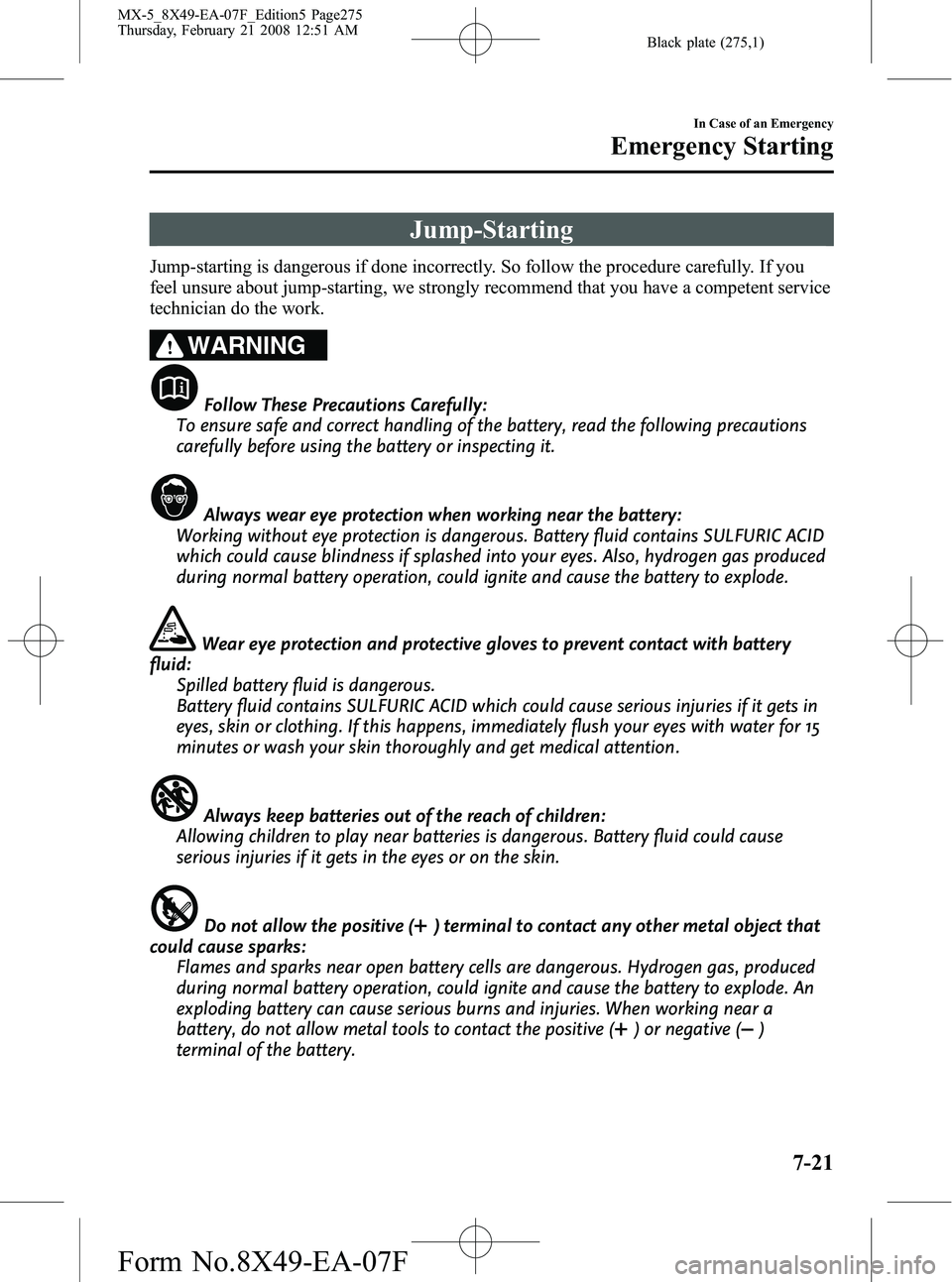

Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID
which could cause blindness if splashed into your eyes. Also, hydrogen gas produced
during normal battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery
fluid: Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in
eyes, skin or clothing. If this happens, immediately flush your eyes with water for 15
minutes or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin.
Do not allow the positive () terminal to contact any other metal object that
could cause sparks: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a
battery, do not allow metal tools to contact the positive (
) or negative ()
terminal of the battery.
In Case of an Emergency
Emergency Starting
7-21
MX-5_8X49-EA-07F_Edition5 Page275
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (276,1)
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fluid level: Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery: Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving: Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
Discharged battery
Connect cables in numerical order and disconnect in reverse order.
Jumper cables
Booster battery
7-22
In Case of an Emergency
Emergency Starting
MX-5_8X49-EA-07F_Edition5 Page276
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (277,1)
1. Remove the rubber hose from thebattery cover.
2. Remove the battery cover from its right
side.
3. Make sure the booster battery is 12 Vand that its negative terminal is
grounded.
4. If the booster battery is in another vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles. 5. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
6. Start the engine of the booster vehicle and run it a few minutes. Then start the
engine of the other vehicle.
7. When finished, carefully disconnect the cables in the reverse order described in
the illustration.
8. If the battery cover has been removed, install it in the reverse order of
removal.
In Case of an Emergency
Emergency Starting
7-23
MX-5_8X49-EA-07F_Edition5 Page277
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (397,1)
C
Convertible TopPower Retractable Hardtop ........ 3-52
Soft Top ...................................... 3-39
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-42
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-38
Daytime Running Lights ................... 5-55
Defroster Rear window .............................. 5-58
Detachable Hardtop .......................... 3-44
Dimensions ....................................... 10-5
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-6 Automatic transmission .............. 5-18
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-8
Dynamic Stability Control (DSC) ..... 5-24 DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC Indicator light ............ 5-24
E
Emergency Starting ........................... 7-20Flooded engine ........................... 7-20
Jump-starting .............................. 7-21
Push-starting .............................. 7-24
Emergency Towing ........................... 7-25
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-23
Exhaust gas .................................. 4-4
Hood release .............................. 3-37
Oil .............................................. 8-21
Overheating ................................ 7-18
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-20
Engine Coolant Overheating ................................ 7-18
Engine Coolant Temperature
Gauge ................................................ 5-36
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-52
F
Flasher Hazard warning .......................... 5-59
Headlights .................................. 5-54
Flat Tire ............................................... 7-3 Changing .................................... 7-13
Instant Mobility System
(IMS) Emergency Flat Tire Repair
Kit ................................................ 7-7
Tool storage .................................. 7-5
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-18
Fog Lights ......................................... 5-56
Foot Brake .......................................... 5-5
Fuel Filler lid and cap ........................ 3-36
Gauge ......................................... 5-37
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Index
11-3
MX-5_8X49-EA-07F_Edition5 Page397
Thursday, February 21 2008 12:52 AM
Form No.8X49-EA-07F

Black plate (398,1)
F
Fuses ................................................. 8-45Panel description ........................ 8-47
Replacement ............................... 8-45
G
Glove Box ......................................... 6-43
H
Hazard Warning Flasher .................... 5-59
Hazardous Driving .............................. 4-7
HeadlightsControl ....................................... 5-54
Flashing ...................................... 5-55
High-low beam .......................... 5-55
On reminder ............................... 5-54
Hood Release .................................... 3-37
Horn .................................................. 5-59
I
Ignition
Keys ........................................... 3-21
Switch .......................................... 5-2
Immobilizer System
(with Advanced Key) ........................ 3-67
Immobilizer System
(without Advanced Key) ................... 3-69
Indicator Lights ................................. 5-39 Cruise ......................................... 5-51
DSC OFF .................................... 5-51
Headlight high-beam .................. 5-50
Security ...................................... 5-49
Shift position .............................. 5-50
TCS/DSC ................................... 5-51
Turn-signal/hazard warning ....... 5-52
Inside Trunk Release Lever ............... 3-32
I
Instrument Cluster ............................. 5-34
Interior Care ...................................... 8-56
Interior Lights ................................... 6-41
J
Jump-Starting .................................... 7-21
K
Keyless Entry System ....................... 3-22
Keys .................................................. 3-21
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-56
Light Bulbs Replacement ............................... 8-37
Specifications ............................. 10-6
Lighting Control ............................... 5-54
Lubricant Quality .............................. 10-4
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-19
Owner maintenance schedule ..... 8-18
Scheduled ..................................... 8-3
Manual Transmission Operation ....... 5-10 Recommendations for shifting .... 5-11
Mesh Pocket ..................................... 6-44
Mirrors Outside mirrors .......................... 3-74
Rearview mirror ......................... 3-75
Money-Saving Suggestions ................ 4-6
11-4
Index
MX-5_8X49-EA-07F_Edition5 Page398
Thursday, February 21 2008 12:52 AM
Form No.8X49-EA-07F
