NOTElConfirm that both doors are securely
locked.
lBoth doors cannot be locked when any
door is open.
lA beep sound is heard for confirmation
when the doors are locked/unlocked using
the request switch. If your prefer, the beep
sound can be turned off (page 3-19).
lThe setting can be changed so that the
doors are locked automatically without
pressing the request switch (page 3-19).
(Auto-lock function)
A beep sound is heard when both doors are
closed while the advanced key is being
carried. Both doors are locked
automatically after about 3 seconds when
the advanced key is out of the operational
range. Also, the hazard warning lights flash
once. (Even if the driver is in the
operational range, both doors are locked
automatically after about 30 seconds.)
If you are out of the operational range
before the doors are completely closed or
another advanced key is left in the vehicle,
the auto-lock function will not work.
Always make sure that both doors are
closed and locked before leaving the
vehicle.
l(Auto re-lock function)
After unlocking doors by pressing the
request switch, both doors will
automatically lock and the hazard warning
light will flash if any of the following
operations are not performed within about
30 seconds.
lA door is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pushed.
qOpening the Trunk Lid with
Request Switch
The trunk lid can be opened by pressing
the request switch on the under side of the
trunk lid above the license plate while the
advanced key is being carried.
Request switch
NOTElIf the advanced key is left in the trunk, the
trunk lid will close, however, the trunk lid
can be opened using the request switch and
the vehicle could be stolen.
l(With power retractable hardtop)
The trunk lid can only be opened when the
power retractable hardtop is fully opened/
closed. Open/close the power retractable
hardtop completely before opening the
trunk lid.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
MX-5_8X49-EA-07F_Edition5 Page69
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (70,1)

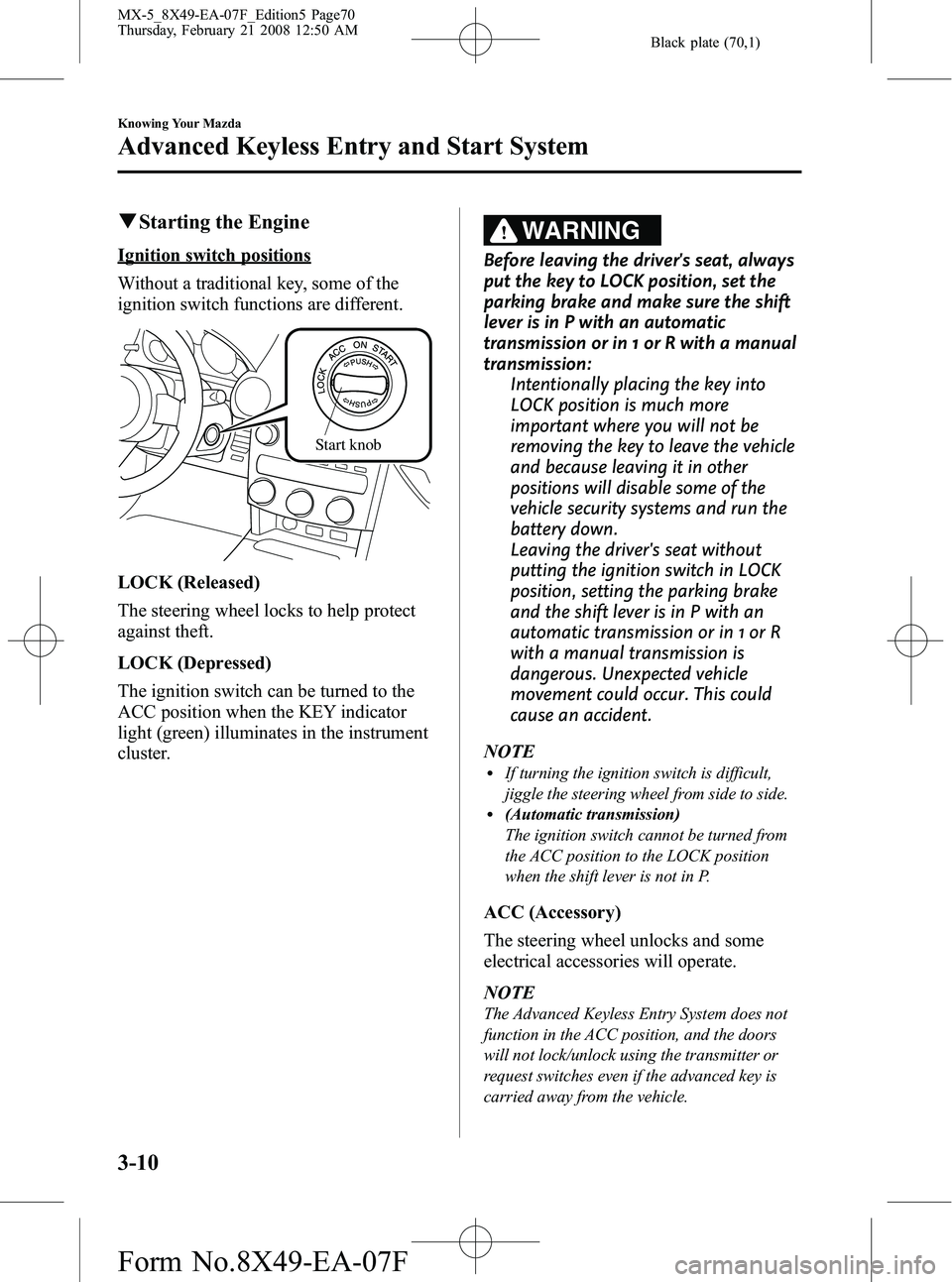

qStarting the Engine
Ignition switch positions
Without a traditional key, some of the
ignition switch functions are different.
Start knob
LOCK (Released)
The steering wheel locks to help protect
against theft.
LOCK (Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
WARNING
Before leaving the driver's seat, always
put the key to LOCK position, set the
parking brake and make sure the shift
lever is in P with an automatic
transmission or in 1 or R with a manual
transmission:
Intentionally placing the key into
LOCK position is much more
important where you will not be
removing the key to leave the vehicle
and because leaving it in other
positions will disable some of the
vehicle security systems and run the
battery down.
Leaving the driver's seat without
putting the ignition switch in LOCK
position, setting the parking brake
and the shift lever is in P with an
automatic transmission or in 1 or R
with a manual transmission is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
lIf turning the ignition switch is difficult,
jiggle the steering wheel from side to side.
l(Automatic transmission)
The ignition switch cannot be turned from
the ACC position to the LOCK position
when the shift lever is not in P.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
NOTE
The Advanced Keyless Entry System does not
function in the ACC position, and the doors
will not lock/unlock using the transmitter or
request switches even if the advanced key is
carried away from the vehicle.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8X49-EA-07F_Edition5 Page70
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (71,1)
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-39).
NOTE
When the ignition switch is turned to the ON
position, the sound of the fuel pump motor
operating near the fuel tank can be heard. This
does not indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-39).
Starting the engine
NOTE
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
lThe advanced key must be carried because
the advanced key carries an immobilizer
chip that must communicate with the engine
controls at short range.
lWhen starting the engine, be sure the start
knob is securely attached before trying to
operate it. If the knob becomes detached
from the ignition switch, re-attach it by
pushing it on to the ignition switch.
1. Make sure the advanced key is beingcarried.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
MX-5_8X49-EA-07F_Edition5 Page71
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (72,1)
5.(Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the clutch pedal
is not depressed all the way.
(Automatic transmission)
The starter will not operate if the shift lever is
not in P or N.
6. Push the start knob slowly all the way in.
7. Verify that the KEY indicator light(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine using the Advanced Keyless
System. You may have to use the
auxiliary key instead (page 3-20).
NOTE
In the following cases, the KEY warning light
(red) illuminates and the engine will not start.
lThe advanced key battery is dead.lThe advanced key is out of operational
range.
lThe advanced key is placed in areas where
it is difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar to
the advanced key is in the operational
range.
8. Turn the ignition switch to the ACC
position while pushing the start knob
in.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8X49-EA-07F_Edition5 Page72
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (73,1)
9. Turn the ignition switch from the ACCposition to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls
or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
10. After starting the engine, let it idle for about 10 seconds.
NOTE
lIn extremely cold weather or after the
vehicle has not been driven in several days,
let the engine warm up without operating
the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
Turning off the engine
1. Move the shift lever to the P position (Automatic transmission).
2. Turn the ignition switch from the ON position to the ACC position.
NOTE
When the engine is turned off and the ignition
switch it turned from the ACC position to the
LOCK position, the KEY indicator light
(green) flashes in the instrument cluster for
about 30 seconds if the battery power of the
advanced key is low. Replace the battery with a
new one.
Refer to Battery Replacement (page 3-6).
3. Push in the start knob from the ACC position and turn it to the LOCK
position.
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position.
NOTE
lWhen turning the ignition switch to the
LOCK position, the ignition switch has to
be pushed in from the ACC position and
turned. Without being pushed in, the
ignition switch stops at the ACC position
and the vehicle battery may be discharged
if the ignition switch is left in the ACC
position. When leaving the vehicle, make
sure the ignition switch is turned to the
LOCK position.
lIf the vehicle is left with the ignition switch
not in the LOCK position, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-17).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
MX-5_8X49-EA-07F_Edition5 Page73
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (74,1)
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional key
buttons to remotely lock and unlock the
doors and opens the trunk lid, and opens
the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
ignition switch is not in the LOCK position
or the start knob is pushed in.
lWith the start knob installed in the LOCK
position, the system is fully operational. If
the ignition switch is not in the LOCK
position or the start knob is pushed in, the
system does not operate.
lBoth doors cannot be locked by pressing
the lock button while either door is open.
The hazard warning lights will also not
flash.
l(With power retractable hardtop)
The trunk lid cannot be operated remotely if
the power retractable hardtop is not fully
opened or fully closed.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Transmitter
Panic button
Unlock button Lock button
Trunk button
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
The unlock button can be used to open the
power windows. Refer to Opening the Power
Windows from Outside (page 3-34).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button. A
beep sound will be heard once and the
hazard warning lights will flash once.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8X49-EA-07F_Edition5 Page74
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (75,1)
To confirm that both doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that both doors are locked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-72).
NOTElBoth doors cannot be locked when either
door is open.
lConfirm that both doors are locked visually
or audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock both doors , press the unlock
button again within 3 seconds and two
more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that both doors are unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-72).
NOTE
Auto re-lock function
After unlocking with the transmitter, both
doors will automatically lock if one of the
doors is not opened within about 30 seconds.
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
NOTE
(With power retractable hardtop)
The trunk lid can only be opened when the
power retractable hardtop is fully opened/
closed. Open/close the power retractable
hardtop completely before opening the trunk
lid.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether either door
is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
MX-5_8X49-EA-07F_Edition5 Page75
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (76,1)
qAuxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
transmitter battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-27).
Opening the trunk lid
The trunk lid can be opened using the
auxiliary key, refer to Opening and
Closing the Trunk Lid (page 3-30).
CAUTION
Do not open the trunk while the
power retractable hardtop is
opening/closing. The power
retractable hardtop and trunk lid
mechanisms could be damaged.
Starting the engine
The engine can be started with the
auxiliary key, refer to Ignition Switch
(page 5-2).
Advanced Key Suspend
Function
If one key is left in the vehicle or trunk
and the second key is used to lock the
vehicle, the functions of the advanced key
left in the vehicle or the trunk are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:
lStarting the engine using the start
knob.
lOperating the request switches.
To restore these functions, perform any
one of the following:
lPress the lock or unlock button on the
advanced key which has had its
functions suspended.
lWhile carrying another advanced key,
push in the start knob until the KEY
indicator light (green) in the instrument
cluster illuminates.
lInsert the auxiliary key and turn the
ignition switch to the ON position.
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8X49-EA-07F_Edition5 Page76
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F
