2008 MAZDA MODEL CX-7 display

Black plate (9,1)
Interior Equipment (View B)
Audio control switch ......................................................................................... page 6-42
Air bags ............................................................................................................. page 2-47
Cruise control switches ...................................................................................... page 5-19
Information display ............................................................................................ page 6-49
Climate control system ........................................................................................ page 6-2
Hazard warning flasher switch .......................................................................... page 5-60
Audio system ..................................................................................................... page 6-15
Glove box .......................................................................................................... page 6-53
AMB switch ...................................................................................................... page 6-50
Rear window defroster switch ........................................................................... page 5-59
Accessory socket ............................................................................................... page 6-54
Seat warmer switches .......................................................................................... page 2-4
AT shift lever (Sport AT) ................................................................................... page 5-10
Navigation system (if equipped) .......................................... Refer to the separate manual
Your Vehicle at a Glance
Interior Overview
1-3The equipment and installation position varies by vehicle
CX-7_8X59-EA-07E_Edition3 Page9
Wednesday, July 25 2007 3:16 PM
Form No.8X59-EA-07E

Black plate (188,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Selector
Trip meter
Odometer
Odometer
Odometer Trip meter A
Press the selector
Press the selector
Trip meter B
NOTEl(Standard meter)
The odometer and trip meter can be
displayed as follows even when the ignition
switch is in the ACC or LOCK position.
lDisplays for 10 minutes after the
ignition switch is turned to the ACC or
LOCK position from the ON position.
lDisplays for 10 minutes after the
driver's door is opened.
l(Black-out meter)
When the ignition switch is in the ACC or
LOCK position, the odometer or trip meters
cannot be displayed, however, pressing the
selector button can inadvertently switch the
trip meters or reset them during an
approximate ten-minute period in the
following cases:
lAfter the ignition switch is turned to the
ACC or LOCK position from the ON
position.
lAfter the driver's door is opened.
5-34
Driving Your Mazda
Instrument Cluster and Indicators
CX-7_8X59-EA-07E_Edition3 Page188
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E

Black plate (189,1)
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0 ”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
q Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
CAUTION
Don't run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
Driving Your Mazda
Instrument Cluster and Indicators
5-35
CX-7_8X59-EA-07E_Edition3 Page189
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E

Black plate (190,1)
CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-11).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Low fuel
warning light
NOTE
The direction of the arrow () shown next to
the low fuel warning light indicates that the
fuel-filler lid is on the left side of the vehicle.
q Dashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
l(Black-out meter)
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Dim
Bright
Canceling the illumination dimmer
(Black-out meter and dashboard
illuminations)
When the headlight switch is in the
or
position, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
5-36
Driving Your Mazda
Instrument Cluster and Indicators
CX-7_8X59-EA-07E_Edition3 Page190
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E

Black plate (191,1)
To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
If the dashboard illumination knob is kept at
the illumination dimmer cancel position, the
instrument cluster and the information display
will not dim when the headlight switch is
turned to the
orposition again.
Driving Your Mazda
Instrument Cluster and Indicators
5-37
CX-7_8X59-EA-07E_Edition3 Page191
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E

Black plate (204,1)
Gear position indicator
When the shift lever is in the D or M
position, the numeral for the selected gear
displays.
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
qTCS OFF Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 5-24.
If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an Authorized Mazda Dealer. The
dynamic stability control may have a
malfunction.
5-50
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
CX-7_8X59-EA-07E_Edition3 Page204
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E

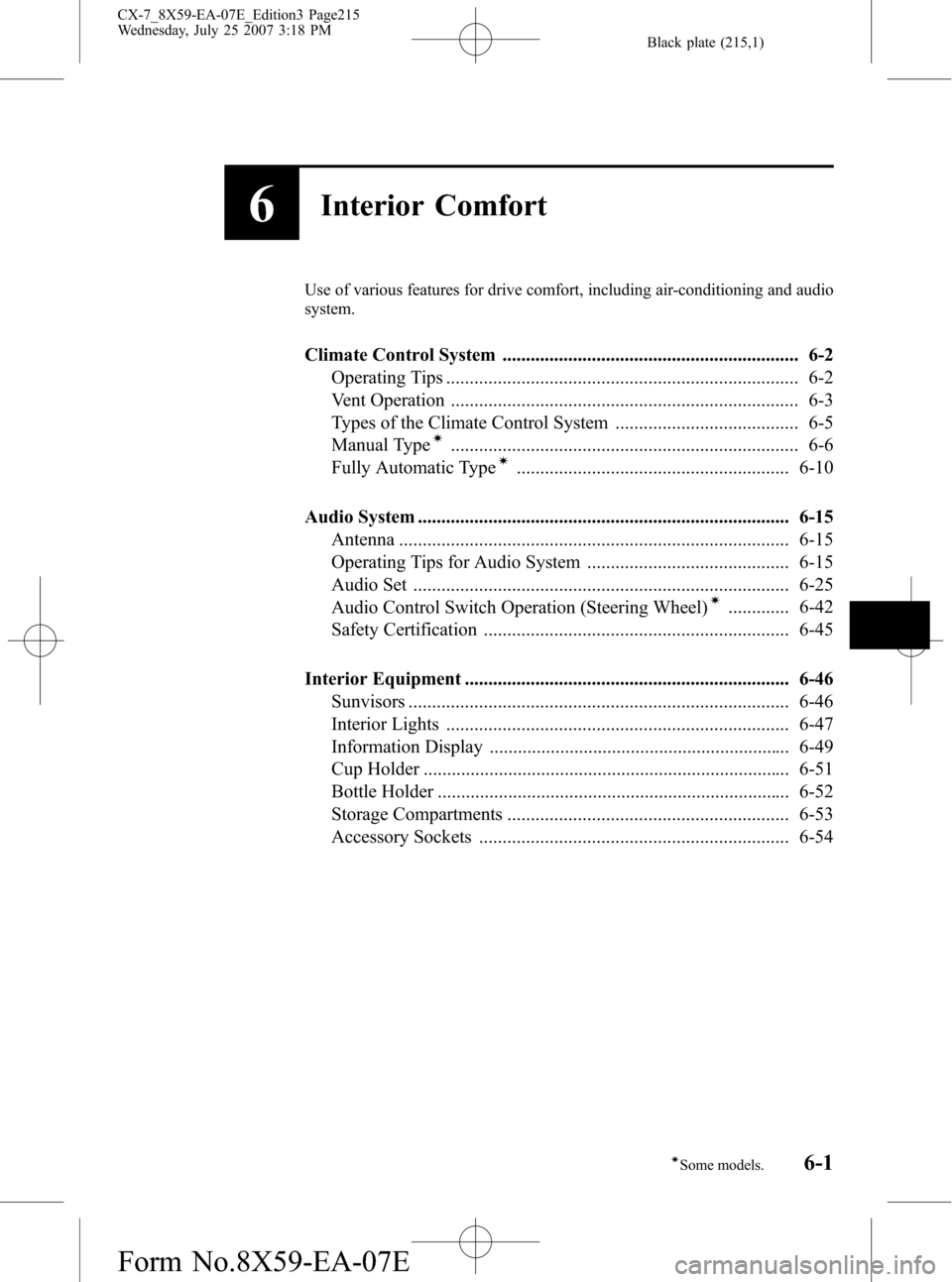

Black plate (215,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí.......................................................... 6-10
Audio System ............................................................................... 6-15 Antenna ................................................................................... 6-15
Operating Tips for Audio System ........................................... 6-15
Audio Set ................................................................................ 6-25
Audio Control Switch Operation (Steering Wheel)
í............. 6-42
Safety Certification ................................................................. 6-45
Interior Equipment ..................................................................... 6-46 Sunvisors ................................................................................. 6-46
Interior Lights ......................................................................... 6-47
Information Display ................................................................ 6-49
Cup Holder .............................................................................. 6-51
Bottle Holder ........................................................................... 6-52
Storage Compartments ............................................................ 6-53
Accessory Sockets .................................................................. 6-54
6-1íSome models.
CX-7_8X59-EA-07E_Edition3 Page215
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E

Black plate (224,1)
Fully Automatic Typeí
Climate control information is displayed on the information display.
Temperature control dial
Fan control dial Mode selector switch
Windshield defroster switch
Air intake selector
A/C Switch
OFF Switch
Auto Switch
Ambient Temperature switch
q Control Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow mode
lOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial, A/C switch and windshield
defroster switch. Other functions will
continue to operate automatically.
6-10
Interior Comfort
íSome models.
Climate Control System
CX-7_8X59-EA-07E_Edition3 Page224
Wednesday, July 25 2007 3:18 PM
Form No.8X59-EA-07E
