2008 MAZDA MODEL CX-7 warning

Black plate (378,1)
WARNING
Always check the tire inflation pressures on a regular basis according to the
recommended tire inflation pressure on the tire label and in conjunction with the
information in this owner's manual:Driving your vehicle with under-inflated tires is dangerous.
Under-inflation is the most common cause of failures in any kind of tire and may
result in severe cracking, tread separation or “blowout ”, with unexpected loss of
vehicle control and increased risk of injury. Under-inflation increases sidewall flexing
and rolling resistance, resulting in heat buildup and internal damage to the tire. It
results in unnecessary tire stress, irregular wear, loss of control and accidents. A tire
can lose up to half of its air pressure and not appear to be flat!
It is impossible to determine whether or not tires are properly inflated just by looking
at them.
q Checking Tire Pressure
1. When you check the air pressure, make sure the tires are cold ―meaning they are not
hot from driving even a mile.
2. Remove the cap from the valve on one tire.
3. Firmly press a tire gauge onto the valve.
4. Add air to achieve recommended air pressure.
5. If you overfill the tire, release air by pushing on the metal stem in the center of the valve. Then recheck the pressure with your tire gauge.
6. Replace the valve cap.
7. Repeat with each tire, including the spare.
NOTE
Some spare tires require higher inflation pressure.
8. Visually inspect the tires to make sure there are no nails or other objects embedded that could poke a hole in the tire and cause an air leak.
9. Check the sidewalls to make sure there are no gouges, cuts, bulges, cracks or other irregularities.
NOTE
Warm tires normally exceed recommended pressures. Don't release air from warm tires to adjust the
pressure.
Under-inflation can cause serious failures and accidents.
Over-inflation can produce a harsh ride and the greater possibility of damage from road hazards.
9-30
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
CX-7_8X59-EA-07E_Edition3 Page378
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (381,1)
CAUTION
Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern
or studs only from front to rear, not from side to side. Tire performance will be
weakened if rotated from side to side.
(With limited-slip differential)
Don't use the following:
ØTires not of the designated size
Ø Tires of different sizes or types at the same time
Ø Tires not sufficiently inflated
If these instructions aren't followed, the rotation of the left and right wheels will be
different and will thus apply a constant load on the limited-slip differential.
This will cause a malfunction.
q Replacing a Tire
WARNING
Always use tires that are in good condition:
Driving with worn tires is dangerous. Reduced braking, steering, and traction could
result in an accident.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread. Replace
the tire when this happens.
New tread Tread wear indicator
Worn tread
You should replace it before the band is across the entire tread.
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended that tires
generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high
loading conditions can accelerate the aging process. You should replace the spare tire when you
replace the other road tires due to the aging of the spare tire. Regarding the manufacturing week and
year is indicated with 4 digit. Refer to The tire labeling on page 9-23.
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-33
CX-7_8X59-EA-07E_Edition3 Page381
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (383,1)
Vehicle Loading
This section will guide you in the proper loading of your vehicle and/or trailer, to keep
your loaded vehicle weight within its design rating capability, with or without a trailer.
Properly loading your vehicle will provide maximum return of vehicle design performance.
Before loading your vehicle, familiarize yourself with the following terms for determining
your vehicle's weight ratings, with or without a trailer, from the vehicle's Safety
Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
Base Curb Weight is the weight of the vehicle including a full tank of fuel and all
standard equipment. It does not include passengers, cargo, or optional equipment.
Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.
PAYLOAD
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-35
CX-7_8X59-EA-07E_Edition3 Page383
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (387,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not taw a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-39
CX-7_8X59-EA-07E_Edition3 Page387
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

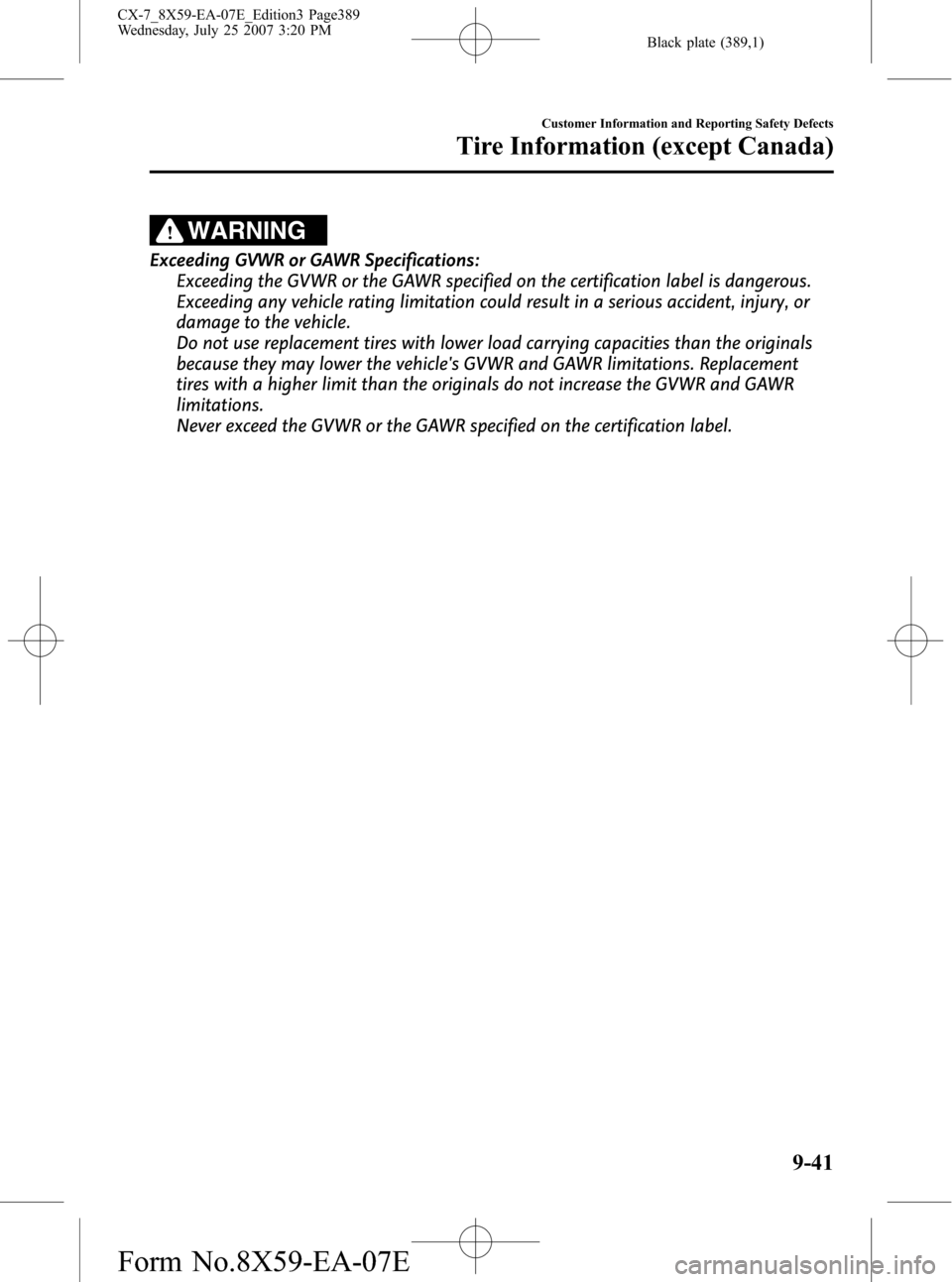

Black plate (389,1)
WARNING
Exceeding GVWR or GAWR Specifications:Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-41
CX-7_8X59-EA-07E_Edition3 Page389
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (399,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 9.0 L (9.5 US qt, 7.9 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 1.2 L (1.3 US qt, 1.1 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluid With low washer fluid level
warning light
4.5 L (4.8 US qt, 4.0 Imp qt)
Without low washer fluid level
warning light 2.5 L (2.6 US qt, 2.2 Imp qt)
Fuel tank 69.0 L (18.2 US gal, 15.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length With license plate holder
4,680 mm (184.3 in)
Without license plate holder 4,675 mm (184.1 in)
Overall width 1,872 mm (73.7 in)
Overall height 1,645 mm (64.8 in)
Front tread 1,617 mm (63.7 in)
Rear tread 1,612 mm (63.5 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
Item Weight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,168 kg (4,780 lbs) 2,267 kg (4,998 lbs)
GAWR (Gross Axle Weight Rating) Front 1,150 kg (2,535 lbs) 1,189 kg (2,621 lbs)
Rear 1,022 kg (2,253 lbs) 1,083 kg (2,388 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
CX-7_8X59-EA-07E_Edition3 Page399
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (404,1)
A
Accessory Socket .............................. 6-54
Add-On Non-Genuine Parts and
Accessories ....................................... 9-18
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-15
Service ......................................... 3-6
Warning and Beep Sounds ......... 3-16
Air Bag Systems ............................... 2-47
All-Wheel Drive
(AWD) Operation ............................. 5-16 AWD Warning light ................... 5-17
Ambient Temperature Display .......... 6-50
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-7 Warning light ............................... 5-7
Appearance Care ............................... 8-50
Audio System ................................... 6-15 Audio control switch .................. 6-42
Audio set .................................... 6-25
Operating tips for audio
system ........................................ 6-15
Safety certification ..................... 6-45
Automatic Transaxle Driving tips ................................ 5-15
Fluid ........................................... 8-25
Manual shift mode ..................... 5-12
Shift-lock system ....................... 5-12
Transaxle ranges ......................... 5-11
B
BatteryEmergency starting .................... 7-13
Maintenance ............................... 8-32
Specifications ............................. 10-4
B
BeepsIgnition key reminder ................. 5-52
Lights-on reminder ..................... 5-52
Parking brake reminder .............. 5-52
Seat belt warning beep Sounds ... 5-52
Tire inflation pressure warning
beep ............................................ 5-52
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-52
Brake Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-8
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-9
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-53
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-19
Center Console .................................. 6-53
Child Restraint Child restraint precautions ......... 2-28
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-41
11-2
Index
CX-7_8X59-EA-07E_Edition3 Page404
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E

Black plate (405,1)
C
Child Safety Locks for Rear Doors ... 3-27
Climate Control System ...................... 6-2Gas specifications ...................... 10-5
Clock ................................................. 6-50
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-51
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-36
Daytime Running Lights ................... 5-55
Defroster Rear window .............................. 5-59
Dimensions ....................................... 10-5
Door Locks ....................................... 3-24
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-15
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Turbocharged vehicles ............... 4-11
Winter driving .............................. 4-8
Dynamic Stability Control (DSC) ..... 5-25 TCS/DSC Indicator light ............ 5-26
E
Emergency Starting ........................... 7-13Flooded engine ........................... 7-13
Jump-starting .............................. 7-14
Push-starting .............................. 7-17
Emergency Towing ........................... 7-18
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-4
Hood release .............................. 3-39
Oil .............................................. 8-19
Overheating ................................ 7-11
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-18
Engine Coolant Overheating ................................ 7-11
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-52
F
Flasher Hazard warning .......................... 5-60
Headlights .................................. 5-53
Flat Tire ............................................... 7-3 Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-16
Fog Lights ......................................... 5-56 Front ........................................... 5-56
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-38
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Index
11-3
CX-7_8X59-EA-07E_Edition3 Page405
Wednesday, July 25 2007 3:20 PM
Form No.8X59-EA-07E
