2008 MAZDA MODEL CX-7 engine

Black plate (304,1)
qSchedule 2
Maintenance Interval Number of months or kilometers, whichever comes first
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine valve clearance Audible inspect every 120,000 km, if noisy, adjust
Drive belts I
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system I
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others R
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2
Hoses and tubes for emissionI*2
Fuel filter R
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
8-12
Maintenance and Care
Scheduled Maintenance
CX-7_8X59-EA-07E_Edition3 Page304
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (306,1)
(Cont.)Maintenance Interval Number of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
ENGINE
Engine valve clearance Audible inspect every 120,000 km, if noisy, adjust
Drive belts II
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system II
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others R R
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2I
Hoses and tubes for emission I*2I
Fuel filter R R
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
8-14
Maintenance and Care
Scheduled Maintenance
CX-7_8X59-EA-07E_Edition3 Page306
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (308,1)
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake fluid level (page 8-23)lEngine coolant level (page 8-21)lEngine oil level (page 8-20)lWasher fluid level (page 8-27)
qAt Least Monthly
Tire inflation pressures (page 8-34)
qAt Least Twice a Year (For Example, Every Spring and Fall)
lAutomatic transaxle fluid level (page 8-25)lPower steering fluid level (page 8-24)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lEngine coolant (page 8-21)lEngine oil (page 8-19)
8-16
Maintenance and Care
Owner Maintenance
CX-7_8X59-EA-07E_Edition3 Page308
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (309,1)
Owner Maintenance Precautions
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you're unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or
the proper tools and equipment to do the work. Have maintenance work done by a
qualified technician:Performing maintenance work on a vehicle is dangerous if not done properly. You
can be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly: Working under the hood with the engine running is dangerous. It becomes even
more dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Turn off the ignition switch and make sure the fan is not running before attempting
to work near the cooling fan: Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously injured.
Maintenance and Care
Owner Maintenance
8-17
CX-7_8X59-EA-07E_Edition3 Page309
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (310,1)
Engine Compartment Overview
Windshield washer
fluid reservoirEngine oil-filler capAutomatic transaxle fluid-level dipstick
Brake fluid reservoir
Power steering fluid reservoir
Engine oil dipstick Battery
Engine coolant reservoir
Fuse block
Cooling system cap
8-18
Maintenance and Care
Owner Maintenance
CX-7_8X59-EA-07E_Edition3 Page310
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (311,1)
Engine Oil
NOTE
Changing the engine oil should be done by an
Authorized Mazda Dealer.
qRecommended Oil
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
U.S.A. and CANADA
(ILSAC)
Only use oils “Certified For Gasoline
Engines ”by the American Petroleum
Institute (API). An oil with this trademark
symbol conforms to the current engine
and emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.
–30 –20 –10 0 10 20 30 40 50
–20 0 20 40 60 80 100 120
5W-30
Except U.S.A. and CANADA
(ILSAC)
Maintenance and Care
Owner Maintenance
8-19
CX-7_8X59-EA-07E_Edition3 Page311
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

Black plate (312,1)
The quality designation SM, or ILSAC
must be on the label.
–30 –20 –10 0 10 20 30 40 50
–20 0 20 40 60 80 100 120
5W-30
qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal operating temperature.
3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan.
4. Open the cap.
5. Pull out the dipstick, wipe it clean, and reinsert it fully.
Max
OK
Min
6. Pull it out again and examine the level. It's OK between MIN and MAX.
But if it's near or below MIN, add
enough oil to bring the level to MAX.
CAUTION
Don't add engine oil over MAX. This
may cause engine damage.
7. Make sure the O-ring on the dipstick is positioned properly before reinserting
the dipstick.
8. Close the cap.
8-20
Maintenance and Care
Owner Maintenance
CX-7_8X59-EA-07E_Edition3 Page312
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E

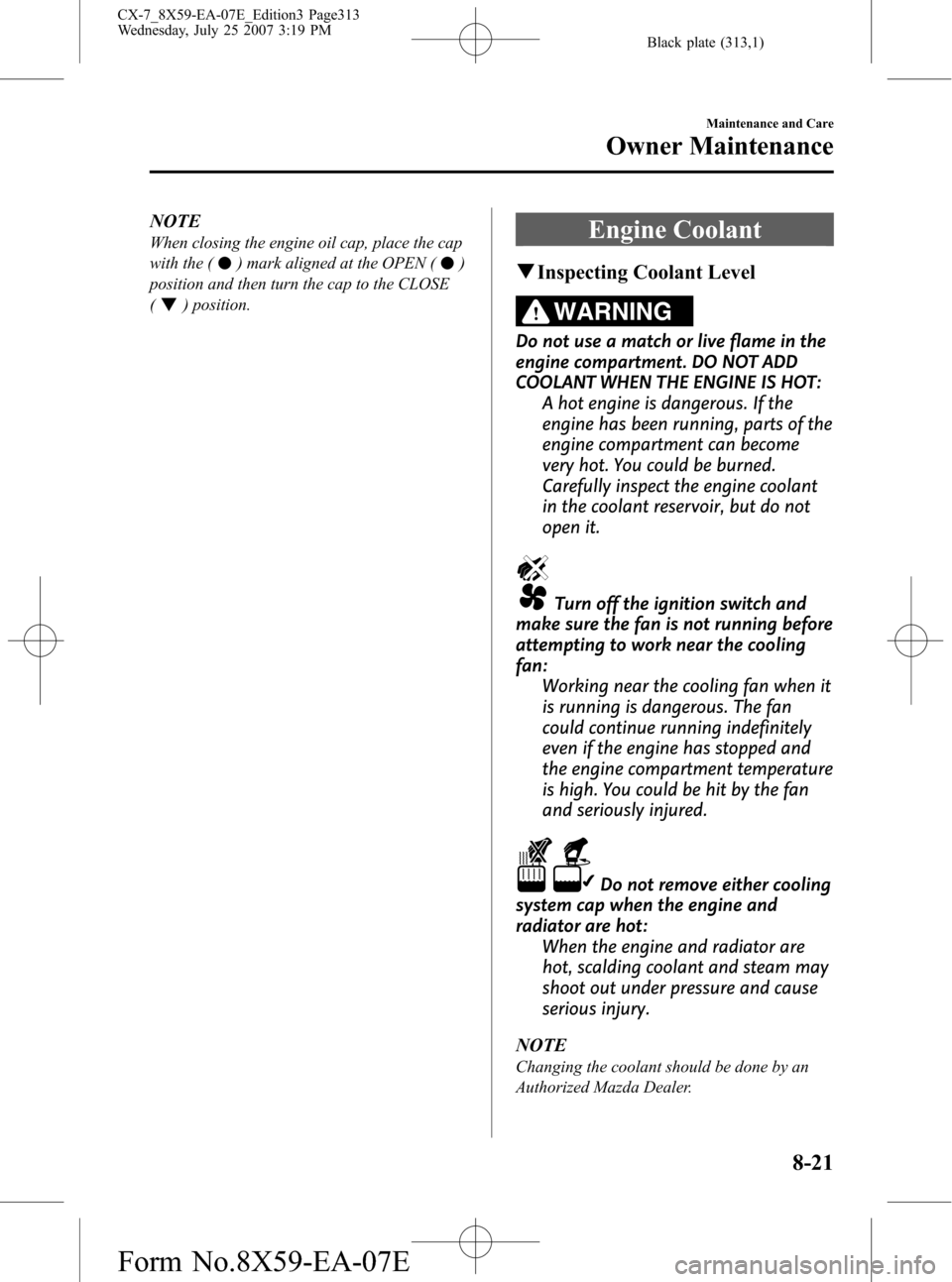

Black plate (313,1)
NOTE
When closing the engine oil cap, place the cap
with the (
) mark aligned at the OPEN ()
position and then turn the cap to the CLOSE
(
) position.
Engine Coolant
q Inspecting Coolant Level
WARNING
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become
very hot. You could be burned.
Carefully inspect the engine coolant
in the coolant reservoir, but do not
open it.
Turn off the ignition switch and
make sure the fan is not running before
attempting to work near the cooling
fan: Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either cooling
system cap when the engine and
radiator are hot: When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
NOTE
Changing the coolant should be done by an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-21
CX-7_8X59-EA-07E_Edition3 Page313
Wednesday, July 25 2007 3:19 PM
Form No.8X59-EA-07E
