2008 MAZDA MODEL 6 warning

Black plate (90,1)
NOTEIf the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, perform the
following procedure as an emergency measure
to unlock it:
1. Remove the cap on the interior surface ofthe liftgate with a flathead screwdriver.
Cap
2. Turn the lever to the right to unlock theliftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qLuggage Compartment Cover
Use the luggage compartment cover to
conceal cargo or luggage.
WARNING
Do not place anything on top of the
luggage compartment cover:
Placing luggage or other cargo on
top of the luggage compartment
cover is dangerous. During sudden
braking or a collision, the cargo
could become a projectile that could
hit and injure someone.
CAUTION
Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.
Installing the cover
1. Set the left end of the retainer bar intothe notch on the left side of the luggage
compartment.
Retainer bar
Notch
3-14
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page90
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

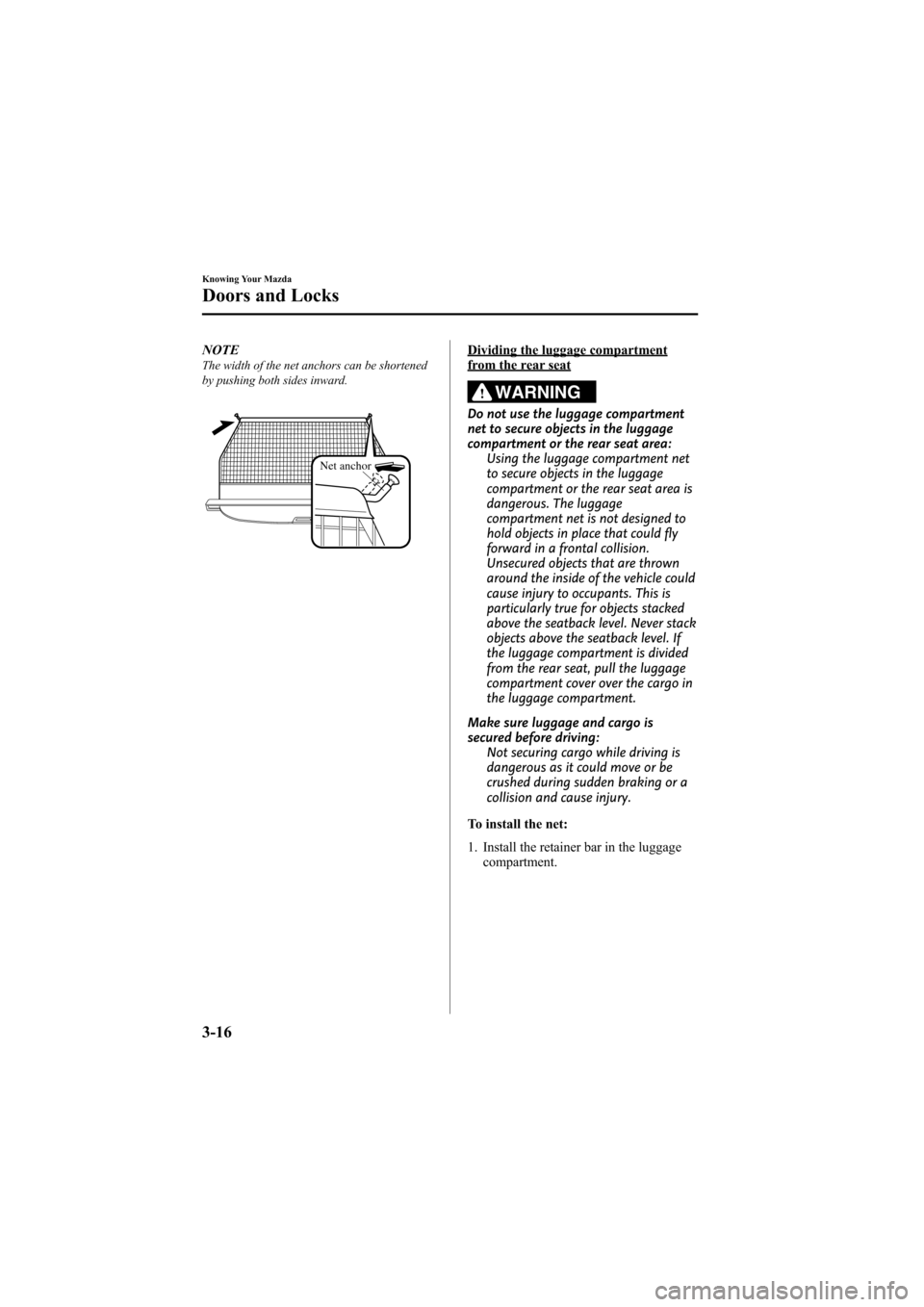

Black plate (92,1)
NOTEThe width of the net anchors can be shortened
by pushing both sides inward.
Net anchor
Dividing the luggage compartmentfrom the rear seat
WARNING
Do not use the luggage compartment
net to secure objects in the luggage
compartment or the rear seat area:Using the luggage compartment net
to secure objects in the luggage
compartment or the rear seat area is
dangerous. The luggage
compartment net is not designed to
hold objects in place that could fly
forward in a frontal collision.
Unsecured objects that are thrown
around the inside of the vehicle could
cause injury to occupants. This is
particularly true for objects stacked
above the seatback level. Never stack
objects above the seatback level. If
the luggage compartment is divided
from the rear seat, pull the luggage
compartment cover over the cargo in
the luggage compartment.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
To install the net:
1. Install the retainer bar in the luggage compartment.
3-16
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page92
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (93,1)
2. Slowly pull out the net in the upwarddirection, insert the left and right net
anchors into the ceiling retainers, and
slide them to the position indicated in
the figure.
Net
anchor
Net
To remove the net:
1. Lift the net slightly and disengage the
anchors from the ceiling retainers.
2. Slowly lower and support the net as it rolls up into the retainer bar.
CAUTION
When disengaging the net anchors,
hold the top of the net firmly in your
hand. If you lose control of the net, it
will automatically roll up in an
uncontrolled manner and could
cause injury.
Dividing the luggage compartmentfrom the front seats
WARNING
Do not use the luggage compartment
net to secure objects in the luggage
compartment or the rear seat area: Using the luggage compartment net
to secure objects in the luggage
compartment or the rear seat area is
dangerous. The luggage
compartment net is not designed to
hold objects in place that could fly
forward in a frontal collision.
Unsecured objects that are thrown
around the inside of the vehicle could
cause injury to occupants. This is
particularly true for objects stacked
above the seatback level. Never stack
objects above the seatback level. If
the luggage compartment is divided
from the rear seat, pull the luggage
compartment cover over the cargo in
the luggage compartment.
Make sure luggage and cargo is
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
CAUTION
Moving the rear seatbacks with the
retainer bar mounted could scratch
the interior of the vehicle. The
retainer bar must be removed from
the back of the seatbacks before
raising the seatbacks.
To install the net:
1. Fold down the rear seatback (page 2-11).
Knowing Your Mazda
Doors and Locks
3-17
Mazda6_8X47-EA-07G_Edition1 Page93
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (95,1)
Trunk Lid (Sedan)
WARNING
Never allow a person to ride in the
trunk:Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving: Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to
the rear spoiler and the trunk lid.
Knowing Your Mazda
Doors and Locks
3-19
Mazda6_8X47-EA-07G_Edition1 Page95
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (97,1)
Inside Trunk Release
Lever (Sedan)
Your vehicle is equipped with an inside
trunk release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside release handle so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don't have such handles.
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
Knowing Your Mazda
Doors and Locks
3-21
Mazda6_8X47-EA-07G_Edition1 Page97
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (98,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches: Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
3-22
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page98
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (101,1)
NOTElThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first turn the ignition switch to
the LOCK position and proceed from the
beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
stopping. If fingers are caught,
serious injuries could occur. NOTE
lDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system is re-initialized.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If either front door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
Knowing Your Mazda
Doors and Locks
3-25
Mazda6_8X47-EA-07G_Edition1 Page101
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G

Black plate (102,1)
qOperating the Rear Power Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The rear power windows may be opened
or closed using the power window master
control switches on the driver's door.
Left rear windowPower window lock switch Right rear window
To open the power window to the desired
position, hold down the switch.
To close the power window to the desired
position, pull up the switch.
Close
Open
Engine-off power window operation
The power windows can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If either front door is opened, the
power windows will be inoperable.
q Power Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position: Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
3-26
Knowing Your Mazda
Doors and Locks
Mazda6_8X47-EA-07G_Edition1 Page102
Tuesday, May 29 2007 3:43 PM
Form No.8X47-EA-07G
