2008 MAZDA MODEL 6 window

Black plate (294,1)
(5-Door)
1. Raise the wiper arm and turn the bladeassembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.
Plastic locking clip
CAUTION
To prevent damage to the rear
window, don't let the wiper arm fall
on it.
2. Hold the end of the blade rubber and pull until the tabs are free of the metal
support.
Metal support
Ta b
3. Remove the metal stiffeners from each blade rubber and install them in the
new blade.
CAUTION
Don't bend or discard the stiffeners.
You need to use them again.
4. Carefully insert the new blade rubber. Then install the blade assembly in the
reverse order of removal.
8-30
Maintenance and Care
Owner Maintenance
Mazda6_8X47-EA-07G_Edition1 Page294
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (295,1)

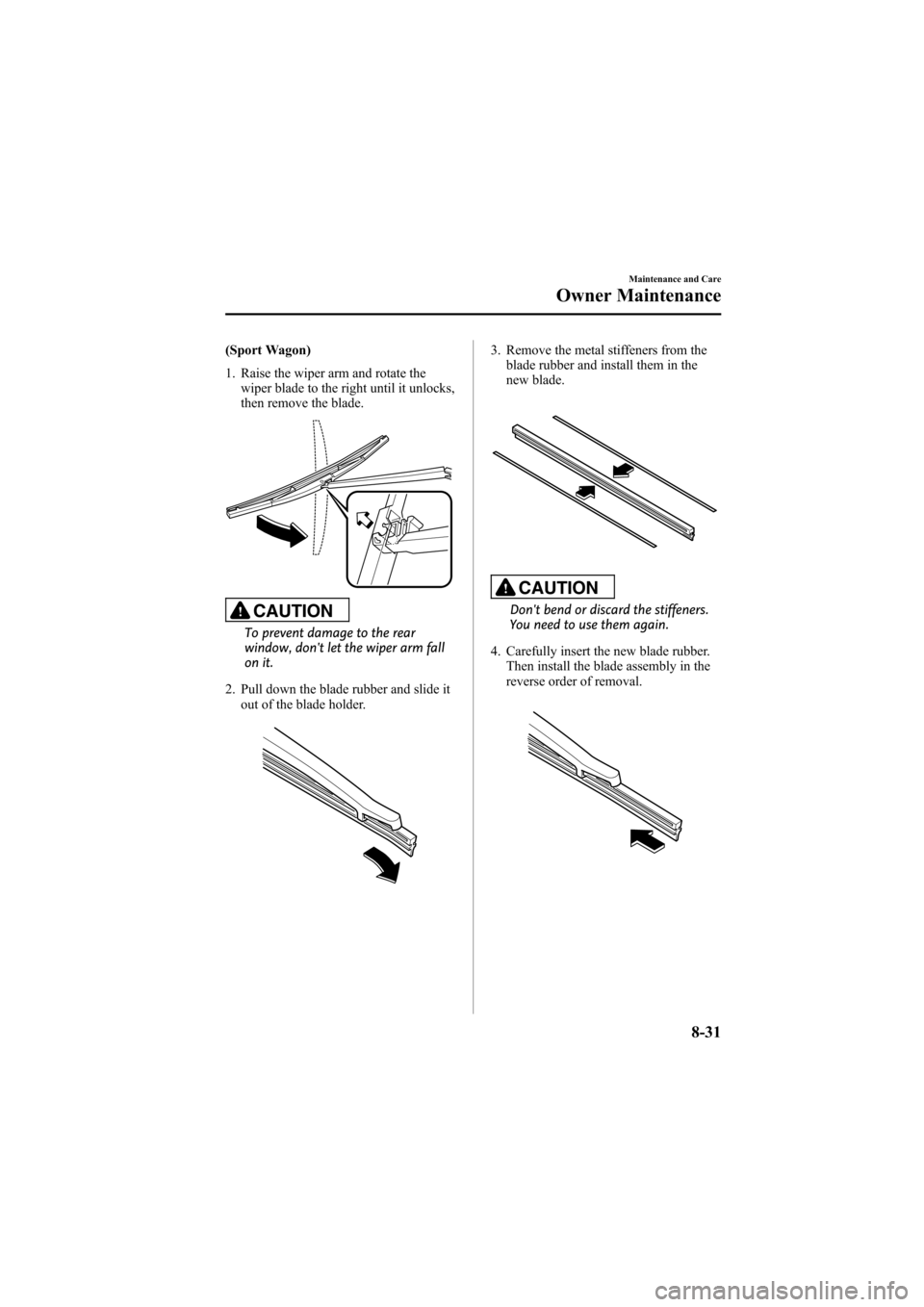

(Sport Wagon)
1. Raise the wiper arm and rotate thewiper blade to the right until it unlocks,
then remove the blade.
CAUTION
To prevent damage to the rear
window, don't let the wiper arm fall
on it.
2. Pull down the blade rubber and slide it out of the blade holder.
3. Remove the metal stiffeners from theblade rubber and install them in the
new blade.
CAUTION
Don't bend or discard the stiffeners.
You need to use them again.
4. Carefully insert the new blade rubber. Then install the blade assembly in the
reverse order of removal.
Maintenance and Care
Owner Maintenance
8-31
Mazda6_8X47-EA-07G_Edition1 Page295
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (315,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
16 TCM 15A
*1TCM
10A*2
17 ENG+B 7.5A PCM, TCM
18 FUEL PUMP 15A Fuel pump
19 IG KEY1 30A Engine control unit, Lighter
20 P.WIND 30A Power window
21 ―― ―
22 DRL 20A DRL
23 ―― ―
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 IG KEY2 40ARear wiper motor
í, Heater control unit, Windshield wiper and
washer
27 DEFOG 40A Rear window defroster
28 ABS 60A ABS
í
29AD FAN*130A Cooling fan
FAN2*2
30 FA N*130A Cooling fan
FAN1*2
31 TAIL 10A Taillights, License plate lights, Parking lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36 OPENER7.5A Trunk opener motorí
37―― ―
38― *1――
IG1*215A CAT SSR
39 FOG 15A Fog lightsí
40MAIN 120A For protection of all circuits
*1 2.3-liter engine
*2 3.0-liter engine
Maintenance and Care
Owner Maintenance
8-51íSome models.
Mazda6_8X47-EA-07G_Edition1 Page315
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (322,1)
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a dampsoft cloth; then dry
and buff it with a drysoft cloth.
Fabricí
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner. To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
q
Cleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of
the rear window. You may damage
the rear window defroster grid.
8-58
Maintenance and Care
íSome models.
Appearance Care
Mazda6_8X47-EA-07G_Edition1 Page322
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (377,1)
D
DefrosterRear window .............................. 5-52
Dimensions ....................................... 10-5
Door Locks ......................................... 3-7
Driving In Flooded Area ..................... 4-9
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-17
Break-in period ............................ 4-6
Driving in flooded area ................ 4-9
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-8
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-19
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-30
Oil .............................................. 8-18
Overheating ................................ 7-14
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-33
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-55
F
Flasher
Hazard warning .......................... 5-53
Headlights .................................. 5-47
Flat Tire ............................................... 7-3 Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-29
Gauge ......................................... 5-34
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-48 Panel description ........................ 8-50
Replacement ............................... 8-48
G
Glove Box ......................................... 6-54
H
Hatch ................................................. 3-10Luggage compartment cover ...... 3-12
Luggage strap ............................. 3-12
Hazard Warning Flasher .................... 5-53
Hazardous Driving .............................. 4-7
Index
11-3
Mazda6_8X47-EA-07G_Edition1 Page377
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (379,1)
O
Odometer and Trip Meter .................. 5-32
Outside Mirrors ................................. 3-38
Overhead Console ............................. 6-53
Overhead Lights ................................ 6-47
Overheating ....................................... 7-14
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-53
Parking Brake ..................................... 5-5
Parking in an Emergency .................... 7-2
Power Door Locks .............................. 3-9
Power Steering .................................. 5-18Fluid ........................................... 8-23
Power Windows ................................ 3-22
Push-Starting ..................................... 7-19
R
Rear Door Child Safety Locks .......... 3-10
Rear Seat ............................................. 2-9
Rear Window Defroster .................... 5-52
Rear Window Washer ....................... 5-51
Rear Window Wiper .......................... 5-51
Rearview Mirror ................................ 3-39
Recreational Towing ......................... 7-21
Registering Your Vehicle in A Foreign
Country ............................................. 9-15
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-42
S
Seat Belt System 3-point type
(Except center-rear position) ...... 2-19
Automatic locking ...................... 2-18
Belt minder ................................. 2-28
Center-rear position .................... 2-23
Emergency locking .................... 2-17
Extender ..................................... 2-26
Pregnant women ........................ 2-17
Pretensioner and load limiting .... 2-21
Seat belt precautions .................. 2-15
Warning light/beep ..................... 2-28
Seats Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-9
Security System Immobilizer system .................... 3-33
Theft-deterrent system ............... 3-35
Service Publications .......................... 9-44
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-32
SRS Air Bags How the Air Bags Work ............. 2-52
Supplemental restraint systems
precautions ................................. 2-45
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-38 Horn ........................................... 5-53
Storage Box ...................................... 6-54
Index
11-5
Mazda6_8X47-EA-07G_Edition1 Page379
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G

Black plate (381,1)
W
Washer Fluid ..................................... 8-26
Weights ............................................. 10-6
Wheel Replacement .......................... 8-36
WindowsPower windows .......................... 3-22
Windshield Washer ........................... 5-51
Windshield Wipers ............................ 5-50 Blades replacement .................... 8-28
Winter Driving .................................... 4-8
Index
11-7
Mazda6_8X47-EA-07G_Edition1 Page381
Tuesday, May 29 2007 3:45 PM
Form No.8X47-EA-07G
