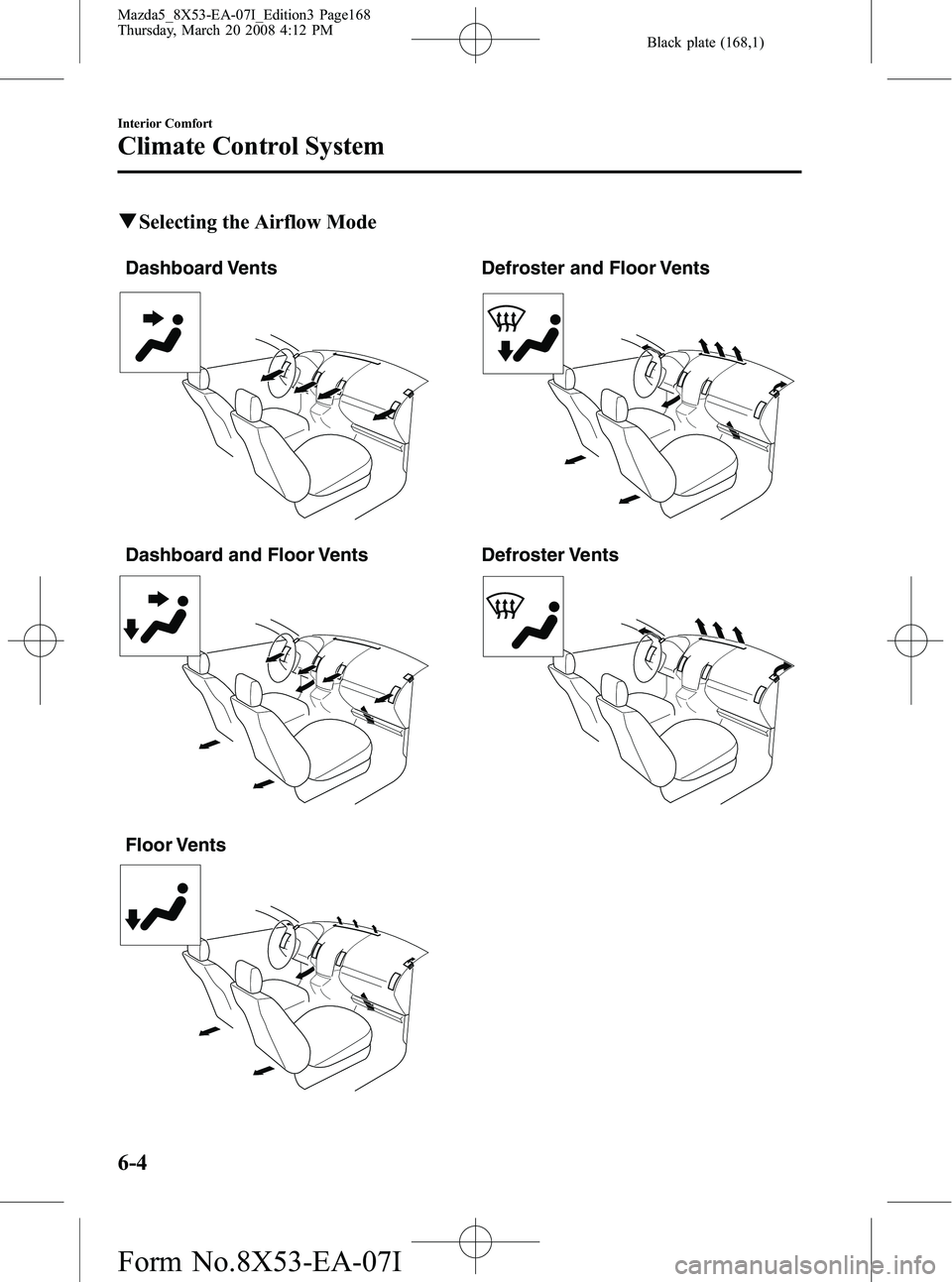

Black plate (168,1)
qSelecting the Airflow Mode
Floor Vents Dashboard and Floor Vents Dashboard Vents Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda5_8X53-EA-07I_Edition3 Page168
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (202,1)
Audio Control Switch
Operation (Steering Wheel)
í
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
For navigation system equipped vehicles,
refer to the separate manual
“NAVIGATION SYSTEM ”.
NOTE
Because the audio unit will be turned off under
the following conditions, the switches will be
inoperable.
lWhen the ignition switch is turned to the
LOCK position.
lWhen the power button on the audio unit is
pressed and the audio unit is turned off.
lWhen the CD being played is ejected and
the audio unit is turned off.
Without Bluetooth Hands-Free
With Bluetooth Hands-Free
Voice recognition/hands-
free switch
NOTElThe Voice recognition/hands-free switch is
operable with the audio unit turned off.
lMazda has installed this system to prevent
distraction while driving the vehicle and
using audio controls on the dashboard.
Always make safe driving your first priority.
q Adjusting the Volume
To increase the volume, press the volume
button (
).
To decrease the volume, press the volume
button (
).
6-38
Interior Comfort
íSome models.
Audio System
Mazda5_8X53-EA-07I_Edition3 Page202
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I

Black plate (317,1)
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lOnly use a mild soap or neutral detergent
and always use a sponge or soft cloth to
clean the wheels.
Rinse thoroughly with lukewarm or cold
water. Also, be sure to clean the wheels
after driving on dusty or salted roads. This
helps prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a dampsoft cloth; then dry
and buff it with a drysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
Maintenance and Care
Appearance Care
8-53íSome models.
Mazda5_8X53-EA-07I_Edition3 Page317
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (364,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda5_8X53-EA-07I_Edition3 Page364
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I

Black plate (373,1)
C
Child Safety Locks for Rear Doors ... 3-10
Climate Control System ...................... 6-2Gas specifications ...................... 10-5
Clock ................................................. 6-65
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-67
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-31
Daytime Running Lights ................... 5-48
Defroster Mirror ......................................... 5-54
Rear window .............................. 5-53
Dimensions ....................................... 10-5
Door Locks ......................................... 3-6
Driving In Flooded Area ..................... 4-9
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-16
Break-in period ............................ 4-6
Driving in flooded area ................ 4-9
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-7
Winter driving .............................. 4-8
E
Easy Closure ..................................... 3-11
Emergency Starting ........................... 7-15Flooded engine ........................... 7-15
Jump-starting .............................. 7-16
Push-starting .............................. 7-19
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-17
Oil .............................................. 8-18
Overheating ................................ 7-13
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-13
Engine Coolant Temperature
Gauge ................................................ 5-30
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-50
F
Flasher Hazard warning .......................... 5-55
Headlights .................................. 5-45
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-49 Front ........................................... 5-49
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-15
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-42 Panel description ........................ 8-45
Replacement ............................... 8-42
Index
11-3
Mazda5_8X53-EA-07I_Edition3 Page373
Thursday, March 20 2008 4:13 PM
Form No.8X53-EA-07I
