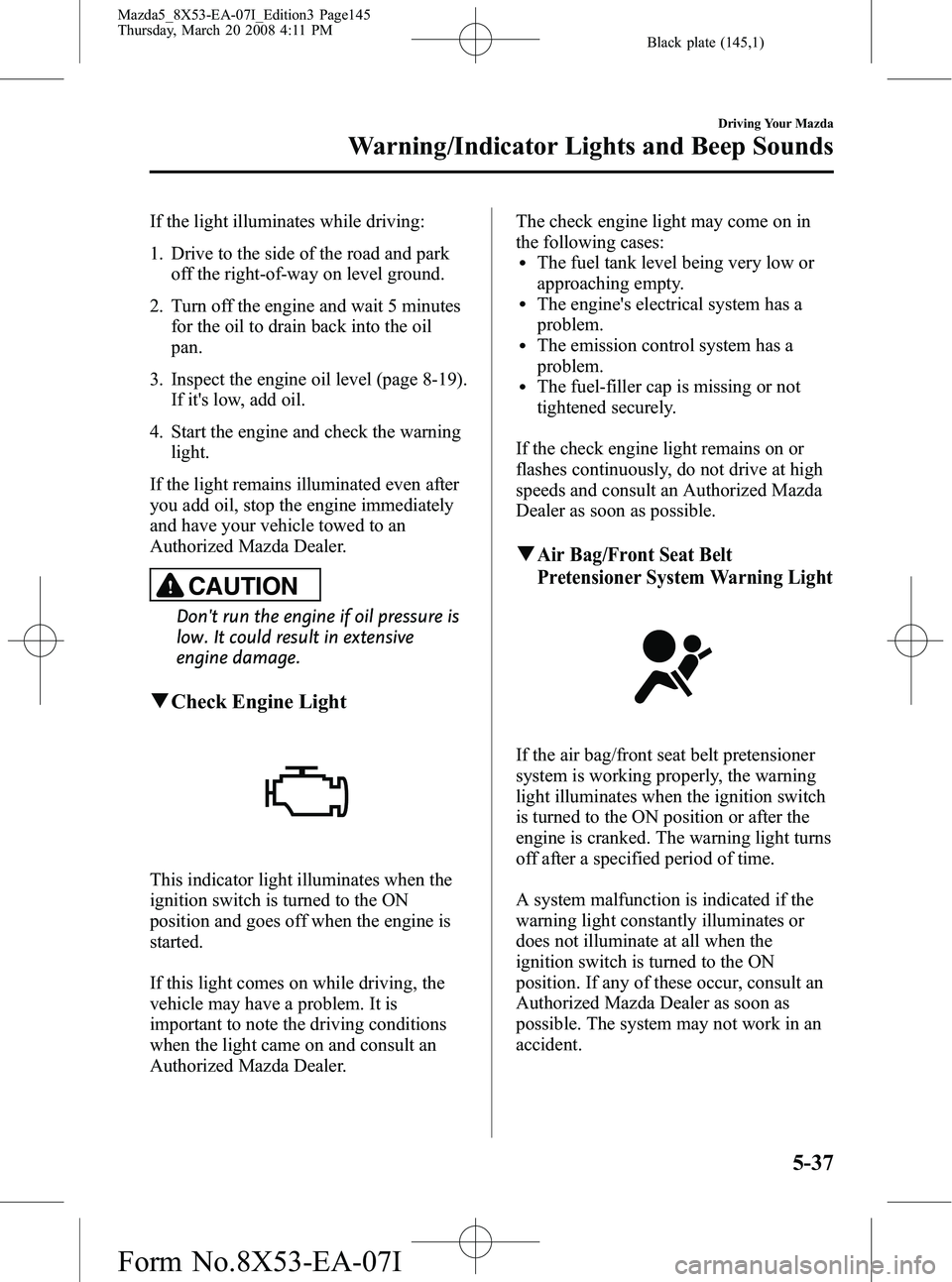

If the light illuminates while driving:
1. Drive to the side of the road and parkoff the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 8-19). If it's low, add oil.
4. Start the engine and check the warning light.
If the light remains illuminated even after
you add oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
CAUTION
Don't run the engine if oil pressure is
low. It could result in extensive
engine damage.
q Check Engine Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer. The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly illuminates or
does not illuminate at all when the
ignition switch is turned to the ON
position. If any of these occur, consult an
Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-37
Mazda5_8X53-EA-07I_Edition3 Page145
Thursday, March 20 2008 4:11 PM
Form No.8X53-EA-07I
Page 166 of 376
Black plate (166,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ON position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
Mazda5_8X53-EA-07I_Edition3 Page166
Thursday, March 20 2008 4:12 PM
Form No.8X53-EA-07I
Page 376 of 376
Black plate (376,1)
S
Sunshade ........................................... 3-19
Sunvisors .......................................... 6-62
T
Tachometer ........................................ 5-30
Temporary Spare Tire ....................... 8-33
Theft-Deterrent System ..................... 3-22
Third-Row seat ................................. 2-10
TiedownHook .......................................... 7-21
Tire Information ................................ 9-21
Tire Pressure Monitoring System ...... 5-22 System error activation .............. 5-26
Tire pressure monitoring system
warning light .............................. 5-24
Tires and wheels ......................... 5-26
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-31
Replacement ............................... 8-32
Rotation ...................................... 8-32
Snow tires .................................... 4-8
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-8
Uniform tire quality grading system
(UTQGS) ................................... 9-19
Tool ..................................................... 7-3
Towing Description ................................. 7-20
Emergency towing ..................... 7-20
Hook .......................................... 7-21
Recreational towing ................... 7-23
Trailer towing ............................. 4-11
Trailer Towing ................................... 4-11
Trip Meter ......................................... 5-29
Turn and Lane-Change Signals ......... 5-48
U
Underseat Storage ............................. 6-70
V
Vanity Mirrors ................................... 6-62
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-33 ABS ............................................ 5-35
Air bag system ........................... 5-37
Automatic transaxle ................... 5-40
Brake system .............................. 5-35
Charging system ......................... 5-36
Check engine .............................. 5-37
Door-ajar .................................... 5-39
Engine oil pressure ..................... 5-36
Front seat belt pretensioner
system ........................................ 5-37
Low fuel ..................................... 5-38
Low washer fluid level ............... 5-39
Seat belt ...................................... 5-38
Tire pressure monitoring
system ........................................ 5-40
Warranty ............................................ 9-13
Washer Fluid ..................................... 8-24
Weights ............................................. 10-5
Wheel Replacement .......................... 8-34
Windows Power windows .......................... 3-13
Windshield Washer ........................... 5-52
Windshield Wipers ............................ 5-50 Blades replacement .................... 8-26
Winter Driving .................................... 4-8
11-6
Index
