2008 MAZDA MODEL 3 HATCHBACK warning light

Black plate (9,1)
Headlight leveling switch .................................................................................. page 5-52
Dashboard illumination knob ............................................................................ page 5-35
Lighting control/Turn signal .............................................................................. page 5-50
Instrument cluster .............................................................................................. page 5-32
SRS air bags ...................................................................................................... page 2-40
Cruise control switches ...................................................................................... page 5-19
Wiper and washer lever ..................................................................................... page 5-54
Hazard warning flasher switch .......................................................................... page 5-60
Information display ............................................................................................ page 6-53
Audio system ..................................................................................................... page 6-16
Glove box .......................................................................................................... page 6-60
Center console ................................................................................................... page 6-61
Parking brake ....................................................................................................... page 5-6
Cup holder ......................................................................................................... page 6-59
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-12
Lighter ............................................................................................................... page 6-58
Rear window defroster switch ........................................................................... page 5-58
Ashtray ............................................................................................................... page 6-58
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-29
Audio control switches ...................................................................................... page 6-44
Remote fuel-filler lid release ............................................................................. page 3-20
Hood release handle .......................................................................................... page 3-21
Outside mirror switch ........................................................................................ page 3-29
Interior lights ..................................................................................................... page 6-50
Sunvisor ............................................................................................................. page 6-50
Rearview mirror ................................................................................................. page 3-30
Vanity mirror ...................................................................................................... page 6-50
Front seat ............................................................................................................. page 2-2
Seat belt ............................................................................................................. page 2-10
Rear seat .............................................................................................................. page 2-5
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle Mazda3_8X41-EA-07F_Edition2 Page9
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (15,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats ................................................................................ 2-2
Rear Seat ................................................................................... 2-5
Seat Belt Systems ........................................................................ 2-10
Seat Belt Precautions .............................................................. 2-10
Seat Belt (Except Center-Rear Position) ................................. 2-14
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-16
Center-Rear Position Seat Belt (3-Point Type) ....................... 2-19
Seat Belt Extender ................................................................... 2-21
Seat Belt Warning Light/Beep ................................................ 2-23
Child Restraint ............................................................................ 2-25
Child Restraint Precautions ..................................................... 2-25
Installing Child-Restraint Systems .......................................... 2-29
LATCH Child-Restraint Systems ............................................ 2-35
SRS Air Bags ............................................................................... 2-40
Supplemental Restraint Systems (SRS) Precautions ............... 2-40
Supplemental Restraint System Components ......................... 2-44
How the Air Bags Work .......................................................... 2-47
2-1
Mazda3_8X41-EA-07F_Edition2 Page15
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (19,1)
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
NOTE
The seat temperature is regulated
automatically by a thermostat. Other than
turning it on or off, it cannot be adjusted.
Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks or place articles on the rear
package tray or on the luggage
compartment cover:
Stacking luggage or other cargo
higher than the seatbacks, and
placing articles on the rear package
tray or on the luggage compartment
cover is dangerous. During sudden
braking or a collision, objects can fly
around and become projectiles that
may hit and injure passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After returning the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
Essential Safety Equipment
Seats
2-5íSome models. Mazda3_8X41-EA-07F_Edition2 Page19
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (32,1)

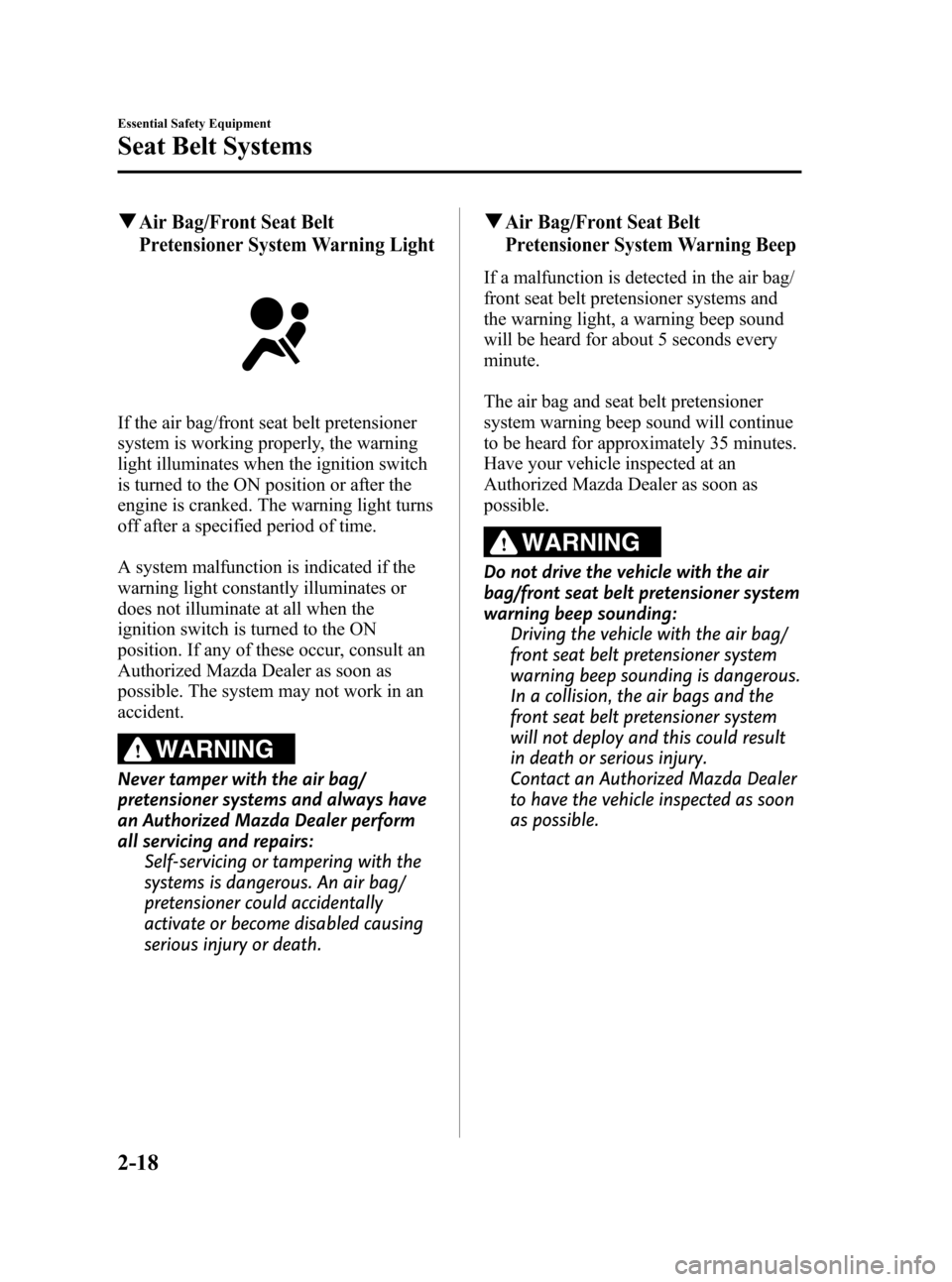

qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly illuminates or
does not illuminate at all when the
ignition switch is turned to the ON
position. If any of these occur, consult an
Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition2 Page32
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (36,1)
WARNING
Do not use a seat belt extender unless
it is necessary:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly.
In an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Do not use an improper extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt
will not provide adequate protection
and the user could be seriously
injured in an accident. Only use the
extender provided for you and for the
particular vehicle and seat. NEVER
use the extender in a different vehicle
or seat.
Do not use an extender that is too
long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Do not use the extender or choose
one shorter in length if the distance
between the extender's buckle and
the center of the user's body is less
than 15cm (6 in).NOTEWhen not in use, remove the seat belt extender
and store it in the vehicle. If the seat belt
extender is left connected, the seat belt
extender might get damaged as it will not
retract with the rest of the seat belt and can
easily fall out of the door when not in use and
be damaged. In addition, the seat belt warning
light will not illuminate and function properly.
2-22
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition2 Page36
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (37,1)
Seat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
Condition Result
The driver's seat belt is not
fastened when the ignition
switch is turned to the ON
position.The warning light
flashes and a beep
sound will be heard
for about 6 seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated.The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
switch is turned to the ON
position.The warning light will
not illuminate and the
beep sound will not be
heard.
qBelt Minder
NOTE
The belt minder can be deactivated. Consult an
Authorized Mazda Dealer to deactivate and
restore the seat belt minder.
Driver seated/Front passenger not
seated
The belt minder is a supplemental
warning to the seat belt warning function.
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the warning light/beep
operates to give you further reminders
according to the chart below.
ConditionVehicle speed
Between 0―20
km/h
(0―12 mph)20 km/h
(12 mph) or
more
Seat belt
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda3_8X41-EA-07F_Edition2 Page37
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (38,1)
Driver seated/Front passenger seated
The seat belt warning function reminds
the front passenger to fasten the seat belt
according to the chart below.
ConditionVehicle speed
Between 0―20
km/h
(0―12 mph)20 km/h
(12 mph) or
more
Seat belt
(Driver)
Seat belt
(Passenger)
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Placing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function to
operate depending on the weight of the
item.
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
NOTE
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that neither
the warning light nor the warning beep
operate.
2-24
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition2 Page38
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F

Black plate (40,1)
WARNING
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make
sure any child-restraint system is properly secured in place according to the child-
restraint system manufacturer's instructions. When not in use, remove it from the
vehicle or fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors
for LATCH child-restraint systems and the corresponding tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a
sudden stop or collision and it could result in serious injury or death to the child or
other occupants. Even in a moderate accident, the child may be exposed to air bag
forces that could result in serious injury or death to the child, or the child may be
slammed into an adult, causing injury to both child and adult.
Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child.
2-26
Essential Safety Equipment
Child Restraint
Mazda3_8X41-EA-07F_Edition2 Page40
Monday, June 18 2007 1:27 PM
Form No.8X41-EA-07F
