3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the front
passenger's side below the glove box
If the electrical system does not work,
first inspect the fuses on the front
passenger's side below the glove box.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8X41-EA-07F_Edition2 Page318
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (319,1)
3. Turn the knobs counterclockwise and
lower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it's
blown.
NormalBlown
7. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8X41-EA-07F_Edition2 Page319
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (321,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3 45 6
789 10
11 12
13 14
15 16
17 18
1920 2122 23
24 25 26
27 2829
3031 3233 3435 36
Without turbocharger
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 40A Cooling fan
2 P/ST 80A Power steering
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 PTC――
6 GLOW――
7 ABS 1 30A ABS
í, DSCí
8 ABS 2 20A ABSí, DSCí
9 ENGINE 30A For protection of various circuits
10―― ―
11 IG KEY 1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY 2 30A Ignition switch
14 GLOW 1――
15 HEATER 40A Blower motor
16 GLOW 2――
17 DEFOG 40A Rear window defroster
Maintenance and Care
Owner Maintenance
8-53íSome models. Mazda3_8X41-EA-07F_Edition2 Page321
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (322,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
18 AUDIO 30AAudio system
(BOSE Sound System-equipped model)
19 ABS IG 10A ABS
í, DSCí
20 FOG 15A Front fog lightsí
21 HORN 15A Horn
22 DRL 10A DRLí
23 H/CLEAN――
24 F/PUMP 15A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
í
27 ALT/TCM 10A/15A TCMí
28 GLOW SIG――
29 P.OUTLET―Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ENG BAR 4 10A O
2sensorsí
33 ENG BAR 3 10A O2sensors
34 EGI INJ 10A Injector
35 ENG BAR 1 10A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
With turbocharger
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 70A Cooling fan
2―― ―
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 F/PUMP 30A Fuel pump
6―― ―
7 ABS 1 30A ABS, DSC
8 ABS 2 20A ABS, DSC
9 ENGINE 30A For protection of various circuits
10 INJECTOR 30A Fuel injector
11 IG KEY1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY2 30A Ignition switch
14―― ―
15 HEATER 40A Blower motor
16―― ―
17 DEFOG 40A Rear window defroster
18 AUDIO 30AAudio system
(BOSE Sound System-equipped model)
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8X41-EA-07F_Edition2 Page322
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (323,1)

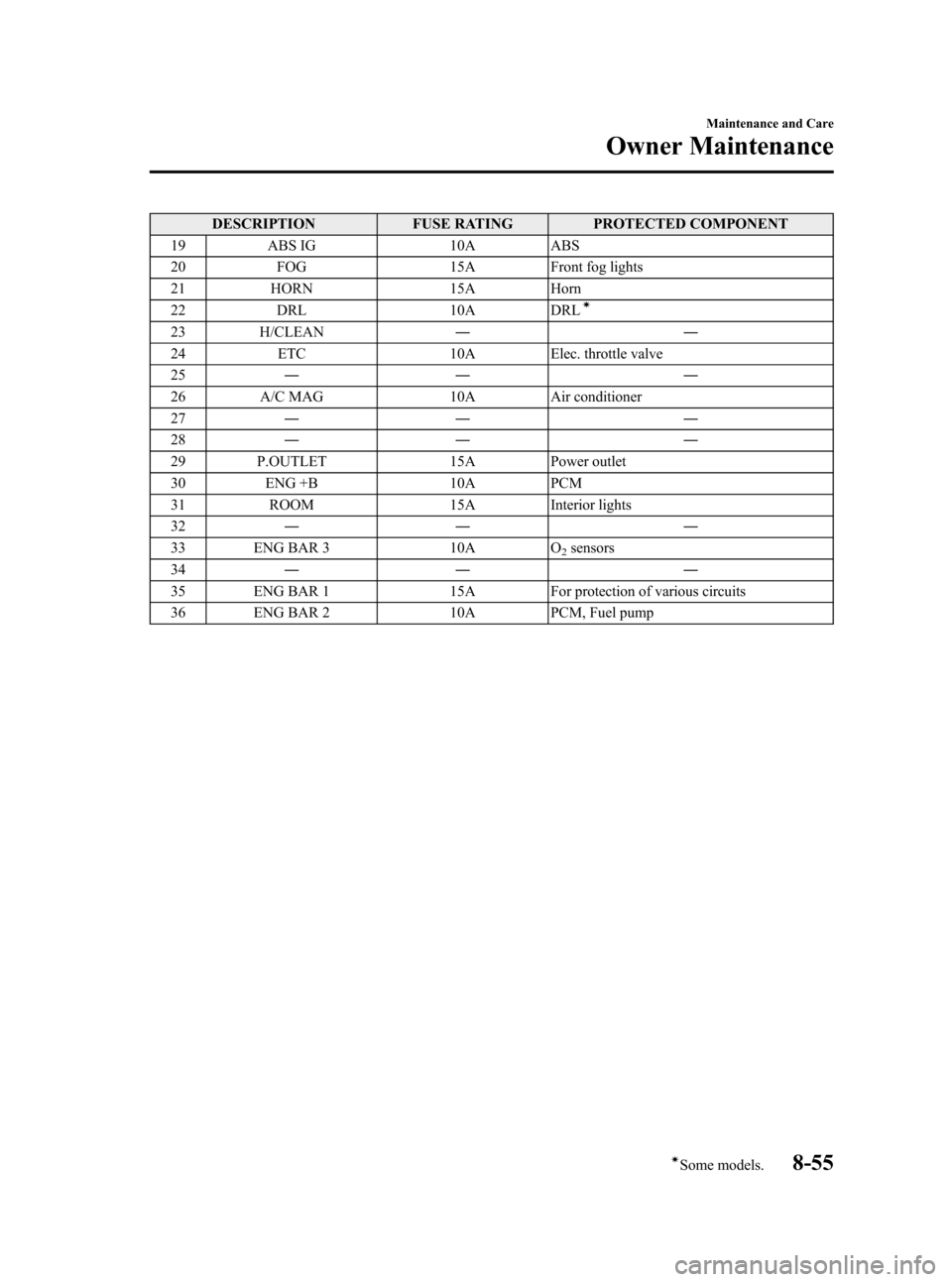

DESCRIPTION FUSE RATING PROTECTED COMPONENT
19 ABS IG 10A ABS
20 FOG 15A Front fog lights
21 HORN 15A Horn
22 DRL 10A DRL
í
23 H/CLEAN――
24 ETC 10A Elec. throttle valve
25―― ―
26 A/C MAG 10A Air conditioner
27―― ―
28―― ―
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32―― ―
33 ENG BAR 3 10A O
2sensors
34―― ―
35 ENG BAR 1 15A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
Maintenance and Care
Owner Maintenance
8-55íSome models. Mazda3_8X41-EA-07F_Edition2 Page323
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (324,1)

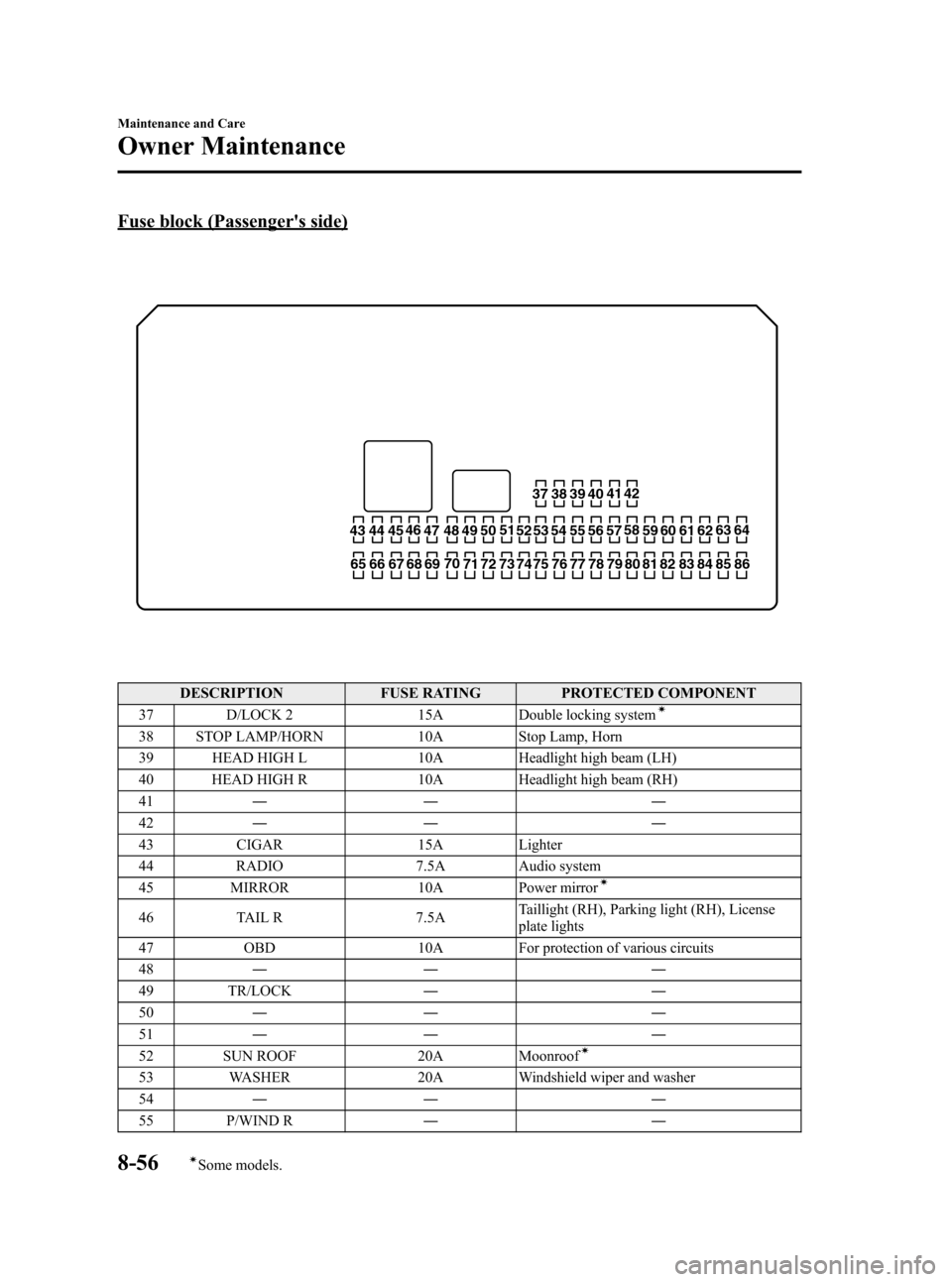

Fuse block (Passenger's side)
37 38 39 4041 42
43 44 4546
47 48 49 5051
52 5354 55 56 5758
59 60 61 6263 64
65 66 67 68 6970
71 72 73 74 75 76 77 78 79 80 81 82 83 84 8586
DESCRIPTION FUSE RATING PROTECTED COMPONENT
37 D/LOCK 2 15A Double locking systemí
38 STOP LAMP/HORN 10A Stop Lamp, Horn
39 HEAD HIGH L 10A Headlight high beam (LH)
40 HEAD HIGH R 10A Headlight high beam (RH)
41―― ―
42―― ―
43 CIGAR 15A Lighter
44 RADIO 7.5A Audio system
45 MIRROR 10A Power mirror
í
46 TAIL R 7.5ATaillight (RH), Parking light (RH), License
plate lights
47 OBD 10A For protection of various circuits
48―― ―
49 TR/LOCK――
50―― ―
51―― ―
52 SUN ROOF 20A Moonroof
í
53 WASHER 20A Windshield wiper and washer
54―― ―
55 P/WIND R――
8-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8X41-EA-07F_Edition2 Page324
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (325,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
56 P/WIND L――
57 ALARM――
58 M/DEF 7.5A Mirror Defroster
í
59―― ―
60 HEAD LOW R 15A Headlight low beam (RH), Headlight leveling
61 HEAD LOW L 15A Headlight low beam (LH)
62―― ―
63―― ―
64―― ―
65 SAS 10A Supplemental restraint system
66 METER 10A Instrument cluster, Immobilizer system
67 IGNITION 20A ABS
í, DSCí, Power steering
68 WIPER 20A Windshield wiper and washer
69 ENGINE 20A For protection of various circuits
70 IG SIG 10A Auto wiper
í, Power window switchí
71 SAS 2 7.5A Seat weight sensor
72―― ―
73―― ―
74 SEAT WARM 20A Seat warmer
í
75 D/LOCK 1 25A Power door lockí
76 A/C 10A Air conditionerí, Heater control unit
77 P/WIND L 30A Power window (LH)í
78 P/WIND R 30A Power window (RH)í
79 BACK 10A Reverse lights
80 SUN ROOF 7.5A Moonroofí
81 TAIL L 7.5A Taillight (LH), Parking light (LH)
82 ILLUMI 7.5A Illumination
83―― ―
84―― ―
85―― ―
86―― ―
Maintenance and Care
Owner Maintenance
8-57íSome models. Mazda3_8X41-EA-07F_Edition2 Page325
Monday, June 18 2007 1:30 PM
Form No.8X41-EA-07F

Black plate (329,1)
CAUTION
ØDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated
or anodized aluminum parts. This
may damage the protective
coating; also, cleaners and
detergents may discolor or
deteriorate the paint.
ØTo prevent damaging the antenna,
remove it before entering a car
wash facility or passing beneath a
low overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle doesn't need it.
