2008 MAZDA MODEL 3 4-DOOR buttons

Black plate (79,1)
To retract the key, rotate it into the holder
while pressing the release button.Keyless Entry Systemí
This system remotely locks and unlocks
the doors and the liftgate.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system doesn't operate when the key is
in the ignition switch.
lDoors and the liftgate cannot be locked by
pressing the lock button while any other
door or the liftgate is open. Also, the hazard
warning lights will not flash.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
Knowing Your Mazda
Doors and Locks
3-3íSome models.
Mazda3_8Y64-EA-08A_Edition1 Page79
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (80,1)
qTransmitter
Integrated key type
Lock button
Unlock button
Panic button
Operation
indicator light
Non-key type
Panic button
Lock button
Unlock button
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
NOTE
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
l(With theft-deterrent system)lThe hazard warning lights will not flash.lThe hazard warning lights only flash
when the theft deterrent system is armed
or turned off, refer to the theft-deterrent
system (page 3-27).
3-4
Knowing Your Mazda
Doors and Locks
Mazda3_8Y64-EA-08A_Edition1 Page80
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (142,1)
qActivation/Deactivation
To activate the system, press the ON/OFF
switch.
The cruise main indicator light
illuminates.
To deactivate the system, press the switch
again.
The cruise main indicator light turns off.
WARNING
Keep the ON/OFF switch off when
cruise control is not in use:
Leaving the ON/OFF switch on when
not using the cruise control is
dangerous as you may hit one of the
other buttons and put the vehicle in
cruise control unexpectedly. This
could result in loss of vehicle control.
qTo Set Speed
1. Activate the cruise control system by
pressing the ON/OFF switch.
2. Accelerate to the desired speed, which must be more than 30 km/h (19 mph). 3. Immediately release the SET/COAST
button by pressing it when the vehicle
reaches the desired speed. Release the
accelerator pedal at the same time.
Don't continue to hold in the button. Until
you release it, speed will continue to drop
(unless you continue to accelerate) and
you'll miss the desired speed.
NOTE
lThe SET function can't be activated until
about 2 seconds after the ON/OFF switch
has been engaged.
lOn a steep grade, the vehicle may
momentarily slow down going up or speed
up while going down.
lCruise control will turn off if vehicle speed
drops below 25 km/h (16 mph) when cruise
is activated, such as when climbing a steep
grade.
5-20
Driving Your Mazda
Starting and Driving
Mazda3_8Y64-EA-08A_Edition1 Page142
Tuesday, November 27 2007 9:0 AM
Form No.8Y64-EA-08A

Black plate (210,1)
qOperating the Radio
Seek
tuning
button Channel
preset
buttons
Manual tuning dial/Auto memory
button/Electric serial number button Scan button
Band selector buttons
Satellite button
Instant replay button
Seek tuning/Category button
Radio ON
Press a band selector button (
)to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1 →FM2 →AM.
The selected mode will be indicated. If
FM stereo is being received, “ST ”will be
displayed.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise, and the
“ ST ”indicator will go out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be canceled.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
Seek tuning
Pressing the seek tuning button (
,)
will cause the tuner to seek a higher or
lower frequency automatically.
6-28
Interior Comfort
Audio System
Mazda3_8Y64-EA-08A_Edition1 Page210
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (214,1)

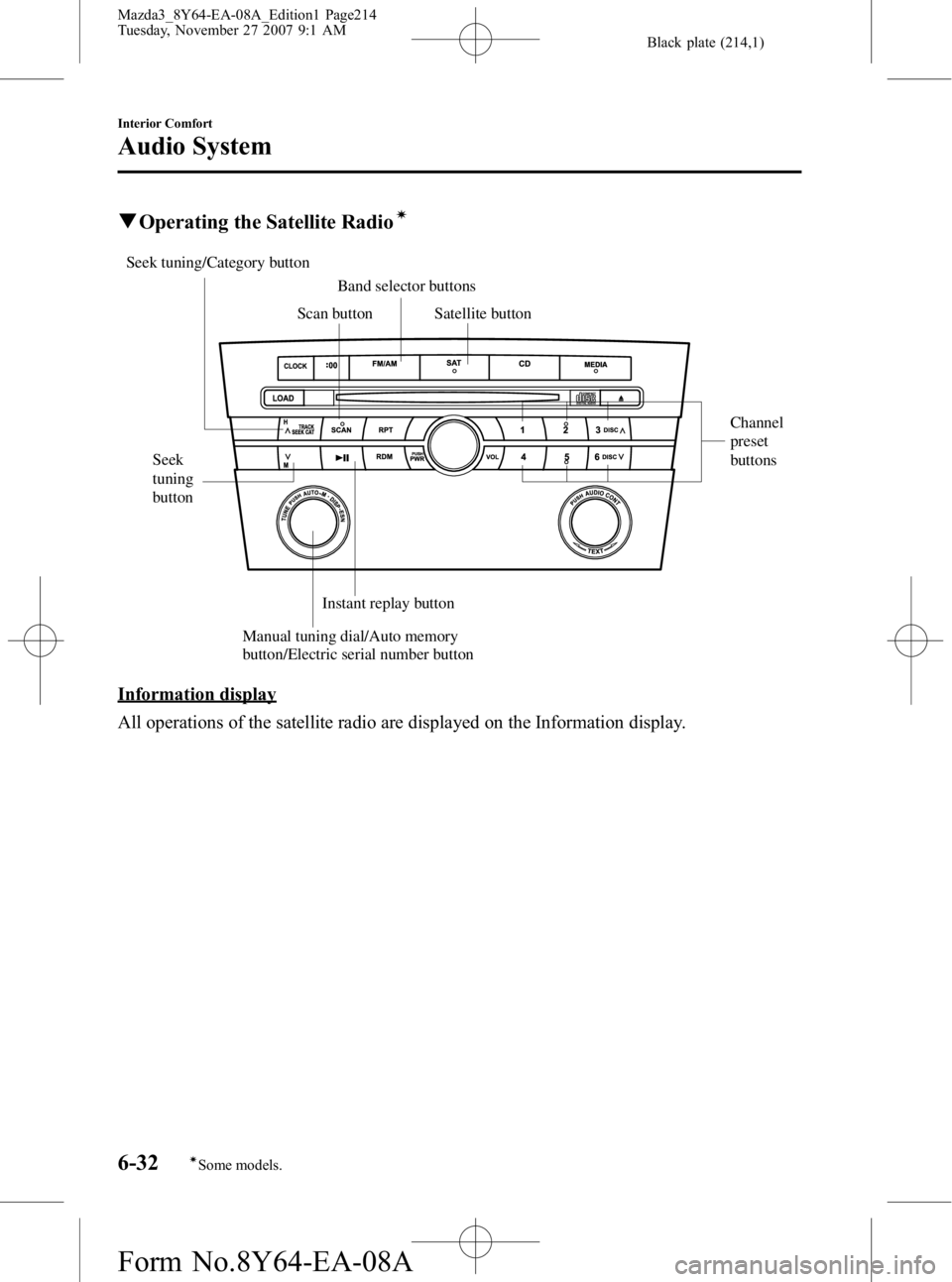

qOperating the Satellite Radioí
Seek
tuning
button Channel
preset
buttons
Manual tuning dial/Auto memory
button/Electric serial number button Scan button
Band selector buttons
Satellite button
Instant replay button
Seek tuning/Category button
Information display
All operations of the satellite radio are displayed on the Information display.
6-32
Interior Comfort
íSome models.
Audio System
Mazda3_8Y64-EA-08A_Edition1 Page214
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (216,1)
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, If not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
- Increase the separation between the
equipment and tuner.
- Connect the equipment into an outlet on a
circuit different from that to which the tuner is
connected.
- Consult the dealer or an experienced radio/
TV technician for help.
Selecting Sirius radio mode (Satellite
button)
When the satellite button is pressed, it will
play the last selected SIRIUS channel.
Every time the satellite button is pressed,
the bank is changed over in the order
shown below.
SR2
SR1
SR3
NOTE
SR1, SR2 and SR3: six stations can be stored
in each bank for convenient access to your
favorite stations.
Channel selection (Manual tuning dial)
Turning the manual tuning dial allows you
to select the desired channel.
lTurn the manual tuning dial clockwise:
Channel Up
lTurn the manual tuning dial
counterclockwise: Channel Down
Preset channel programming (Channel
preset buttons or display button)
1. Channels can be programmed with
either a “channel number ”or “text ”
display.
2. Press the display button to select the channel number or desired text (e.g.
channel name) display mode.
3. Select the desired channel to be programmed.
6-34
Interior Comfort
Audio System
Mazda3_8Y64-EA-08A_Edition1 Page216
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (217,1)
4. Hold down a channel preset button forabout 1.5 seconds, and release when
the beep is heard.
5. The programming process is complete after the channel number or text blinks.
Preset channel call-up (Channel preset
buttons)
Press a channel preset button for about 1.5
seconds.
Category change (Category button)
Press the category button (UP or DOWN)
and select the desired category.
lPress the category button (UP):
Category up
lPress the category button (DOWN):
Category down
At this time, the lowest (smallest-number)
channel within the category indicated is
received.
When the highest (or lowest) category is
reached, the display of the category is
changed over in the order shown below.
Highest category →Category all →Lowest
category
NOTE
While in “CATEGORY ALL ”mode, all
channels covering a category can be accessed
(Category off condition).
Channel selection within a category
(Manual tuning dial)
NOTE
If the category is not in “ALL ”, turning the
manual tuning dial moves the channel number
up/down in the present category.
lTurn the knob clockwise: Channel UplTurn the knob counterclockwise: Channel
Down
Channel number, channel, category,
artist, and song title display (Display
button, display feed dial)
Each time the display button is briefly
pressed (about 1.5 seconds) during
SIRIUS reception, the display of the text
data changes in the order shown below.
Channel number Channel name
Category
name
Artist name
Info
Song title
NOTElEight characters can be displayed on 1
screen.
lBy turning the display feed dial
counterclockwise, it is possible to display
the remaining part of the title one character
at a time each time the dial is rotated one
increment.
What is satellite radio?
Sirius is radio the way it was meant to be:
Up to 100 new channels of digital quality
programming delivered to listeners coast
to coast via satellite. That means 50
channels of completely commercial-free
music. Plus up to 50 more channels of
news, sports, and entertainment from
names like CNBC, Discovery, SCI-FI
Channel, A&E, House of Blues, E!, NPR,
Speed vision and ESPN.
Interior Comfort
Audio System
6-35
Mazda3_8Y64-EA-08A_Edition1 Page217
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A

Black plate (223,1)
lIf there is no artist's name,
“No ARTIST ”is displayed.
(Song title display)
lWhen the display button is briefly
pressed (about 0.5 seconds) while in
artist name display mode, it changes to
the song title display mode.
lIf there are more than 8 characters in
the song title, it is possible to display
the remaining part of the song title one
character at a time each time the
display feed dial is rotated one
increment clockwise.
lThree more seconds after scrolling the
song title, the display automatically
returns to display the first part of the
song title.
lIf there is no song title, “No SONG ”is
displayed.
(INFO (such as composer's name)
display)
lWhen the display button is briefly
pressed (about 1.5 seconds) while in
song title display mode, it changes to
the INFO display mode.
lIf there are more than 8 characters in
the composer's name, it is possible to
display the remaining part of the name
one character at a time each time the
display feed dial is rotated one
increment clockwise.
lThree seconds after scrolling the text,
the display automatically returns to
display the first part of the text.
lIf there is no composer name,
“ No INFO ”is displayed
Instant replay
This function allows you to rewind and
replay the program that you were
previously or are currently listening to.
Press the instant replay button. When the category button (DOWN) is
briefly pressed (about 0.5 seconds),
playback starts from the beginning of the
current program.
When the category button (DOWN) is
pressed twice, playback starts from the
beginning of the previous program.
When the category button (DOWN) is
pressed for about 0.5 seconds or longer,
the program is reversed while the button
is being pressed.
When the category button (UP) is briefly
pressed (about 0.5 seconds), playback
starts from the beginning of the next
program. When the category button (UP)
is briefly pressed (about 0.5 seconds)
while the last program is being played, the
instant replay mode is cancelled.
When the category button (UP) is pressed
for 0.5 seconds or longer, the program is
fast-forwarded while the button is being
pressed. When pressing and holding the
button until the end of the program, the
instant replay mode is cancelled.
When the instant replay button is pressed
again, playback is temporarily stopped, or
playback starts if it has been temporarily
stopped.
NOTE
If the channel is changed, the instant replay
buffer data is deleted.
(How to cancel the instant replay)lPress the satellite button.lTurn off the ACC or POWER.lPress any one of the following buttons:
FM/AM, CD, MEDIA, SAT, SEEK/
CAT/TRACK, or a channel preset
button.
lInsert or play a CD.
Interior Comfort
Audio System
6-41
Mazda3_8Y64-EA-08A_Edition1 Page223
Tuesday, November 27 2007 9:1 AM
Form No.8Y64-EA-08A
