2008 LEXUS RX400H headlights

1
2
3
4
5
6
7
RX400h_U
5
Headlight aim (vehicles with discharge
headlights).................................... 364
Light bulbs ....................................... 365
5-1. Essential information .............. 378 If your vehicle needs to be towed.............................................. 378
If you think something is wrong ............................................ 385
Event data recorder................... 386
5-2. Steps to take in an emergency .............................. 388
If a warning light turns on or a warning buzzer
sounds... ....................................... 388
If a warning message is displayed...................................... 398
If you have a flat tire.................... 408
If the hybrid system will not start........................................... 418
If the shift lever cannot be shifted from P ............................... 419
If you lose your keys .................... 420
If the 12-volt battery is discharged .................................... 421
If your vehicle overheats ........... 424
If the vehicle becomes stuck ... 427 6-1. Specifications............................ 430
Maintenance data (fuel, oil level, etc.).................... 430
Fuel information............................ 442
Tire section names....................... 445
6-2. Customization .......................... 458 Customizable features ............. 458
6-3. Initialization ............................... 462 Items to initialize ........................... 462
Reporting safety defects for U.S. owners........................... 464
Seat belt instructions for Canadian owners
(in French) .................................... 465
Abbreviation list .................................. 470
Alphabetical index.............................. 472
What to do if... ...................................... 482
5When trouble arises
6Vehicle specifications
7For owners
Index

6
Pictorial indexExterior
Headlights (high beam) P. 148
Headlights (low beam) P. 148
Fog lights P. 151
Turn signal lights P. 136
Side marker lights P. 148
Hood P. 313
Windshield wipers P. 152
Moon roof ∗ P. 75
Outside rear view mirrors P. 68
Parking lights P. 148

67
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U
Anti-glare inside rear view mirror
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
In automatic mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
To turn automatic mode on/
off, press and hold the switch
for 3 seconds.
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic mode. The
anti-glare mirror is automati-
cally set to automatic mode
whenever the engine switch is in
the ON position.
To ensure that the sensors operate properly,
do not touch or cover them.

141
2-2. Instrument cluster
2
When driving
RX400h_U

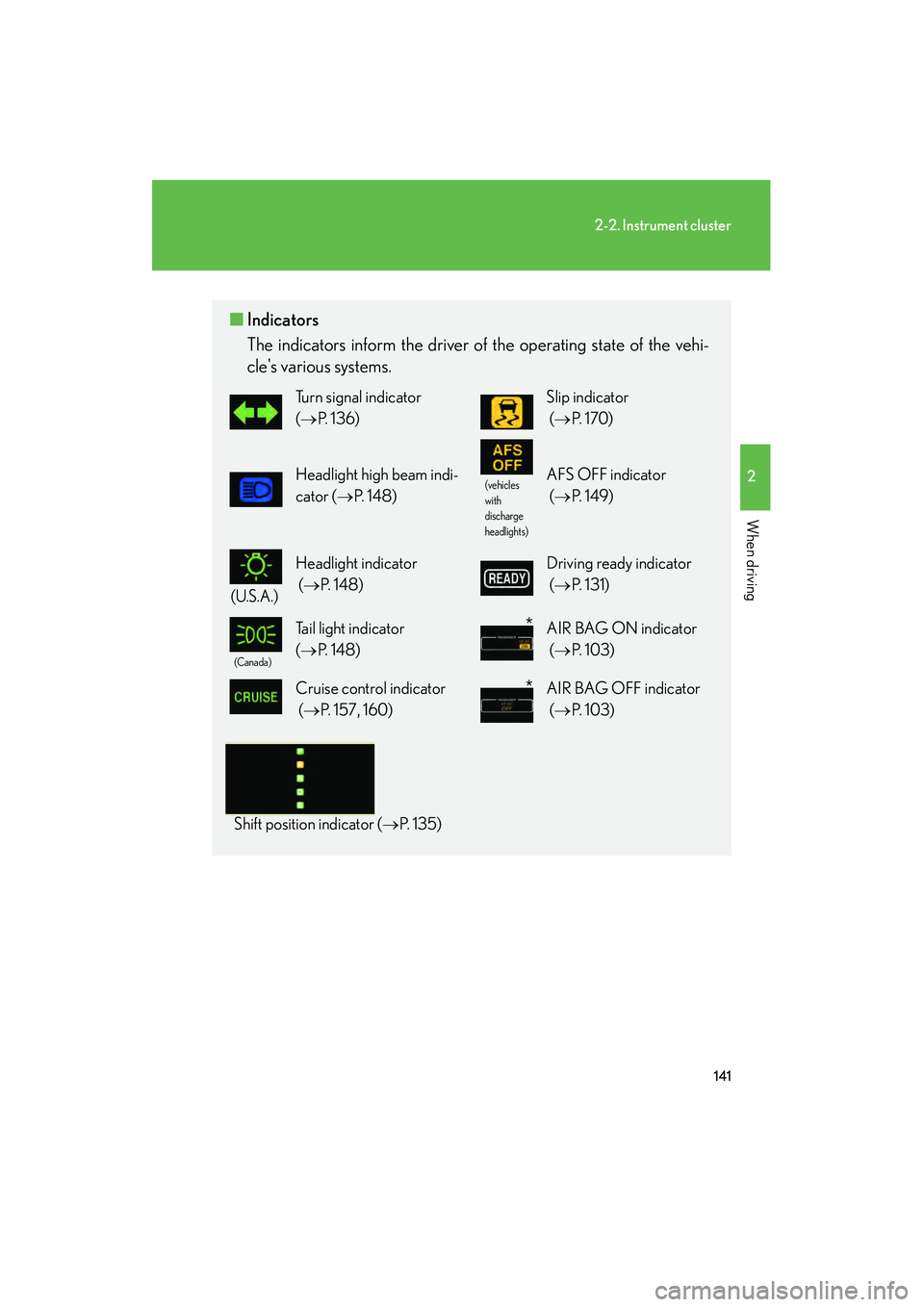

■Indicators
The indicators inform the driver of the operating state of the vehi-
cle's various systems.
Turn signal indicator
(→ P. 136)Slip indicator
(→ P. 1 7 0 )
Headlight high beam indi-
cator ( →P. 1 4 8 )(vehicles
with
discharge
headlights)AFS OFF indicator
(→ P. 1 4 9 )
(U.S.A.)
Headlight indicator
(→ P. 1 4 8 )Driving ready indicator
(→ P. 131)
(Canada)
Tail light indicator
(→ P. 1 4 8 )AIR BAG ON indicator
(→ P. 1 0 3 )
Cruise control indicator
(→ P. 157, 160) AIR BAG OFF indicator
(→ P. 1 0 3 )
Shift position indicator ( →P. 1 3 5 )
*
*

148
RX400h_U
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights and park-
ing lights turn on and off
automatically.
(When the engine switch
is in the ON position) U.S.A.
Canada

149
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U
AFS (vehicles with discharge headlights)AFS (Adaptive Front Lighting System) improves visibility at intersections
and on curves by automatically adjusting the direction light axis of the
headlights according to vehicle speed and the degree of the tire angle
that are controlled by steering input.
Operates at speeds of 18 mph (30 km/h) or higher.
■ Deactivating AFS
Turn the switch OFF to deactivate
AFS.
OFF
ON
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the hybrid system is started and the parking
brake is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight control system to mal-
function.

150
2-3. Operating the lights and windshield wipers
RX400h_U
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30 seconds
after all doors are closed with the engine switch turned to the ACC or LOCK
position. (The light turns off immediately if the LOCK button on the key is pressed
after all doors are locked.)
●When only the tail lights come on: The tail lights turn off automatically with the
engine switch turned to the ACC or LOCK position and the driver’s door is
opened.
To turn the lights on again, turn the engine switch to the ON position, or turn the
light switch OFF once and then back to the
or position.
■Automatic headlight leveling system (vehicles with discharge headlights)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes... (veh icles with discharge headlights)
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Setting (e.g. light sensor sensitivity) can be changed. (Customizable features
→ P. 4 5 8 )
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.

151
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U

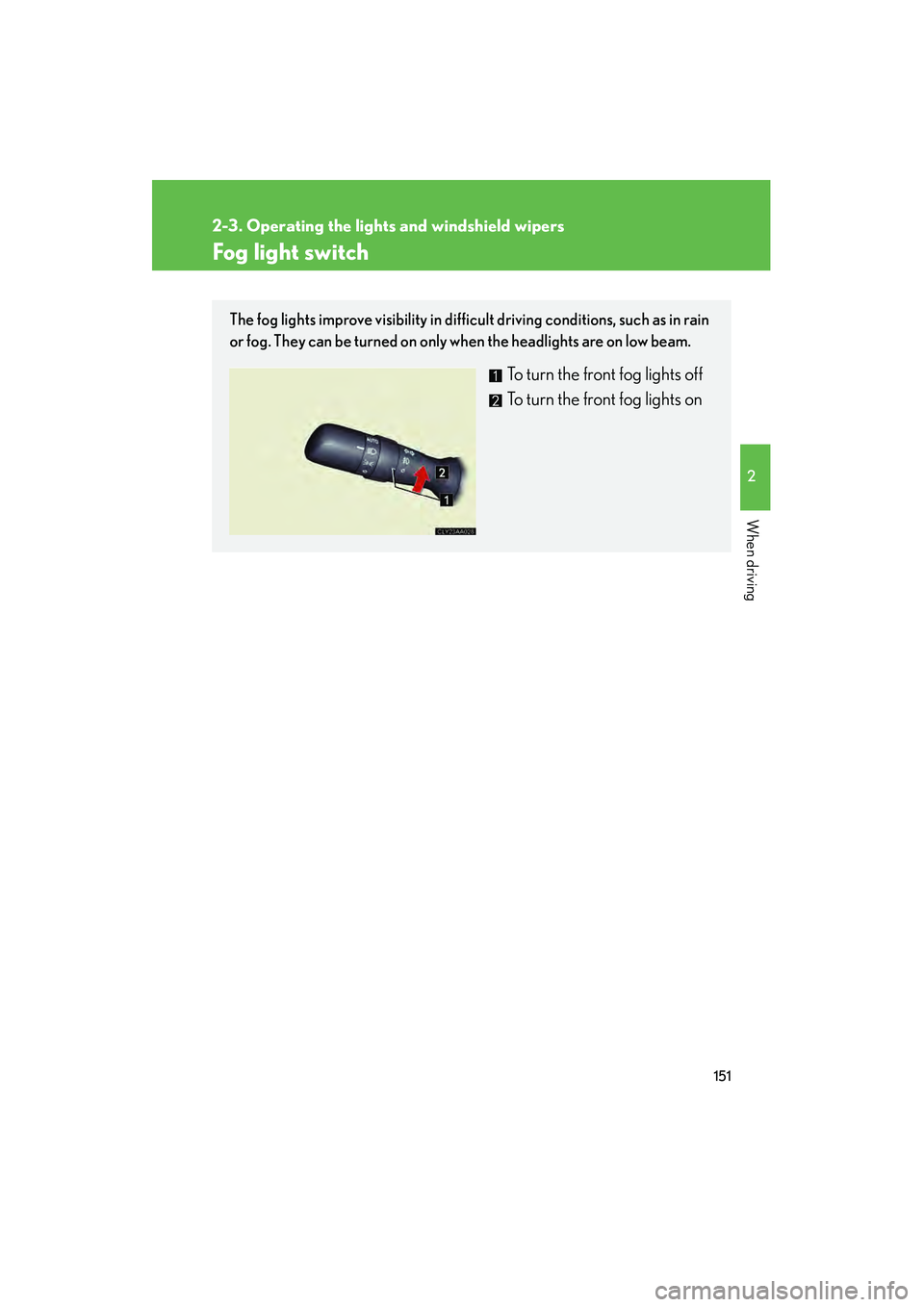

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
To turn the front fog lights off
To turn the front fog lights on
