2008 LEXUS RX400H display

398
5-2. Steps to take in an emergency
RX400h_U
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(Flashing)
Indicates an abnormal engine oil pressure. The warning light may turn on if the engine oil pres-
sure is too low.
Malfunction in the hybrid system.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning light turns on again after performing the following
actions, contact your Lexus dealer.

5
When trouble arises

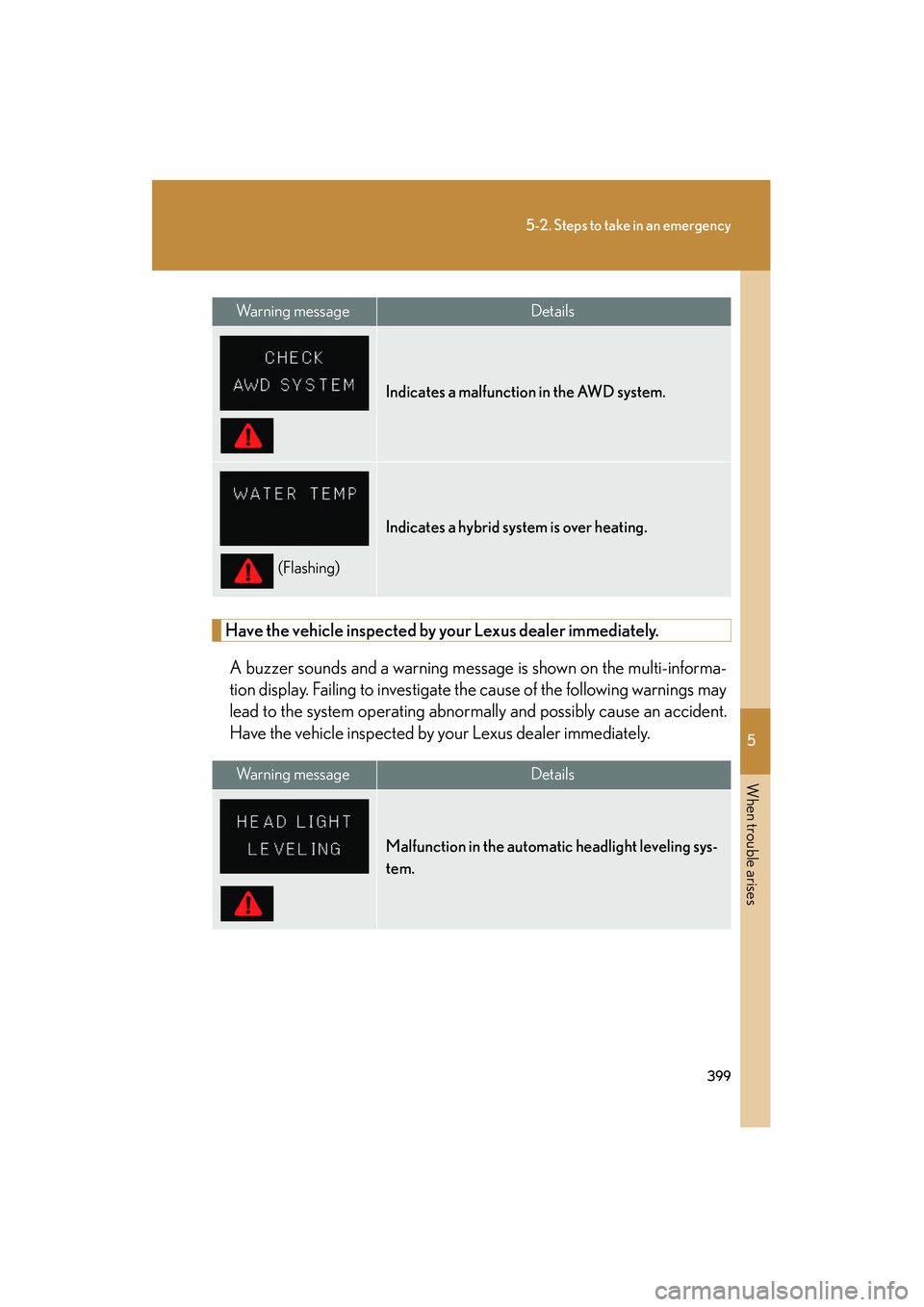

399
5-2. Steps to take in an emergency
RX400h_U
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Indicates a malfunction in the AWD system.
(Flashing)
Indicates a hybrid system is over heating.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Wa r n i n g m e s s a g eDetails

402
5-2. Steps to take in an emergency
RX400h_U
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.

5
When trouble arises
407
5-2. Steps to take in an emergency
RX400h_U
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
■Changing the engine oil (U.S.A. only)
Make sure to reset the oil change system. ( →P. 3 2 1 )
■Warning light display in radar cruise mode
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance closes.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
Wa r n i n g m e s s a g eDetailsCorrection
procedure
(Comes on for 8 seconds.)
Indicates that the fuel
door left open after refuel-
ing when start the vehicle/
leave the fuel door open
for more than 30 minutes
during refueling.
Close the fuel lid.

424
5-2. Steps to take in an emergency
RX400h_U
If your vehicle overheats
■Electric motor (traction motor) and inverter
If the message WATER TEMP is displayed on the multi-information
display.
■ Gasoline engine
If the needle of the engine coolant temperature gauge enters the
red zone, the gasoline engine has probably overheated.
Observe the following steps:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the hybrid system. Carefully lift the hood after the
steam subsides and then restart the hybrid system.
If you do not see steam: Leave the hybrid system running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the temperature of the engine (shown on the
instrument cluste r) begins to fall and then stop the hybrid
system.
If the fan is not operating: Stop the hybrid system immediately and call your local
Lexus dealer.
After the hybrid system has
cooled down sufficiently, check
the engine coolant level and
inspect the radiator core (radia-
tor) for any leaks.
STEP1
STEP2
STEP3
STEP4

5
When trouble arises
425
5-2. Steps to take in an emergency
RX400h_U
■Overheating
If you observe the following, your vehicle may be overheating.
●The message WATER TEMP is displayed on the multi-information display.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fan and other belts while the hybrid sys-
tem is running.
●Do not loosen the radiator cap while the hybrid system and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add engine coolant if required.
Water can be used in an emer-
gency measure if engine coolant
is unavailable. (→P. 4 3 5 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP5

470
RX400h_U
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/CAir Conditioning
ABSAnti-Lock Brake System
ACCAccessory
AFSAdaptive Front-lighting System
ALRAutomatic Locking Retractor
AW DAll-Wheel Drive
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent Data Recorder
ELREmergency Locking Retractor
EPSElectric Power Steering
GAWRGross Axle Weight Ratings
GVWRGross Vehicle Weight Ratings
I/MEmission inspection and Maintenance
INFOInformation
INTIntermittent
LEDLight Emitting Diode
LTLight Truck
MMTMethylcyclopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
PWRPow e r
SRSSupplemental Restraint System

472
RX400h_U
Alphabetical index
Alphabetical index
A/C ............................................................. 198
ABS.............................................................. 169
Adaptive front lighting system ......... 149
AFS .............................................................. 149
Air conditioning filter ..........................346
Air conditioning systemAir conditioning filter ....................... 346
Automatic air conditioning system ................................................... 198
Air bags
Air bag operating conditions ......... 93
Air bag precautions for your child.......................................................... 98
Air bag warning light .......................389
Curtain shield airbag operating conditions.............................................. 94
Curtain shield airbag precautions .......................................... 98
Front passenger occupant classification system....................... 103
General airbag precautions ........... 98
Locations of airbags.............................. 91
Modification and disposal of airbags ...................................................102
Proper driving posture .............89, 98
Side airbag operating conditions.............................................. 94
Side airbag precautions .................... 98
SRS airbags ............................................... 91
Alarm ............................................................85
Antenna ....................................................... 211
Anti-lock brake system ....................... 169
Armrest .....................................................282
Audio system
Antenna ......................................................211 Audio visual input................................ 251
A/V input adapter .............................. 251
CD player/changer ........................... 214
MP3/WMA disc............................... 220
Optimal use ......................................... 228
Radio ........................................................207
Steering wheel audio switch.......... 231
Audio visual input ...................................251
Automatic air conditioning system ..................................................... 198
Automatic headlight leveling system ..................................................... 150
Automatic light control system........ 148
A/V input adapter..................................251
Back door Back door ................................................. 44
Wireless remote control ...................36
Back-up lights Replacing light bulbs ....................... 365
Wattage ................................................... 441
Battery
Checking................................................327
If the 12-volt battery is discharged ......................................... 421
Preparing and checking
before winter...................................... 182
Brake
Fluid.......................................................... 325
Parking brake........................................ 137
Brake assist ...............................................169
Break-in tips..............................................123
Brightness control Multi-display light control .............. 276A
B
