362
4-3. Do-it-yourself maintenance
RX400h_U
77RADIO NO.27. 5
Instrument cluster lights, instrument
panel lights, navigation system, audio
system
78MIR HTR10Outside rear view mirror defogger
79PWR30
Power window, multiplex communica-
tion system (power door lock system,
wireless remote control system), out-
side rear view mirror
80P/ S E AT30Po w e r s e a t s
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 3 6 5 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
FuseAmpereCircuit

422
5-2. Steps to take in an emergency
RX400h_U
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the hybrid system is turned off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■After recharging the 12-volt battery
(→ P. 3 2 8 )
■When the battery is removed or discharged
The power windows, power back door and moon roof must be initialized.
(→ P. 4 6 2 )
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse order in which they were
connected.
Once the hybrid system starts, have the vehicle checked at your Lexus
dealer as soon as possible.STEP5

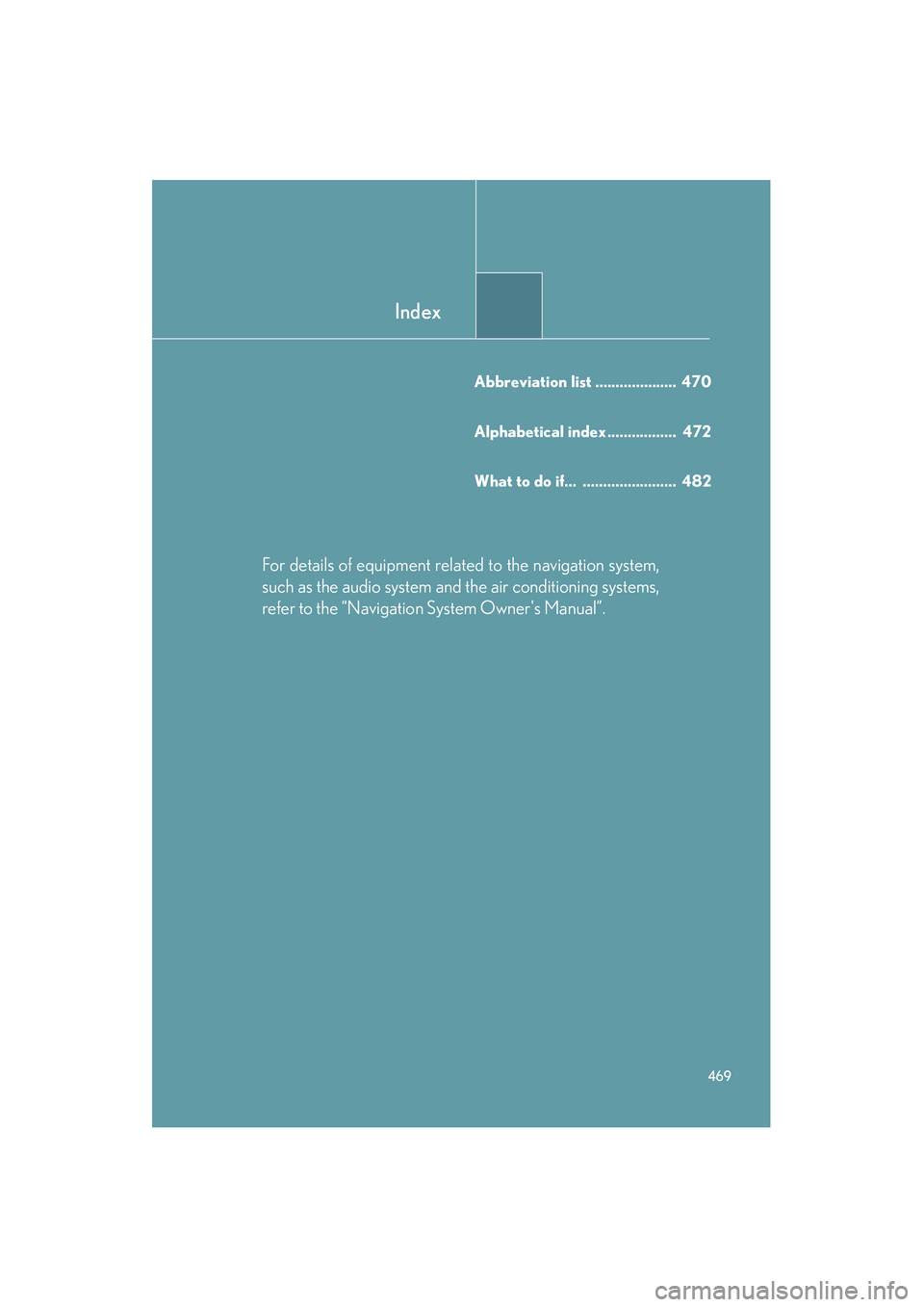

Index
469
RX400h_U
Abbreviation list .................... 470
Alphabetical index ................. 472
What to do if... ....................... 482
For details of equipment related to the navigation system,
such as the audio system and the air conditioning systems,
refer to the “Navigation System Owner's Manual”.

472
RX400h_U
Alphabetical index
Alphabetical index
A/C ............................................................. 198
ABS.............................................................. 169
Adaptive front lighting system ......... 149
AFS .............................................................. 149
Air conditioning filter ..........................346
Air conditioning systemAir conditioning filter ....................... 346
Automatic air conditioning system ................................................... 198
Air bags
Air bag operating conditions ......... 93
Air bag precautions for your child.......................................................... 98
Air bag warning light .......................389
Curtain shield airbag operating conditions.............................................. 94
Curtain shield airbag precautions .......................................... 98
Front passenger occupant classification system....................... 103
General airbag precautions ........... 98
Locations of airbags.............................. 91
Modification and disposal of airbags ...................................................102
Proper driving posture .............89, 98
Side airbag operating conditions.............................................. 94
Side airbag precautions .................... 98
SRS airbags ............................................... 91
Alarm ............................................................85
Antenna ....................................................... 211
Anti-lock brake system ....................... 169
Armrest .....................................................282
Audio system
Antenna ......................................................211 Audio visual input................................ 251
A/V input adapter .............................. 251
CD player/changer ........................... 214
MP3/WMA disc............................... 220
Optimal use ......................................... 228
Radio ........................................................207
Steering wheel audio switch.......... 231
Audio visual input ...................................251
Automatic air conditioning system ..................................................... 198
Automatic headlight leveling system ..................................................... 150
Automatic light control system........ 148
A/V input adapter..................................251
Back door Back door ................................................. 44
Wireless remote control ...................36
Back-up lights Replacing light bulbs ....................... 365
Wattage ................................................... 441
Battery
Checking................................................327
If the 12-volt battery is discharged ......................................... 421
Preparing and checking
before winter...................................... 182
Brake
Fluid.......................................................... 325
Parking brake........................................ 137
Brake assist ...............................................169
Break-in tips..............................................123
Brightness control Multi-display light control .............. 276A
B

474
Alphabetical index
RX400h_U
Do-it-yourself maintenance .............. 310
Door courtesy lightsDoor courtesy lights.........................260
Wattage.................................................... 441
Door lock Back door................................................. 44
Side door .................................................. 39
Wireless remote control................... 36
Door pockets............................................271
Doors Back door................................................. 44
Door glasses ............................................72
Door lock......................................... 36, 39
Power back door ................................. 44
Side door .................................................. 39
Side mirrors ............................................. 68
Driver's seat belt reminder light ...... 391
Driving Break-in tips ........................................... 123
Correct posture .................................... 89
Procedures ............................................. 122
Winter driving tips...............................182
Driving position memory ......................55
DVD player Audio CD/CD text .......................... 248
DVD video ........................................... 239
Initial setting .......................................... 253
MP3 discs ............................................. 249
Video CD.............................................. 246
Electric power steering ....................... 169
Emergency, in case of If the back door opener is in operative................................................ 46
If the hybrid system will not start ................................................ 418 If the shift lever cannot be
shifted from P..................................... 419
If the 12-volt battery is discharged ......................................... 421
If the warning buzzer sounds......388
If the warning light turns on..........388
If you have a flat tire ........................408
If you lose your keys ........................ 420
If you think something is wrong .................................................. 385
If your vehicle becomes stuck ..... 427
If your vehicle needs to be towed ................................................... 378
If your vehicle overheats.................424
Energy monitor ......................................28
Engine
Compartment ....................................... 316
Engine switch .......................................... 131
Hood ......................................................... 313
How to start the hybrid system ...... 131
Identification number ........................ 431
If the hybrid system will not start .................................................418
Ignition switch ......................................... 131
Overheating .........................................424
Engine compartment cover ............... 317
Engine coolant Capacity ................................................ 435
Checking................................................323
Preparing and checking
before winter...................................... 182
Engine coolant temperature
gauge ...................................................... 138
Engine oil
Capacity .................................................434
Checking................................................. 318
E

477
Alphabetical index
RX400h_U
Luggage compartment lightsSwitch ..........................................................46
Wattage ................................................... 441
Luggage cover ...................................... 284
Maintenance
Do-it-yourself maintenance ...........310
General maintenance .....................306
Maintenance data ............................. 430
Maintenance requirements .......... 304
Meter Instrument panel light control ....... 139
Meters .......................................................138
Meter ring light ..................................... 260
Mirrors Inside rear view mirror .......................67
Side mirror heater ............................. 204
Side mirrors............................................. 68
Vanity mirrors ......................................273
Moon roof ...................................................75
MP3 disc ................................................. 220
Multi-display
Brightness control..............................276
Multi-information display
Energy monitor ..................................... 28
Odometer .................................................138
Oil Engine oil .................................................318
Opener
Back door .................................................44
Fuel filler door ........................................ 78
Hood ......................................................... 313
Outside rear view mirrors
Adjusting and folding ......................... 68
Driving position memory ................. 55 Outside temperature display .......... 275
Overhead console ............................... 269
Overhead courtesy lights .................260
Overheating, Engine........................... 424
Parking brake ...........................................137
Parking lights
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Personal lights Personal lights .................................... 260
Switch.......................................................264
Wattage ....................................................441
Power meter ............................................ 138
Power outlet............................................ 277
Power windows ........................................ 72
Radiator .................................................... 325
Radio .......................................................... 207
RDS ........................................................... 208
Rear audio system ................................ 233
Rear seat entertainment system Audio CD/CD text ..........................248
DVD video ............................................239
Initial setting ..........................................253
MP3 discs.............................................. 249
Rear seat entertainment
system .................................................. 233
Replacing controller battery........ 350
Video ........................................................ 251
Video CD ..............................................246
Rear seats Adjustment ............................................... 52
Folding down .......................................... 52
M
O
P
R

479
Alphabetical index
RX400h_U
Spare tireInflation pressure ............................... 340
Spare tire ...............................................408
Spark plug ............................................... 435
Specifications......................................... 430
Speech command switch*
Speedometer Speedometer ........................................138
Steering Column lock release ......................... 132
Steering wheel Audio switches ..................................... 231
Manual adjustment .............................. 65
Power adjustment ................................ 66
Steering wheel position memory ................................................. 55
Storage feature ..................................... 265
Stuck If your vehicle becomes stuck .....427
Sun visors.................................................. 272
Sunshade Roof ..............................................................76
Switch Engine switch ..........................................131
Fog light switch.......................................151
Ignition switch..........................................131
Light switches........................................148
Power back door switch ...................44
Power door lock switch .................... 39
Power window switch......................... 72
Rear window wiper and washer switch .....................................................155
Window lock switch ............................ 72
Wipers and washer switch............. 152 Tail lights
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Talk switch*
Telephone switch*
Theft deterrent system Alarm.......................................................... 85
Hybrid vehicle immobilizer system .....................................................83
Theft prevention labels ......................... 88
Tire inflation pressure .........................340
Tire section names Glossary .................................................. 451
Size............................................................ 447
Tire identification number..............446
Uniform tire quality grading .........449
Tires
Chains ...................................................... 182
Checking ................................................ 331
If you have a flat tire ......................... 408
Inflation pressure ............................... 340
Inflation pressure sensor ................ 332
Information ............................................445
Replacing .............................................. 408
Rotating tires ......................................... 331
Size............................................................439
Snow tires ............................................... 182
Spare tire ............................................... 408
Tools .......................................................... 408
Total load capacity ..................................181
Towing
Dinghy towing ...................................... 196
Emergency towing............................378
Trailer towing ........................................ 187T
*: Refer to the “Navigation System Owner’s Manual”.
