2008 LEXUS RX400H maintenance

314
4-3. Do-it-yourself maintenance
RX400h_U

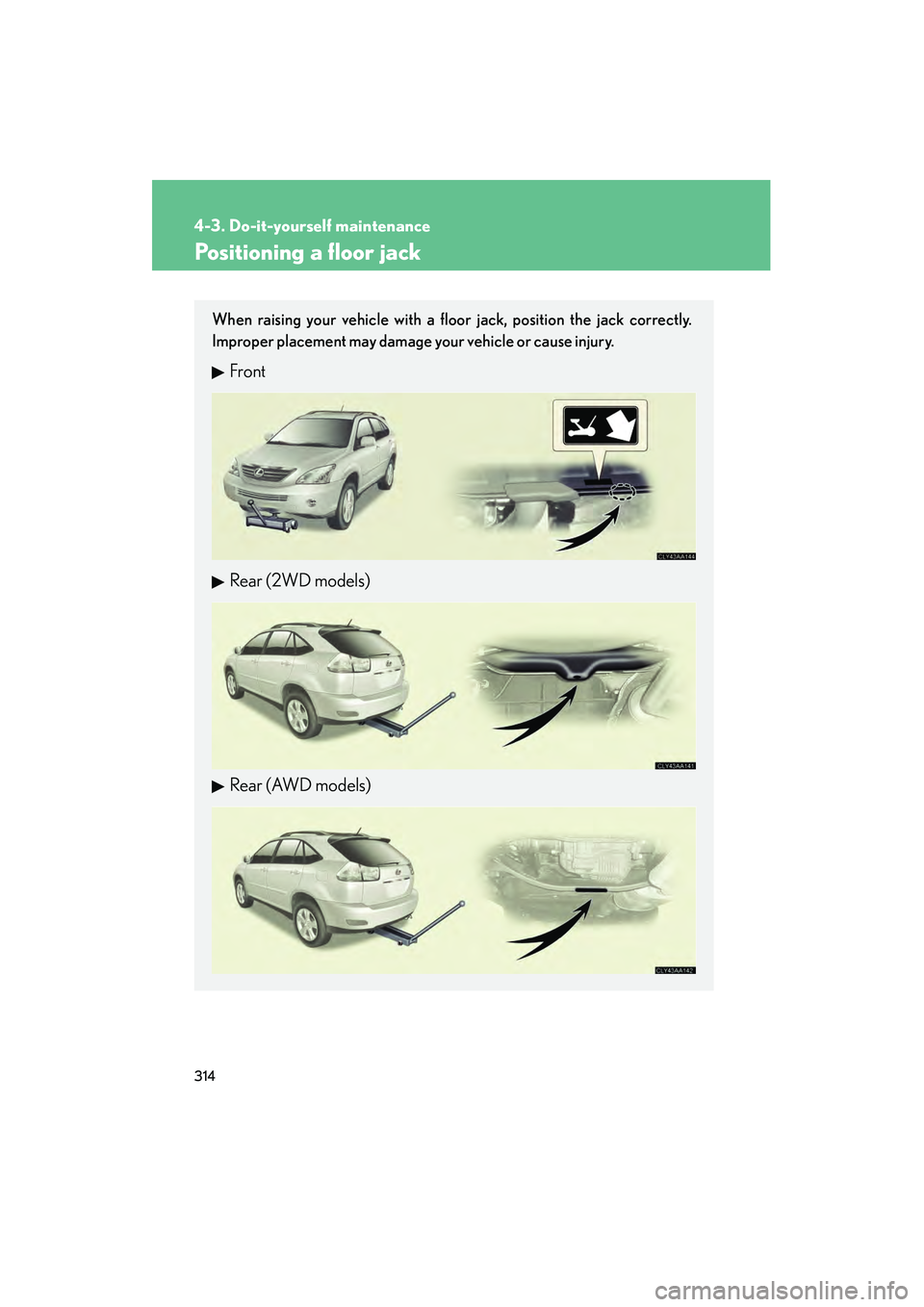

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
Front
Rear (2WD models)
Rear (AWD models)

315
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
CAUTION
■When raising your vehicle:
Make sure to observe the following to reduce the possibility of death or serious
injury.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body or get underneath the vehicle supported only by
the floor jack.
Always use automotive jack stands on a solid, level, surface.
●Do not start the hybrid system while the vehicle is supported by the floor jack.
●Stop the vehicle on level firm ground, firmly set the parking brake and put the shift
lever in P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.

316
4-3. Do-it-yourself maintenance
RX400h_U
Engine compartment
Brake fluid reservoir(→P. 325)
Engine oil level dipstick (→P. 318)
Engine oil filler cap (→P. 318)
Power control unit coolant
reservoir ( →P. 323)
Fuse boxes ( →P. 352)Engine coolant radiator
(→P. 325)
Condenser ( →P. 325)
Power control unit coolant
radiator ( →P. 325)
Electric cooling fans
Engine coolant reservoir (→P. 323)
12-volt battery ( →P. 327)
Washer fluid tank (→P. 329)

317
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
Engine compartment cover■ Removing the engine compartment left cover
■ Removing the engine compartment right cover
: Hooks
(Hook up gently to remove)

318
4-3. Do-it-yourself maintenance
RX400h_U■
Installing the clips
Open
Insert
Press
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the hybrid sys-
tem, wait more than five minutes for the oil to drain back into the
bottom of the engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

319
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_UWipe the dipstick and reinsert it fully.
Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
It takes about 1.6 qt. (1.5 L, 1.3 lmp. qt.) to raise the oil level from low to full on the
dipstick.
STEP6
Oil gradeILSAC multi-grade engine oil
ItemsClean funnel
STEP1
STEP2
STEP3

320
4-3. Do-it-yourself maintenance
RX400h_U■
Recommended viscosity
SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE 0W-
20 is the best choice for good fuel
economy and good starting in cold
weather.
■How to read oil container labels
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Outside temperature

321
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of the
oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds and frequent
acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may have
become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km)
●If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles (1000 km),
contact your Lexus dealer.
■After changing the engi ne oil (U.S.A. only)
The oil change system should be reset. Perform the following procedures: Switch the display to the odometer. ( →P. 1 4 3 )
Turn the engine switch to the LOCK position.
STEP1
STEP2
While pressing the ODO/TRIP button, turn
the engine switch to the ON position. A mes-
sage MAINT REQD RESET MODE will
appear on the display. To select the system,
hold the button for at least 5 seconds. A mes-
sage COMPLETE will appear and a beep will
sound.STEP3
