2008 LEXUS RX400H sensor

186
2-5. Driving information
RX400h_U
NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Lexus dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the operation of
the tire air pressure sensor.
■Fitting tire chains
The tire air pressure sensor may not function correctly when tire chains are fitted.

295
3-6. Other interior features
3
Interior features
RX400h_U
CAUTION
■While driving the vehicle
Do not adjust the display. Be sure to adjust the display only when the vehicle is
stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

386
5-1. Essential information
RX400h_U
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a near
car crash event, this device may record some or all of the following infor-
mation:
● Gasoline engine speed
● Whether the brake pedal was applied or not
● Ve h i c l e s p e e d
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver's seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
The information above is intended to be used for the purpose of improv-
ing vehicle safety performance. Unlike general data recorders, the EDR
does not record sound data such as conversation between passengers.
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troubleshooting, there is an event data
recorder (EDR) that records data in a crash or a near car crash event.

5
When trouble arises
393
5-2. Steps to take in an emergency
RX400h_U
■Key reminder buzzer
The buzzer indicates that the key has not been removed from the engine switch
(with the engine switch in the ACC or LOCK position and the driver’s door
opened).
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in the
seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■Changing the engine oil (U.S.A. only)
Make sure to reset the oil change system. ( →P. 3 2 1 )
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch does not turn off the tire pressure warning light.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the warning light (after a few minutes).

5
When trouble arises
405
5-2. Steps to take in an emergency
RX400h_U

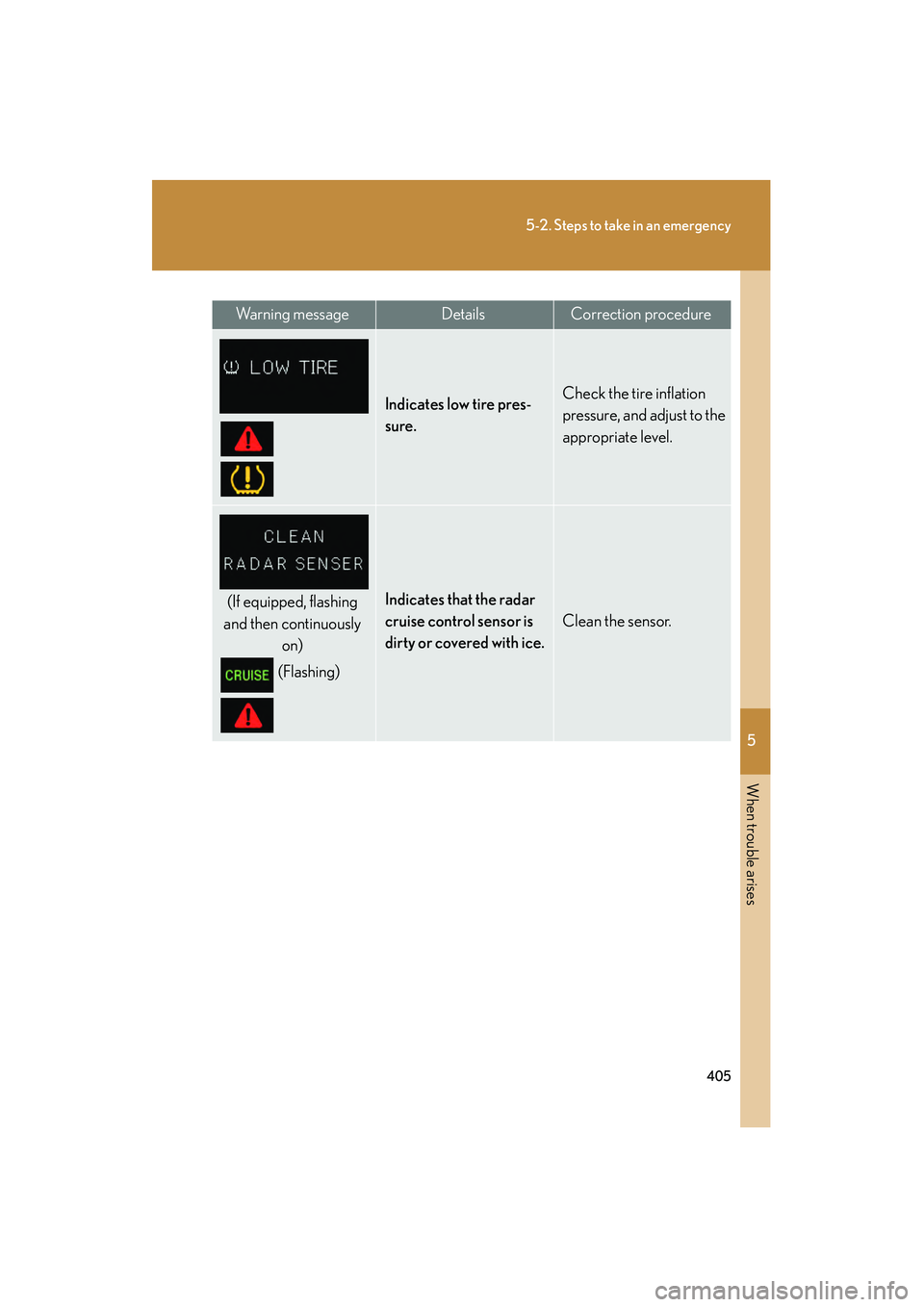

Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates low tire pres-
sure.Check the tire inflation
pressure, and adjust to the
appropriate level.
(If equipped, flashing
and then continuously on)
(Flashing)Indicates that the radar
cruise control sensor is
dirty or covered with ice.
Clean the sensor.

460
6-2. Customization
RX400h_U

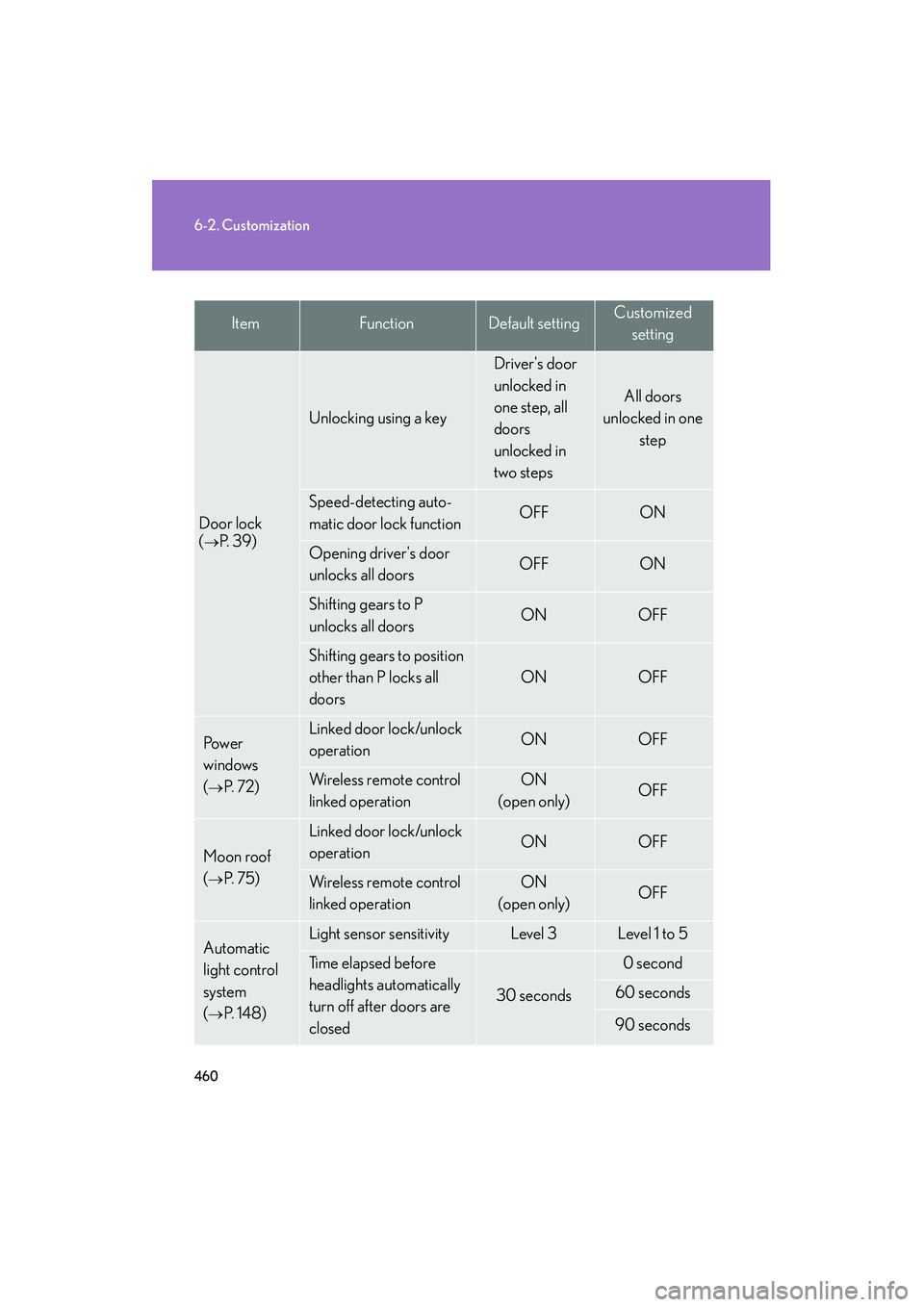

ItemFunctionDefault settingCustomizedsetting
Door lock
(
→P. 3 9 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doorsOFFON
Shifting gears to P
unlocks all doorsONOFF
Shifting gears to position
other than P locks all
doors
ONOFF
Pow e r
windows
(
→P. 7 2 )
Linked door lock/unlock
operationONOFF
Wireless remote control
linked operationON
(open only)OFF
Moon roof
(
→P. 7 5 )
Linked door lock/unlock
operationONOFF
Wireless remote control
linked operationON
(open only)OFF
Automatic
light control
system
(
→P. 1 4 8 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 second
60 seconds
90 seconds

479
Alphabetical index
RX400h_U
Spare tireInflation pressure ............................... 340
Spare tire ...............................................408
Spark plug ............................................... 435
Specifications......................................... 430
Speech command switch*
Speedometer Speedometer ........................................138
Steering Column lock release ......................... 132
Steering wheel Audio switches ..................................... 231
Manual adjustment .............................. 65
Power adjustment ................................ 66
Steering wheel position memory ................................................. 55
Storage feature ..................................... 265
Stuck If your vehicle becomes stuck .....427
Sun visors.................................................. 272
Sunshade Roof ..............................................................76
Switch Engine switch ..........................................131
Fog light switch.......................................151
Ignition switch..........................................131
Light switches........................................148
Power back door switch ...................44
Power door lock switch .................... 39
Power window switch......................... 72
Rear window wiper and washer switch .....................................................155
Window lock switch ............................ 72
Wipers and washer switch............. 152 Tail lights
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Talk switch*
Telephone switch*
Theft deterrent system Alarm.......................................................... 85
Hybrid vehicle immobilizer system .....................................................83
Theft prevention labels ......................... 88
Tire inflation pressure .........................340
Tire section names Glossary .................................................. 451
Size............................................................ 447
Tire identification number..............446
Uniform tire quality grading .........449
Tires
Chains ...................................................... 182
Checking ................................................ 331
If you have a flat tire ......................... 408
Inflation pressure ............................... 340
Inflation pressure sensor ................ 332
Information ............................................445
Replacing .............................................. 408
Rotating tires ......................................... 331
Size............................................................439
Snow tires ............................................... 182
Spare tire ............................................... 408
Tools .......................................................... 408
Total load capacity ..................................181
Towing
Dinghy towing ...................................... 196
Emergency towing............................378
Trailer towing ........................................ 187T
*: Refer to the “Navigation System Owner’s Manual”.
