2008 LEXUS RX400H Sound system

251
3-3. Using the rear audio system
3
Interior features
RX400h_U

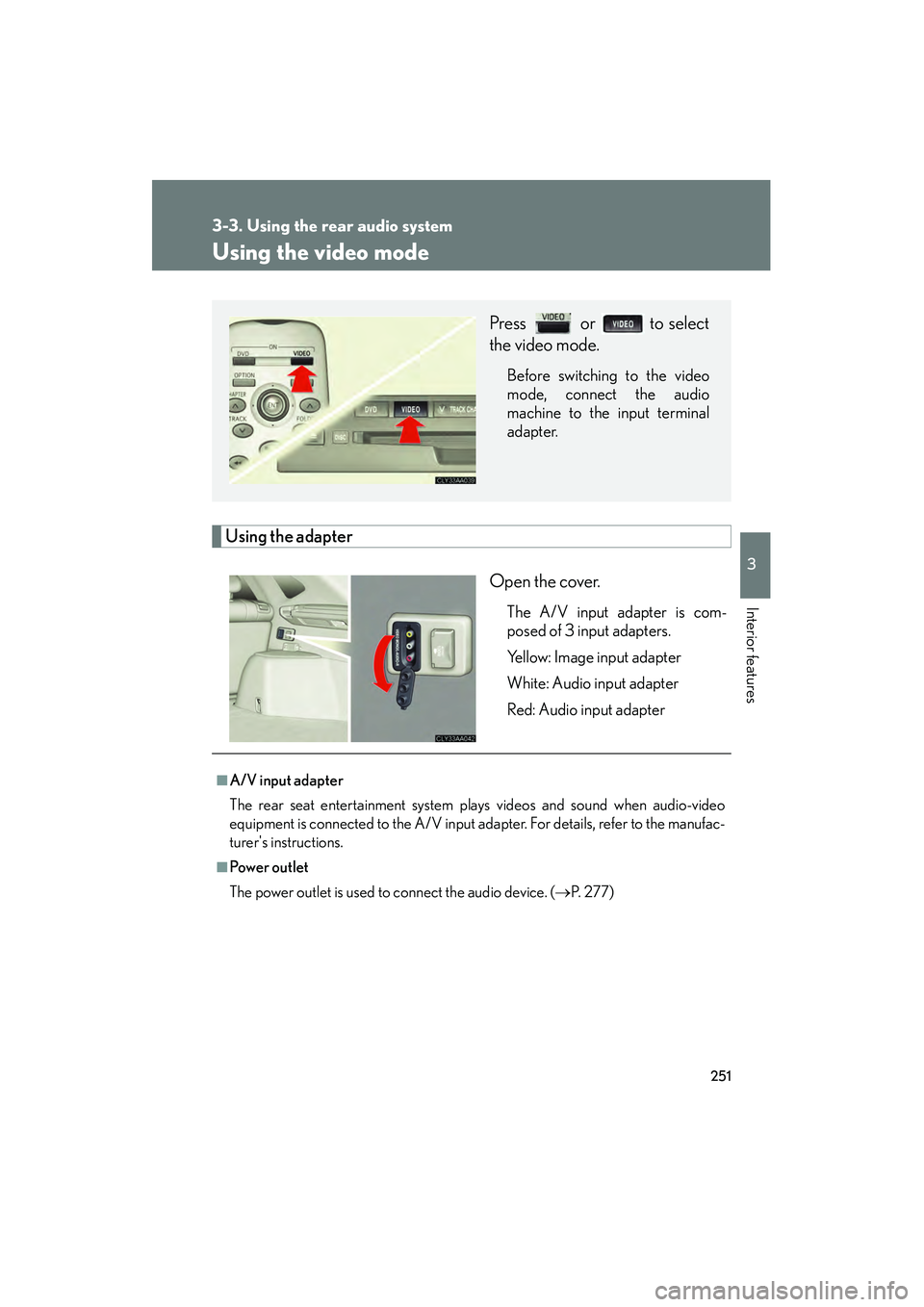

Using the video mode
Using the adapterOpen the cover.
The A/V input adapter is com-
posed of 3 input adapters.
Yellow: Image input adapter
White: Audio input adapter
Red: Audio input adapter
Press or to select
the video mode.
Before switching to the video
mode, connect the audio
machine to the input terminal
adapter.
■A/V input adapter
The rear seat entertainment system plays videos and sound when audio-video
equipment is connected to the A/V input adapter. For details, refer to the manufac-
turer's instructions.
■Powe r o u t le t
The power outlet is used to connect the audio device. ( →P. 277)

306
4-2. Maintenance
RX400h_U
General maintenance
Engine compartment
ItemsCheck points
12-volt batteryMaintenance-free. (→P. 3 2 7 )
Brake fluidAt the correct level? ( →P. 3 2 5 )
Engine/power control unit coolantAt the correct level? ( →P. 3 2 3 )
Engine oilAt the correct level? ( →P. 3 1 8 )
Exhaust systemNo fumes or strange sounds?
Radiator/condenser/hosesNot blocked with foreign matter?
(→ P. 3 2 5 )
Wa s h e r f l u i dAt the correct level? ( →P. 3 2 9 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide” or
“Owner’s Manual Supplement”. It is recommended that any problem you
notice should be brought to the attent ion of your Lexus dealer or qualified
service shop for advice.

321
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of the
oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds and frequent
acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may have
become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km)
●If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles (1000 km),
contact your Lexus dealer.
■After changing the engi ne oil (U.S.A. only)
The oil change system should be reset. Perform the following procedures: Switch the display to the odometer. ( →P. 1 4 3 )
Turn the engine switch to the LOCK position.
STEP1
STEP2
While pressing the ODO/TRIP button, turn
the engine switch to the ON position. A mes-
sage MAINT REQD RESET MODE will
appear on the display. To select the system,
hold the button for at least 5 seconds. A mes-
sage COMPLETE will appear and a beep will
sound.STEP3

When trouble arises5
377
RX400h_U
5-1. Essential information .... 378If your vehicle needs to be towed ...................................... 378
If you think something is wrong ...................................... 385
Event data recorder.............. 386
5-2. Steps to take in an emergency ................... 388
If a warning light turns on or a warning buzzer
sounds... ................................. 388
If a warning message is displayed................................ 398
If you have a flat tire............... 408
If the hybrid system will not start ................................... 418
If the shift lever cannot be shifted from P ........................ 419
If you lose your keys .............. 420
If the 12-volt battery is discharged ............................. 421
If your vehicle overheats ..... 424
If the vehicle becomes stuck......................................... 427

378
RX400h_U
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The hybrid system is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet(s). This should only attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steer ing and brakes must be in good condi-
tion.
Towing eyelets
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the front, the vehicle’s rear wheels and axles must be in good
condition. ( →P. 3 8 2 )
If they are damaged, use a towing dolly or flat bed truck.

5
When trouble arises
385
5-1. Essential information
RX400h_U
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

386
5-1. Essential information
RX400h_U
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a near
car crash event, this device may record some or all of the following infor-
mation:
● Gasoline engine speed
● Whether the brake pedal was applied or not
● Ve h i c l e s p e e d
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver's seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
The information above is intended to be used for the purpose of improv-
ing vehicle safety performance. Unlike general data recorders, the EDR
does not record sound data such as conversation between passengers.
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troubleshooting, there is an event data
recorder (EDR) that records data in a crash or a near car crash event.

388
RX400h_U
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
*: Parking brake engaged warning buzzer:
→P. 4 0 2
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Brake system warning light (warning buzzer)*
•Low brake fluid
• Malfunction in the electronically controlled brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
(U.S.A.)

(Canada)Brake system warning lightIndicates a malfunction in the vehicle’s brake system.
Calmly perform the following actions if any of the warning lights turn on or
flash. If a light turns on or flashes, but then turns off, this does not necessar-
ily indicate a malfunction in the system.
