2008 LEXUS RX400H mirror

49
1
Before driving
RX400h_U
1-4. Adjustable components (seats, mirrors, steering wheel)
Front seats
Flattening seatback■ Before flattening seatbacks
Slide the rear seats as far back as possible. ( →P. 5 2 )
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

50
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U■
Flattening seatbacks
Move the seat forward, raise the
seat, and remove the head-
restraint.
After returning the seat to its origi-
nal position, be certain to replace
the head restraint.
Move the seatback angle control
switch backward to flatten the
seatback.
Push the vertical height adjustment
switch downward.
STEP1
STEP2
STEP3

51
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
CAUTION
■Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to reduce
the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt, increas-
ing the risk of death or serious injury in the event of an accident.
■While driving
●Do not allow passengers to ride on the flattened seat.
●Do not drive with the head restraints removed.

52
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U

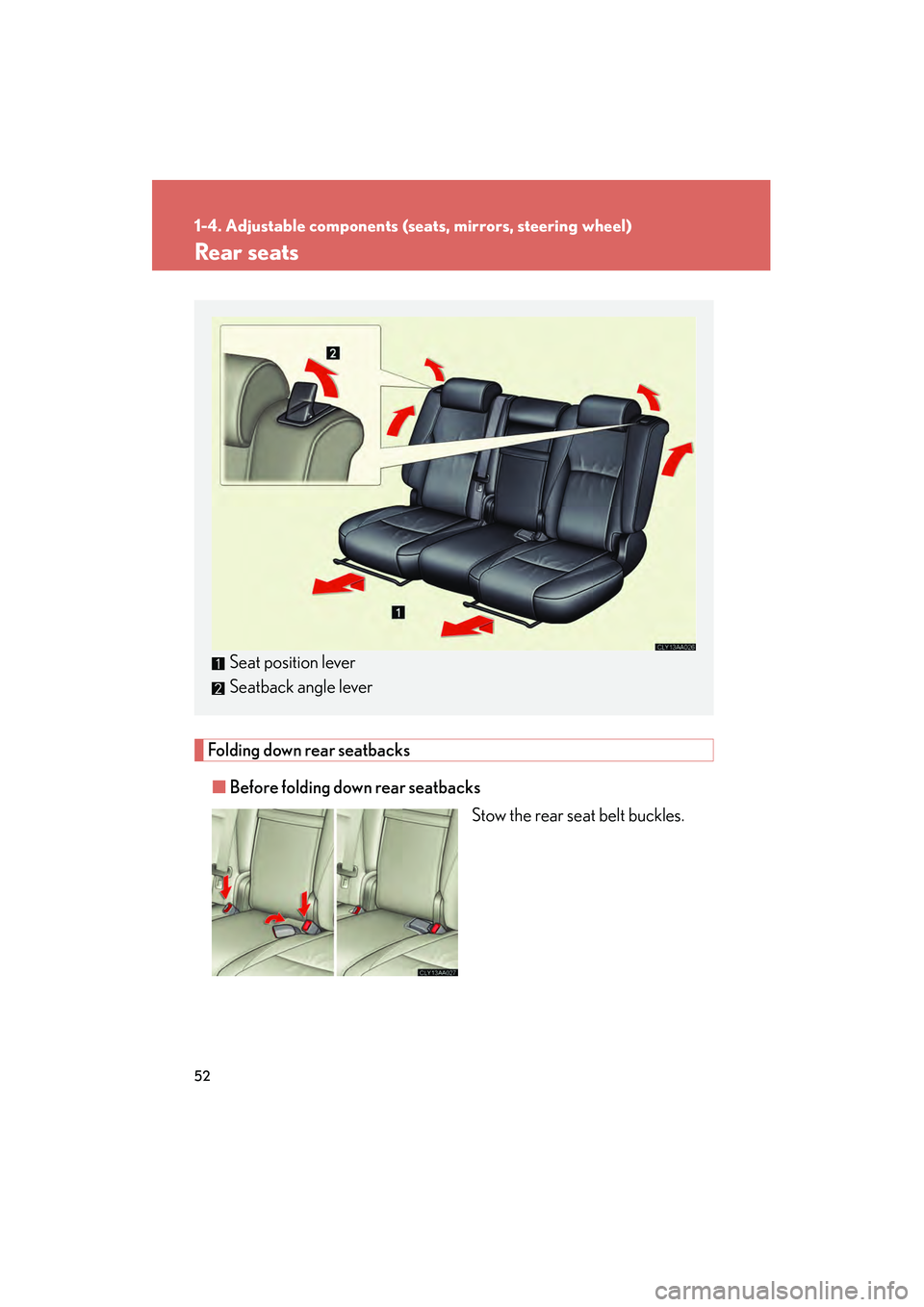

Rear seats
Folding down rear seatbacks■ Before folding down rear seatbacks
Stow the rear seat belt buckles.
Seat position lever
Seatback angle lever

53
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

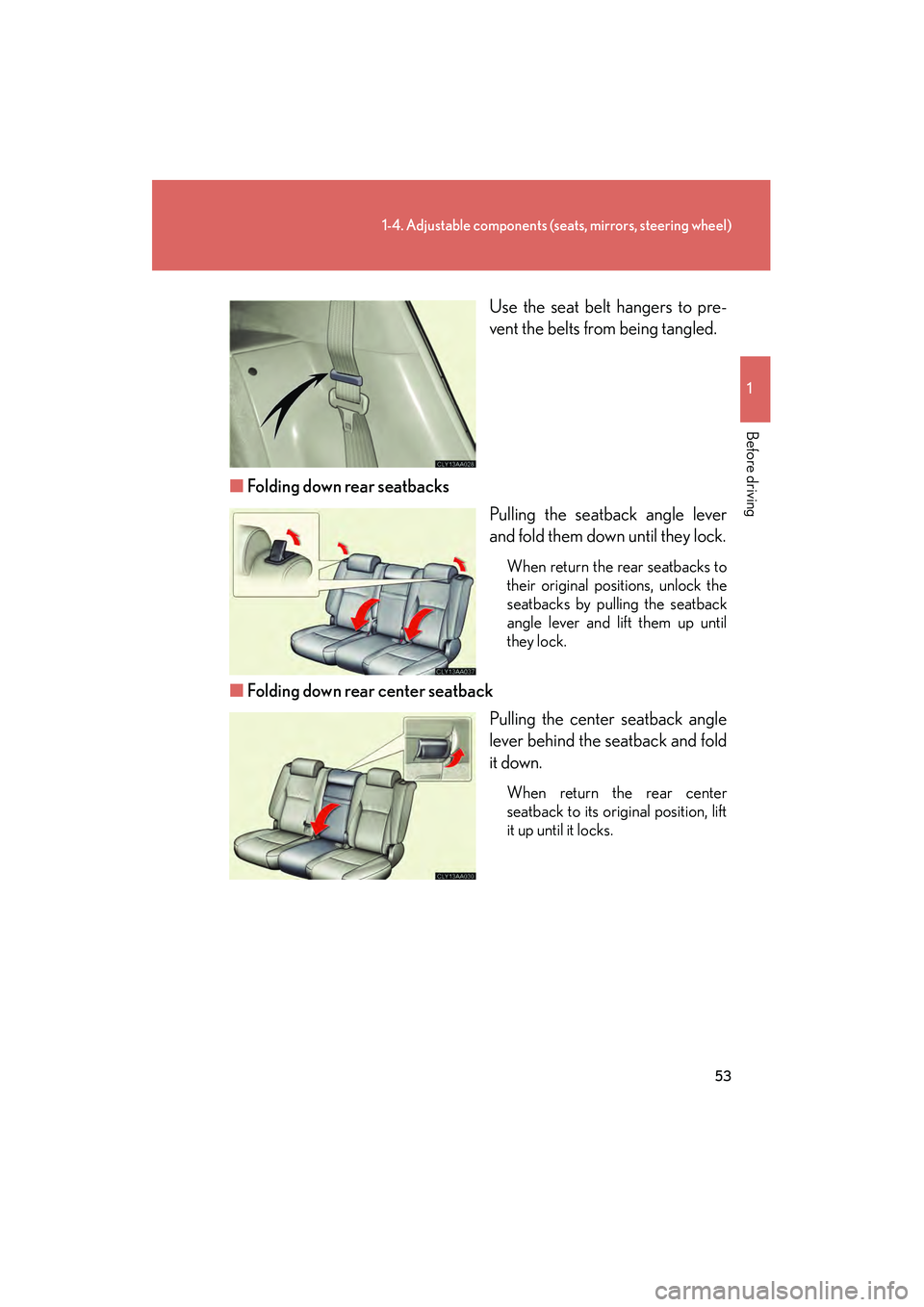

RX400h_UUse the seat belt hangers to pre-
vent the belts from being tangled.
■ Folding down rear seatbacks
Pulling the seatback angle lever
and fold them down until they lock.
When return the rear seatbacks to
their original positions, unlock the
seatbacks by pulling the seatback
angle lever and lift them up until
they lock.
■Folding down rear center seatback
Pulling the center seatback angle
lever behind the seatback and fold
it down.
When return the rear center
seatback to its original position, lift
it up until it locks.

54
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
CAUTION
■Seat adjustment
●Do not recline the seat more than necessary when the vehicle is in motion to
reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt
may slide past the hips and apply restraint forces directly to the abdomen or your
neck may contact the shoulder belt, increasing the risk of death or serious injury
in the event of an accident.
●Be careful not to get hands or feet pinched between the rear console box and the
rear seat when folding down the rear seatback.
■When returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Press forward and rearward on the top of the seatback.
●Check that the seat belts are not twisted or caught under the seat.
●Arrange the seat belts in the proper positions for ready use.
NOTICE
■Stowing the seatbelts
The seat belts and the buckles must be stowed before you fold down the rear
seatbacks.

55
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U
Driving position memory (if equipped)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button.
Two different driving positions can be entered into memory.
■ Entering a position to memory
Check that the shift lever is set in P.
Turn the engine switch to the ON position.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions. While pushing the SET button,
push button 1 or 2 until the sig-
nal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Check that the shift lever is set in P.
Turn the engine switch to the ON position. Push button 1 or 2 to recall the
memorized position.
STEP1
STEP2
STEP3
STEP1
STEP2

56
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
■Retained accessory power
Memorized positions (except for the steering wheel positions) can be activated up
to 30 seconds after the driver's door is opened, even if the key is removed from the
engine switch.
■If any position memory button is push ed while the adjustments are being mode
The operation will stop. To reactivate the system, push the desired button (1 or 2)
again.
■If the battery is disconnected
The memorized are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
