2008 LEXUS RX400H maintenance

362
4-3. Do-it-yourself maintenance
RX400h_U
77RADIO NO.27. 5
Instrument cluster lights, instrument
panel lights, navigation system, audio
system
78MIR HTR10Outside rear view mirror defogger
79PWR30
Power window, multiplex communica-
tion system (power door lock system,
wireless remote control system), out-
side rear view mirror
80P/ S E AT30Po w e r s e a t s
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 3 6 5 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
FuseAmpereCircuit

363
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.

364
4-3. Do-it-yourself maintenance
RX400h_U
Headlight aim (vehicles with discharge headlights)
■Vertical movement adjusting screw and bolt
Adjustment screw
Adjustment bolt
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■ Adjusting the headlight aim
Turn the screw in either direc-
tion using a Phillips-head screw-
driver.
Remember the turning direction
and the number of turns in mind.
Turn the bolt the same number
of turns and in the same direc-
tion as step 1 using a Phillips-
head screwdriver.
If the error is over the value
specified above, take the vehicle
to your Lexus dealer to adjust
the headlight aim.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 441)
■ Remove the engine compartment cover.
→ P. 317
■ Turn the power back door main switch OFF.
→ P. 4 5
■ Front bulb locations
Parking light Front turn
signal light
Front side
marker light
Headlight
low beam
(halogen bulb)
Headlight
high beam
(halogen bulb)

366
4-3. Do-it-yourself maintenance
RX400h_U
Replacing light bulbs■ Headlight high beam (halogen bulb)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■Rear bulb locations
CLY43AA065
Back-up light
License
plate light
Rear turn
signal light
Rear side
marker light
STEP1
STEP2

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U■
Headlight low beam (halogen bulb)
Turn the cover counterclockwise.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Front turn si gnal lights
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3
STEP1

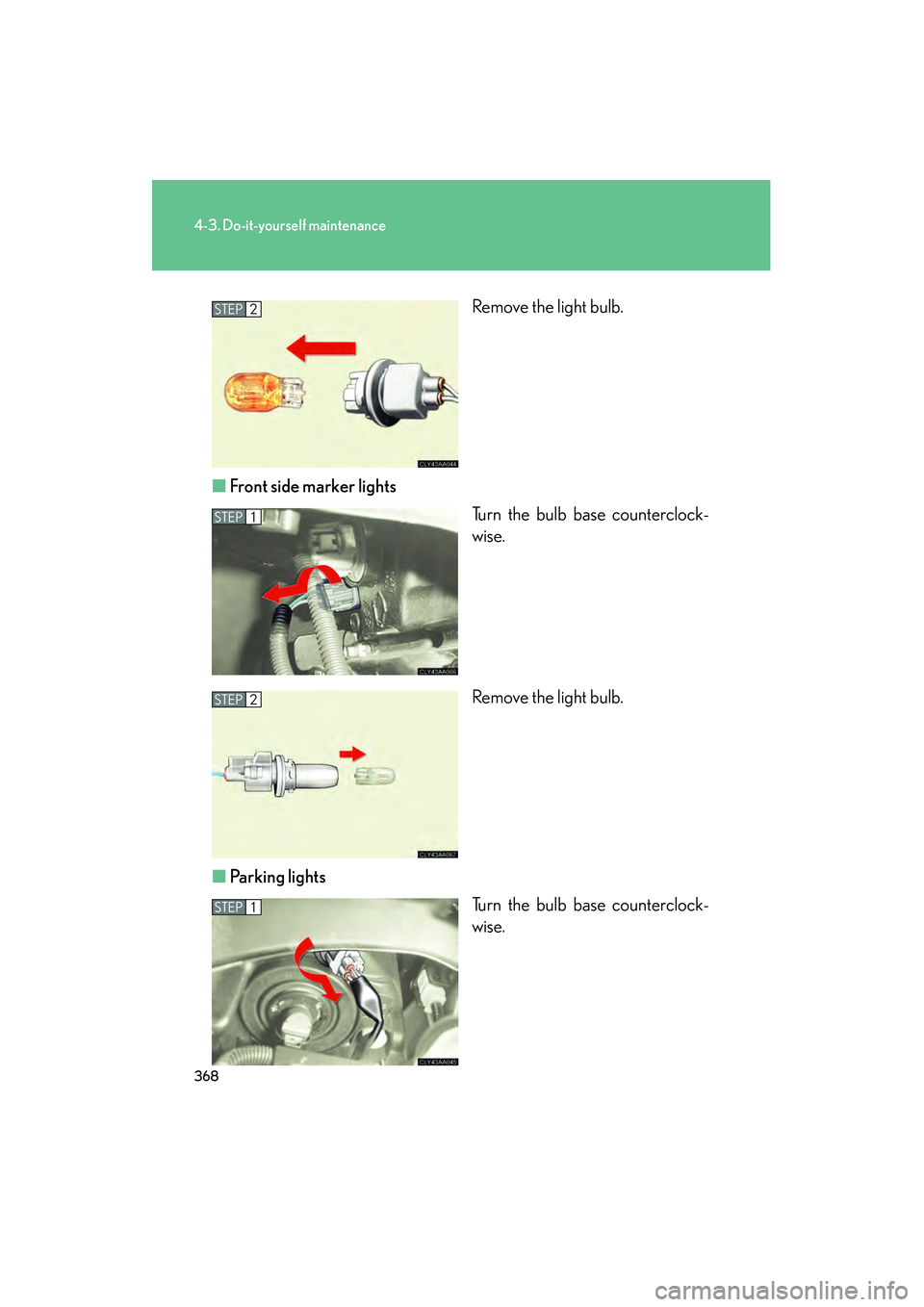

368
4-3. Do-it-yourself maintenance
RX400h_URemove the light bulb.
■ Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Parking lights
Turn the bulb base counterclock-
wise.
STEP2
STEP1
STEP2
STEP1

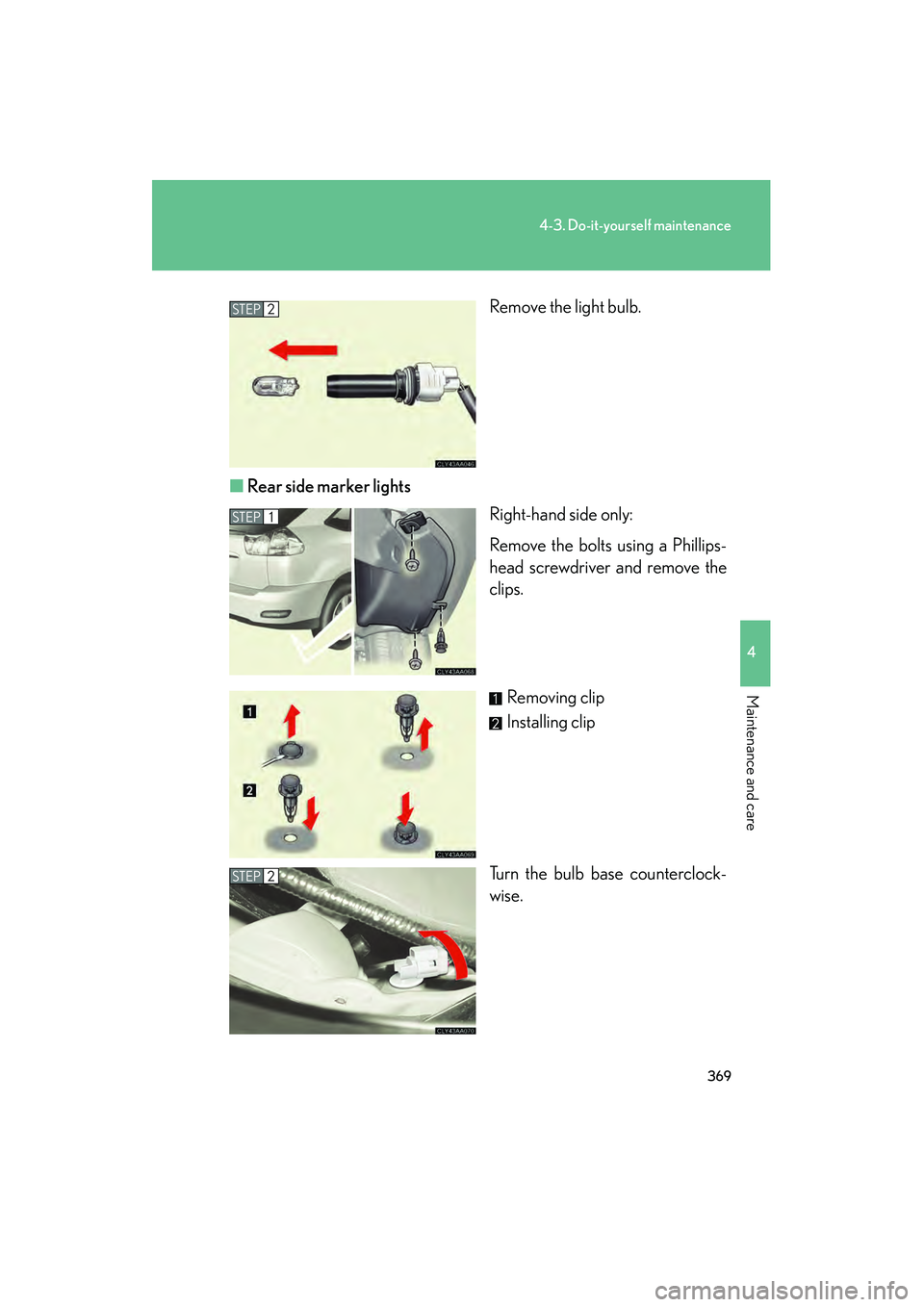

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_URemove the light bulb.
■ Rear side marker lights
Right-hand side only:
Remove the bolts using a Phillips-
head screwdriver and remove the
clips.
Removing clip
Installing clip
Turn the bulb base counterclock-
wise.
STEP2
STEP1
STEP2
