2008 Lexus IS F coolant temperature

122
2-1. Driving procedures
Selecting gears in the M positionTo enter M mode, shift the shift lever to the M position. Gears can then be
selected by operating the shift lever or paddle shift switches, allowing you
to drive in the gear of your choosing.
Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear, from 1 to 8, will
be displayed in the meter cluster.
When in the M position, the gear will not change unless the shift lever or
paddle shift switches are operated.
However, even when in the M positi on, the gears will be automatically
changed in the following situations:
● When vehicle speed drops (downshift only).
● When the automatic transmission flu id or engine coolant temperature
is low.

129
2-2. Instrument cluster
2
When driving

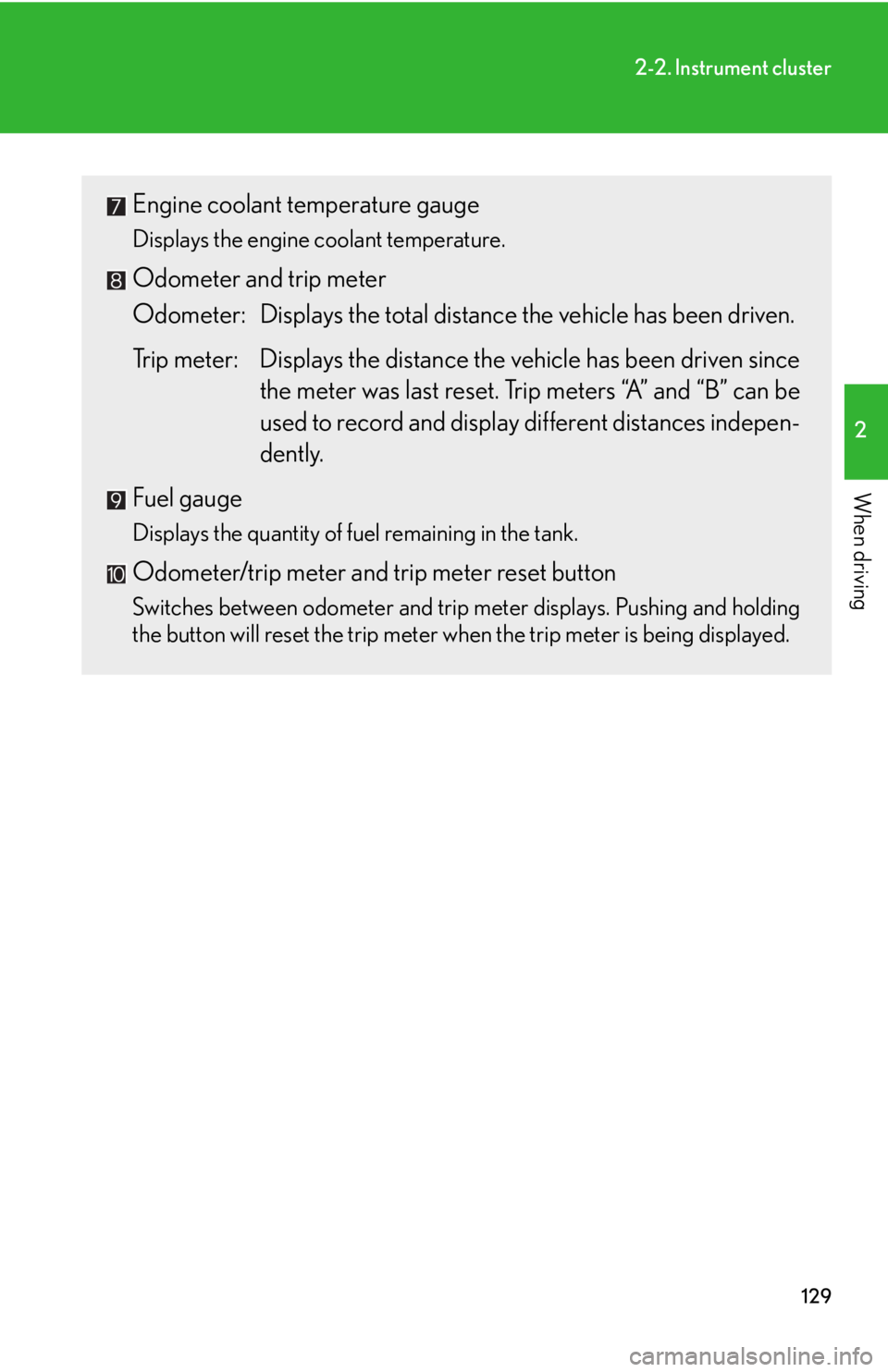

Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since
the meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances indepen-
dently.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.

131
2-2. Instrument cluster
2
When driving
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The following may indicate that the engine is overheating. Immediately stop the
vehicle in a safe place. (
P. 3 9 2 )
• The engine coolant temperature gauge is in the red zone (H)
• The display on the engine oil temperature gauge flashes
■When driving the vehicle
If the display on the voltage gauge starts to flash while the engine is running, it may
indicate that there is a malfunction in the vehicle’s charging system. Have your vehi-
cle inspected by your Lexus dealer.

278
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator , exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easi ly, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. ( P. 2 9 0 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.

392
5-2. Steps to take in an emergency
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. ( P. 283)
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the engine.
If the fan is not operating: Stop the engine immediately and call your local Lexus
dealer.
After the engine has cooled
down sufficiently, check the
engine coolant level and inspect
the radiator core (radiator) for
any leaks.STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
393
5-2. Steps to take in an emergency
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when in specting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartm ent may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fa n and belt while the engine is running.
●Do not loosen the coolant reservoir cap while the engine and radiator are hot.
Serious injury, such as burns, may resu lt from hot coolant and steam released
under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency measure if engine coolant
is unavailable. ( P. 4 0 3 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6

441
Alphabetical index
Electric power steering ....................... 166
Electronic keyIf the electronic key does not operate properly ............................ 386
Emergency, in case of If the engine will not start ............... 383
If the shift lever cannot be shifted from P ................................... 384
If the vehicle has discharged battery.................................................. 389
If the warning buzzer sounds......350
If the warning light turns on ..........350
If the warning message is displayed ............................................ 360
If you have a flat tire .........................374
If you lose your keys ........................385
If you think something is wrong................................................... 346
If the electronic key does not operate properly ............................ 386
If your vehicle becomes stuck .... 395
If your vehicle needs to be towed ................................................... 340
If your vehicle overheats................ 392 Engine
ACCESSORY mode......................... 114
Compartment......................................282
Engine switch .......................................... 114
Hood ........................................................ 279
How to start the engine ..................... 114
Identification number ...................... 399
If the engine will not start............... 383
Ignition switch ......................................... 114
Overheating .........................................392
Engine compartment cover .............283
Engine coolant Capacity ................................................ 403
Checking .............................................. 288
Preparing and checking before winter .....................................180
Engine coolant temperature gauge....................................................... 128
Engine immobilizer system.................. 70
Engine oil Capacity .................................................402
Checking ...............................................284
Preparing and checking before winter .....................................180
Engine oil maintenance data............286
EPS .............................................................. 166
Event data recorder ............................348E

449
What to do if...
What to do if...
A tire puncturesP. 3 74If you have a flat tire
The engine does not start
P. 3 8 3If the engine will not start
P. 7 0Engine immobilizer system
P. 3 8 9If the vehicle battery is discharged
The shift lever cannot be
moved outP. 3 8 4If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 3 9 2If your vehicle overheats
The key is lostP. 3 8 5If you lose your keys
The battery runs outP. 3 8 9If the vehicle battery is discharged
The doors cannot be lockedP. 3 7Doors
The horn begins to soundP. 7 2Alarm
The vehicle is stuck in mud or
sandP. 3 9 5If the vehicle becomes stuck
