2008 Lexus GX470 clock

TABLE OF CONTENTSIndex
4
Using the DVD player (MP3 discs) ................................. 246
Using the video mode ............... 248
Changing the initial setting ...... 249
3-4. Using the interior lights .......... 256 Interior lights list............................ 256
3-5. Using the storage features .... 259 List of storage features............... 259
3-6. Other interior features........... 264 Sun visors......................................... 264
Vanity mirror .................................. 265
Clock ................................................. 266
Outside temperature display ........................................... 268
Ashtrays ........................................... 269
Cigarette lighter ............................ 271
Power outlet ................................... 272
Seat heaters.................................... 274
Armrest ............................................ 276
Floor mats........................................ 277
Luggage compartment features .......................................... 278
Garage door opener................... 281
Compass......................................... 286
Lexus Link System ...................... 290 4-1. Maintenance and care............ 306
Cleaning and protecting the vehicle exterior ......................... 306
Cleaning and protecting the vehicle interior........................... 308
4-2. Maintenance................................ 311 Maintenance requirements ........ 311
General maintenance ................. 313
Emission inspection and maintenance (I/M)
programs ....................................... 316
4-3. Do-it-yourself maintenance............................. 317
Do-it-yourself service precautions ................................... 317
Hood................................................. 320
Engine compartment................... 321
Tires ................................................... 336
Tire inflation pressure................. 343
Wheels.............................................. 347
Air conditioning filter.................. 349
Wireless remote control battery............................................. 351
Rear seat entertainment system controller...................... 353
Checking and replacing fuses ............................................... 355
Light bulbs ....................................... 365
4Maintenance and care

67
1
Before driving
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Stop the engine and ensure that all the doors and windows are
closed.
■ Opening the fuel tank cap
Pull the fuel filler door lever.
To remove the fuel tank cap,
turn the cap slowly counter-
clockwise, then pause slightly
before removing it.
STEP1
STEP2

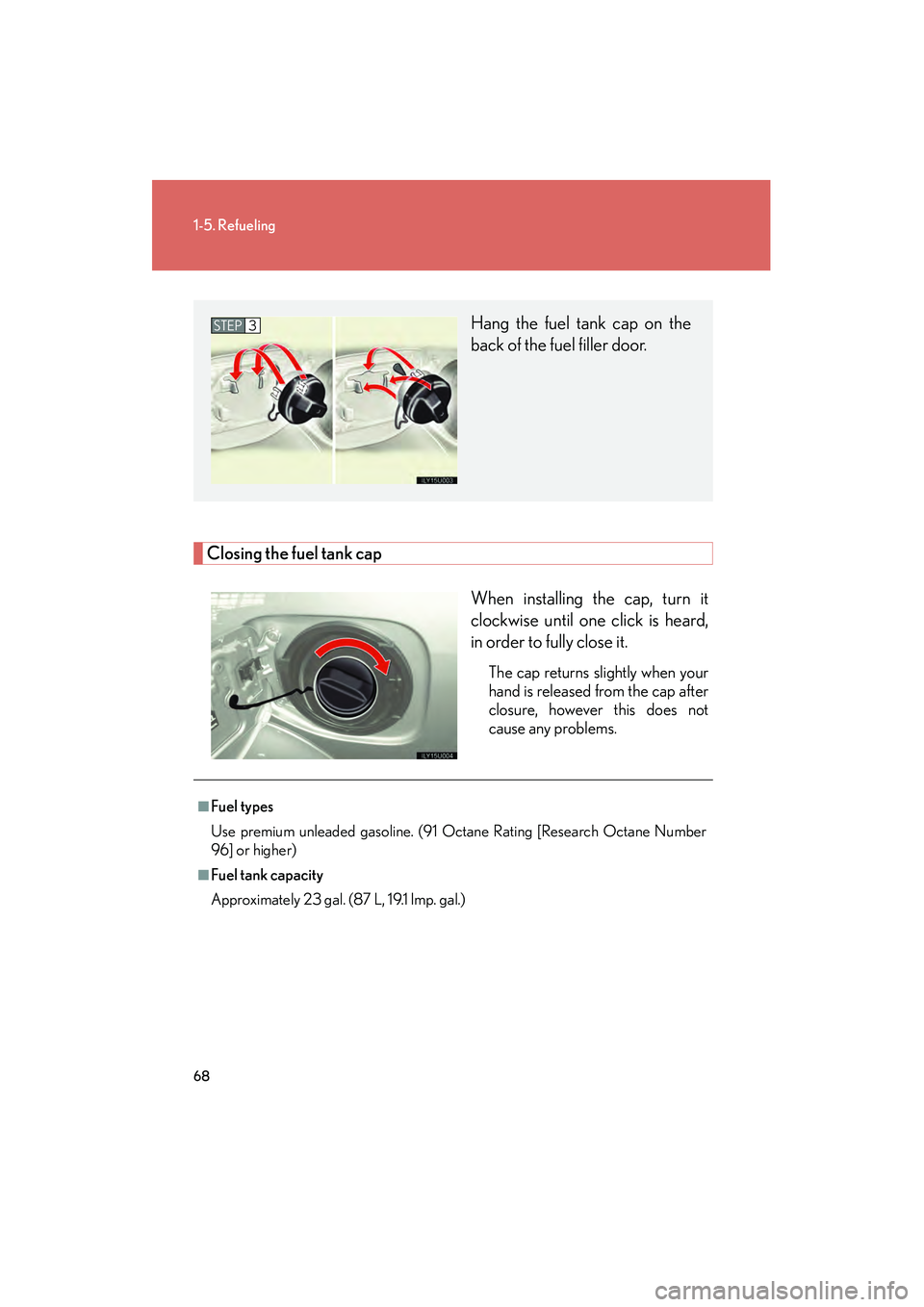

68
1-5. Refueling
Closing the fuel tank capWhen installing the cap, turn it
clockwise until one click is heard,
in order to fully close it.
The cap returns slightly when your
hand is released from the cap after
closure, however this does not
cause any problems.
Hang the fuel tank cap on the
back of the fuel filler door.STEP3
■Fuel types
Use premium unleaded gasoline. (91 Octane Rating [Research Octane Number
96] or higher)
■Fuel tank capacity
Approximately 23 gal. (87 L, 19.1 Imp. gal.)

132
2-2. Instrument cluster
Trip information display
The trip information display presents the driver with a variety of driving-
related data.
Trip information display•Clock(→P. 266)
• Outside temperature display (→ P. 2 6 8 )
• Average fuel consumption
• Current fuel consumption
• Driving range
•Average vehicle speed
• Barometer
• Altimeter
• Driving time
Display items can be switched
by pushing the “MODE” button.

168
2-5. Driving information
Cargo and luggage
Adjusting the position of cross railsTurn the knobs counterclockwise
to loosen the cross rails.
Take notice of the following information about storage precautions, cargo
capacity and load.
●Stow cargo and luggage in the luggage compartment whenever
possible. Be sure all items are secured in place.
● Be careful to keep the vehicle level. Placing the weight as far for-
ward as possible helps maintain vehicle balance.
● For better fuel economy, do not carry unnecessary weight.
■ Roof luggage carrier
Cross rails
Roof rails
STEP1

169
2-5. Driving information
2
When driving
Slide the cross rails to the appro-
priate position for loading luggage.
After adjusting, be sure to tighten
the cross rails by turning knobs
clockwise.
Capacity and distributionCargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capacity) — (Total weight of occupants)
Steps for Determining Correct Load Limit—
(1) Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s
placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and lug- gage load capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will be
five 150 lb passengers in your vehicle, the amount of available cargo
and luggage load capacity is 650 lbs. (1400 - 750 (5 × 150) = 650
lbs.)
STEP2

Interior features3
191
3-1. Using the air conditioning
system and defogger .... 192
Automatic air conditioning system ...................................... 192
Rear cooler system ................. 198
Rear window and outside rear view mirror
defoggers ............................... 199
3-2. Using the audio system ........................... 201
Audio system type................... 201
Using the radio....................... 203
Using the CD player ............... 211
Playing MP3 and WMA discs .......................................... 218
Optimal use of the audio system ..................................... 224
Using the AUX adapter ....... 227
Using the steering switches................................. 228
3-3. Using the rear audio system ............................ 231
Rear seat entertainment system features ..................... 231
Using the DVD player (DVD video) .......................... 236
Using the DVD player (video CD) ............................. 243
Using the DVD player (audio CD/CD text) ........... 245 Using the DVD player
(MP3 discs) .......................... 246
Using the video mode........... 248
Changing the initial setting ..................................... 249
3-4. Using the interior lights ............................. 256
Interior lights list .................... 256
3-5. Using the storage features ........................ 259
List of storage features......... 259
3-6. Other interior features ........................ 264
Sun visors ................................. 264
Vanity mirror ........................... 265
Clock ......................................... 266
Outside temperature display..................................... 268
Ashtrays.................................... 269
Cigarette lighter ...................... 271
Power outlet ............................ 272
Seat heaters ............................. 274
Armrest ..................................... 276
Floor mats ................................. 277
Luggage compartment features .................................. 278
Garage door opener ............. 281
Compass .................................. 286
Lexus Link System ................. 290

233
3-3. Using the rear audio system
3
Interior features
Ejecting a discPress and remove the disc.
Headphone jacks To use the headphones, connect
them to the jack.
To adjust the volume
Turn the dial clockwise to
increase the volume, and coun-
terclockwise to decrease the
volume.
