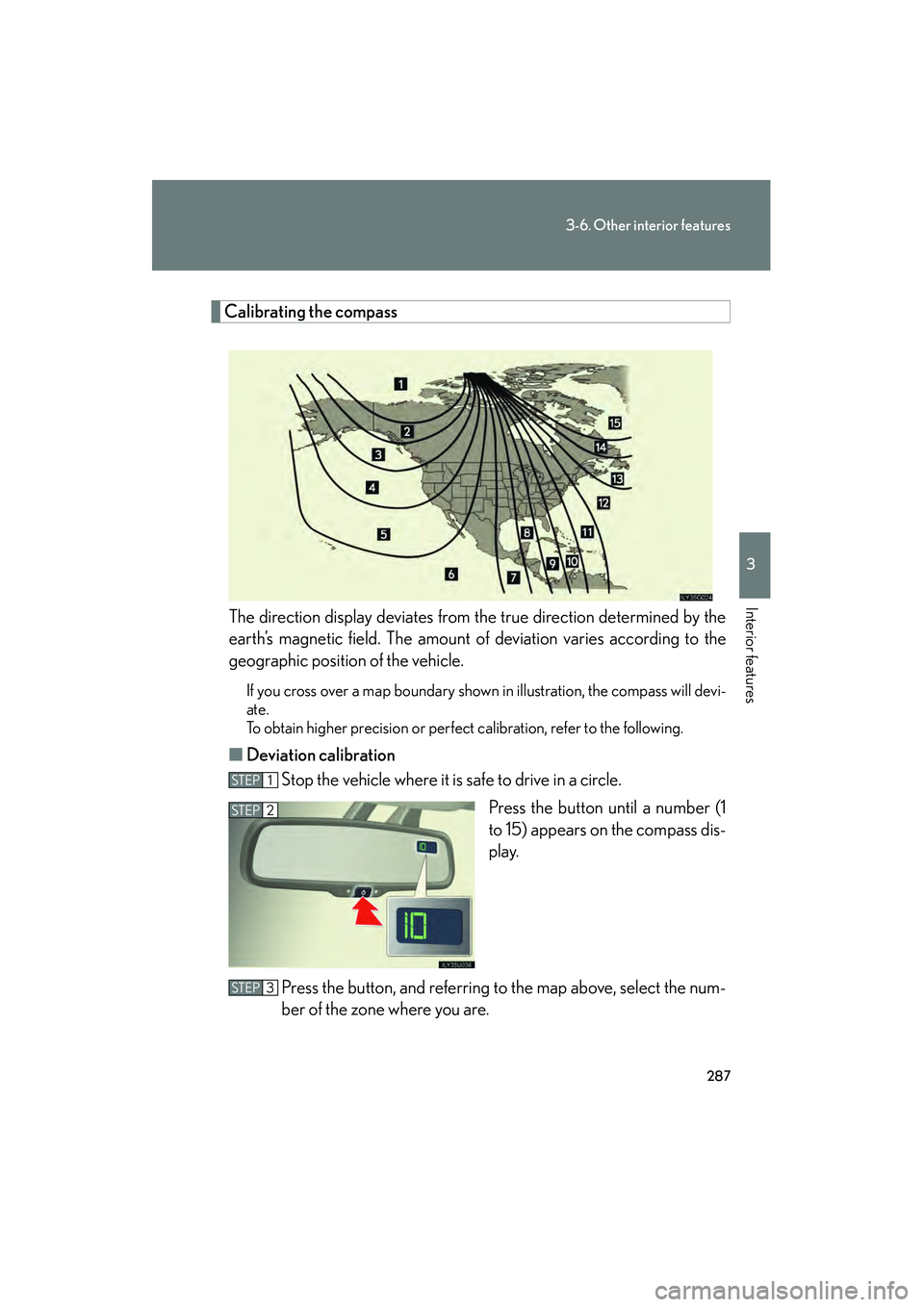

Calibrating the compassThe direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will devi-
ate.
To obtain higher precision or perfect calibration, refer to the following.
■ Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Press the button until a number (1
to 15) appears on the compass dis-
play.
Press the button, and referring to the map above, select the num-
ber of the zone where you are.
STEP1
STEP2
STEP3

288
3-6. Other interior features
Wait a few seconds until the compass direction is displayed.
The calibration is complete.
■Circling calibration
If “C” appears on the display, drive
the vehicle at 5 mph (8 km/h) or
less in a circle until a direction is
displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP4
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car park/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.

289
3-6. Other interior features
3
Interior features
CAUTION
■Caution while driving
Do not adjust the display.
Be sure to adjust the display only when the vehicle is stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth’s
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

326
4-3. Do-it-yourself maintenance
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds and fre-
quent acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km). If the vehicle consumes more than this amount, contact your Lexus dealer.
■Resetting the engine oil maintenance data (U.S.A. only)
Perform the following steps:Switch the display to the odometer. ( →P. 1 2 6 )
Turn the engine switch to the “LOCK” position.
Turn the engine switch to the “ON” position with the trip meter reset but-
ton held down.
Keep pressing the knob until the “MAINT REQD” light goes off.
If the light continues flashing, return to STEP 1 and try again.
STEP1
STEP2
STEP3
STEP4

359
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
25DOME10
Engine switch light, interior lights,
personal lights, foot lights, running
board lights, door courtesy lights,
inside door handle lights, trip infor-
mation display
26RADIO NO.120Audio system, navigation system
27ECU-B10
Multiplex communication system,
vehicle stability control system, wire-
less remote control system, inside
rear view mirror, air conditioning sys-
tem, electronic modulated suspen-
sion, driving position memory system,
power windows, moon roof, rear view
monitor system
28ECU-B NO.210Theft deterrent system
29ABS MTR40
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
30AM230Starting system, IGN, SRS, GAUGE,
ST2
31ABS SOL30
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
32ALT-S7. 5Charging system
33MAYDAY7. 5Lexus Link System
34HORN10Horns

363
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
22ACC7. 5
Shift lock control system, power out-
let, outside rear view mirror, audio
system, navigation system, power
rear view mirrors, trip information
display, rear view monitor system
23CIG10Cigarette lighter
24POWER OR
TI&TE30Power windows, moon roof, tilt and
telescopic steering
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 3 6 5 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
