2008 Lexus GX470 key

46
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be activated within 30 seconds after the driver’s door is opened, even if the key is
not in the engine switch.
■If any position memory button is pushed while the adjustments are being made
The operation will stop. To reactivate the system, push the button again.
■If the battery is disconnected
The memorized positions must be reset because the computer’s memory is erased
when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another seat position mem-
ory button.
■ Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the engine switch to the “ON” position. Push button “1” or “2” to recall
the desired position.
STEP1
STEP2

51
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
■Release method
The belt can be completely released when not required, such as when
removing the third seat.
To release the hooked tab, insert
the vehicle’s key into the hole on
the buckle with the light gray
buckle release button.
Stow the seat belt tabs in the cover
set in the roof as shown.
■ Extracting the belt
Pull the belt out partially, then remove the tabs from the cover.
STEP1
STEP2

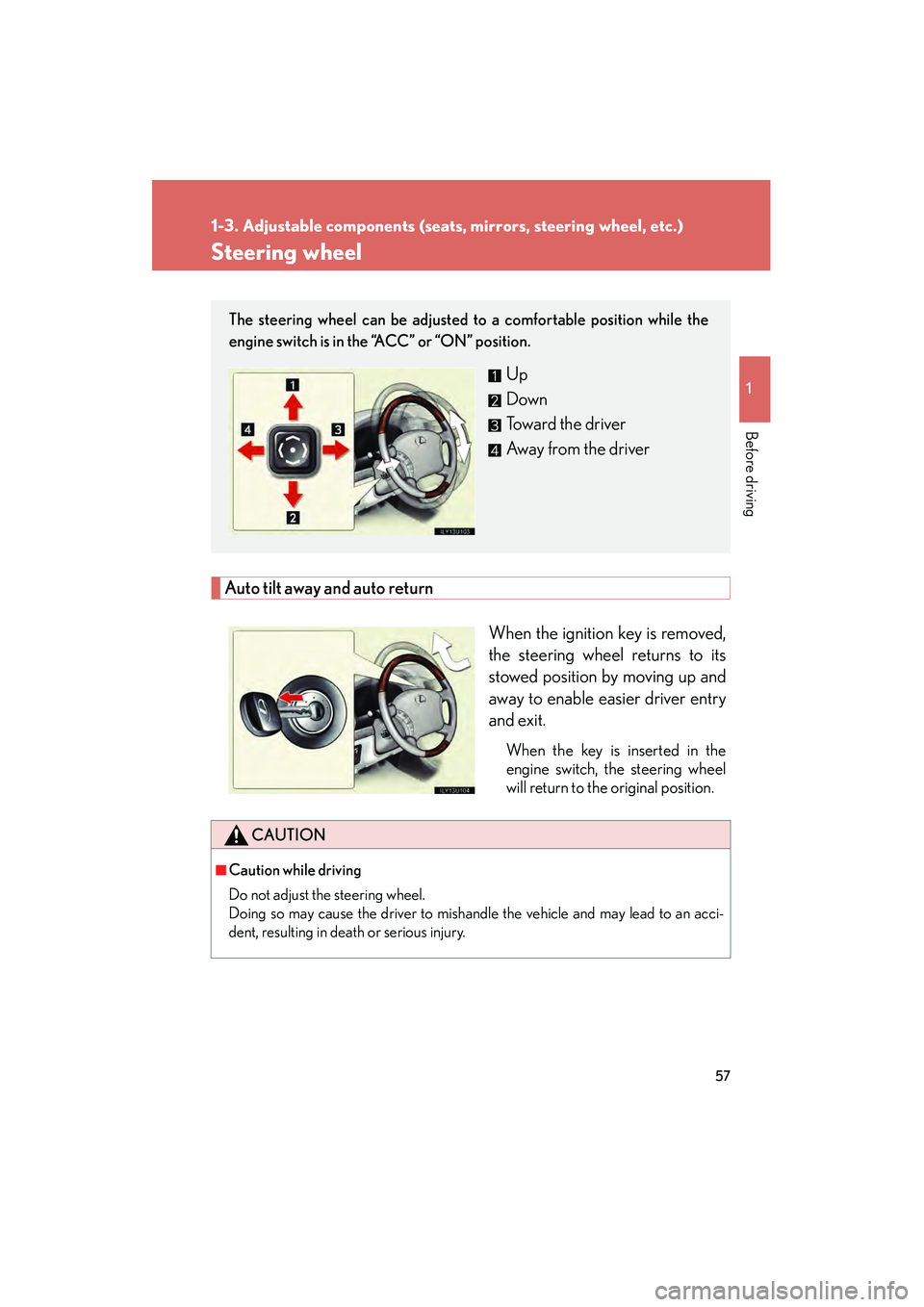

57
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
Steering wheel
Auto tilt away and auto return
When the ignition key is removed,
the steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
When the key is inserted in the
engine switch, the steering wheel
will return to the original position.
The steering wheel can be adjusted to a comfortable position while the
engine switch is in the “ACC” or “ON” position.
Up
Down
Toward the driver
Away from the driver
CAUTION
■Caution while driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and may lead to an acci-
dent, resulting in death or serious injury.

62
1-4. Opening and closing the windows and moon roof
■The power windows can be operated when
The engine switch is in the “ON” position.
■Linked door lock window operation
●The power windows can be opened and closed using the key. (→P. 2 6 )
●The power windows can be opened using the wireless remote control. ( →P. 2 4 )
■Retained accessory power operation
The power windows can be operated for approximately 45 seconds even after the
engine switch is turned to the “ACC” or “LOCK” position. They cannot, however, be
operated once the driver’s or fr ont passenger’s door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the battery is disconnected
The power windows must be initialized in order to ensure proper operation.
(Perform for each window with the switch for each seat.)
Open the window halfway.
Fully close the window by pulling the switch up and continue holding the
switch for 1 second.
The indicator on the switch changes from a flashing pattern to being on when initial-
ization are complete.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 4 3 6 )
STEP1
STEP2

65
1-4. Opening and closing the windows and moon roof
1
Before driving
■The moon roof can be operated when
The engine switch is in the “ON” position.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the key. (→P. 2 6 )
●The moon roof can be opened using the wireless remote control. ( →P. 2 4 )
■Retained accessory power operation
The moon roof can be operated for approximately 45 seconds even after the
engine switch is turned to the “ACC” or “LOCK” position. It cannot, however, be
operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and th e moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the switch depressed.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■When the battery is disconnected
The moon roof must be initialized in order to ensure proper operation.
Close the moon roof fully.
Hold down the “TILT UP” button until th e moon roof tilts all the way up and
then tilts down a little automatically.
To ensure initialization is complete, make sure automatic opening and
closing functions work properly.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 4 3 6 )
STEP1
STEP2
STEP3

70
1-6. Theft deterrent system
Engine immobilizer system
■System maintenance
The vehicle has a maintenance-free type of engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
■Certifications for the engine immobilizer system For vehicles sold in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle’s
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the engine switch has been
turned to the “LOCK” position
to indicate that the system is
operating.
FCC ID: MOZRI-20BTY

72
1-6. Theft deterrent system
Alarm
Deactivating or stopping the alarmDo one of the following:
● Unlock the doors using the key or the wireless remote control.
● Start the engine.
■Items to check before locking the vehicle
To prevent unintended triggering of the alarm, check that there is no one in the vehi-
cle, and that all windows and the moon roof are closed before locking the vehicle.
■When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is discharged before canceling the alarm, the system may be triggered
when the battery is reconnected.
The system sounds the alarm and flashes lights when forcible entry is
detected.
To arm the alarm, exit the vehi-
cle, make sure that the doors
and hood are closed, and lock
all the doors.
The system will operate auto-
matically once the indicator
begins to flashing.

110
2-1. Driving procedures
Driving the vehicle
Starting on a steep inclineFirmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving.
■Starting the engine ( →P. 118)
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. (→P. 121)
Release the parking brake. (→ P. 125)
Gradually release the brake pedal and gently push the accel-
erator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P” or “N”. ( →P. 121)
■Parking the vehicle
With the shift lever in “D”, push the brake pedal.
Set the parking brake. (→ P. 125)
Shift the shift lever to “P”. (→ P. 121)
Turn the engine switch to stop the engine.
Lock the door, making sure that you have the key on your per-
son.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
